Self-Locking Long D Shackle - Diameter 6mm - 1/4"Features: Self-locking long shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications CE Marking and batch number Applications: Standard applications of shackle requiring more length Attachment applications: blocks, head... Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 700 Breaking load (lb) 3520 Weight (lb) 0.06 Dimensions (see 2nd image): A (inch) 1-19/64" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" F (inch) 1-27/32" G (inch) 1-7/32"

Read more less

Self-Locking Long D Shackle - Diameter 8mm - 5/16"Features: Self-locking long shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications CE Marking and batch number Applications: Standard applications of shackle requiring more length Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.146 Dimensions (see 2nd image): A (inch) 1-49/64" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" F (inch) 2-33/64" G (inch) 1-39/64"

Read more less

Self-Locking Twisted Shackle - Diameter 5mm - 3/16"Features: Self-locking twisted shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Perfect for application where a 90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Specifications: Materials 316 stainless steel grade Working load (lb) 1050 Breaking load (lb) 2420 Weight (lb) 0.035 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 25/64" C (inch) 13/64" D (inch) 25/64" D diameter (inch) 13/64" E (inch) 5/32" F (inch) 1-1/2" H (inch) 1-1/32"

Read more less

Self-Locking Twisted Shackle - Diameter 6mm - 1/4"Features: Self-locking twisted shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Perfect for application where a  90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Specifications: Materials 316 stainless steel grade Working load (lb) 1320 Breaking load (lb) 3300 Weight (lb) 0.06 Dimensions (see 2nd page): A (inch) 1-3/16" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" F (inch) 1-49/64"

Read more less

Self-Locking Twisted Shackle - Diameter 8mm - 5/16"Features: Self-locking twisted shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Perfect for application where a 90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Specifications: Materials 316 stainless steel grade Working load (lb) 2200 Breaking load (lb) 6610 Weight (lb) 0.148 Dimensions (see 2nd image): A (inch)1-37/64" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" F (inch) 2-23/64"

Read more less

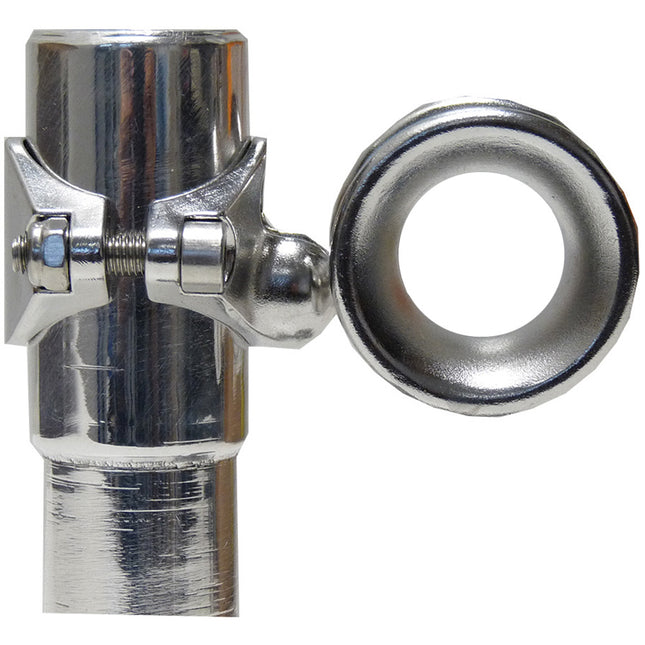

Single Articulated Fairlead for 25mm & 28mm Diameter StanchionFeatures:Stainless steel Applications:The perfect solution to deviate furling line of manual furlers or flying sail furlers with drumSpecifications: Max line diameter: (inch) 25/32" / (mm) 20  Materials: 316L stainless steel grade Weight: (lb) 0.243 / (g) 110 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Single Fairlead - 25mm Diameter Stanchion - FixedThe single fairlead has been designed to be installed on a 25 mm stanchion and can be fitted with a 20 mm furling line. This fairlead has no moving parts and thus offers a greater lifespan and minimal maintenance.Applications:Perfect solution to deviate furling line of manual furlers or flying sail furlers with drumSpecifications: Materials: 316L stainless steel grade Weight: (lb) 0.176 / (g) 80 Diameter: (inch) 0.98" / (mm) 25 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Snap Hook - Length 3-15/16"Features: Grade 316L forged snap hook Various applications onboard Outstanding working and breaking loads Modern design Applications:Various uses onboard: fastening applicationsSpecifications: Materials 316L stainless steel grade Length (inch) 3 15/16" Working load (lb) 2460 Breaking load (lb) 3300 Weight (lb) 0.41 A (inch) 5/8" B (inch) 33/64"

Read more less

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")Features: Free rotation thanks to snap shackle Very strong closing system Easy opening by simply pulling on the plunger pin Shock and scratch-resistant thanks to the elastomer molded cheeks Applications: Changing sheets Spinnaker sheet deflector blocks Materials:  HR 17.4 PH forged stainless steel arm  Elastomer molded cheeks Composite sheave Specifications: Rope size: (inch) 15/32" / (mm) 12 Length: (inch) 5 45/64" / (mm) 145 Width: (inch) 2 21/64" / (mm) 59 Thickness: (inch) 1 11/16" / (mm) 43 Working Load: (lb) 1580 / (kg) 720 Breaking Load: (lb) 2860 / (kg) 1300 Weight: (lb) 0.56 / (g) 254 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")Features: Free rotation thanks to snap shackle Very strong closing system Easy opening by simply pulling on the plunger pin Shock and scratch-resistant thanks to the elastomer molded cheeks Applications: Changing sheets Spinnaker sheet deflector blocks Materials:  HR 17.4 PH forged stainless steel arm  Elastomer molded cheeks Composite sheave Specifications: Rope size: (inch) 23/32" / (mm) 18 Length: (inch) 6 7/64" / (mm) 155 Width: (inch) 2 21/64" / (mm) 59 Thickness: (inch) 1 59/64" / (mm) 49 Working Load: (lb) 2640 / (kg) 1200 Breaking Load: (lb) 5510 / (kg) 2500 Weight: (lb) 0.913 / (g) 414 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Soft Snatch Block - 10mm Rope SizeAvailable in 4 models, the collection of soft snatch blocks will quickly become an essential piece of kit: flying sail furling, Furler terminals, rigging deviation, and barber-haulers.Made from anodized aluminum, these are both lightweight and robust. The Dyneema loop ensures easy installation. They are easy to open and close too, thanks to the Velcro strip.Applications: Terminals for flying sail furlers 2/1 mainsail halyard Rigging deviation Barber-hauler Specifications: Materials -Anodized aluminium - Dyneema loop  Rope size -10mm Loop diameter - 5mm Working load (lb) 4400 Breaking load (lb) 8810 Weight (lb) 0.218 Dimensions: A (inch) 25/64" B (inch) 2 21/64" C (inch) 1 39/64" D diameter (inch) 13/64"
