75WR-4 Transducer Housing WrenchA single-handed wrench that holds the main thru-hull housing via the 'wrench flats' on the side of the housing to facilitate tightening of the hull nut. Use wrench 75WR-2 or 75WR-3 for the hull nut.For use with:
B75
SS75
Specifications:
Type: Tools
Box Dimensions: 1"H x 5"W x 10"L WT: 0.6 lbs

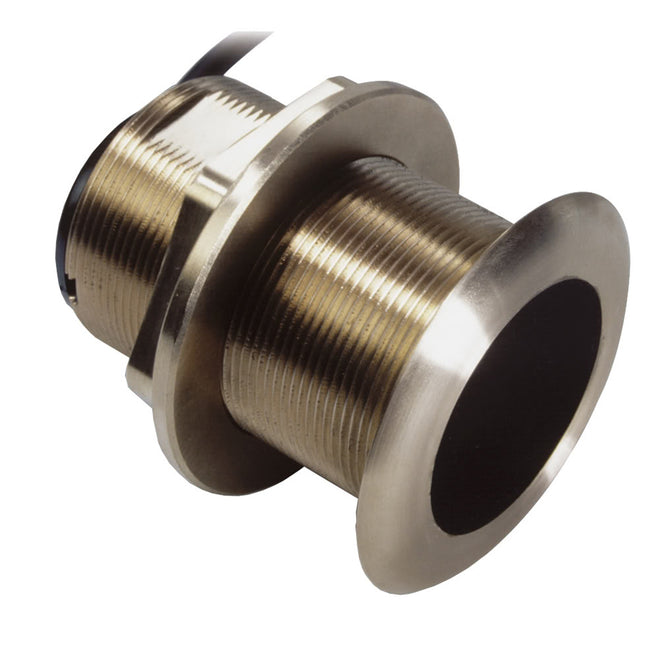

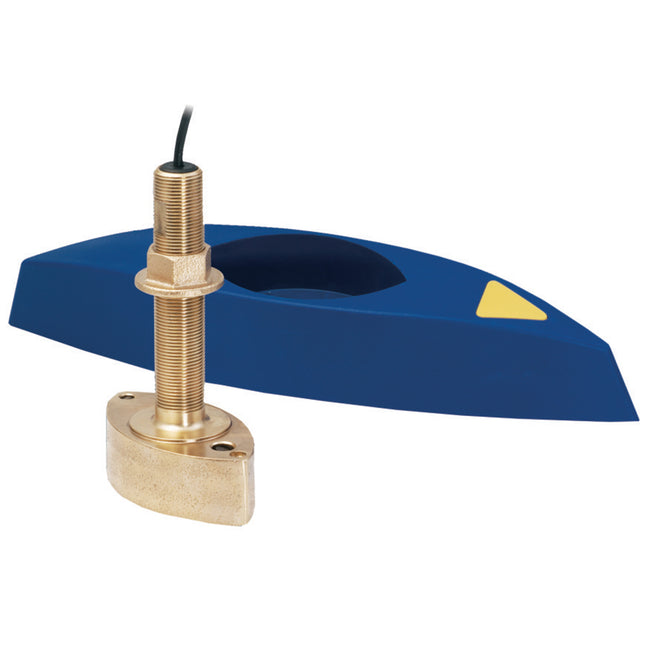

B117 50/200kHz 600W Mix & Match 0° DeadriseAirmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.Features:
Depth only or depth and fast-response water-temperature sensing
600 W of power
Dual-frequency element:
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
200 kHz with a 12° beamwidth for depth performance to 206 m (700')
Right-angle cable exit saves space and protects the transducer if stepped on
The included rubber washer allows tightening of the hull nut to irregular hull surfaces
Low-profile, bronze housing has minimal drag
Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials
Specifications:
Power Rating: 600 W
Max Deadrise Angle: 12°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 8 m (26')
Hole Size: 51 mm (2")
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
Conventional Beam: 45°/12°
Max Deadrise: Best performance through 7°. Accommodates up to 12°
Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
Mounting Style: Low Profile Thru-Hull
Retractable housing: No
Single or Dual Frequency: Conventional Dual Frequency
Weight: 0.9 kg (2 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Chirp: No
Imagining: Standard
Mounting Style: Thru-Hull
Speed Included: No
Temperature: Yes
Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs
UPC: 801769000238

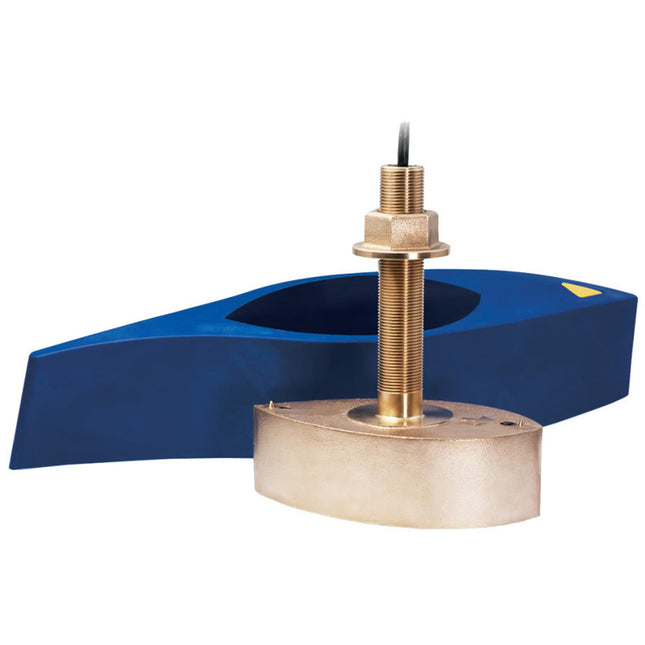

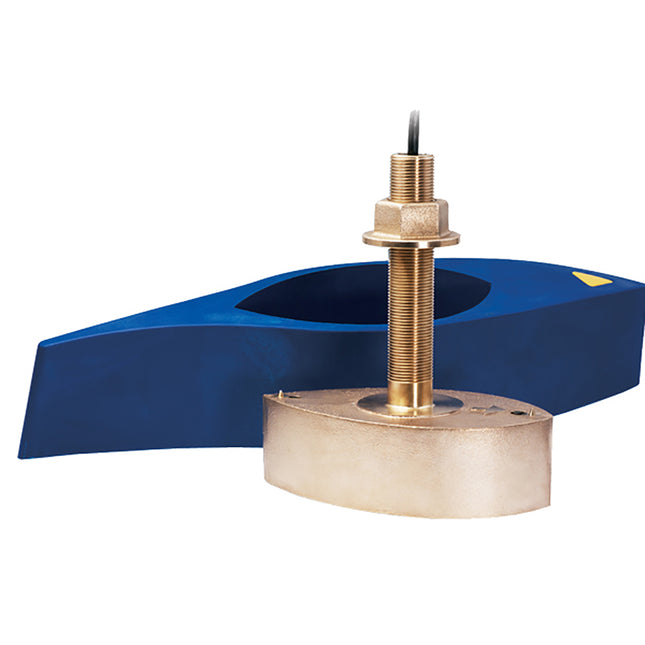

B117 Bronze 0° Depth & Temp with Ray Connector for CP370 & DSM300The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials. Features:
Bronze Housing
Depth and Temperature Only
Usable Shaft Length: 66.5 mm (2.62”)
Replacement nut—405
10 m (33’) cable length
Boat Size: 8 m (25’) and up
Ideal for center-console and trailered boats
Frequency: 50/200 kHz
Maximum Depth Range:
50 kHz: 800-1200 ft
200 kHz: 400-700 ft
Cone: 50 kHz—45°, 200 kHz—12°
RMS Power: 600 W
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

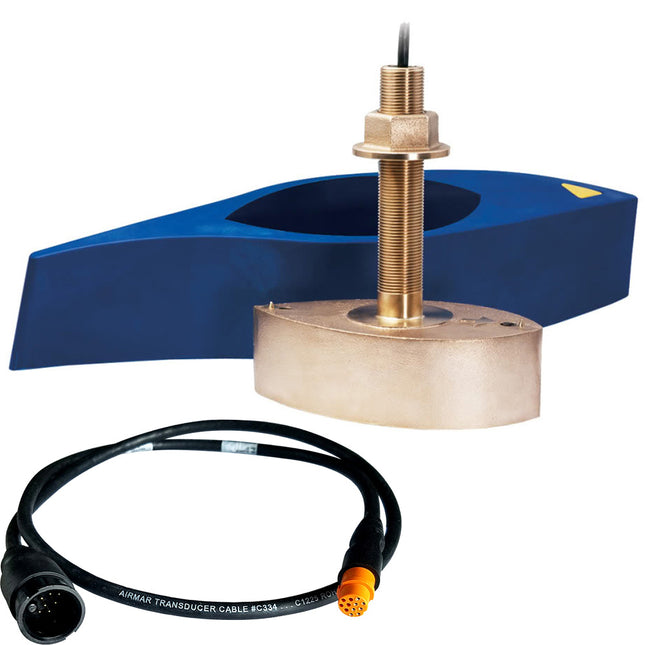

B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-PinThe B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.Features
Industry standard for low-profile transducers
Depth and temperature
Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
Right angle cable exit offers low headroom and protection when transducer is stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Housings are ABYC H-27 compliant
Optional temperature sensor
Bronze transducer housing
Boat Size: 8M (25') and up
Specifications:
Weight: Bronze - 0.9 kg (2.0 lb)
Hull Deadrise: Up to 8°
Acoustic Window: Urethane
Hole Diameter: 51mm (2")
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Mounting Style: Thru-Hull
Temperature: Yes
Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
B150M Bronze 20 Degree Thru-Hull 300W 8-PinAs CHIRP continues to redefine recreational fishing, AIRMAR has expanded its lineup of broadband transducers to satisfy the growing demand for this game-changing technology. New to the market is AIRMAR’s B150C-M, an economical CHIRP transducer designed for anglers with a focus on inland or freshwater fishing with ultra-clear target resolution.Operating at a frequency range of 95-155 kHz, the B150C-M delivers a sweet spot for fishing in shallow waters and medium depths (up to 2,500 feet*) along with ultra-clear target resolution. The transducer’s precise sweep pattern of the medium frequency results in an expanded viewing area with larger and clearer images of the fish displayed on the echo sounder.Features:
Medium Frequency Only
Depth & fast-response water temperature
Depths vary depending on target strength and sea conditions
60 kHz of total bandwidth from one transducer
Medium-Frequency (M)
Medium—Chirps from 95 kHz to 155 kHz, 26° to 17° beamwidth
Covers popular fishing frequency of 107 kHz, plus everything else in the bandwidth
Fishing Profile: Recreational, medium depths, inland, and freshwater
Bronze B619 housing
Hull Type: Fiberglass or wood
Supported Deadrise/Transom Angles - 0-7° Deadrise
1 internal ceramic
Fits: Garmin xs Series
B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector for GarminAirmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Features:
Depth and fast-response water-temperature sensor
1 kW with depth tracking down to 400 m (1,300')
Medium frequency: 60-100 kHz
57° to 73° beamwidth (port/starboard)
16° average fore/aft
40 kHz of total bandwidth from one transducer
Medium frequency for superior mid-depth performance and excellent fish-target separation
Bronze housing for use on stepped, planing, or displacement hull
Low-profile, thru-hull housing yields good resolution at speed when installed properly
Exclusive Xducer ID® technology
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Pins: 12-Pin
Box Dimensions: 8"H x 10"W x 12"L WT: 9.9 lbs

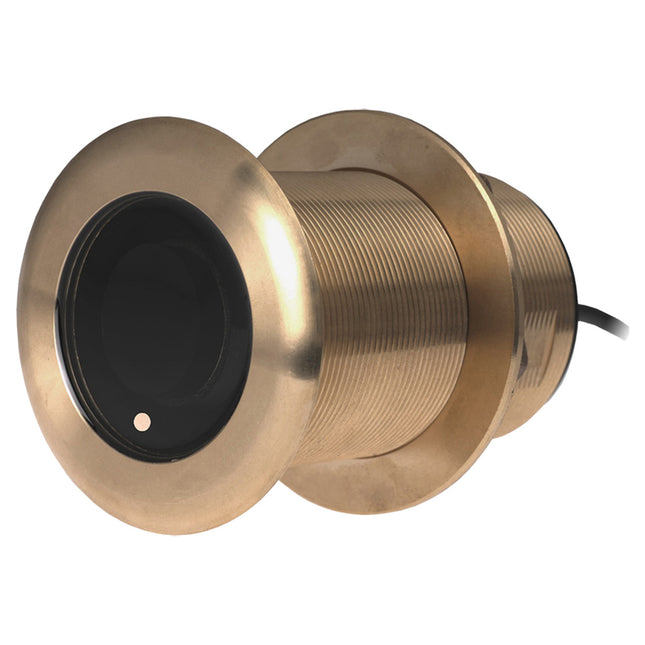

B175H Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:
Garmin 8-Pin Mix & Match Cable for Chirp Transducers
Depth and fast-response water-temperature sensing
1 kW of power with a maximum depth of 304 m (1000')
High frequency: 130 to 210 kHz
10° to 6° beamwidth
80 kHz of total bandwidth from one transducer
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
Low-profile, thru-hull housing yields good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Bronze housing for use in a fiberglass or wood hull
Also available in a stainless steel housing (SS175H) for use in all hull materials
Patented Xducer ID® technology
Specifications:
Power Rating: 1 kW
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 11 m (36')
Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
Usable Shaft Length: 71 mm (2.80")
Mounting Style: Tilted Element Thru-Hull
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
High Frequency: 130-210 kHz
High Frequency Beamwidth: 15°-9°
Max Deadrise: Up to 24°
Max Depth: 304 m (1000')
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Single-Band
Tilted Element: Yes
Weight: 2.7 kg (6 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Airmar B175H Bronze Thru Hull with 12° Tilt 8 Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features
Fixed 12° tilted version for 8 to 15° hull deadrise angles
Depth and fast-response water-temperature sensing
1 kW of power with a maximum depth of 304 m (1000')
High frequency: 130 to 210 kHz
10° to 6° beamwidth
80 kHz of total bandwidth from one transducer
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
Low-profile, thru-hull housing yields good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Bronze housing for use in a fiberglass or wood hull
Patented Xducer ID® technology
Specifications
Power Rating: 1 kW
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 11 m (36')
Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
Usable Shaft Length: 71 mm (2.80")
Mounting Style: Tilted Element Thru-Hull
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
High Frequency: 130-210 kHz
High Frequency Beamwidth: 15°-9°
Max Deadrise: Up to 24°
Max Depth: 304 m (1000')
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Single-Band
Tilted Element: Yes
Weight: 2.7 kg (6 lbs.)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Cable Length (Feet): 39'
Chirp: High
Imagining: Standard
Mounting Style: Thru-Hull
Pins: 8
Speed Included: No
Temperature: Yes
Box Dimensions: 1"H x 6"W x 9"L WT: 0.1 lbs
Owner's Manual (pdf)Brochure (pdf)
B175H Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:
Garmin 8-Pin Mix & Match Cable for Chirp Transducers
Depth and fast-response water-temperature sensing
1 kW of power with a maximum depth of 304 m (1000')
High frequency: 130 to 210 kHz
10° to 6° beamwidth
80 kHz of total bandwidth from one transducer
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
Low-profile, thru-hull housing yields good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Bronze housing for use in a fiberglass or wood hull
Also available in a stainless steel housing (SS175H) for use in all hull materials
Patented Xducer ID® technology
Specifications:
Power Rating: 1 kW
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 11 m (36')
Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
Usable Shaft Length: 71 mm (2.80")
Mounting Style: Tilted Element Thru-Hull
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
High Frequency: 130-210 kHz
High Frequency Beamwidth: 15°-9°
Max Deadrise: Up to 24°
Max Depth: 304 m (1000')
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Single-Band
Tilted Element: Yes
Weight: 2.7 kg (6 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
B175H Bronze Thru Hull 12° Tilt - 1kWRequires Mix and Match CableB175H Bronze Thru Hull 20 degree Tilt 1KWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features:
High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
12° tilted version, 1KW
80 kHz of total bandwidth from one transducer
Depth & fast-response water-temperature sensor
Bronze transducer housing
Boat Size: Up to 11 m (36’)
Hull Type: Fiberglass or wood
Exclusive Xducer ID® technology
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Mounting Style: Thru-Hull
Chirp: High
Box Dimensions: 8"H x 11"W x 12"L WT: 10.8 lbs
UPC: 801769001914
B175H Bronze Thru Hull 20° Tilt - 1kWRequires Mix and Match CableRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.Features:
High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
20° tilted version, 1KW
80 kHz of total bandwidth from one transducer
Depth & fast-response water-temperature sensor
Bronze transducer housing
Boat Size: Up to 11 m (36’)
Hull Type: Fiberglass or wood
Exclusive Xducer ID® technology
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Mounting Style: Thru-Hull
Chirp: High
Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs
UPC: 801769001921
B175HW Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:
Garmin 8-Pin Mix & Match Cable for Chirp Transducers
Depth and fast-response water-temperature sensing
1 kW of power
High frequency: 150 to 250 kHz
Constant 25° beamwidth
Maximum depth of 152 m (500')
100 kHz of total bandwidth from one transducer
Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth
Low-profile, thru-hull housing provides good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Bronze housing for use in fiberglass or wood hull
Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts
Patented Xducer ID® technology
Specifications:
Power Rating: 1 kW
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 11 m (36')
Hole Size: 95 mm (3-3/4")
Usable Shaft Length: 71 mm (2.80")
Mounting Style: Tilted Element Thru-Hull
Acoustic Window: Urethane
Common Use: Fishing
High Frequency: 150-250 kHz
High-Wide Beamwidth: 25°
Max Deadrise: Up to 24°
Max Depth: 150 m (500')
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Single-Band
Tilted Element: Yes
Weight: 2.7 kg (6 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
