AC Power Supply 10/13A, 24V Out, 85-265V InThe PWI320 Intelligent Power Supply delivers a full 300 watts of output power for communications, control or a wide variety of other devices. It is fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.The Power Supply is preset to the same voltage as a fully charged battery of the nominal output voltage (ie. 13.6V for a 12V model, etc.). The voltage can be adjusted over a reasonable range using the front panel controls, or the PowerWizard software that is free to download from www.analyticsystems.com.Seven dual color LEDs clearly indicate output current levels as well as indicating faults with the Power Supply. Safety features include Power Supply over temperature shutdown, current limiting, short circuit protection, input under voltage shutdown and output overvoltage protection all with automatic recovery.  PWI320MW model available with MIL connectors, extra input and output filtering and sealed to IP66.Features: Digital Signal Processor controlled Universal worldwide AC input Computer programmable Simple front panel controls Easy connection to loads High Vibration Rugged Duty Dry Contact Output Fail Relay Carrying Handle Canbus / RS232 / Remote Control port Five year parts and labour warranty

Read more less

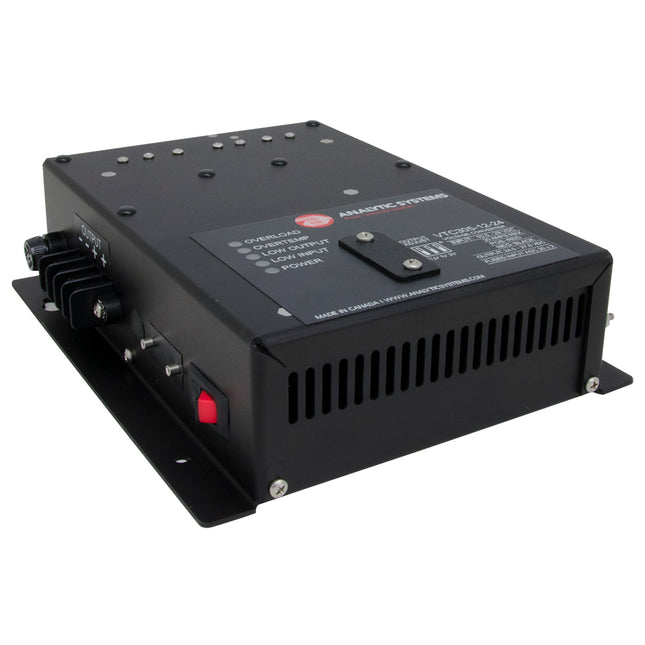

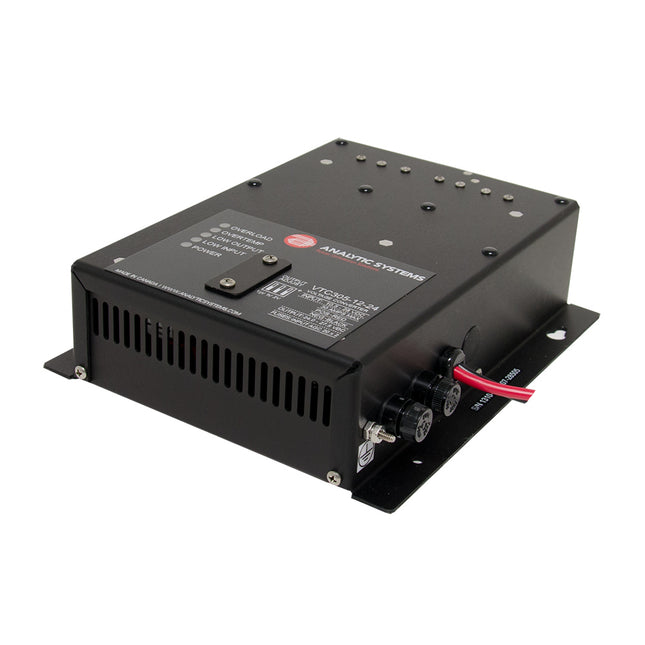

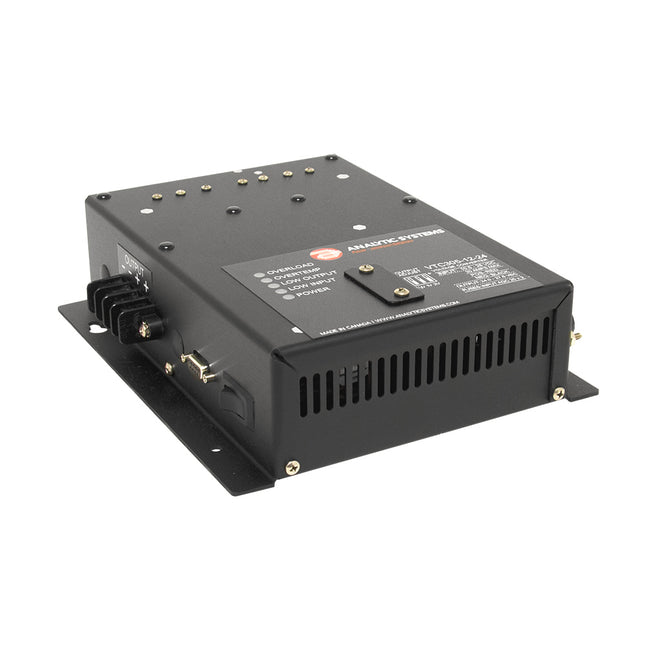

Non Iso DC/DC Converter 13A, 24V Out, 11-15V InStep up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system. Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include a dry contact alarm relay output, and remote panel monitoring with On/Off control. Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12 and 24 VDC power systems in marine, automotive or aeronautical environments and more. Features: Ultra-quiet Rugged and reliable to ensure years of safe and trouble free operation Simple operation Current limiting protection Paralleling Diodes European ROHS Compliant (Lead Free Manufactured) Electric Fork Lift (Filtering and Surge Suppression) Open Frame (No chassis just heat sink bars) Safety Special Inspection (CSA/UL) Heavy duty ruggedization with wide temperature range Custom input/output available Three year parts and labour warranty Specifications: Charger Input - Voltage: 11-15 VDC Charger Output - Amps: 13 Amp Charger Output Voltage: 24v Box Dimensions: 7"H x 11"W x 12"L WT: 4.85 lbs

Read more less

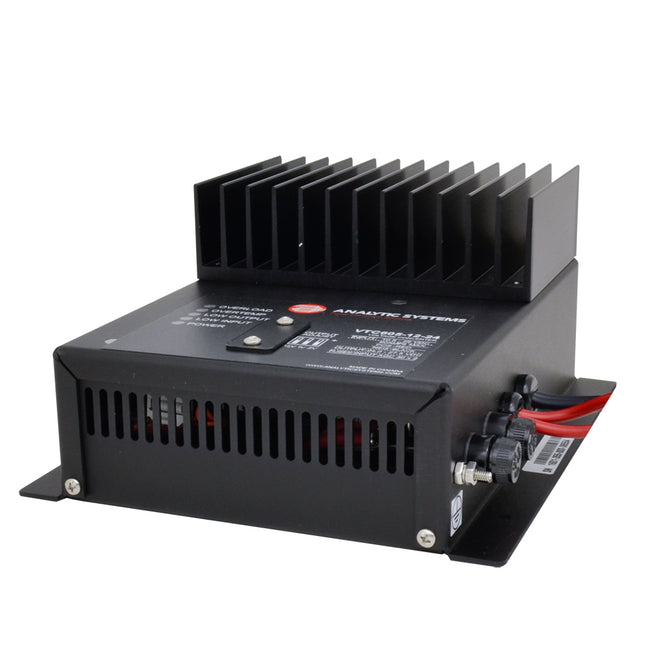

Non Iso DC/DC Converter 22A, 24V Out, 11-15V InStep up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 DC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system.Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, a dry contact alarm relay output and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage,the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include remote panel monitoring with On/Off control.Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12V and 24 VDC power systems in marine, automotive or aeronautical environments and more.Features: Ultra-quiet power sensitive electronics without interference Rugged and reliable to ensure years of safe and trouble free operation Power sensitive electronics without interference Simple operation Paralleling Diodes European ROHS Compliant (Lead Free Manufactured) Electric Fork Lift (Filtering and Surge Suppression) Open Frame (No chassis just heat sink bars) Safety Special Inspection (CSA/UL) Heavy duty ruggedization with wide temperature range Custom input/output available Three year parts and labour warranty Specifications: Charger Input - Voltage: 11-15 VDC Charger Output - Amps: 22 Amp Charger Output Voltage: 24v Box Dimensions: 7"H x 11"W x 12"L WT: 6.65 lbs

Read more less

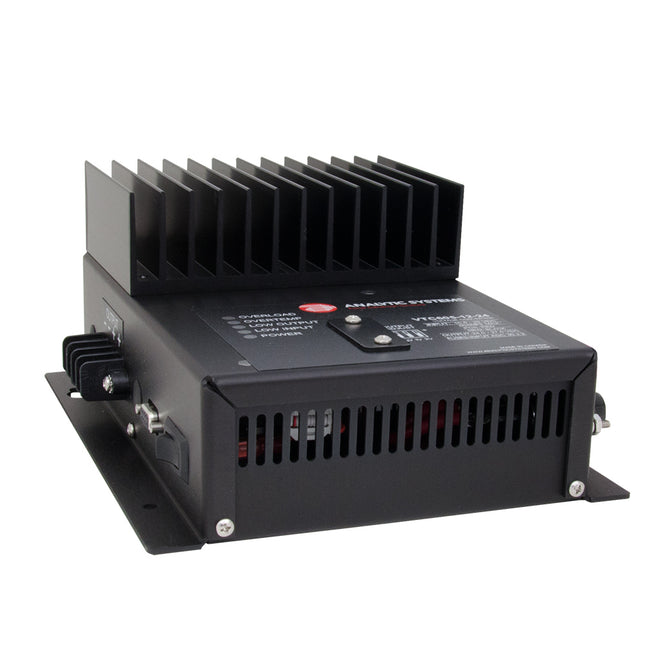

Non Isolated DC/DC Converter 27A - 12V Out - 11-15V InStep up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system. Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include a dry contact alarm relay output, and remote panel monitoring with On/Off control. Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12 and 24 VDC power systems in marine, automotive or aeronautical environments and more. Features: Ultra-quiet Rugged and reliable to ensure years of safe and trouble free operation Simple operation Current limiting protection Paralleling Diodes European ROHS Compliant (Lead Free Manufactured) Electric Fork Lift (Filtering and Surge Suppression) Open Frame (No chassis just heat sink bars) Safety Special Inspection (CSA/UL) Heavy duty ruggedization with wide temperature range Custom input/output available Three year parts and labour warranty Owner's Manual (pdf)Brochure (pdf)

Read more less

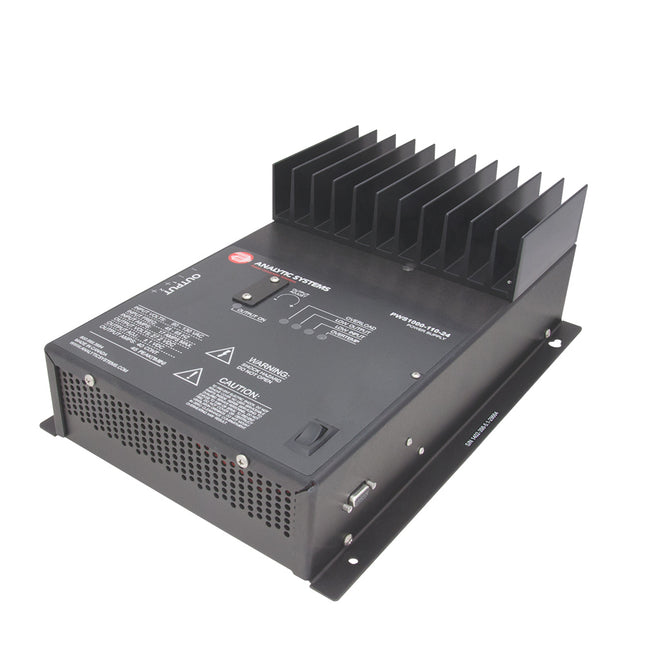

Power Supply 110AC to 12DC/70AThe PWS1000 Series of power supplies provides 12, 24 or 48 Volts DC at 1000 Watts of continuous power from a 110 or 220 Volt AC source.Analytic Systems’ power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.The newly updated single-board PWS1000 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input (Field Convertible) is available. The PWS1000 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.Features: Power sensitive electronics without interference Rugged and reliable to ensure years of safe and trouble free operation Adjustable output voltage Extremely rugged and well suited for marine and other demanding environments Ultra-quiet low EMI operation Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature Over-temperature shutdown Current limiting Short circuit protection Output overvoltage crowbar Dry contact output fail relay Remote control option Digital Volt/Ammeter option Custom output voltages available (8V to 55V) 19” Rackmount Available Parallel output diodes available Three year parts and labour warranty Specifications: Charger Input - Voltage: 110v Charger Output - Amps: 60-70a Charger Output Voltage: 12v Box Dimensions: 7"H x 12"W x 16"L WT: 12.3 lbs

Read more less

Power Supply 110AC to 24DC/40AThe PWS1000 Series of power supplies provides 12, 24 or 48 Volts DC at 1000 Watts of continuous power from a 110 or 220 Volt AC source.Analytic Systems’ power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.The newly updated single-board PWS1000 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input (Field Convertible) is available. The PWS1000 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.Features: Power sensitive electronics without interference Rugged and reliable to ensure years of safe and trouble free operation Adjustable output voltage Extremely rugged and well suited for marine and other demanding environments Ultra-quiet low EMI operation Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature Over-temperature shutdown Current limiting Short circuit protection Output overvoltage crowbar Dry contact output fail relay Remote control option Digital Volt/Ammeter option Custom output voltages available (8V to 55V) 19” Rackmount Available Parallel output diodes available Three year parts and labour warranty

Read more less

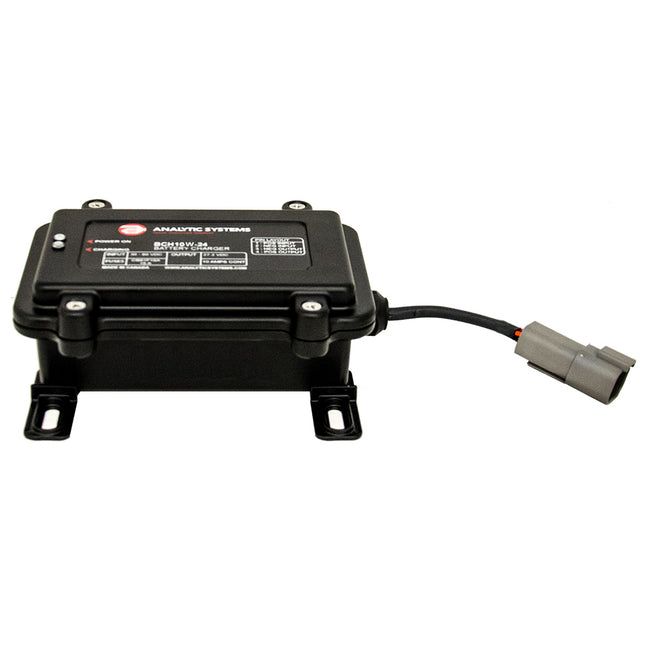

Waterproof IP66 DC Battery Charger 10A, 12V Out, 20-80V In, RuggedizedThe BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery.The standard BCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade BCH10MW features separate bayonet style MIL connectors for input and output.The all surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size.The BCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.The unit has reverse input protection, reverse battery connection protection, output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.Features: Watertight O-ring sealed and EMC gasketed enclosure ‘Output ON’ and “Charging” LED indicators Up to 80V input Compact size and easy mounting Deutsch DT04-4P connector on pigtail or MIL connectors Heavy duty ruggedization with wide temperature range Custom output voltages available Custom connector arrangements Input and output EMC filters Two year warranty (parts and labor) Specifications: Charger Input - Voltage: 20-80v Charger Output - Amps: 10a Charger Output Voltage: 12v Box Dimensions: 5"H x 8"W x 9"L WT: 2.1 lbs
