NMEA 2000 T-Connector - 1-Way Extension BlockAs the NMEA 2000 network expands beyond the 3-device limit of Digital Yacht’s NMEA 2000 Starter Kit, users can use one of these single T-pieces to add devices. With male > female > female connectors, multiple T-pieces can be plugged together or added to the 4-way T-piece included in the starter kit. The lower “drop cable” connector is female so that there are no exposed pins when the drop cable is removed.*Digital Yacht can supply NMEA 2000 cables and connectors to expand the NMEA 2000 to whatever size is needed (up to the maximum 50 NMEA 2000 device limit).Features: NMEA 2000 Single T-Piece Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating of IP68 Quick Guide (pdf)

Read more less

NMEA 2000 T-Connector - 6 PortsAs the NMEA 2000 network expands beyond the 3-device limit of Digital Yacht’s NMEA 2000 Starter Kit, users can use this 4-way T-piece to add another four additional devices. With male > female > female connectors, multiple T-pieces can be plugged together or added to the 4-way T-piece included in the starter kit. Also, The 4x lower “drop cable” connector is female so that there are no exposed pins when the drop cable is removed.*Digital Yacht can supply NMEA 2000 cables and connectors to expand the NMEA 2000 to whatever size is needed (up to the maximum 50 NMEA 2000 device limit).Features: NMEA 2000 4 x T-pieces Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating of IP68 Quick Guide (pdf)

Read more less

NMEA 2000 Transducer Smart Sensor DTS810This combination transducer gives you accurate information about depth, speed and water temperature. The transducer is supplied with a thru-hull / ground sleeve for installation in the bottom of the vessel. The transducer can be easily pulled out for cleaning and maintenance. The data from the Triducer can be displayed on any radar, chart plotter, or device that accepts NMEA 0183 or NMEA 2000® data. The Airmar type DST810 breakthrough sensor fits into the Airmar type P617V breakthrough sleeve (included with the DST810). Because the widely used airmar thru-hull transducer type DST800 is also supplied with the thru-hull type P617V, an exchange / upgrade of existing transducers of the type DST800 with the type DST810 is possible without much effort. Popular depth sensor for shallow water performance.

Read more less

NMEA Adapter f/PCThe USB to NMEA Serial Adaptor cable is a simple and effective method for connecting NMEA 0183 compatible marine equipment to a PC. Each cable contains a small internal electronic circuit board, housed in the USB connector. This circuitry provides full bi-directional conversion of the serial data and also includes Tx and Rx LEDs which give a visual indication of data traffic on the cable. The other end of the cable is bare, tinned wire ended connections which can be quickly connected to the NMEA 0183 compatible equipment with suitable connector block or terminals. The cable is FCC, CE and RoHS compliant. The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 1 Mbaud. Drivers are available for WinXP, Vista, Win7, LINUX and Mac OS X. Quick Guide (pdf)

Read more less

Nomad 2 Portable AIS with GV30Nomad 2 is a portable AIS transponder from Digital Yacht. Designed for recreational boaters and professional mariners, it offers a full-function Class B AIS transponder with a wireless and USB interface built in for tablets and PCs—all in a portable, compact package.It incorporates an innovative USB power solution, therefore allowing the Nomad to be powered from any standard USB source. This can include low-cost 3rd-party battery packs, a USB PC connection, or 12V USB adaptors/cigarette lighter adaptors. It ships with a compact combination of AIS and GPS antenna, which allows the main unit to be used below decks on all types of vessels – leisure, and commercial.It addresses the needs of so many boaters who want a portable yet sophisticated navigation solution with AIS and GPS and the ability to interface with tablets, PCs, and smartphones. It appeals to charter skippers, professional mariners like delivery skippers and pilots, as well as boat owners who don’t want the hassle or cost of installing a dedicated transponder and like the concept of easy iPad and tablet navigation using their favorite charting apps with a detailed AIS overlay and real-time GPS positioning. As a full-function Class B transponder, it also sends the boat position to other AIS users.Nomad 2 has a built-in wireless interface for outputting GPS position data and AIS. It’s designed for use with an iPad, tablet, phone, or PC in conjunction with any compatible charting app or program—Navionics, NavLINK, Weather 4D, AquaMap, Imray, SailGrib, and 100’s more.The unit can also act as an AIS/GPS receiver only if MMSI and specific boat data are not available.ConfigurationNomad 2 has a built-in web interface. The configuration of the transponder can be done through a computer, a tablet, or even a smartphone, and most importantly, no software is required.You can configure the Nomad 2 through its simple web interface. Just open the web browser, enter the Nomad 2’s IP address, and users can configure the vessel details (MMSI number, boat name, etc.), network name, and password, and even merge the AIS’s WiFi to an existing WiFi network on board. So no complicated programming software or app is required.You can even view the received NMEA data in the web browser for easy fault-finding. Finally, Nomad 2 supports TCP and UDP network protocols for maximum compatibility with apps.Features: The perfect AIS solution for charter users, rental boats, delivery skippers, pilots, commercial users, etc. Full-function Class B transponder (send and receive AIS) Supplied with a combination GPS-VHF antenna that has an industry standard 1” threaded mount – suitable for many 3rd party deck, rail, and pole mounts Integrated wireless and USB interfaces – compatible with 100s AIS-ready charting apps USB powered Easy programming and control through a wireless web interface – no apps required Silence transmissions via the web interface Supports up to 7 connected devices Creates its access point and also can join an existing wireless network if required Specifications: Weight: 1200 g Dimensions: 245 × 165 × 100 mm What’s inside the Box? Nomad Class B Transponder 3db Wifi Antenna Integrated USB (Type A) Power Data Cable GV30 Combination AIS/GPS Antenna With 5m Cable And Connectors Instructions Specifications: AIS Class: B Antenna Included: Yes Box Dimensions: 4"H x 10"W x 13"L WT: 3.5 lbs UPC: 703791696635 Owner's Manual (pdf)

Read more less

NS5 5 Port Marine Network SwitchMore and more boats now have a wireless router fitted or utilize devices like our 4G Connect for internet connectivity. For optimum data transfer speed, a wired Ethernet connection still offers the fastest and most reliable network connection onboard a boat, and for Streaming TV, VOIP, Security Cameras, and other data-intensive services we always recommend using a wired connection.Our NS5 Network Switch provides a simple and rugged solution to increasing the number of wired Ethernet connections on the vessel. Designed to operate from a 9v to 36v DC supply, with dual redundancy power supply design, a DIN rail mount, and five RJ45 10/100 Ethernet ports, the NS5 allows you to reliably expand your boat’s Ethernet network.Installation could not be easier, simply connect one of the NS5’s RJ45 sockets to a LAN socket on our 4GConnect or 4GXtream routers, using a normal network cable and wire the NS5 directly to the boat’s 12v or 24v DC supply. Our 4G router will continue to provide IP addresses to any device plugged into the NS5 (via DHCP) and you can immediately see the status of all the Ethernet connections by the flashing Yellow and Green LEDs on each of the NS5’s ports.Specifications: 5 Port Network Switch 12/24v DC low power operation Dual redundancy power supply design Connects to the router via RJ45 Cat 5/6 network cable connection Supports 10/100 base-T DIN Rail (IEC/EN 60715 – 35 × 7.5mm) mounting bracket and 100mm rail included Status indicators for power and network link status Version: NMEA0183, NMEA2000

Read more less

PilotLINK2 Class A Pilot Plug WiFi InterfaceThere are well over 100,000 Class A AIS systems installed on vessels globally. While the latest Class A AIS transponders (like the Digital DeepSea CLA2000) already have a wireless interface incorporated for iPad and tablet connectivity, many systems just use a standardized “Pilot Plug” wired interface. This Amphenol standard multi-pin design allows NMEA AIS and GPS data to be accessed from the transponder and pilots and delivery captains would use a simple USB interface cable for their personal PC-based ECDIS system. However, more and more captains now choose to use an iPad or tablet so need wireless connectivity.PilotLINK2 allows these Class A transponders to interface with the latest range of mobile devices including iPhones, tablets, and PCs/MACs. Applications range from maritime pilots to survey ship charter users who may want access to the ship’s AIS and GPS data.Features: Connects to any standard “Pilot Plug” connector USB powered for easy portability power from any USB source, adaptor, or power pack Creates secure password protected wifi network Can also join another wifi network if preferred Easy web interface with useful diagnostics display and Class A static, dynamic, and voyage data displays Works with 100’s apps iSailor, Navionics, iNAVx, NavLINK, TZ iBoat, Imray, NV Charts, AquaMaps, Weather 4D, etc TCP/IP and UDP protocols supported The raw data log function InterfaceSet up of PilotLINK is simple using any web browser on the connected device. View data, set up wireless passwords or join another wireless network and also view Class A AIS status. Your favourite apps connect using TCP/IP or UDP protocols.The data monitor shows a list of raw NMEA data. You can also log this data for analysis if required. Brochure (pdf)

Read more less

SeaTalk1 to NMEA InterfaceDigital Yacht's SeaTalk to NMEA (ISO) Converter is a small, but powerful interface that provides bi-directional conversion between a SeaTalk network and an NMEA 0183 network or device. Taking its power from the SeaTalk network, the ST-NMEA Converter features a full, multi-transistor SeaTalk 1 interface, an opto-isolated NMEA 0183 input and differential NMEA 0183 output that allows key navigational data to be reliably shared between the SeaTalk and NMEA0183 networks.For developers and advanced users that want to access the raw SeaTalk data, the ST-NMEA converter can also be configured to work in a special “raw data" mode ($STALK) which is gaining support in some Open Source projects.The ST-NMEA (ISO) Converter is ideal for connection to one of Digital Yacht's wireless NMEA servers, allowing SeaTalk owners to go wireless and aUSB Version of the ST-NMEA Converteris also available for direct connection to a PC, Mac or even a Raspberry Pie embedded Linux system.Features: Converts SeaTalk1 to NMEA data Powerful bi-directional converter –also converts NMEA to SeaTalk for use with 3rdparty transducers and sensors Powered from the SeaTalk network –easy red, black and yellow wire colour coding Features reliable multi-stage transistor SeaTalk interface Opto-isolated NMEA0183 input and differential NMEA0183 output Converts all of the key navigational data USB version (for PC & MAC) also available USB variant can also be configured to operate in “Raw Data” mode ($STALK) NMEA Version - Typical Connections: Connects direct to SeaTalk1 cabling using familiar red, black and yellow wiring Add the WLN10HS for wifiintegration to iPads and tablets Add the WLN20 (dual input NMEA to WiFi server) for AIS and SeaTalk to wifi systems Specifications: Data Interface: NMEA 0183 Box Dimensions: 2"H x 8"W x 8"L WT: 0.4 lbs UPC: 081159830700

Read more less

SPL1500 Antenna Splitter VHF/AISAn AIS receiver or transponder requires a VHF antenna, but Digital Yacht’s SPL1500 AIS-VHF antenna splitter allows an existing antenna to be used for both the AIS and VHF (DSC). Unlike most simple splitters, it can also be used with a class B transponder system and it incorporates special circuitry to ensure safe operation of the two transmitting devices.The unit has three simple connections - one input for the main VHF antenna and then outputs for the AIS receiver/transponder and another for the DSC VHF. It utilizes Digital Yacht’s ZeroLoss™ technology, to ensure the very best possible reception and transmission from all devices. Most importantly it is also fail safe, so should the unit ever stop working or lose power, it will not affect the main VHF operation. Until now, Digital Yacht, have recommended a dedicated antenna for a receiver or transponder.  However, with the new this new ZeroLoss™ technology, we can now offer a solution that greatly simplifies installation whilst maintaining performance.The unit is waterproof and matches the aesthetics of the current AIT1500, so can easily be integrated into any vessel. It is suitable for operation on 12V or 24V systems and features three status LEDs that show the unit is powered correctly and when the AIS or VHF transmits.Features:  Enables an existing VHF antenna to be used for both the standard VHF and AIS system ZeroLoss™ technology for exceptional performance Works with all Class B transponders and receivers Supplied with power cable, PL259-PL259 cable assembly and BNC-BNC cable assembly for easy installation (all cables 0.75m long) 12V or 24V 0peration and low power consumption Fail safe operation Same size and design as the AIT1500 Makes installation of an AIS receiver or transponder very quick and simple Saves on additional antenna clutter

Read more less

SPL2000 AIS-VHF Antenna SplitterThe SPL2000 allows the boat's VHF antenna to be used for both an AIS and VHF simultaneously. It uses ZeroLoss technology and is suitable for use with AIS Class B transponder systems as well as AIS receivers. It's also designed as a failsafe device with automatic priority given to the connected VHF. It is supplied with a BNC-BNC patch cable for the AIS and a PL259-PL259 cable for the VHF. It also features a AM/FM wired output for an on board stereo receiver. Identical in size to the AIT2000, it makes the perfect complimentary splitter device for Digital Yacht's range of AIS products.

Read more less

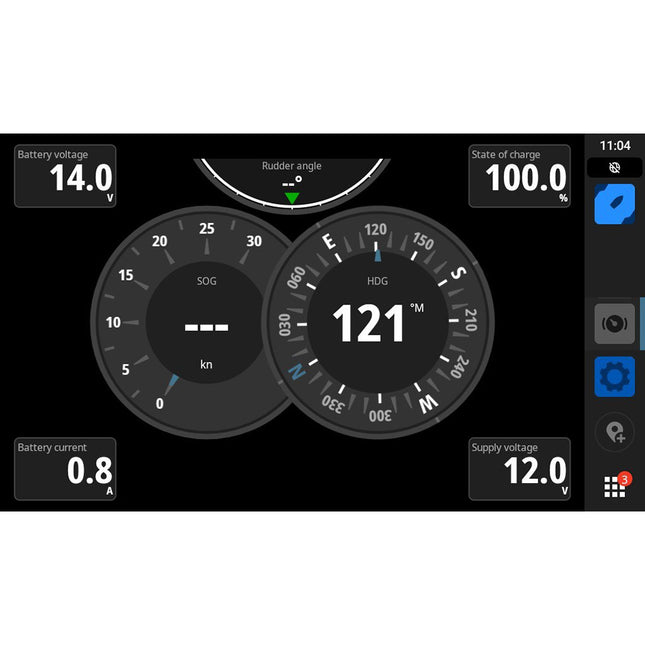

veKonvert NMEA 2000 GatewayveKonvert brings NMEA 2000 connectivity to Victron’s popular SmartShunt battery monitoring system. Now a navigation multi-function display becomes a sophisticated battery and energy management system.FeaturesveKonvert is a stand-alone NMEA 2000 interface designed in conjunction with Victron Energy to integrate VE.Direct compatible devices such as their SmartShunt, BMV Battery Monitors, and MPPT Solar Charge Controller range into NMEA 2000 systems.This functionality already existed but required the use of a sophisticated Cerbo module. veKonvert is a lower-cost, simpler solution for smaller installations that just need the electrical data displayed on a multi-function display.Boaters and boat builders like a clear and uncluttered dash or nav area, so integrating electrical data into the main navigation display is a popular and cost-saving option.The product is a collaboration between Victron Energy and Digital Yacht. The system utilizes Victron’s proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.Victron solar charge controllers (MPPTs) and battery monitors can now also interconnect to your NMEA 2000 MFD via the veKonvert interface.InstallationInstallation is simple – just "T" into the NMEA 2000 backbone and plug into the VE.Direct custom connector on the SmartShunt, and you've got battery and electrical data on your NMEA 2000 network!  Note that one veKonvert is required for each battery bank.Specifications: Universal NMEA 2000 gateway for Victron products with a VE.Direct interface Enables battery management or solar charge monitoring on compatible multi-function displays (Raymarine, Garmin, Navico, Furuno, etc) Provides battery voltage, charge/discharge current, state of charge, and time to depletion based on a sophisticated algorithm Easy installation, plug ‘n’ play connectivity, and self-powering from the NMEA 2000 bus Generates NMEA 2000 alerts from any BMV or SmartShunt Alarms Supports multiple SmartShunts for a larger multi-battery system VeKonvert Is Compatible with the Following Victron Products:BMV-700, BMV-702, BMV-700H, BMV-712 Smart, BMV-710H Smart, BMV-712 Smart, SmartShunt 500A/50mV, SmartShunt 1000A/50mV, SmartShunt 2000A/50mV, and All MPPT Charge ControllersThe veKonvert will automatically detect what Victron device it is connected to and adjust the NMEA 2000 data that it outputs accordingly. Below is a list of the PGNs that the veKonvert outputs for the different Victron Devices and different modes that they can operate in:  All MPPTs PGN 127506 DC Detailed Status (DC Type set to MPPT) PGN 127508 Battery Status (MPPT Output Voltage and Current) PGN 130900 Proprietary Solar Controller (All solar panel data) All SmartShunts and BMVs PGN 127506 DC Detailed Status (DC Type set to Battery, SOC and A/h consumed) PGN 127508 Battery Status (Output Voltage and Current) NOTE: veKonvert is not compatible with Victron Chargers and Inverters. It should also not be plugged into the VE.Direct interfaces of any Victron "Consumers" such as Multiplus, Quattro, Cerbo, etc.
