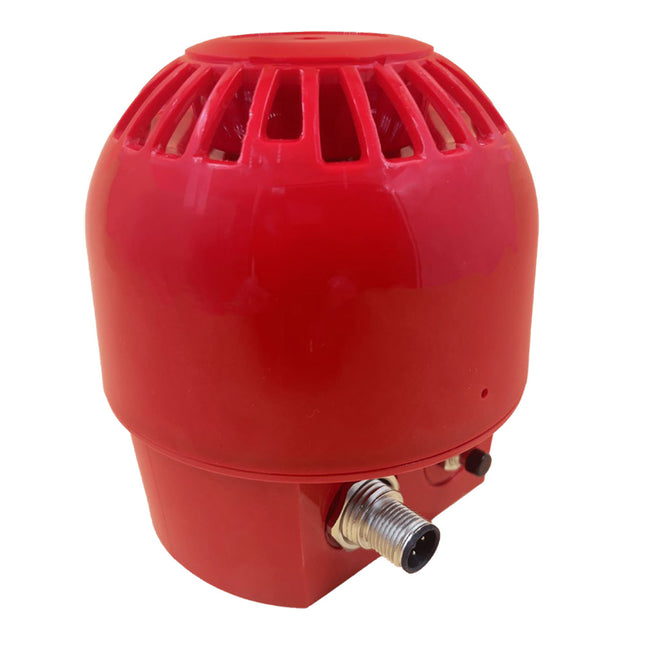

NavAlarm NMEA 2000 Audio AlarmFeatures: Universal NMEA 2000 alarm – guaranteed to wake even the deepest sleeping crew member! Ultra loud 102dB sounder for any NMEA 2000 alert Compatible with standard NMEA 2000 alert PGNs  – becoming mandatory for MFDs from all manufacturers Dual volume alert levels Ultra rugged and IPx5 waterproof protection Integrated silence/reset switch Ideal accessory for CO Alert, MOB Alert, or NavAlert products and any other NMEA 2000 device generating Alert PGN – EG: Sea AI, Talos lightening alert etc

Read more less

NavAlert NMEA Monitor & Alarm SystemNavAlert is Digital Yacht’s latest innovation and allows an alarm to be set for any parameter that’s available on the boat’s NMEA 2000 network. That could be navigation data such as depth, heading, or speed, as well as electrical data such as voltage and engine/generator data including temperature, pressure, tank levels, fuel flow, etc.It connects anywhere on the NMEA 2000 network and takes power from this connection, so installation is super simple. A local WiFi network is created by NavAlert, so setup is possible via any smartphone, tablet, or PC. Simply choose the parameter to monitor and set an alarm level.Alarms/AlertsIntegrated into NavAlert is a custom alarm for anchor drift using an algorithm to calculate the optimum drift radius based on depth and the scope of the chain for reliable notifications. There’s also an anti-collision alarm based on CPA (closest point of approach) and TCPA (time to the closest point of approach) AIS data from a connected AIS. These alerts can also be monitored through the wireless interface with attractive graphical displays of current status.Alarms can also generate an SMS message, which can be relayed through Digital Yacht’s 4GXtream internet connectivity solution, allowing remote monitoring, which is great for feeling secure that the anchor is holding well when enjoying a lunch ashore. Alarms are independent of any alarms set on a plotter, allowing NavAlert to operate even without a primary multi-function display being powered up (an important feature for power-limited sailboats).Alerts can also be relayed to compatible multi-function devices (Garmin supports this function) for a pop-up data window indicating an alert and the ability to acknowledge it.*NavAlert is universal, using the industry standard NMEA 2000 data protocol, so it will integrate with all leading brands and systems.OperationThe operation is simple. Simply search for the WiFi network that NavAlert creates and connect via a smartphone or tablet. Open a browser and connect to NavAlert, and users are presented with a clear graphical interface allowing easy setup, configuration, and viewing of the alerts and network data. NavAlert constantly monitors the whole network, so alert parameters can be set for any variable.Users can configure the NavAlert through its simple web interface. Just open a web browser, enter the NavAlert’s IP address, and users can change the network name and password, or even merge the WiFi to an existing WiFi network on board… So no complicated programming software or app is required.Features:Multiple parameters can be monitoredSpecifications: Universal NMEA 2000 alarm and monitoring solution Set a configurable audio and visual alarm for any parameter on the NMEA 2000 network – for instance: shallow depth, low fuel level, off course, engine temp, tank levels, low voltage, etc Relay the alert via the NMEA 2000 bus to a Garmin multi-function display to deliver a popup alarm window SMS alerting through Digital Yacht’s 4G Xtream system to a mobile – ideal for remote monitoring of the boat. Built-in unique anchor drift alarm Built-in AIS collision avoidance alarm What’s In the Box: 1m NMEA2000 drop cable WiFi antenna built-in Owner's Manual (pdf)

Read more less

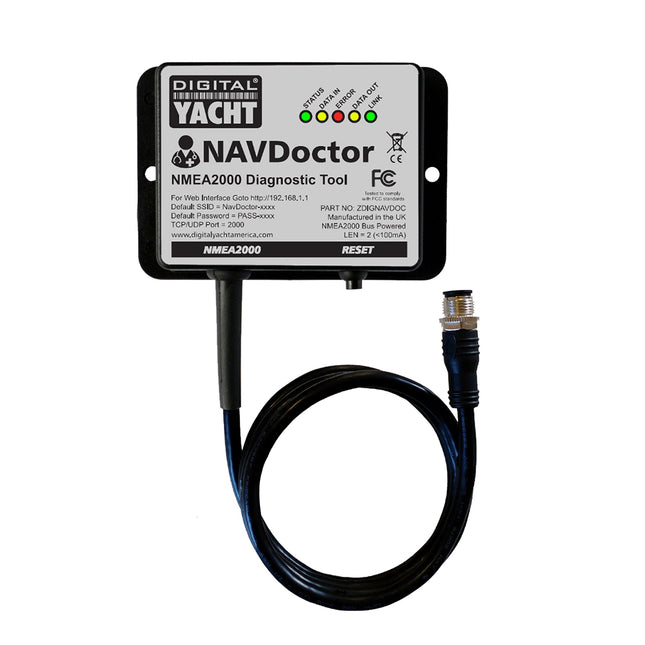

NAVDoctor NMEA Network Diagnostic ToolNAVDoctor is the perfect NMEA 2000 diagnostic tool for dealers, installers, and boat builders. It turns any mobile device into an NMEA 2000 network analyzer, creating simple and clear web pages that show the health and status of your NMEA 2000 network. NAVDoctor is a portable NMEA 2000 network diagnostic tool/tester. It allows you to quickly check and diagnose the NMEA 2000 network. It combines the functionality of existing NMEA 2000 display programs and test equipment into a single, cost-effective, simple plug ‘n play box.It’s self-powered from the network and creates a local wifi point for a mobile phone, tablet, or PC to connect.  Once connected, you simply access functions through a web browser so there’s no complicated software to install.NMEA 2000 networks are based on a robust Canbus architecture, but one bad device, cable, or termination can have a detrimental effect on performance.  Fault finding can be time-consuming and tricky, so having a NAVDoctor in your toolkit will save you time, money, and frustration.NAVDoctor is an essential tool for every marine electronics technician or installer and also offers the capability of printing a network health check certificate to validate an installation and improve customer service.OperationYou can configure the NavDoctor through its simple web interface, just open your web browser, enter the NavDoctor’s IP address and you can access the NavDoctor web interface. So no complicated programming software or app is required.Through the web interface, you can analyze all the equipment connected to the NMEA 2000 network and get additional information about the equipment. You can also display all the NMEA 2000 data (PGN) being received.The health section gives you an overview of the NMEA 2000 network (voltage, bus capacity, etc.). Finally, the test report section analyses all the NMEA 2000 network, equipment, and data and can generate a PDF.Features: NMEA 2000 Wireless Diagnostic Tool Self-powered from NMEA 2000 bus – fits in seconds Creates its wireless network on the boat or can join an existing network in the workshop No apps are required, NAVDoctor’s simple web interface displays in your browser Lists all devices on the NMEA network and all PGNs being transmitted The health page gives you an immediate snapshot of the network key performance parameters Can log all data to text file for in-depth analysis Generates a Network Health Report that you can either print or save to PDF You can give a health report to the customer or you can retain it for your installation records Specifications:Dimensions: 180mm x 145mm x 40mmWhat's In The Box? 1M NMEA2000 drop cable WiFi antenna built-in Owner's Manual (pdf)

Read more less

NavLink 2 “NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed to make NMEA 2000 navigation data available for apps on smartphones, tablets, iPads and PCs.” Features:NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed so that NMEA 2000 navigation data can be made available for apps on smartphones, tablets, iPads and PCs. Installation takes seconds as a result of direction connection to the NMEA 2000 back bone and self-powered from the data network.Once installed, it creates a local WiFi network for devices to connect or can be programmed to join an existing wireless network if one is already installed.  This is ideal for devices like the Furuno wireless radar which require operation through their own dedicated network but require NMEA 2000 data integration for charting apps.NavLink 2 now works with the popular Navionics Boating App for Apple iOS and Android. Therefore allowing display of GPS and AIS data on your Navionics charts. Specifications: NMEA 2000 to WiFi server Self powered from NMEA 2000 bus – fits in seconds Supports TCP/IP and UDP connection modes Provides AIS, navigation and instrument data to apps Compatible with all popular apps like iNavX, TimeZero, Weather 4D, Navionics, SailGrib, NavLink, iSailor, SeaPilot, AquaMap etc Up to 7 connected devices Compatible with Windows, Linux, MAC OS, iOS and Android Easy web interface for programming Password protected Can act as dedicated wireless server or rather can connect to an existing wireless network Diagnostic data display mode and LED status lights Internal hi gain WiFi antenna Super-fast 230KBs operation Optional raw data mode for developers and likewise advanced users Supplied with NMEA 2000 cable

Read more less

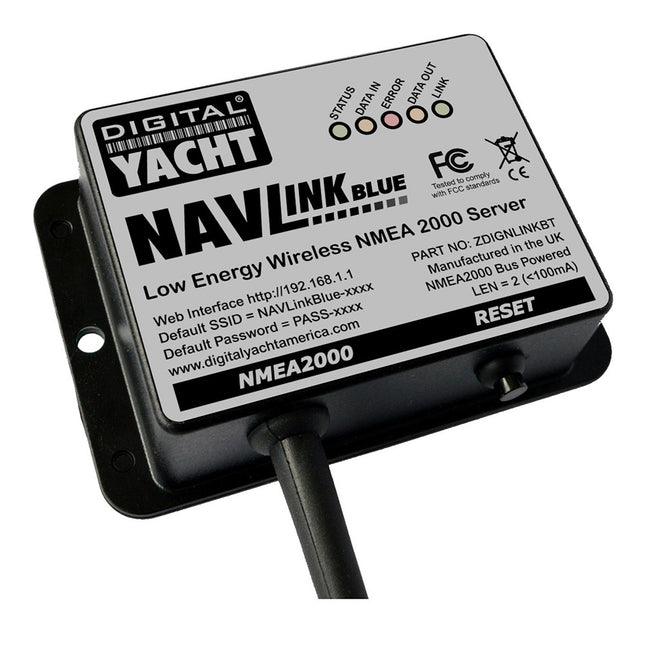

NavLINK Blue NMEA 2000 to Bluetooth GatewayFeatures: NMEA 2000 to Bluetooth Gateway bringing NMEA 2000 connectivity to BT sensors plus phones, tablets, and PCs DY SDK available for quick deployment of BT connectivity Wireless set up of device via browser interface for easy interfacing Turn your iPad into a sophisticated & attractive NMEA 2000 instrument display with NMEA Remote Connect Bluetooth sensors from Ruuvi for wireless pressure, humidity, and temperature monitoring on your NMEA 2000 system

Read more less

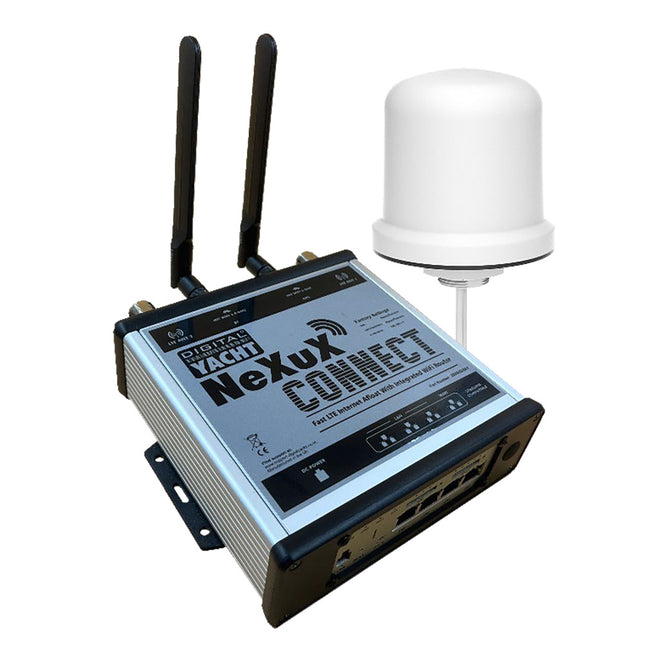

NeXuX Connect System  - Internet Afloat with Antenna & 7M CableFeatures: Hi-speed, affordable internet with the latest Cat 6 modem technology and MIMO dual element antenna for up to 300MBs connectivity Easy installation with single (dual element) external antenna that fits standard 1” mounts Dual-band Wi-Fi with external Wi-Fi bridge (2.4/5GHz) for marina hotspots Dual SIM 3 x LAN and 1 x WAN for Starlink compatibility Ideal Starlink and general-purpose on-board router Integrated GPS tracking and SMS alerting Add NMEA 2000 cloud connectivity with NjordLINK

Read more less

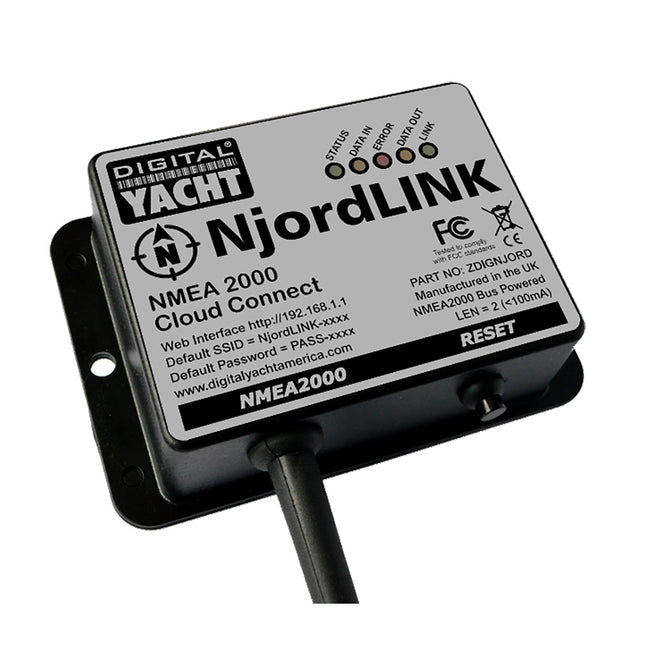

NjordLINK NMEA 2000 Cloud GatewayFeatures: The universal, easy-install, low-cost gateway to the Njord cloud platform Delivers all NMEA 2000 data to the cloud for real-time monitoring, advanced historical and maintenance analysis, and new AI features Njord cloud apps bring revolutionary new solutions for boats and boat users Connects to any internet source from 4G/5G, Wi-Fi, and satellite for universal connectivity The free app always shows the boat's location and data Easy setup and Njord Cloud account creation with the app allowing end-to-end, encrypted data

Read more less

NMEA 2000 1M Drop CableThis Digital Yacht cable is a 1m (3ft) NMEA 2000 drop cable made of metal connectors for maximum reliability. The drop cable allows users to expand the NMEA 2000 to whatever size is needed.*Digital Yacht “Drop Cables” can also be used as backbone cables and are easily connected to make any length of backbone cable required. Also, the total length of all drop cables must be less than 76m.Features: 1m (3ft) NMEA 2000 Drop Cable Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating IP68 Specifications: Cable Length (Feet): 3' Box Dimensions: 1"H x 7"W x 7"L WT: 0.2 lbs UPC: 703791696338 Quick Guide (pdf)

Read more less

NMEA 2000 3M Drop CableThis Digital Yacht cable is a 3m (9ft) NMEA 2000 drop cable made of metal connectors for maximum reliability. The drop cable allows users to expand the NMEA 2000 to whatever size is needed.*Digital Yacht “Drop Cables” can also be used as backbone cables and are easily connected to make any length of backbone cable required. Also, the total length of all drop cables must be less than 76m.Features: 3m (9ft) NMEA 2000 Drop Cable Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating IP68 Specifications: Cable Length (Feet): 9' Box Dimensions: 1"H x 6"W x 8"L WT: 0.4 lbs UPC: 703791696345 Quick Guide (pdf)

Read more less

NMEA 2000 6M Drop CableThis Digital Yacht cable is a 6m (20ft) NMEA 2000 drop cable made of metal connectors for maximum reliability. The drop cable allows users to expand the NMEA 2000 to whatever size is needed.*Digital Yacht “Drop Cables” can also be used as backbone cables and are easily connected to make any length of backbone cable required. Also, the total length of all drop cables must be less than 76m.Features: 6m (20ft) NMEA 2000 Drop Cable Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating IP68 Specifications: Cable Length (Feet): 20' Box Dimensions: 2"H x 7"W x 10"L WT: 0.75 lbs UPC: 703791696352 Quick Guide (pdf)

Read more less

NMEA 2000 Starter Cable KitNearly every new marine electronics product has an NMEA2000 interface now, but it is still “black magic” to many boat owners and even fairly technical users struggle to understand NMEA2000 and what is needed to make products work correctly together.With Digtial Yacht's large range of AIS, often the first add-on device to make a boat owner think about NMEA2000, we are regularly asked “what do I need to make it work?” This prompted Digital Yacht to create a cost effective and smart NMEA2000 Starter Kit that is ideal for smaller boats but can also be easily expanded in the future.There are other starter kits on the market, but none offer three device connection, metal connectors and a smart 4-Way T-Piece at such a good price.By utilizing the NMEA2000 standard “Micro C” type connectors, users can easily add and expand to this Starter Kit as their installation grows or simply buy two or more kits for a larger install, still cheaper than buying the parts separately.Features: Everything you need in one box Smart 4-Way T-Piece “Backbone” 1M (3') Power Cable with in-line fuse 1M (3') “Drop Cable” Pair of removable network terminators Allows three devices to be connected Standard “Micro C” connectors make it very easy for future network expansion Metal connectors and reduced T-Piece connections, improve reliability Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 6"W x 7"L WT: 0.6 lbs UPC: 081159830670
