Anchoring & Docking - Windlasses

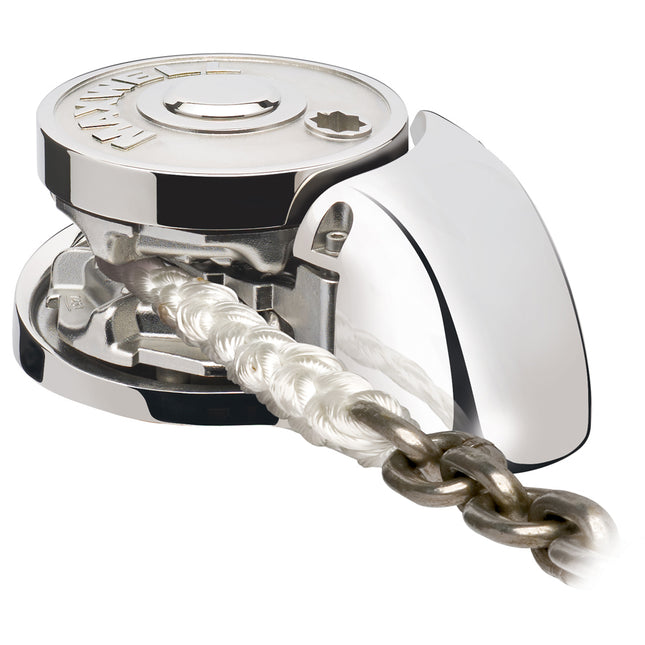

RC12/10 12V WindlassThe RC12 fully automatic windlass series is designed to effortlessly retrieve and deploy 10mm (3/8") short link chain and 16mm (5/8") to 20mm (3/4") three strand or 8-Plait rope (RC12-10) and 12mm/13mm (1/2") short link chain and 20mm (3/4") three strand or 8-Plait rope (RC12-12).With a maximum pull of 1590 kg (3500 lb), and an anchor retrieval rate of 15m/min (50ft/min), the RC12-12 is one of the fastest and gruntiest windlasses in its class.A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.The RC12 is packed with innovative features combined with Maxwell's traditionally classic aesthetics, but reflecting the modern form follows function of the highly successful RC6, RC8 and RC10 series windlasses.The elegantly designed deckplate and chainpipe cover are manufactured in polished marine-grade 316 stainless steel, as are the heavy duty pressure arm, stripper, chainwheel and fluted capstan drum.The huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.Double cone-type brake/clutch mechanism permits Free Fall anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement, ensuring safe and precise operator control.The RC12 features Maxwell's revolutionary and Wave Design™ chainwheel. Emergency manual retrieval is made simple and easy with Maxwell's unique Active Latch Ratchet System operation that prevents backwind of the windlass during manual hauling of the anchor.The Maxwell-designed and innovative black, hard anodized gearbox provides numerous advantages: - Fast and easy windlass installation - More corrosion resistant - Easy to maintain and service - Takes up less room in the anchor locker - 75:1 Ratio (RC12-10) or 100:1 Ratio (RC12-12), single stage design with less moving parts, for smoother and quieter operation - Allows for multi-positioning of the gearbox/motor.Every Maxwell automatic rope/chain windlass comes complete with all the necessary components for fully automatic dual direction control in a competitively priced package.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 3/8" Freefall: Yes Rope Diameter (Inches): 3/4" Vertical/Horizontal: Vertical Box Dimensions: 14"H x 18"W x 25"L WT: 80 lbs UPC: 1000000004397 Brochure (pdf)

Read more less

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.HRC6 Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation High efficiency spur gearbox incorporating a robust non-backwind mechanism High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch Emergency "free fall" function in the event of onboard power failure Revolutionary new chainwheel - see over Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection Specifications: Model: HRC6 Maximum Pull: 900lbs Chain Short Link: 1/4" Rope Size (Nylon): 1/2" Line Speed(Anchor Retrieval): 108'/min Power Supply(DC): 12V or 24V Motor Power: 600W Net Weight: 25lbs This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 1/4" Freefall: Yes Rope Diameter (Inches): 1/2" Vertical/Horizontal: Horizontal Box Dimensions: 10"H x 14"W x 15"L WT: 29 lbs UPC: 1000000002744 Brochure (pdf)

Read more less

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.HRC8 Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation High efficiency spur gearbox incorporating a robust non-backwind mechanism High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch Emergency "free fall" function in the event of onboard power failure Revolutionary new chainwheel - see over Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection Kits include:windlass, on/off breaker panel, reversing soleniod, up/down panel switch, a clutch release handle Specifications: Model: HRC8 Maximum Pull: 900lbs Chain Short Link: 5/16" Rope Size (Nylon): 9/16" Line Speed(Anchor Retrieval): 108'/min Power Supply(DC): 12V Motor Power: 600W Net Weight: 25lbs This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 5/16" Freefall: Yes Rope Diameter (Inches): 9/16" Vertical/Horizontal: Horizontal Box Dimensions: 10"H x 14"W x 15"L WT: 29 lbs UPC: 9414761104029 Brochure (pdf)

Read more less

Maximum Pull: 1320lbs The larger RC8-8 can be used with 8mm (5/16") chain spliced to 14mm (9/16") three strand or 8-plait rope. The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series. Sleek, low profile and MAX-grip capstan drum versions are available to suit individual user preference. Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations. Full disassembly capability of top works utilizing handle provided, a screw driver and an Allen key. The RC8 Series is manufactured from marine grade 316 stainless steel for long term durability. The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure. The RC8 works just as effectively with all-chain rodes for those who desire a low profile, elegantly styled windlass on their foredeck. Huge through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker. Cone type clutch/brake mechanism permits manual, free fall anchoring. Manual override using the emergency crank handle provided Sealed oil bath and marine grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel. Kits include: windlass , an on/off breaker panel, a reversing soleniod, an up/down panel switch and a handle. Anchor Rode Sold SeperatelyThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 5/16" Freefall: Yes Rope Diameter (Inches): 9/16" Vertical/Horizontal: Vertical Box Dimensions: 11"H x 18"W x 20"L WT: 44 lbs UPC: 1000000004908 Brochure (pdf)

Read more less

ANCHORMAX™ WindlassFeatures: Has an extremely high power to weight ratio ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft) Fitting to the boat is simplicity itself as no dismantling of the winch is required Gear housings are marine-grade alloy and the drum is stainless steel Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions Not recommended for use to haul halyards Not recommended for use to haul chain Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings. STANDARD EQUIPMENTFootswitch SPECIFICATIONS Maximum Line Pull 386kg (850lb) Speed @ nominal working load 24m/min (76ft per min) (80 amps with 100kg/220lb load) Voltage 12v Power 600w Weight 8kg(17.6lb) Maximum Boat Load 10m (33ft) Max. Boat Weight 4 Tons This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

DeckHand™ 25#1810125The DeckHand 25 has a 25-lb anchor capacity (anchor not included). Includes davit for stowing most styles of anchors. Pre-spooled with 60 feet of 800-lb test nylon rope. Runs on 12-volt battery (not included). Get precision boat placement and the ability to stay on the fish as long as you want with a DeckHand™ electric anchor winch. It automatically raises or lowers your anchor at the touch of a button, and its special anti-drag system senses the bottom to allow for controlled drifting.Features 25-lb anchor capacity (anchor not included) Pre-spooled with 60 feet of 800-lb test nylon rope Davit can be mounted at base of DeckHand or in remote position on deck Davit stows most kinds of anchors Stow and deploy switch integrated into the base of the unit Auto-drift feature automatically stops the motor when the anchor touches bottom (or hits an obstacle); when slack in teh rope becomes tight, rope is automatically released; lock the winch with the touch of a button Consistent hold pattern with older DeckHand models (DH-18, DH-20, DH-35) Includes: remote mountable anchor davit WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Rope Diameter (Inches): 3/16" Vertical/Horizontal: Horizontal Freefall: No Box Dimensions: 9"H x 11"W x 15"L WT: 12.8 lbs UPC: 029402027897 Owner's Manual (pdf)

Read more less

Angler 30-G3 Electric Anchor Winch with AutoDeployThe TRAC Outdoors Angler 30-G3 Electric Anchor Winch with AutoDeploy allows you to raise and lower your anchor with easy-to-use buttons automatically.  AutoDeploy works by simply pressing and releasing the down button.  When the anchor reaches the bottom, the winch will shut off, holding the boat in place.   It has a maximum anchor capacity of 30 lb. and provides simple, smooth operation with excellent holding power. This winch features a high-efficiency, 12 V, all-steel gear motor that uses less battery power than other brands.  *Anchor not included Technical Specifications: Boat Size - Up to 22' Anchor Capacity - 30 lb Anchor Deployment - Power Down or AutoDeploy Down Rope Speed Down - 70 FPM Rope Speed Up - 65 FPM Power - 12V Dimensions (L x W x H) - 10" x 9.75" x 5.75"  In the Box: Winch  Anchor roller 100' of 3/16" pre-wound double braid anchor rope Sealed membrane UP/DOWN/AutoDeploy switch Marine-grade battery wire - 17' Assembly hardware and  Instruction manual *Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Rope Diameter (Inches): 3/16" Freefall: No Chain - Diameter (Inches): N/A Vertical/Horizontal: Horizontal Box Dimensions: 8"H x 11"W x 14"L WT: 14.3 lbs UPC: 666996102083 Owner's Manual (pdf)

Read more less

Cone and Washer Kit v/CPX and V Series Windlasses Replacement cones and washers for CPX and V series windlasses.Compatible With:CPX and V Series windlassesIn the Box: Cones x two (2) Washers x two (2)  Instruction manual  *Sold as an Indivudual

Read more less

Pro-Fish 700 Windlass - 12VThe Lewmar Pro-Fish model is the ultimate windlass for fishermen.  The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision.  No more running your motor or wasting fuel while you hover fish.  You can retrieve your anchor just as easily, with the push of a button.  Plus, the Pro-Fish is DIY-ready and made of durable 316 stainless steel.This windlass has been specially designed to suit leaded lines up to 7mm in diameter and a revised control arm and new Pro-Guard plate prevent the rope from jumping out of the windlass or snagging during operation.Features Automatic freefall Powerful motor providing fast line speed Manual emergency recovery equipped all you need is a common 1/2 socket wrench Strong  316 stainless steel, including control arm and stripper Maximum pulling power: 320kg (700 lb) for the 700 and 454kg (1,000 lb) for the 1000 Convenient above-deck installation 5-year warranty For boats up to 12m (38ft) Technical Specifications: Chain Size - 1/4" G4 or BBB Rope Size - 1/2" 3-strand or 8-plait Motor Voltage - 12 Volt DC Motor Power - 500 Watt Maximum Pulling Power - 700lb (318kg) Maximum Working Load - 175lb  (79.38) For boats up to 32' (9.75M) In the Box: Windlass Base gasket Mounting hardware Circuit breaker Dual-direction solenoid Rocker switch Instruction manual  *Sold as an Individual Specifications: Chain - Diameter (Inches): .25 Freefall: Yes Rope Diameter (Inches): .50 Vertical/Horizontal: Horizontal Box Dimensions: 8"H x 11"W x 12"L WT: 20 lbs UPC: 743683306860 Owner's Manual (pdf)

Read more less

RC8-6 Vertical Windlass 1/4" Chain, Rope 1/2" 12vPackage Includes Windlass On/Off Breaker Panel Reversing Solenoid Up/down Panel Switch Emergency crank / clutch release handle Features Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations Fully automatic rope / chain windlass is designed to effortlessly retrieve and deploy 1/4" (6mm / 7mm) chain spliced to 1/2" (12 mm) three strand or 8-brait (plait) rope The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters suitable for use with the RC8 Series Full disassembly capability of topworks utilising handle provided and an Allen key The RC8 Series is manufactured from marine-grade 316 stainless steel for long term durability The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance In combination with a heavy duty, large wire diameter, stainless steel preloaded spring, the pressure arm always exerts maximum control pressure The RC8 works just as effectively with all-chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker Full disassembly capability of the topworks utilising only the handle provided and an Allen key Manual override using the emergency crank handle provided Sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and worm wheel All RC Series windlasses are fitted with Maxwell's unique Wave Design™ chainwheel This patented rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode Wave Design™ Chainwheel Is fitted to all RC Series windlasses, designed for anchor rodes with any marine grade chain, G4, BBB, Proof Coil and MetricSpecifications Material: Marine-Grade 316 Stainless Steel Power: 12 Volt DC, 600 Watts Chain / Short Link: 1/4" ( 6mm / 7mm ) Maximum Pull: 770 lbs ( 350kg ) Rope Size: (Nylon)* (3-Strand or 8 Plait Recommended) 1/2" (12mm) Chain Speed (Anchor Retrieval): 92 Feet per Minute (28 m / min) Rope Speed (Anchor Retrieval): 79 Feet per Minute (24 m / min)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 1/4" Freefall: Yes Rope Diameter (Inches): 1/2" Vertical/Horizontal: Vertical Box Dimensions: 11"H x 17"W x 19"L WT: 31.8 lbs UPC: 1000000004847

Read more less

HRC10 Horizontal Rope Chain Windlass - 12V Capstan 3/8" Chain, 5/8" RopeMaxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlasses has been designed to meet the demands for use on larger vessels up to 16 meters (52'), which require a completely above deck installation system. The HRC10 handles 5/8" rope and 3/8" chain, including the thick rope to chain splice. The modern appearance of the HRC10 retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.The HRC10 windlass is fitted with Maxwell's unique Wave Design™ chainwheel. The rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.Features: Aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck 2-part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section 2-piece watertight case allows for quick and easy, on-deck, routine maintenance Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up Stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain) Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Unique Maxwell "wrap around"™ horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs Works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker Cone type clutch/brake mechanism permits manual, "free fall"™ anchoring and emergency crank recovery of the rode and anchor if required The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 3/8" Freefall: Yes Rope Diameter (Inches): 5/8" Vertical/Horizontal: Horizontal Box Dimensions: 11"H x 17"W x 20"L WT: 55 lbs UPC: 1000000002638 Brochure (pdf)

Read more less

HRC 10-8 Horizontal Windlass 5/16" Chain, 5/8" Rope, 12V, with CapstanDesigned for boats up to 45 feet, the HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell's previous, fully automatic rope / chain anchor winches.Kit Includes Windlass On/Off Breaker Panel Reversing Solenoid Up/down Panel Switch Clutch Release Handle Features The HRC10-8 is Maxwell's fully automatic rope/ chain or all chain horizontal windlass Designed to effortlessly retrieve and deploy 8mm (5/16" ) chain and 16mm (5/8" ) three strand or 8-brait (plait) rope. The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16" or 8 mm marine grade chain spliced to 5/8" rope. The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck Case Material: Anodized Aluminum The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section. This two piece watertight case allows for quick and easy, on-deck,routine maintenance. Simple " bolt down" installation ensures effortless and rapid on-deck installation and set up. The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain). The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series. The unique Maxwell " wrap around" horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs. High quality Stainless Steel chainwheels The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system. The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker. Cone type clutch/brake mechanism permits manual, "free fall" anchoring and emergency crank recovery of the rode and anchor if required. The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel. Exclusive Maxwell 3 YEAR Limited Warranty Specifications Maximum PUll: 1540 lbs Chain Short Link: 5/16" or 8mm Chain Speed (Anchor Retrieval): 79 ft per Minute Rope Speed (Anchor Retrieval): 65 ft per Minute Rope Size (Nylon 3 strand or 8 Plait): 5/8" Power Supply (DC): 12VDC Motor Power: 1000 Watts Net weight: 42 lbs This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 5/16" Freefall: Yes Rope Diameter (Inches): 5/8" Vertical/Horizontal: Horizontal Box Dimensions: 12"H x 17"W x 19"L WT: 56 lbs UPC: 1000000002683

Read more less
