Boat Outfitting - Fuel Systems

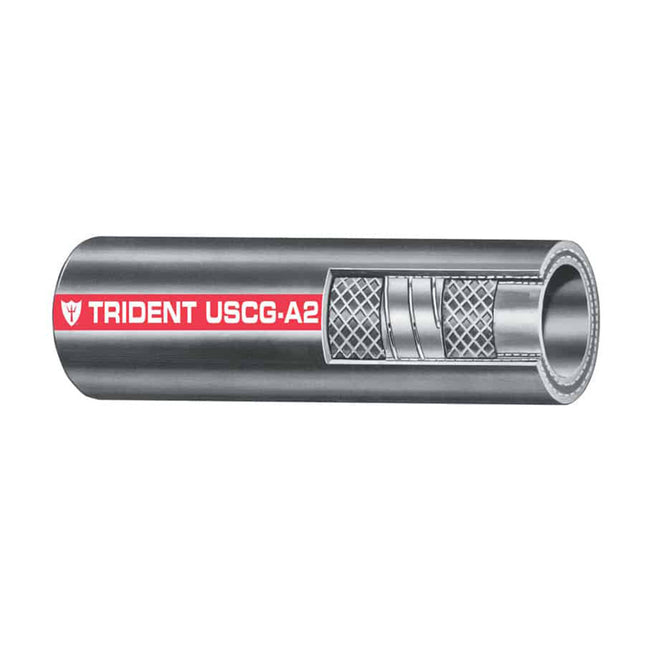

5/8” A2 Fuel & Vent Line Hose - Black - Sold by the FootTrident 5/8” ID A2 Fuel Hose is a gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). Features:  Sold by the foot  This hose is built with the best fuel, fire, and age-resistant formulation  Provides extraordinary resistance to aging, fire, heat, cold, and the ozone  Also, provides excellent bend-ability Application: Marine Fuel Hose for vent and diesel distribution  For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel Construction: Tube: NBR Cover: NBR/PVC Blend Reinforcement: Polyester 2 spiral Temperature Range: -20°F to 212°F (-28ºC to 100ºC) Length: Sold by the Foot Specifications:  Inner Diameter: (inch) 0.625" / (mm) 15.9 Outer Diameter: (inch) 0.960" / (mm) 24.4 Burst Pressure: (psi) 200 / (mpa) 1.38 Working Pressure: (psi) 50 / (mpa) 0.34 Bend Radius: (inch) 3" / (mm) 76.2 Weight: (Lb./100ft.) 25.84 / (Kg/m) 11.72 *The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted & CE certified.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 5/8" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.23 lbs

Read more less

8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside. Features: Four stainless steel t-bolt clamps Very high temp silicone/EDPM blend rubber - molded This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards  Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous Construction: Color: Blue Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 350°F (177°C) Specifications: Inner Diameter: (inch) 8” / 203.2 mm A: (inch) 2.25” / (mm) 5.7  B: (inch) 2.25” / (mm) 5.7  C: (inch) 8.5” / (mm) 21  R: (inch) 2.12” / (mm) 5.4  W: (inch) 0.37" / (mm) 9.4  Elbow Degree: 45 degrees  Quick Guide (pdf)

Read more less

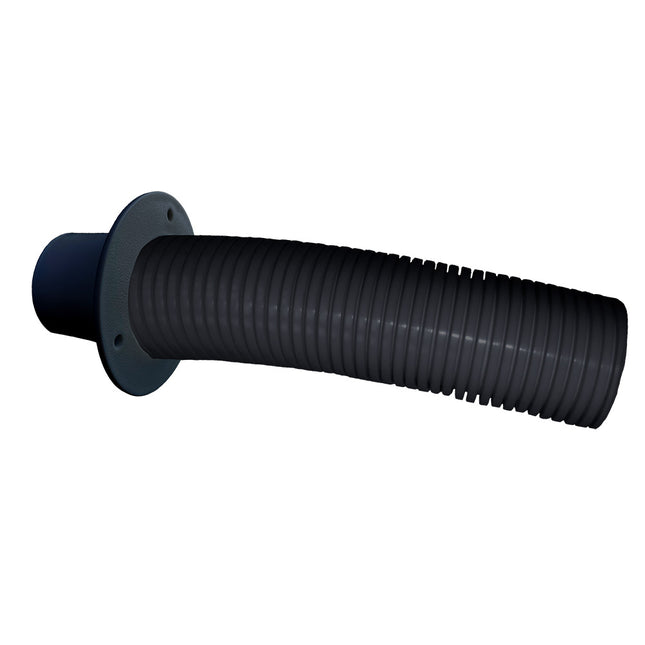

4' Black Stern Flex Hose with Transom FlangeThis Trident Stern Flex Hose is black (Trident Marine 129 series) and contains wire, control cables, and hoses between the transom and outboard engine(s). Connects to Trident flange part #142-2000.Features: Highly resistant to crushing, abrasion, and UV and has excellent resistance to chemicals  Extraordinary flexibility Construction: Hose: Lightweight polyethylene copolymer Reinforcement: Integral Polyethylene Helix Temperature Range: -40°F to 140°F (-40ºC to 60ºC) Specifications: Color: Black Inner Diameter: (inch) 2” / (mm) 50.8 Outer Diameter: (inch) 2.35” / (mm) 60 Bend Radius: (inch) 3.5” / (mm) 88.9 Weight: (lb/100 ft.) 26 / (kg/m) 11.8 Quick Guide (pdf)

Read more less

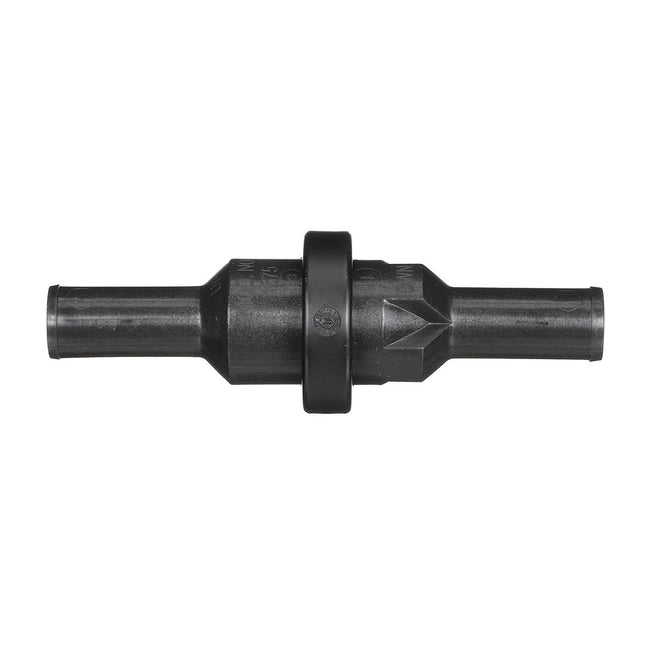

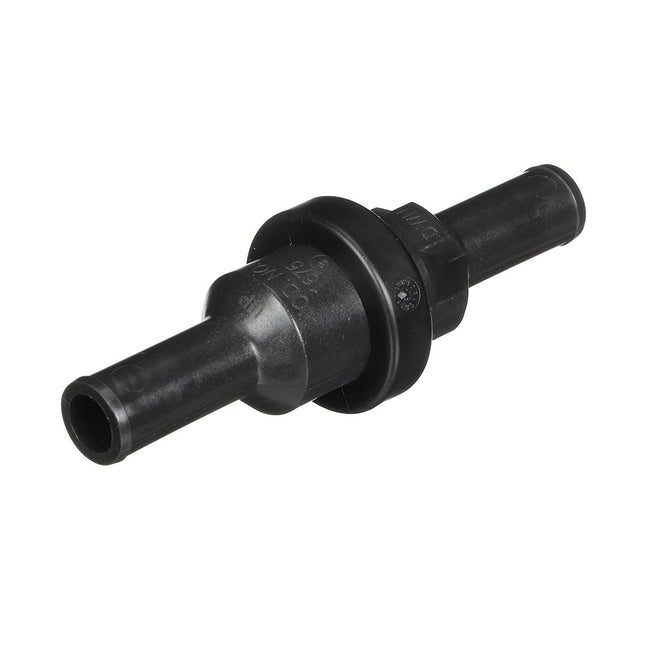

In-Line Fuel Overflow ProtectorThe fuel vent line surge protector helps avoid refueling spills because the surge-free line causes automatic fuel nozzles to shut off as the tank fills.With non-automatic nozzles, the surge protector causes a gurgling sound to indicate that the tank is full.Incorporates a ball-style check valve with internal baffling.Features: Meets ABYC Standard H-24 Install in-line with traditional tank vent systems that use standard 5/8" ID vent hose Compact size and operates in any orientation within 45° of vertical Withstands oil, gas, alcohol-blended fuels Includes 2 hose clamps for installation in the vent hose WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

1-1/4" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller i.d.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting, and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 1-1/4" / (mm) 31.8 Outer Diameter: (inch) 1.40" / (mm) 32 Working Pressure: (Psi) 70 / (bar) 4.8 Bend Radius: (inch) 1.5" / (mm) 38 Weight: (Lb./50 ft.) 35 / (Kg/m) 15.7 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/4" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 1"L WT: 0.64 lbs Quick Guide (pdf)

Read more less

Standard Carbon CanisterCarbon canister systems utilize an engineered charcoal canister to reduce hydrocarbons entering the atmosphere. Other components of a carbon canister system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood carbon canister systems are designed to ensure liquid fuel or water does not reach the canister and are compatible with Jerry Can and marine nozzle refueling.Features: Brackets OEM Installed Low permeation shell reduces overall system emissions Can be mounted in any orientation using brackets provided EPA / CARB Certified Fits a 5/8" vent hose Specifications:  Trailerable Vessel Capacity (EPA Rating): 220 Gallon Non-Trailerable Vessel Capacity (EPA Rating): 350 Gallon Trailerable Vessel Capacity (CARB Rating): 176 Gallon Non-Trailerable Vessel Capacity (CARB Rating): 350 Gallon  *Compatible with Ethanol blended fuels Quick Guide (pdf)

Read more less

1-1/2" x 50' Extra-Flex Corrugated Marine Wet Exhaust HoseTrident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.Features: Black High Temp EDPM Rubber 250°F (121°C) Max. Sizes: 1 1/2" to 8", 38mm to 203.2 mm Colors: Black with White stripe with yellow edges Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils Specifications: ID Diameter (inches): 1-1/2" Length (Feet): 50' Box Dimensions: 8"H x 26"W x 26"L WT: 34 lbs UPC: 704917028163 Quick Guide (pdf)

Read more less

2" Extra-Flex Corrugated Marine Wet Exhaust Hose - Sold by the FootTrident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.Features: Black High Temp EDPM Rubber 250°F (121°C) Max. Sizes: 1 1/2" to 8", 38mm to 203.2 mm Colors: Black with White stripe with yellow edges Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 2" Length (Feet): Sold By The Foot Box Dimensions: 2"H x 2"W x 12"L WT: 0.5 lbs Quick Guide (pdf)

Read more less

Combination Vented Gas Fill/Tank for 1-1/2" Hose - 35° Angled Neck Features: 35° Angled Neck Black Polymer Integral Tank Vent with Flame Arrestor No Ground Wire Required Flip Top Cap Specifications: For Hose Size: 1-1/2" For Vent Size: 5/8" Neck Length: 2-7/16 " Screw Size: #10

Read more less

1-1/2" x 50' Coil Type A2 Fuel Fill HoseTrident 1-1/2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends). Features:  This hose is built with the best fuel, fire, and age-resistant formulation  Provides extraordinary resistance to aging, fire, heat, cold, and the ozone  Also, provides excellent bend-ability Application: Marine Fuel Hose for fill and vent plus diesel distribution Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel Construction: Tube & Cover: NBR / Neoprene  Reinforcement: High tenacity polyester 2 spiral, spring steel helix Temperature Range: -20°F to 212°F (-20ºC to 100ºC)  Length: 50 ft. (15.24 m) Coil Specifications: Inner Diameter: (inch) 1/2" / (mm) 38 Outer Diameter: (inch) 2 / (mm) 51 Wall: (inch) 0.25 / (mm) 6.4 Working Pressure: (psi) 60 / (mpa) 0.41 Bend Radius: (inch) 5.5" / (mm) 140 *The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved Specifications: ID Diameter (inches): 1-1/2" Length (Feet): 50' Box Dimensions: 6"H x 26"W x 27"L WT: 50 lbs UPC: 704917009056 Quick Guide (pdf)

Read more less

2-1/2" x 25' Ocean-Flex Multipurpose HoseThis unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.Specifications: Construction: Tube Black Nitrile, Cover Black Nitrile Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix Temperature Range: -20°F to 212°F (-29ºC to 100ºC) Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.) Specifications: ID Diameter (inches): 2-1/2" Length (Feet): 25' Box Dimensions: 3"H x 38"W x 38"L WT: 38 lbs UPC: 704917018799 Quick Guide (pdf)

Read more less

2" x 50' Ocean-Flex Multipurpose HoseThis unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.Specifications: Construction: Tube Black Nitrile, Cover Black Nitrile Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix Temperature Range: -20°F to 212°F (-29ºC to 100ºC) Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.) Quick Guide (pdf)

Read more less
