Boat Outfitting - Gauge Accessories

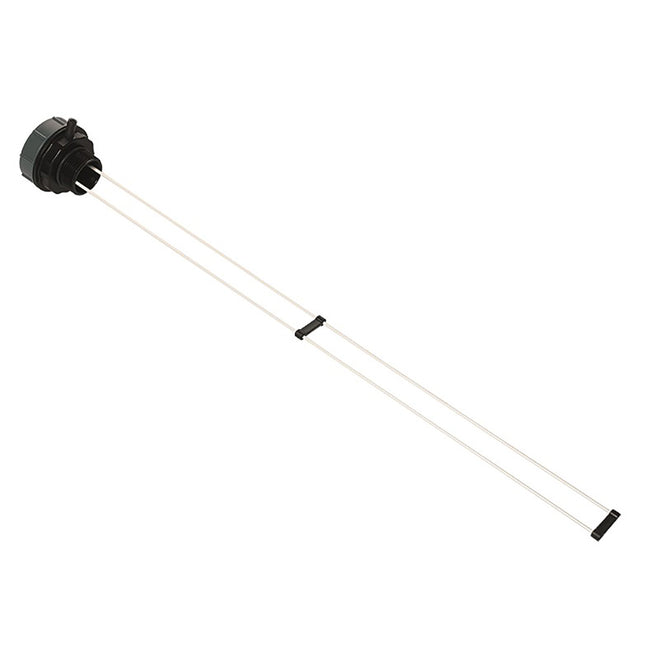

Reed Switch Fuel Sender - 150 MMMost aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.  The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. Features: Stainless steel construction Ethanol resistant Viton gasket 240-33 Ohm range Fits tanks with a depth of 6" (150mm)  Insulated 1/4"" spade connectors Standard 5 hole mounting flange Works with most standard marine fuel gauges Ground - Floating Connection - Insulated .25" Spade *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 3"H x 3"W x 10"L WT: 0.6 lbs UPC: 754059064352

Read more less

Reed Switch Fuel Sender - 350 MMMost aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.  The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. Features: Stainless steel construction Ethanol resistant Viton gasket 240-33 Ohm range Fits tanks with a depth of 13.8" (350mm)  Insulated 1/4"" spade connectors Standard 5 hole mounting flange Works with most standard marine fuel gauges Ground - Floating Connection - Insulated .25" Spade  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 3"H x 3"W x 19"L WT: 0.8 lbs UPC: 754059064437

Read more less

Oil Pressure Sender 1/8" NPTF American 100 PSI - Single StandardFeatures: 1/8" NPTF A wide variety of sender types Metric and Standard values available This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Temperature Sender 250°F/120°C - 3/8-18 NPTFFeatures: Ground - Standard Connection - Knurled Nut Voltage - 6-24V WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Gold Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 754059002903

Read more less

Temperature Sender 250°F/120°C Floating Ground - 3/8-18 NPTF Features: Ground - Floating Connection - .25" Spade Voltage - 6-24V Thread - 3/8-18 NPTF Component Reference No. - 805/1/5 Max. Temperature Scale - 250°F/120°C  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Gold Box Dimensions: 1"H x 5"W x 8"L WT: 0.2 lbs UPC: 754059002989

Read more less

Temperature Sender - 1/4" NPT Thread1/4"  NPT Single station temperature sender.Specifications:  Single station 1/4 inch NPT thread size 10-32 stud terminal Works with US ohm scale temperature gauges Standard ground Factory P/N TS2035*Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Gold Box Dimensions: 1"H x 3"W x 3"L WT: 0.1 lbs UPC: 759266904026

Read more less

NMEA 2000 Liquid Level Sensor - 200 to 600mmThe NMEA 2000® Liquid Level Sensor overcomes a laundry list of issues that plague traditional fluid level monitoring solutions, including being certified for drinking water—an industry first.  Powered by an NMEA 2000 network, three models are available to accommodate a wide range of tank depths from 200 mm to 1500 mm.The capacitive sensor is easily selectable between fresh and waste water, and is micro-adjustable for tank size. Unlike reed technology that only reports tank level in graduated steps, the Veratron NMEA 2000 Liquid Level Sensor, thanks to capacity measuring technology, offers level linearity on the full range. This provides precise data to make informed decisions on refilling and pumping out or discharging, for up to 4 tanks.Completely plug-and-play, the Veratron sensor simply connects directly into the NMEA backbone with its integrated Micro-C M12 5-pin NMEA 2000 connector. This provides the nominal 12V power and the ability to view tank level from any networked display.UL94, CE, REACH and RoHS compliant, the NMEA 2000 Liquid Level Sensor is IPX9K rated as an exposed device. Features: Includes Flange Installation Kit 300mm NMEA Pigtail Connection Technical Specifications: Connector - NMEA 2000 Micro-C 5 pin M12 Male IP Protection Class - IPX9K In the Box: Sensor Sealing Kit Rubber Gasket Mounting Bracket Mounting Screws and Allen Wrench  *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Silver Box Dimensions: 4"H x 4"W x 30"L WT: 1.45 lbs UPC: 7640178729384

Read more less

Pressure Sender 80 PSI - 1/8-27 NPTFFeatures: Ground - Standard Connection - Knurled Nut Voltage - 6-24V Thread - 1/8-27 NPTF Component Reference No. - 29/4 Max. Pressure Range - 80PSI / 5 bar (10-180Ohm) *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 2"H x 5"W x 8"L WT: 0.38 lbs UPC: 754059004655

Read more less

Pressure Sender 150 PSI Floating Ground - 1/8-27 NPT Features: Ground - Floating Connection - Knurled Nut Voltage - 6-24V Thread - 1/8-27 NPTF Component Reference No. - 32/14 Max. Pressure Range - 150PSI / 10 bar (10-180Ohm) *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 1"H x 5"W x 8"L WT: 0.3 lbs UPC: 754059004945

Read more less

Reed Switch Fuel Sender - 250mm Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.  The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. Features: Stainless steel construction Ethanol resistant Viton gasket 240-33 Ohm range Fits tanks with a depth of 10" (250mm)  Insulated 1/4"" spade connectors Standard 5 hole mounting flange Works with most standard marine fuel gauges Ground - Floating Connection - Insulated .25" Spade  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 3"H x 3"W x 14"L WT: 0.7 lbs UPC: 754059064529

Read more less

Reed Switch Fuel Sender - 270 MMMost aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.  The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. Features: Stainless steel construction Ethanol resistant Viton gasket 240-33 Ohm range Fits tanks with a depth of 10.8" (270mm)  Insulated 1/4"" spade connectors Standard 5 hole mounting flange Works with most standard marine fuel gauges Ground - Floating Connection - Insulated .25" Spade  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 3"H x 3"W x 14"L WT: 0.6 lbs UPC: 754059064536

Read more less

LinkUp J1939 to NMEA 2000 GatewayThis single-sensor gateway is designed to upgrade your vessel sensors to NMEA 2000®. Can be easily configured through either the embedded wireless interface or NMEA 2000® by means of our Configuration Tool. The ISO 8846:1990 compliance completes the devices by allowing their installation into compartments.Features: Waterproof sensor connection No external power supply required Wireless configuration through companion mobile App Explosion-proof housing body for engine room installation Standard DeviceNet M12 plug to interface NMEA 2000 Input signal - SAE J1939 Nominal Voltage - 12V *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Black Box Dimensions: 1"H x 7"W x 10"L WT: 0.14 lbs UPC: 7640178729513 Owner's Manual (pdf)Brochure (pdf)

Read more less
