Boat Outfitting - Gauge Accessories

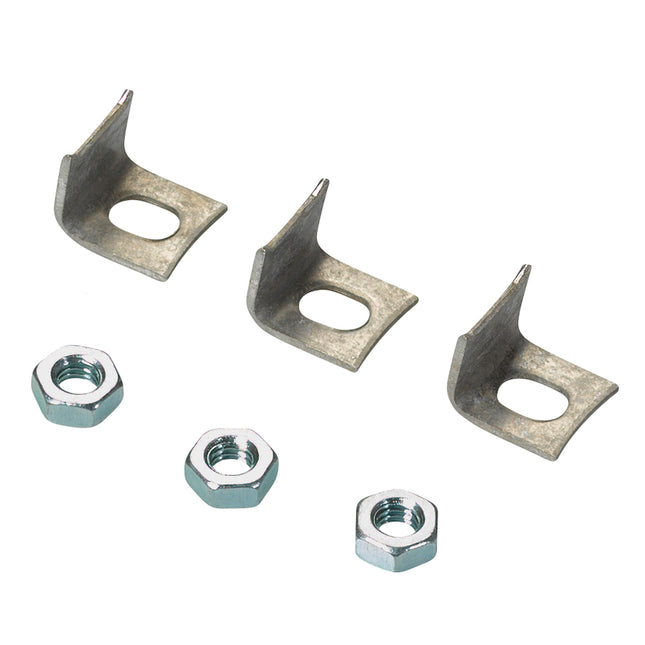

Flush Mount Fixing Bracket - ViewLine GaugesFor flush assembly.  Put the instrument into the drill hole from the back. Adjust the instrument so that the gauge is level and fasten it to the stud bolts on the rear side of the panel using the flush mount fixing bracket.Features: Designed for 52mm, 85mm and 110mm Gauges For Backside Panel Installation *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Deep-Pipe Level Sender - 300mm - 90 to 4 OHMDeep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state. Sensors are made in various lengths starting at 150 mm increasing to 1200 mm – please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted. Features: Tubular Sensor Stainless Steel Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water Length: 300 mm Technical Specifications: TE Superseal Connector 2-Pole IP67 Operating Temp.: -25°C to 65°C or -13°F to 149°F Operating Voltage: 6 to 24 VDC Compensation chamber Flange: 5-Hole SAE Flange 54mm PA66 GF30 Wiring harness with length of 200 mm Signal ranges: 90–4 OHM IP67 protection rating Communication: Analog In the Box: Deep-Pipe Level Sensor Installation Kit Safety Instructions Installation Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Silver Box Dimensions: 4"H x 4"W x 17"L WT: 1.2 lbs UPC: 7640178726437

Read more less

Type E Plastic Bulb SocketFeatures: Material - Plastic Class - Type E Connection - Spade *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Box Dimensions: 1"H x 2"W x 3"L WT: 0.01 lbs UPC: 754059017082

Read more less

Reed Switch Fuel Sender - 350 MMMost aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.  The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. Features: Stainless steel construction Ethanol resistant Viton gasket 240-33 Ohm range Fits tanks with a depth of 13.8" (350mm)  Insulated 1/4"" spade connectors Standard 5 hole mounting flange Works with most standard marine fuel gauges Ground - Floating Connection - Insulated .25" Spade  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 3"H x 3"W x 19"L WT: 0.8 lbs UPC: 754059064437

Read more less

EasyLink Connecting Cable for AcquaLink® & OceanLink® GaugesEasyLink connecting cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

52MM OceanLink Bezel - Round - BlackThe Oceanlink modular bezel concept offers true design flexibility in the layout of instrument panels.  The three attractive designs in Black, White or Chrome are suitable for every machinery instrument panel or special vehicle cockpit. Each of the bezel designs is compatible with 52MM OceanLink products.Features: Color - Black Bezel Profile - Round Size - 52mm Interchangeable Clip System *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Black Diameter (mm): 52 Box Dimensions: 1"H x 4"W x 7"L WT: 0.05 lbs UPC: 7640178721517

Read more less

Engine Oil Temperature Sensor - M16x1.5 Thread - 150°C Temp RangeThese resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.Features: Function - Oil temperature, coolant temperature Length - 28.5mm (1-1/8") Thread - M16x1.5 Calibration - 150°C Measurement Range - 150°C Output Signals - Resistive IP67 Insulated ground pin Quick Guide (pdf)

Read more less

4" Gauge BlankCover a 4" gauge hole with Faria's Gauge BlankSpecifications: Fits standard hole for Faria's 4" gauges Black in color ∗ Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Diameter (mm): 102 Diameter (Inches): 4 Color: Black Box Dimensions: 5"H x 5"W x 6"L WT: 0.4 lbs UPC: 759266328617

Read more less

NMEA 2000® Male Terminator Standard NMEA 2000® Male Terminator to be used with CAN BUS, Acqualink and OceanLink Gauges and Equipment.*Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Engine Oil Temperature Sensor - 1/2"-14NPT Thread - 150°C Temp RangeThese resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.Features: Function - Oil temperature, coolant temperature Length - 28.5mm (1-1/8") Thread - 1/2"-14NPT Calibration - 150°C Measurement Range - 150°C Output Signals - Resistive IP67 Insulated ground pin Quick Guide (pdf)

Read more less

Sealing Kit for Water Capacitive SensorSealing Kit for Fresh Water Level Sensor.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Bus Cable - 10M for AcquaLink® GaugesVDO Marine Bus Cable - 10M.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less
