Boat Outfitting - Gauge Accessories

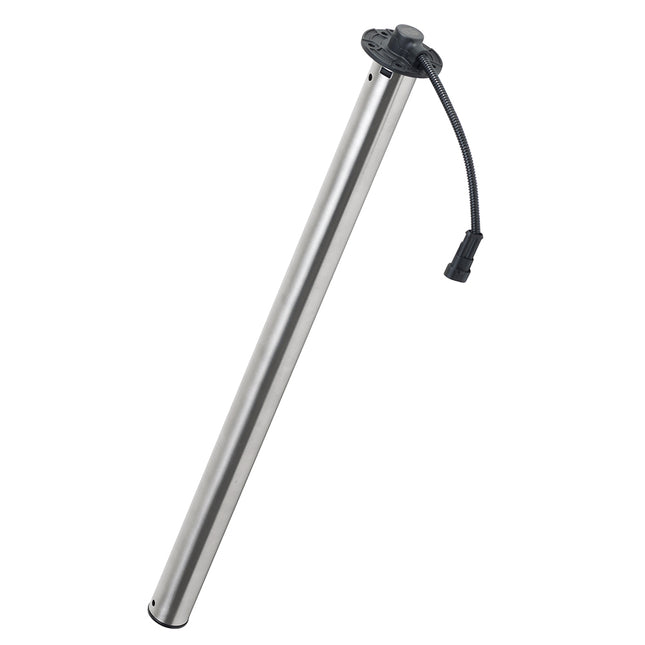

Reed Switch Fuel Sender - 330 MMMost aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.  The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. Features: Stainless steel construction Ethanol resistant Viton gasket 240-33 Ohm range Fits tanks with a depth of 12.9" (330mm)  Insulated 1/4" spade connectors Standard 5 hole mounting flange Works with most standard marine fuel gauges Ground - Floating Connection - Insulated .25" Spade  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 3"H x 3"W x 14"L WT: 0.6 lbs UPC: 754059064420

Read more less

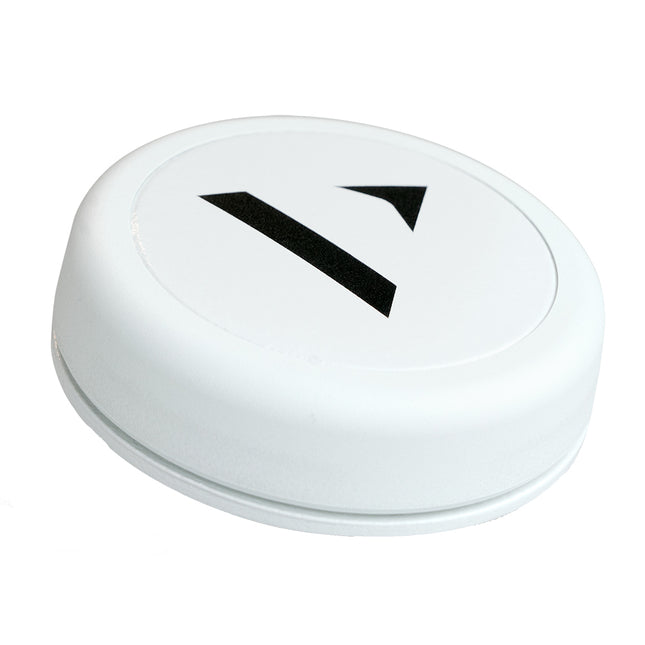

GO GPS ReceiverAll your boat’s data close to your finger tips. Veratron GO is NMEA 2000® certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions.  One of the smallest GPS receivers available.The Veratron GO GPS Receiver works in conjunction with the Veratron Go Data.Features: 72 channel receiver Fast cold-start position fix Compatible with OceanLink 52MM Bezels  10Hz update rate Up to 3 concurrent GNSS systems (GPS, GLONASS and GALILEO) SBAS – WAAS/EGNOS/MSAS/GAGAN supported NMEA 2000 standard PGNs transmitted for position, time, speed and heading Front-end SAW band-pass filter for enhanced immunity against electrical noise Interchangeable bezel option Technical Specifications: Update Rate: Up to 10Hz  using concurrent GNSS, up to 18Hz using single GNSS Position Fix Time: 26 second  cold-start, 1 second hot start Tracking Sensitivity:  -165dBm Position Accuracy: 2.5m Velocity Accuracy: 0.05m/s Heading Accuracy: 0.3° Water Resistance: IPX7 Dimensions (D x H): 60.7 mm x 18.9 mm Power Source: NMEA 2000 backbone (12V nominal voltage), no external power supply required Power Consumption: 100mA (2 LEN) operational, 150mA (3 LEN) during startup In the Box: GO GPS Receiver Instructions Manual  *Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: White Diameter (mm): 60.7 Box Dimensions: 3"H x 3"W x 4"L WT: 0.5 lbs UPC: 7640178729414 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Oil Pressure Sensor - 1/8"-27NPT Thread - 5 Bar Veratron’s Pressure Sensors deliver a stable quality reading during a long lifespan. They have excellent anti-vibration performance and a wide operating temperature range.The sensors can be used in a wide range of applications.All sensors come with a sensor output and an insulated ground pin.Features: Function - Engine oil pressure, transmission oil pressure Thread - 1/8"-27NPT Calibration - 10-184 Ohm Measurement Range - 5 bar Output Signals - Resistive Wide Operating Range - -25 to 120°C Insulated ground pin Quick Guide (pdf)

Read more less

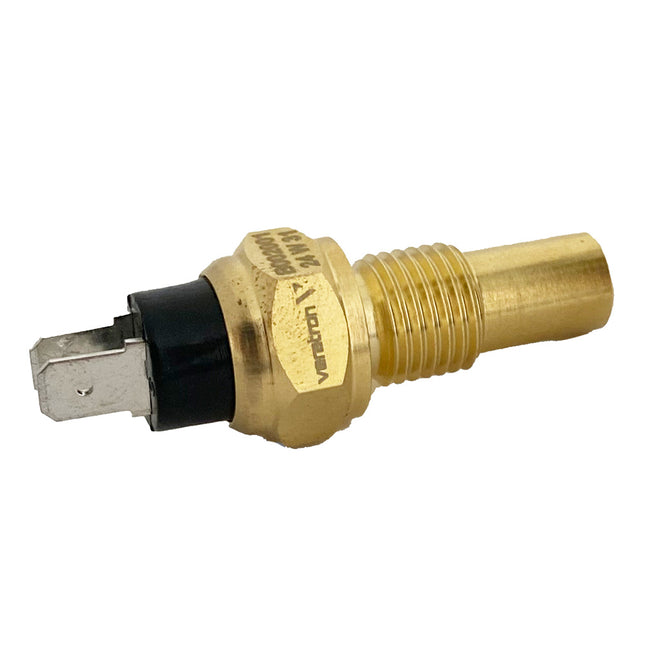

Water Temperature Sensor - M16x1.5 Thread - 120°C Temp RangeThese resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.Features: Function - Oil temperature, coolant temperature Length - 28.5mm (1-1/8") Thread - M16x1.5 Calibration - 120°C Measurement Range - 120°C Output Signals - Resistive IP67 Insulated ground pin Quick Guide (pdf)

Read more less

Water Temperature Sensor - 1/2"-14NPT Thread - 120°C Temp Range These resistive temperature sensors are built in a housing of brass.All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors.The sensors can be applied in a wide field of applications.Features: Function - Oil temperature, coolant temperature Length - 28.5mm (1-1/8") Thread - 1/2"-14NPT Calibration - 120°C Measurement Range - 120°C Output Signals - Resistive IP67 Insulated ground pin Quick Guide (pdf)

Read more less

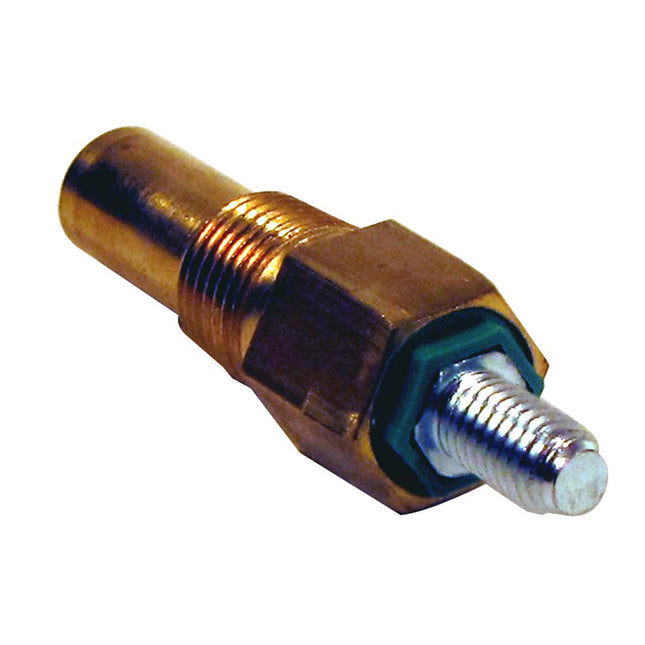

Temperature Sender 1/8" NPTF American Single Standard - TS1029Temperature Sender - 1/8" (American Single Standard)Features: 1/8” NPTF American Single Standard Sold as a single *Beede # 127342This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Oil Pressure Sender 1/8" NPTF American 100 PSI - Single StandardFeatures: 1/8" NPTF A wide variety of sender types Metric and Standard values available This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Reed Switch Fuel Sender - 400 MMMost aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.  The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. Features: Stainless steel construction Ethanol resistant Viton gasket 240-33 Ohm range Fits tanks with a depth of 15.75" (400mm)  Insulated 1/4"" spade connectors Standard 5 hole mounting flange Works with most standard marine fuel gauges Ground - Floating Connection - Insulated .25" Spade  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 3"H x 3"W x 19"L WT: 0.8 lbs UPC: 754059064444

Read more less

Pressure Sender 150 PSI - 1/8-27 NPT Features: Ground - Standard Connection - Knurled Nut Voltage - 6-24V Thread - 1/8-27 NPTF Component Reference No. - 29/12 Max. Pressure  - 150 PSI / 10 bar (10-180Ohm)  *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Type E Wedge Based Bulb - 12V - 4 PackFeatures: Voltage: 12V Watts: 3.4W Color - White * Sold as a 4-PackWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: White Box Dimensions: 1"H x 5"W x 8"L WT: 0.1 lbs UPC: 754059005867

Read more less

Type A - White Metal Base Bulb - 12V - 4-PackFeatures: Voltage - 12V Watts - 2W Size - 9/32" (7mm) Color - White/Clear *Sold as a 4 PackWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: White Box Dimensions: 1"H x 5"W x 8"L WT: 0.1 lbs UPC: 754059005775

Read more less

Pressure Sender 80 PSI Features: Ground - Standard Connection - 10-32 Stud Voltage - 6-24V Thread - 1/8-27 NPTF Component Reference No. - AT84200 Max. Pressure Range - 80PSI / 5 bar (240-33Ohm) *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Silver Box Dimensions: 1"H x 5"W x 8"L WT: 0.3 lbs UPC: 754059005003

Read more less
