Boat Outfitting - Steering Systems

UC128TS / UC128-SVS Tiller Bolt KitTiller Bolt Kit for UC128TS / UC128-SVS Cylinder

Read more less

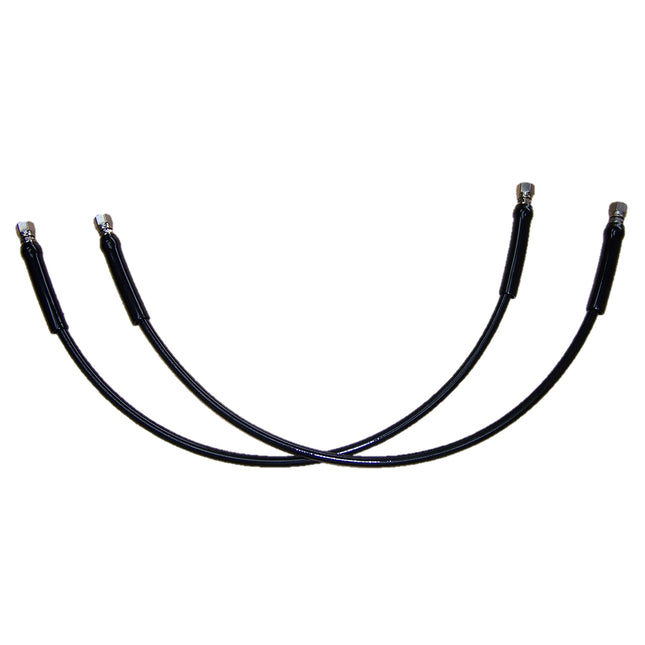

SVS HP Hose Kit - 12'Two high-pressure Kevlar stranded flexible hoses with pre-crimped fittings and bend restrictors on both ends. Recommended for use with all Ultraflex SilverSteer™ and MasterDrive™ helms with 1500 psi relief valves.

Read more less

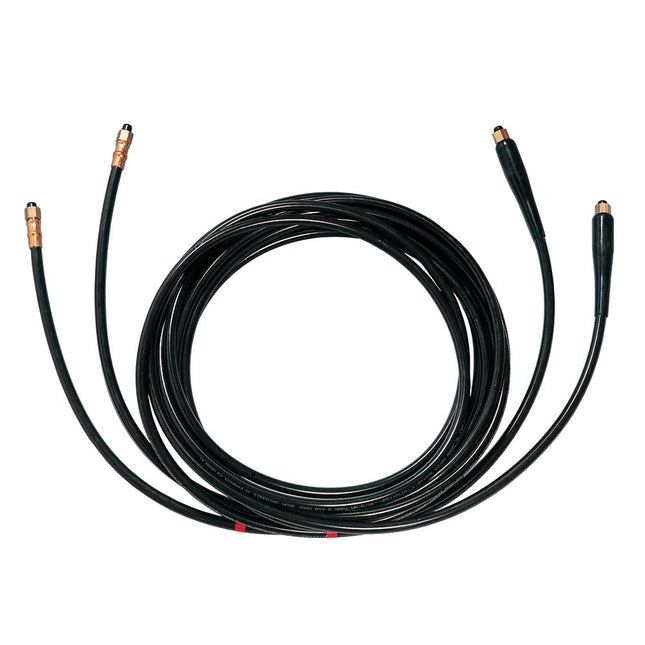

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 18 FeetFittings: ORFS Specifications: Cable Length (Feet): 18' Box Dimensions: 4"H x 14"W x 14"L WT: 3.4 lbs UPC: 702755015932

Read more less

UC128 Version 1 Hydraulic Cylinder - PortThe UC128TS-1P is the Port version of the Protech Front Mount Steering Cylinder. It is used along with the standard cylinder in high horsepower dual engine applications. It shares all of the innovation and attributes of the standard Protech cylinder. Durability and performance define the Protech Front Mount Outboard Steering Cylinders. Features: The replaceable triple sealed 1 3/4" cylinder end cartridges offer industry-leading longevity and durability Designed for up to 600HP in certain applications 304 electropolished and passivated link assembly for peak corrosion resistance Carbon-steel piston allows less internal bypass and provides greater efficiency Ultrabolt high-strength stainless steel tiller bolt

Read more less

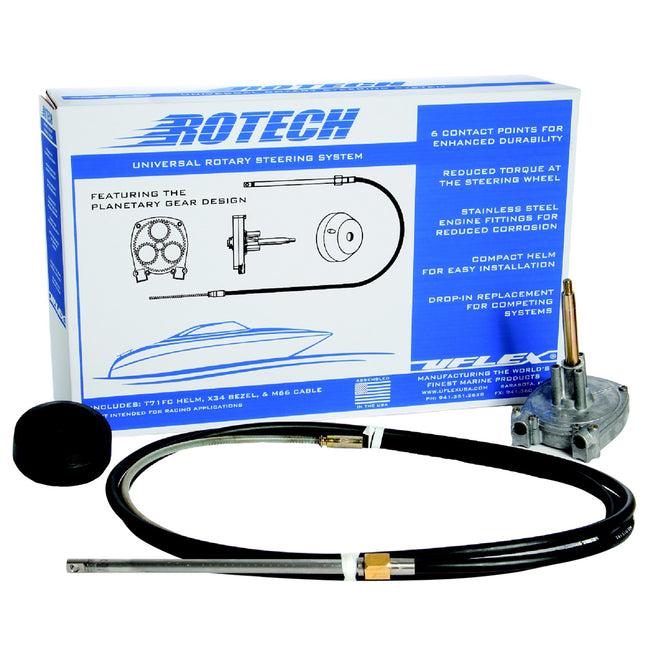

ROTECH™ STEERING SYSTEMROTECH - X15T71FC - helm X34 - 90° bezel M66 - 15' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 15' Box Dimensions: 2"H x 5"W x 5"L WT: 29.9 lbs UPC: 702755019671

Read more less

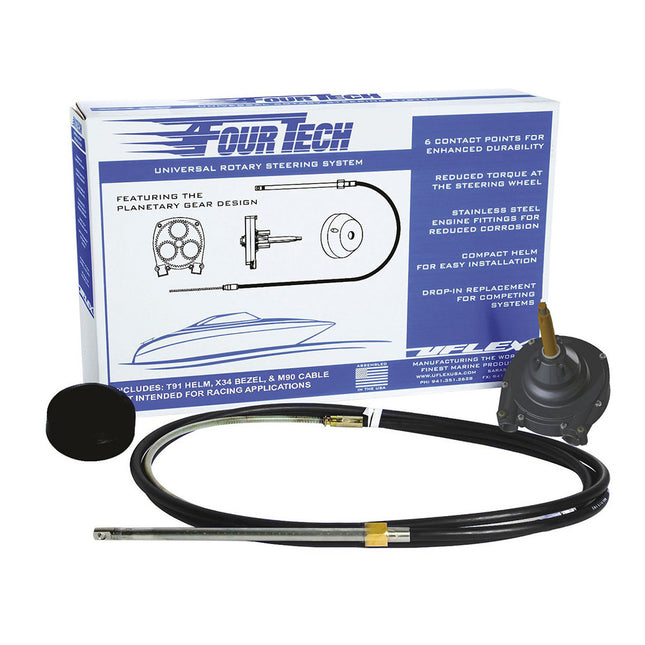

Fourtech 13' Black Mach Rotary Steering System with Helm, Bezel & CableFourtech offers performance, flexibility, and durability increased by top-quality materials and construction. Centered on the main drive shaft, this helm requires less room behind the dash and is a direct "drop-in" replacement for the competing systems; requiring no new holes for installation. Kit Includes: T91 Helm X34 - 90° bezel M90 Steering Cable - 13' Specifications: Cable Length (Feet): 13' Box Dimensions: 8"H x 19"W x 30"L WT: 13.6 lbs UPC: 702755054061

Read more less

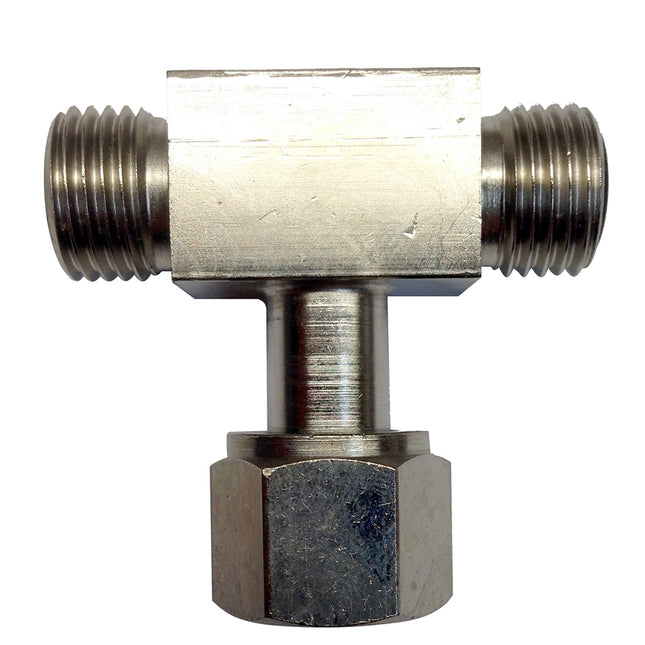

Powertech T-Fitting f/Mercury-Style ORF HosesTypical Application:3-Way ORF fitting for mercury style ORF hoses

Read more less

Fourtech 13' Mach Rotary Steering System w/Helm, Bezel & CableFeaturing the T91 high performance helm with a Planetary Gear Design,the Fourtech offers performace, flexibility and durability increased bytop quality materials and construction. Centered on the main driveshaft, this helm requires less room behind the dash and is a direct "dropin" replacement for competing system; requiring no new holes forinstallation.The package includes: T91 helm (PLANETARY GEAR DESIGN) X34 90° Bezel Highly Flexible M90 Mach cable Specifications: Cable Length (Feet): 13' Box Dimensions: 8"H x 18"W x 30"L WT: 14 lbs UPC: 702755044215

Read more less

M90 Mach Black Rotary Steering Cable - 16'Uflex M90 Mach Rotary Steering Cable provides boat steering systems with increased flexibility and durability from top-quality materials and construction. M90 Mach cables use a patented design offering high efficiency and performance in mechanical steering systems.Features: Minimal feedback Fast connections for simple installation Ideal for long cable runs and tight bend applications - Minimum steering cable bend radius: 150 mm (5.9") Stainless steel cable output end featuring patented gasket (engine side) Specifications: Cable Length (Feet): 16' Box Dimensions: 3"H x 18"W x 28"L WT: 8.4 lbs UPC: 702755048008

Read more less

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 20 FeetFittings: ORFS Specifications: Cable Length (Feet): 20' Box Dimensions: 4"H x 14"W x 14"L WT: 3.45 lbs UPC: 702755015949

Read more less

M90 Mach Rotary Steering Cable - 13'The M90 Mach 13' Rotary Blue Case Steering Cable. Specifications: Cable Length (Feet): 13' Box Dimensions: 3"H x 18"W x 28"L WT: 7 lbs UPC: 702755044062

Read more less

M90 Mach Black Rotary Steering Cable - 13'Uflex M90 Mach Rotary Steering Cable provides boat steering systems with increased flexibility and durability from top-quality materials and construction. M90 Mach cables use a patented design offering high efficiency and performance in mechanical steering systems.Features: Minimal feedback Fast connections for simple installation Ideal for long cable runs and tight bend applications - Minimum steering cable bend radius: 150 mm (5.9") Stainless steel cable output end featuring patented gasket (engine side) Specifications: Cable Length (Feet): 13' Box Dimensions: 3"H x 18"W x 28"L WT: 7.4 lbs UPC: 702755047940

Read more less
