Boat Outfitting - Steering Systems

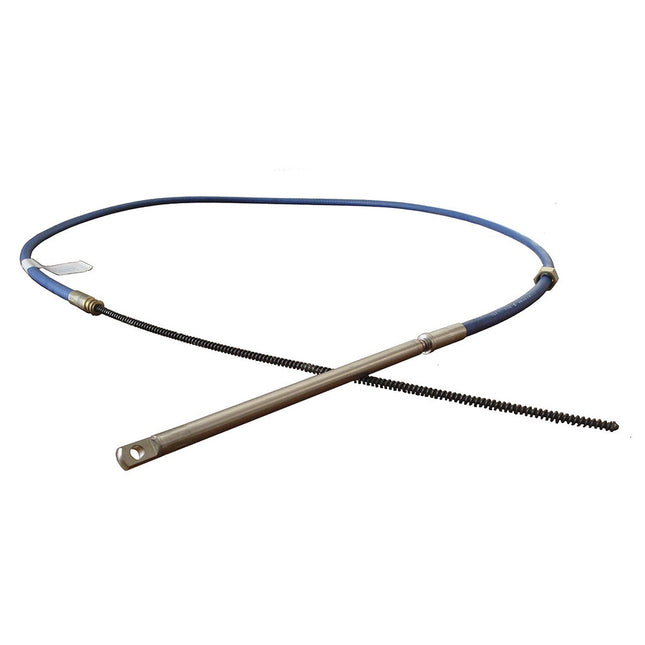

M90 Mach Rotary Steering Cable - 15'The M90 Mach 15' Rotary Blue Case Steering Cable. Specifications: Cable Length (Feet): 15' Box Dimensions: 3"H x 18"W x 27"L WT: 7.7 lbs UPC: 702755044086

Read more less

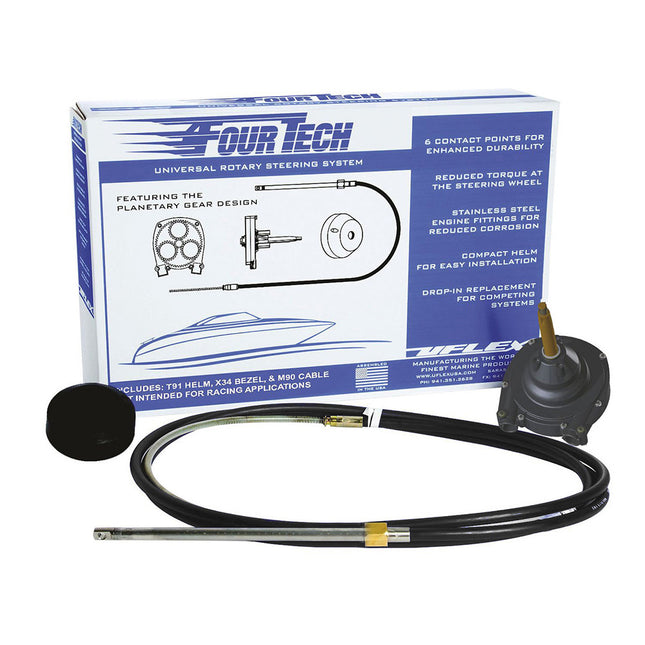

ROTECH™ STEERING SYSTEMROTECH - X20T71FC - helm X34 - 90° bezel M66 - 20' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 20' Box Dimensions: 2"H x 5"W x 5"L WT: 32.4 lbs UPC: 702755019978

Read more less

NaviTech™ Power Steer AssemblyNow you can get the same technology used to drive the most powerful and best handling cars for your boat. Taking the latest technology from the automotive industry, Ultraflex has combined Electronic Power Steering (EPS) used in the most popular cars in the world with the latest mechanical steering helms and Mach 90 high efficiency steering cable to deliver unprecedented performance. Perfectly silent, the system draws minimal power and furtheremore is very easy to install. The NaviTechTM also has Integrated System Monitoring (ISM) which detects certain operating conditions including the number of cycles and notifies the end user with a vibration signal in the steering wheel if the cable needs to be changed. Never before has a steering system monitored it’s own operating conditions and given the driver diagnostic feedback. For specific applications Ultraflex can use programmable software to dial in the hand wheel effort and steering output to meet specific performance objectives of boat builders.A Complete Steering System Consists of: Power assisted steering helm:  T91NAV - 43207S - single cable steering helm Tilt mechanism: X66 - 40613M - Tilt mechanism for NaviTechTM tilt mount helms. Tilt range of 48° and five locking positions Steering cable: M90 Nav (patented)  ATTENTION: M90 Nav steering cable is suitable for use also with T71FC, T72FC, T73NRFC, T81FC, T82FC, T83NRFC, T91, T93ZT, T101, T103ZT. Ultraflex steering helms. M66 will not fit the following Uflex helms: T91, T93ZT, T101, T103ZT. Optional steering wheel  Features and Technical Specifications: Automotive steering effort and response 100% Balanced steering - Port to Starboard / Starboard to Port Silent Operation Monitoring software with integrated cycle counter, for a correct cable replacement.  By haptic feedback on the wheel, the system is able to signal anomalies, such as:  Excessive cable load  Stuck cable alarm Field tested for over 3 years 16 Nm of assist torque capability Able to tune on center and end of travel torque effort Consistent steering assist through all vessel speed ranges Applied in leading automotive application since 2011. Nowadays automotive production is over 1 million units per year 10 - 15 VDC 8 - 15 A nominal current during steering maneuvers Supplied with 10 ft electrical harness. It needs a 40 A fuse (to be ordered separately). Validation for Marine application is per CE, ABYC P17, P27, and ISO 25197 NMMA Type Acceptance Completed Limit of Applications: Outboard engines: Up to 150 hp, maximum 50 mph, no jackplates

Read more less

XPS Hydraulic Fluid - 1 QuartSpecially formulated fully synthetic power steering fluid for the Panther XPS System.Specifications: Size: 1 quartThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Yamaha 150-200 Zero Torque Feedback TillerThe four stroke outboard engines are generating high torque loads which can make tiller steered boats difficult to steer. The Uflex® ZTF Tiller systems eliminate propeller torque at the tiller handle when the driver is not actively changing direction.Using a hydraulic valve, the propeller torque is locked from reaching the tiller handle unless the driver pushes or pulls on the end of the handle, at which point the valve opens and allows for active steering movements. Now you can drive your tiller steered boat in comfort, saving your energy for reeling in fish rather than effort to just get to your favorite fishing spot.

Read more less

PROTECH 1.1 Front Mount OB Hydraulic System - Includes UP28 FM Helm, Oil & UC128-TS/1 Cylinder - No HosesDurability and performance define the Protech front mount outboard steering package. From the stainless steel helm shaft, heavy duty shaft seals, carbon steel piston and 304 electropolished and passivated stainless link assemblies, the Protech is built for maximum longevity and peak performance. Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders. Kit Contains: UP28FM - Front mount helm pump UC128-TS/1 Cylinder OIL 15 - Hydraulic oil - 2 quarts Hoses & Wheel Not Included Brochure (pdf)

Read more less

Masterdrive™ 32CC Front Mount HelmFeatures: Available in two different displacement sizes: 32 cc (1.95 cu.in) and 40 cc (2.44 cu.in) Front Mount and Tilt Mount versions The dual station installation version is also available (please refer to the MD2 Kit) Built-in relief valve 3/4” tapered shaft Corrosion-resistant painted body Waterproof Tilt Mount version is suitable for use with X66-40613 M tilt mechanism Specifications: Mounting: Front Mount Application: Single Cylinder Number of Stations: 1 Maximum Wheel Diameter: 406 mm - 16" Displacement/Revolution: 32cc - 1.95 cu. in. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

SS Maneuvering Knob with Black Nylon Insert Sea-Dog® Steering Wheel Maneuvering Knob fits our Sea-Dog® Steering Wheels (230111, 230212, 230115, 230211, 230215, 230313, and 230315). Designed for 1" x 3/4" oval tubing. Direct replacement for 230323 and 230325.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

HYCO 1.1 Front Mount OB System up to 175HP - Includes UP20 FM Helm, 2qts of Oil, UC95-OBF CylinderFeaturing the unique split tilt tube rod that allows for installation of the UC94 cylinder without removing the engine, the Hyco is an easy and affordable outboard hydraulic steering solution for boats with 150 horsepower and under. Coupled with the composite UP20 helm, the Hyco offers effortless steering with 5 turns lock to lock. And, it is applicable to almost all 2 and 4 stoke outboards engines.Kit Contains: UP20 FM Helm UC95-OBF cylinder OIL 15 - 2 Quarts

Read more less

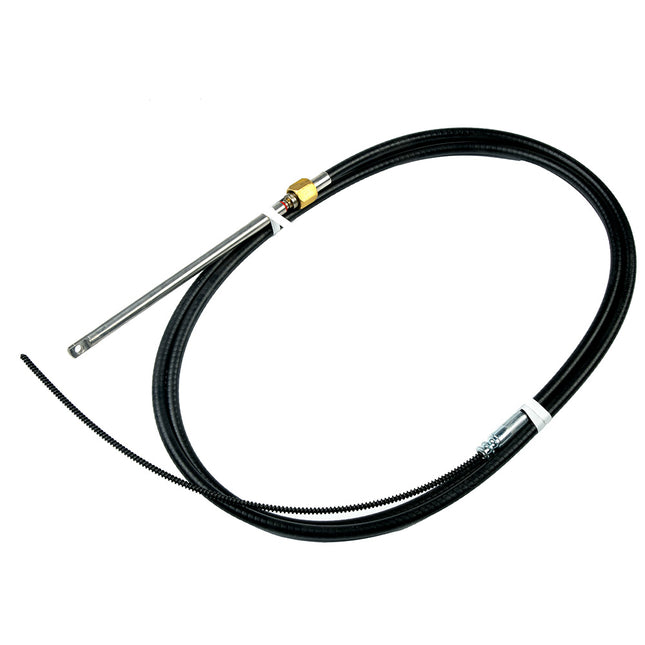

M66 Fast Connect Rotary Steering CableSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe TQC/NFB Morse D290Ultraflex year 2001 and prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR Length: 11 Feet Specifications: Cable Length (Feet): 11' Box Dimensions: 3"H x 18"W x 23"L WT: 6.4 lbs UPC: 702755017097

Read more less

UP28F - Front Mount Helm PumpFeatures: Compact design Ball bearing piston race Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection 3/4" tapered stainless steel shaft Easily accessible lock valve and shaft seal for replacement Cast iron rotor for greater durability and longer life 1/4" NPT fitting for 3/8" tube Complete with elbow fittings 5 pistons

Read more less

Hydraulic Hose Kit 4' - PairTwo high pressure flexible hoses, with pre-crimped fittings and bend restrictors on both ends.Fittings: ORFS*Not recommended for use with SilverSteer™ Series cylinders.
