Boat Outfitting - Steering Systems

90° Helm Fitting for UP SeriesTypical Application:Fitting for port/starboard line in the UP series helms prior to the boss fittingsSpecifications: 1/4 NPT to 3/8 COMP FITTING Helm Side = 1/4 NPT Hose Side = 9/16 - 24 UNEF 2A

Read more less

T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold SeparatelyT83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.Features: X52 Tilt Mechanism sold separately Tilt range of 48° and five locking positions Fast connect, simple installation The tilt device eliminates under-dash movement Standard 3/4” tapered shaft – stainless steel All stainless steel cable output ends Corrosion resistant materials T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems For boats faster than 50 mph, our hydraulic steering systems are recommended Optional steering wheel Engine connection kits Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards Specifications: M66 steering cable stroke: 228 mm (9") Lock-to-lock steering wheel turns: Approx. 3,8 Max. dash depth: 25,4 mm (1") Max. steering wheel diameter: 406 mm (16") Min. steering cable bend radius: 200 mm (7.9") *Tilt Mechanism Sold SeparatelyThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

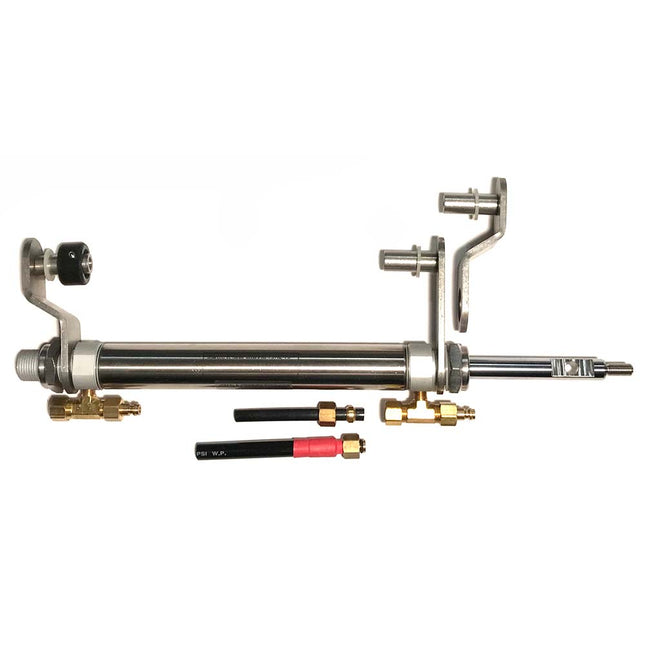

SilverSteer™ Universal Front Mount Outboard Hydraulic Steering System w/ UC128-SVS-1 Cylinder Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.Whether a bass boat, flat boat or tournament style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive and precise steering.Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by over-tightening or leaking fittings from loosening during installation, a common problem on competing cylinders.SilverSteer™ Package Kit Contains:UC128-SVS-1 Cylinder (fittings are on the face of the cylinder, between the cylinder and boat's transom) Quick Guide (pdf)Brochure (pdf)

Read more less

Nylon Tubing 3/8" OD - 50'Nylon tubing for Packaged Steering Systems up to 150hp

Read more less

UC94 Spacer KitSpacer kit for UC94 Cylinder

Read more less

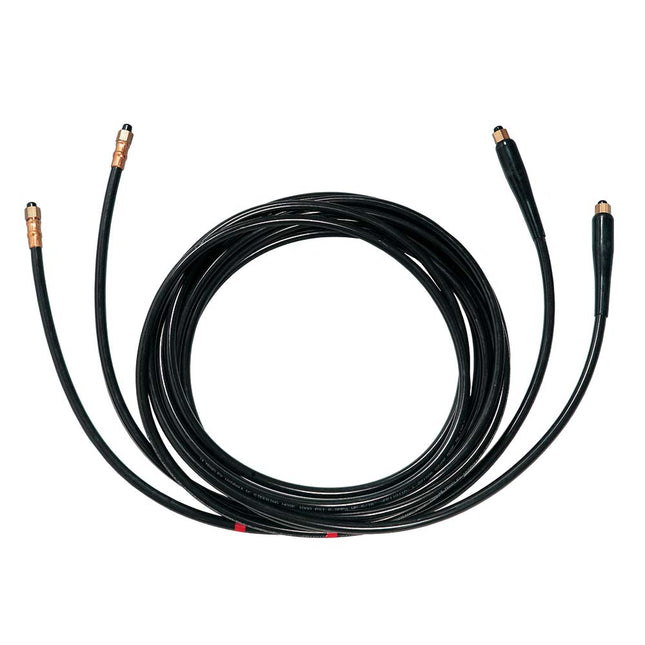

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 10 FeetFittings: ORFS Specifications: Cable Length (Feet): 10' Box Dimensions: 4"H x 14"W x 14"L WT: 2.5 lbs UPC: 702755015888

Read more less

ROTECH™ STEERING SYSTEMROTECH - X10T71FC - helm X34 - 90° bezel M66 - 10' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 10' Box Dimensions: 8"H x 18"W x 29"L WT: 12.55 lbs UPC: 702755019374

Read more less

ROTECH™ STEERING SYSTEMROTECH - X16T71FC - helm X34 - 90° bezel M66 - 16' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 16' Box Dimensions: 8"H x 18"W x 29"L WT: 14.45 lbs UPC: 702755019732

Read more less

ROTECH™ STEERING SYSTEMROTECH - X09T71FC - helm X34 - 90° bezel M66 - 9' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 9' Box Dimensions: 8"H x 18"W x 29"L WT: 12.15 lbs UPC: 702755019312

Read more less

ROTECH™ STEERING SYSTEMROTECH - X17T71FC - helm X34 - 90° bezel M66 - 17' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 17' Box Dimensions: 8"H x 18"W x 29"L WT: 15.02 lbs UPC: 702755019794

Read more less

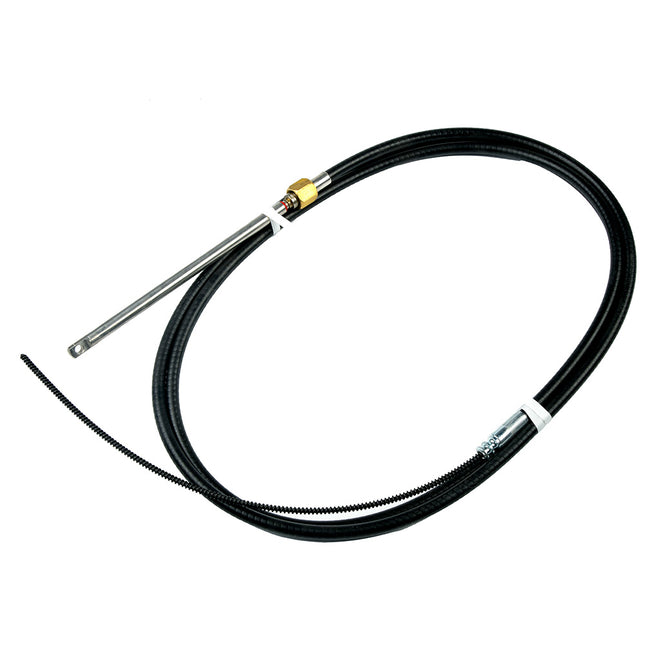

M90 Mach Black Rotary Steering Cable - 8'Uflex M90 Mach Rotary Steering Cable provides boat steering systems with increased flexibility and durability from top-quality materials and construction. M90 Mach cables use a patented design offering high efficiency and performance in mechanical steering systems.Features: Minimal feedback Fast connections for simple installation Ideal for long cable runs and tight bend applications - Minimum steering cable bend radius: 150 mm (5.9") Stainless steel cable output end featuring patented gasket (engine side) Specifications: Cable Length (Feet): 8' Box Dimensions: 3"H x 17"W x 28"L WT: 5.4 lbs UPC: 702755053750

Read more less

UC94 Tiller Bolt KitTiller bolt kit for UC94 Cylinder
