Boat Outfitting - Steering Systems

UC94 Mounting HardwareMounting hardware for UC94 Cylinder

Read more less

1/4 NPT to 3/8 T-FittingTypical Application:Fitting used in the back of the previous version of the UP series helms before the boss fittingSpecifications: 1/4 NPT to 3/8 COMP FITTING Helm Side = 1/4 NPT Hose Side = 9/16 - 24 UNEF 2A

Read more less

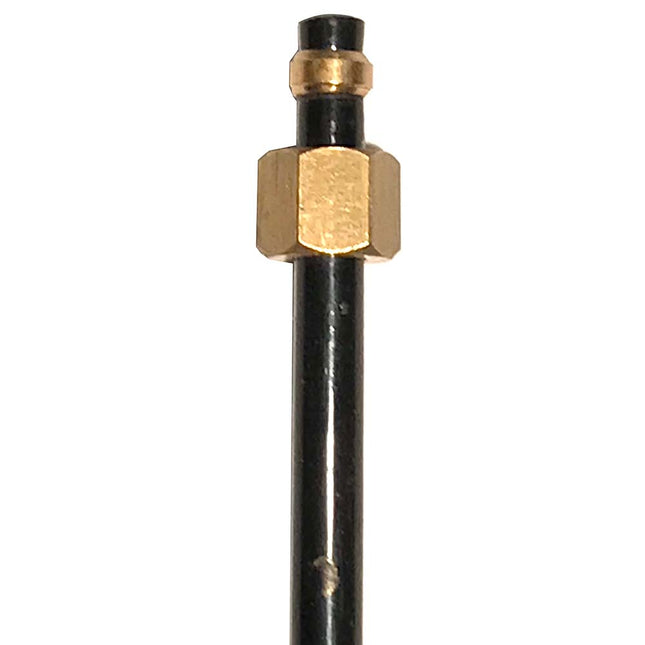

Brass Compression Nut w/Sleeve #61CA-6Typical Application:3/8" Compression Nut with ferrule for cut to length nylon tubingSpecifications: 3/8 COMP NUT Fitting Side = 9/16 - 24 UNEF 2B Hose Side = 3/8 Compression Ferrule

Read more less

45° Adjustable Fitting for Back of UP Series HelmsTypical Application:Fitting for the back of the UP series helmsSpecifications: ORB, Size #6 to 3/8 COMP FITTING Helm Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

Male Run T-Fitting - 3/8" x 3/8" Tube x 1/4" NPTTypical Application:Used to connect any 1/4 NPT Female port to our hosesSpecifications: 1/4 NPT to 3/8 COMP FITTING Helm side = 1/4 NPT Hose side= 9/16 - 24 UNEF 2A

Read more less

Tilt Rotary Steering HelmSingle cable steering helm - not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat

Read more less

V-Throttle - 42018 H - for 0-5V interfaces (voltage)Throttle with analog voltage interfaceRedundant voltage input, IVS, PWM output.They supply the throttle electronic signal. Required for use with direct connection to electronic throttle on the engine.IP protection: IP65Dim.: 205mm x 110mm (8" x 4.3") Quick Guide (pdf)Brochure (pdf)

Read more less

M66 Fast Connect Rotary Steering CableSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe TQC/NFB Morse D290Ultraflex year 2001 and prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR Length: 11 Feet Specifications: Cable Length (Feet): 11' Box Dimensions: 3"H x 18"W x 23"L WT: 6.4 lbs UPC: 702755017097

Read more less

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 26 FeetFittings: ORFS Specifications: Cable Length (Feet): 26' Box Dimensions: 5"H x 15"W x 15"L WT: 4.5 lbs UPC: 702755015970

Read more less

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 22 FeetFittings: ORFS Specifications: Cable Length (Feet): 22' Box Dimensions: 4"H x 14"W x 14"L WT: 3.85 lbs UPC: 702755015956

Read more less

ROTECH™ STEERING SYSTEMROTECH - X19T71FC - helm X34 - 90° bezel M66 - 19' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 19' Box Dimensions: 8"H x 18"W x 29"L WT: 15.3 lbs UPC: 702755019916

Read more less

M66 Fast Connect Rotary Steering Cable - UniversalSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe TQC/NFB Morse D290Ultraflex Year 2001 & Prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR *Length: 9 Feet Specifications: Cable Length (Feet): 9' Box Dimensions: 3"H x 13"W x 28"L WT: 5.65 lbs UPC: 702755017073

Read more less
