Boat Outfitting - Steering Systems

UC95OBF-1 Hydraulic Cylinder 175HP or LessIntended for single engine applications of 175 HP and under, the UC95 OBF-1 cylinder is compatible with competing helms, hoses, and oil, and is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies.Features: Balanced the number of turns lock-to-lock is the equal port to starboard or vice-versa Adjustable boss style fittings for easy installation High resistance stainless steel connection bolt (ULTRABOLT)  Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine on the market our engine Split and pinned mounting rod for easy installation and bushings to prevent friction with engine Brochure (pdf)

Read more less

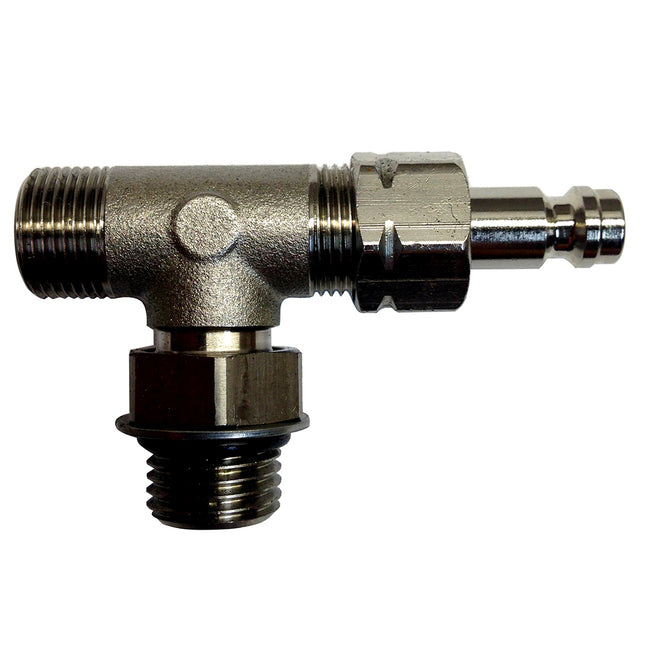

Boss Style T-Fitting - NickelTypical Application:Fitting for back of helm in a dual station installation Specifications: ORB, Size #6 to 3/8 COMP FITTING Cylinder/Helm Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

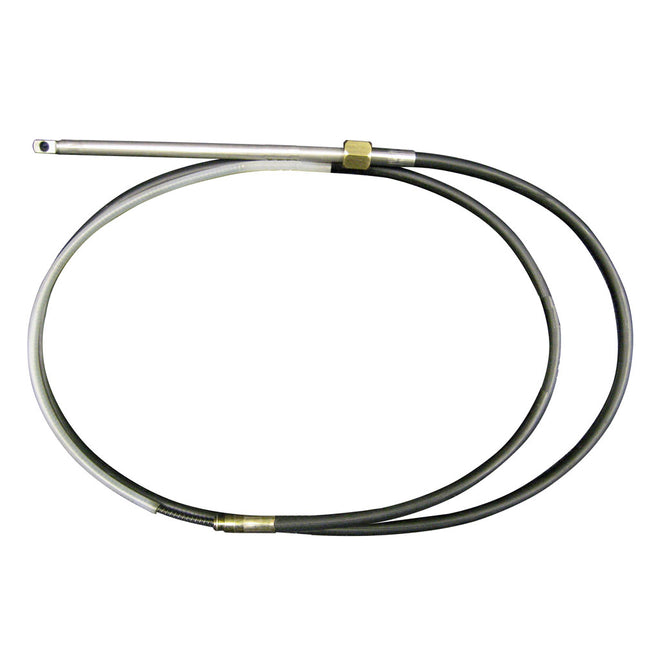

M66 Fast Connect Rotary Steering Cable - UniversalSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe Morse D290 Ultraflex Year 2001 & Prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR *Length: 8 Feet Specifications: Cable Length (Feet): 8' Box Dimensions: 3"H x 18"W x 28"L WT: 5.3 lbs UPC: 702755017066

Read more less

Complete Boss Fitting Typical Application:Bleed fitting for all outboard cylindersSpecifications: ORB, Size #6 to 3/8 COMP FITTING Cylinder Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

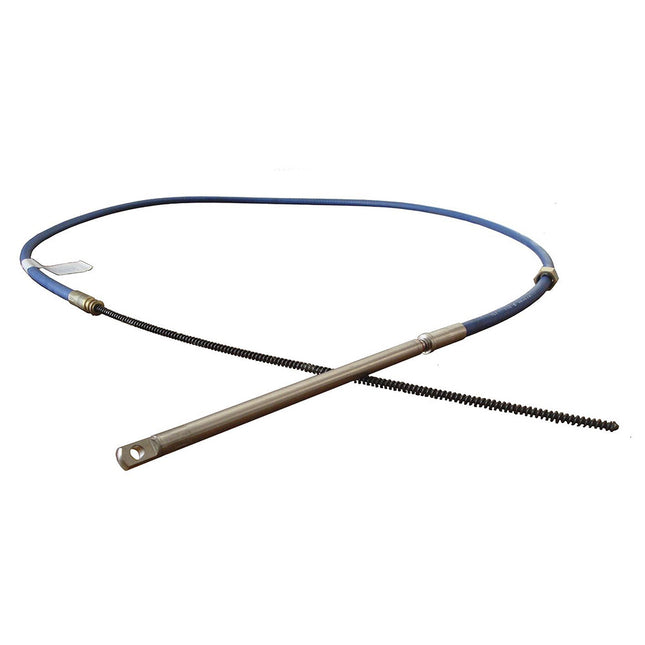

M90 Mach Rotary Steering Cable - 11'The M90 Mach 11' Rotary Blue Case Steering Cable. Specifications: Cable Length (Feet): 11' Box Dimensions: 3"H x 18"W x 28"L WT: 6.4 lbs UPC: 702755044048

Read more less

M90 Mach Rotary Steering Cable - 18'The M90 Mach 18' Rotary Blue Case Steering Cable. Specifications: Cable Length (Feet): 18' Box Dimensions: 3"H x 18"W x 28"L WT: 8.5 lbs UPC: 702755044116

Read more less

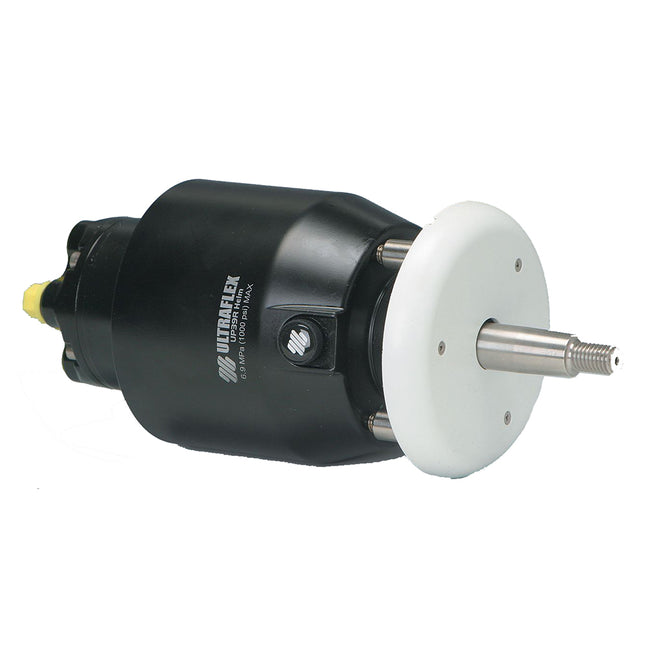

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel ShaftFeatures: Available in four different displacement sizes Compact design Ball bearing piston race Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection 3/4” tapered stainless steel shaft Easily accessible lock valve and shaft seal for replacement Cast iron cylinder rotor for greater durability and longer life 1/4" NPT fitting for 3/8" tube Includes 90° adjustable fittings for 3/8” tube and white bezel UP45R pump is ideal for double cylinder outboard applications UP45 pump is available also for inboard application X68 (optional) - 40894Z Chrome bezel KITF (optional) - 39664Y Remote fill adapter Specifications: Mounting: Retro-cruscotto Displacement/Revolution: 28 cc-1.7 cu in # of Pistons: 5 Relief Valve Setting: 70 Bar - 1000 PSI Maximum Wheel Diameter: 710mm - 28" Weight: 5kg - 11 lbs.

Read more less

Single Paddle Trim SystemSingle paddle kit including one paddle and the brackets to attach to a tilt or to a front mount helm.For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel. Available both in single and dual versions (for either two equal or two different outputs) Both single or dual paddle can be positioned at various angles for the most confortable choice Equipped with one water proof “MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version) Max load 5 Amp @ 12VDC For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay Uflex® trim tabs require the use of the KTR - 42860S kit relay Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”) Easy to install on the following Ultraflex® steering systems: - front and tilt mount hydraulic helms- tilt mount mechanical helmsWiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

Read more less

Double Paddle Trim SystemDouble paddle kit including two paddles and the brackets to attach it to a tilt or to a front mount helm.For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel. Available both in single and dual versions (for either two equal or two different outputs) Both single or dual paddle can be positioned at various angles for the most confortable choice Equipped with one water proof “MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version) Max load 5 Amp @ 12VDC For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay Uflex® trim tabs require the use of the KTR - 42860S kit relay Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”) Easy to install on the following Ultraflex® steering systems: - front and tilt mount hydraulic helms- tilt mount mechanical helmsWiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

Read more less

X52 Tilt Mechanism w/Mounting HardwareTilt range of 48° and five locking positions - suitable on tilt mount helmsX52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems

Read more less

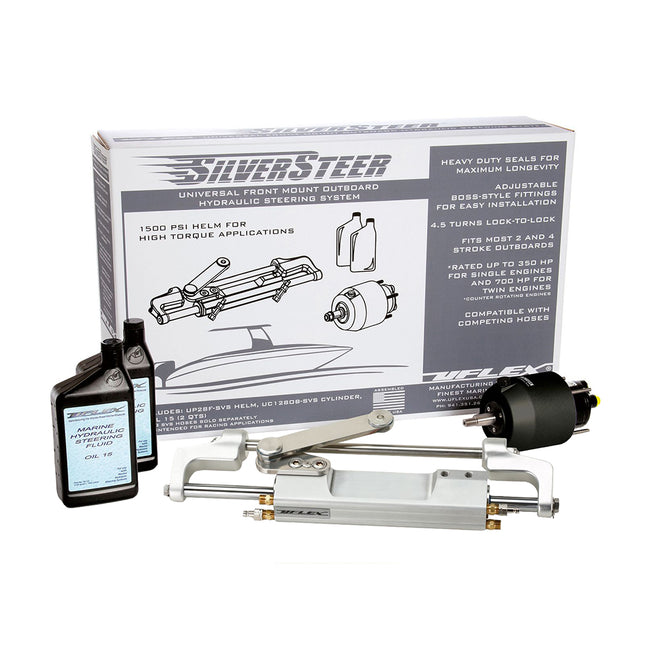

SilverSteer™ 2.0 High-Performance Front Mount Outboard Hydraulic Steering System - 1500PSI FM V2Specifically designed for high performance and high torque applications, the SilverSteer features a 1,500 psi helm and keyed bullhorns on the cylinder for maximum durability and minimal lost motion.Whether a bass boat, flat boat or tournament style offshore fishing boat, the SilverSteer™ will deliver smooth, responsive and precise steering.Adjustable boss style fittings allow precise hose routing without the risk of breaking the fittings by overtightening or leaking fittings from loosening during installation, a common problem on competing cylinders.Features: Horsepower: Single engine, 350hp, dual engine, 600hp Helm: 7.3 cu in/120cc Hose: 1,500psi Turns Lock-to-Lock: 4.3 Included Equipment: UP25 F-SVS front mount helm pump, UC128/2-SVS front mount outboard cylinder, hydraulic oil (two qts.), Hose kits sold separately Steering Wheel: Sold separately Steering Wheel Shaft: 3/4" tapered Warranty: Two years Quick Guide (pdf)Brochure (pdf)

Read more less

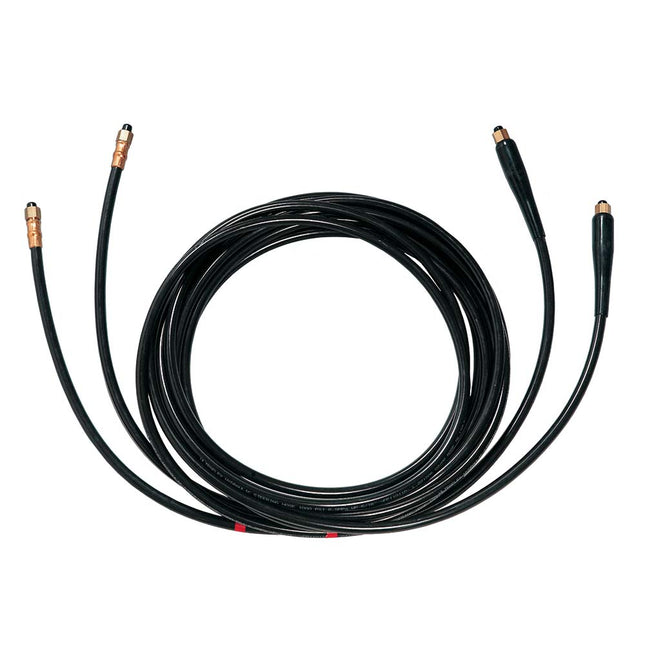

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 28 FeetFittings: ORFS Specifications: Cable Length (Feet): 28' Box Dimensions: 4"H x 14"W x 14"L WT: 4.3 lbs UPC: 702755015987

Read more less
