Boat Outfitting - Steering Systems

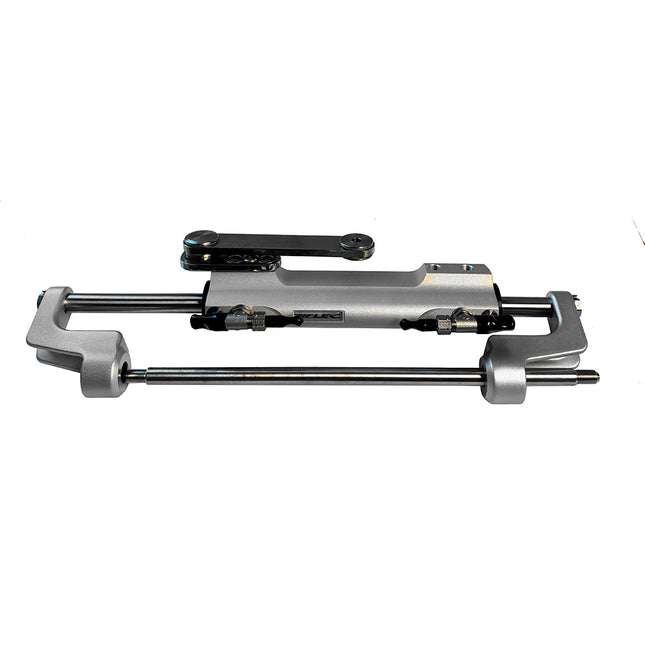

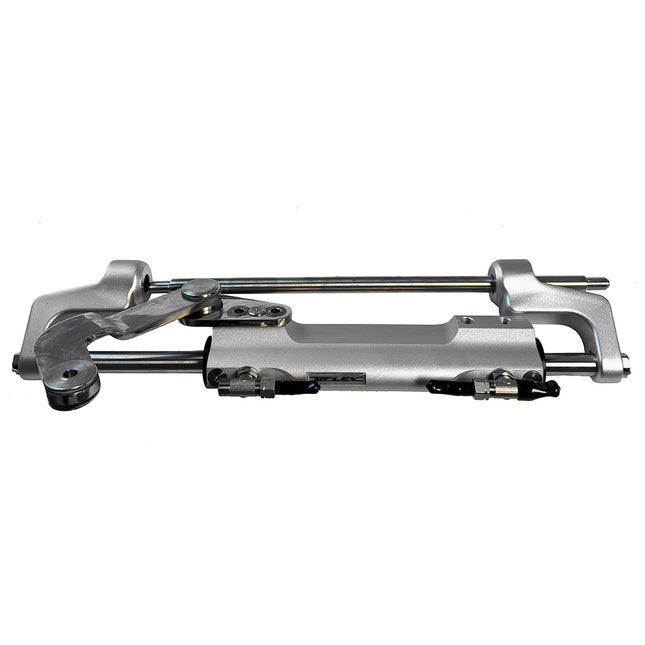

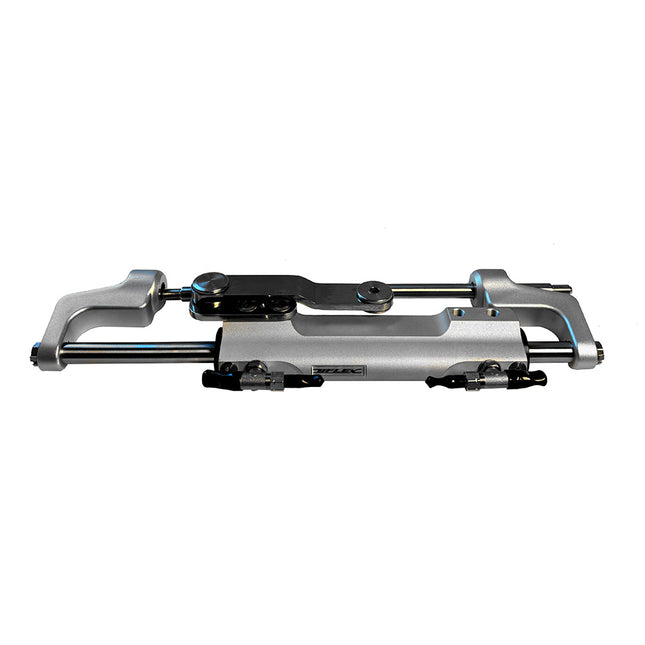

UC95OBF-1 Hydraulic Cylinder 175HP or LessIntended for single engine applications of 175 HP and under, the UC95 OBF-1 cylinder is compatible with competing helms, hoses, and oil, and is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies.Features: Balanced the number of turns lock-to-lock is the equal port to starboard or vice-versa Adjustable boss style fittings for easy installation High resistance stainless steel connection bolt (ULTRABOLT)  Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine on the market our engine Split and pinned mounting rod for easy installation and bushings to prevent friction with engine Brochure (pdf)

Read more less

Tee Fitting with Bleed Nipple for IB & Stern Drive CylindersBleed fitting for all inboard and stern drive cylinders.Specifications: 1/4 NPT to 3/8 COMP FITTING Cylinder Side = 1/4 NPT Hose Side = 9/16 - 24 UNEF 2A

Read more less

M90 Mach Rotary Steering Cable - 14'The M90 Mach 14' Rotary Blue Case Steering Cable. Specifications: Cable Length (Feet): 14' Box Dimensions: 3"H x 18"W x 27"L WT: 7.5 lbs UPC: 702755044079

Read more less

HYCO 1.1 Front Mount OB System up to 175HP - Includes UP20 FM Helm, 2qts of Oil, UC95-OBF CylinderFeaturing the unique split tilt tube rod that allows for installation of the UC94 cylinder without removing the engine, the Hyco is an easy and affordable outboard hydraulic steering solution for boats with 150 horsepower and under. Coupled with the composite UP20 helm, the Hyco offers effortless steering with 5 turns lock to lock. And, it is applicable to almost all 2 and 4 stoke outboards engines.Kit Contains: UP20 FM Helm UC95-OBF cylinder OIL 15 - 2 Quarts

Read more less

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel ShaftFeatures: Available in four different displacement sizes Compact design Ball bearing piston race Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection 3/4” tapered stainless steel shaft Easily accessible lock valve and shaft seal for replacement Cast iron cylinder rotor for greater durability and longer life 1/4" NPT fitting for 3/8" tube Includes 90° adjustable fittings for 3/8” tube and white bezel UP45R pump is ideal for double cylinder outboard applications UP45 pump is available also for inboard application X68 (optional) - 40894Z Chrome bezel KITF (optional) - 39664Y Remote fill adapter Specifications: Mounting: Retro-cruscotto Displacement/Revolution: 28 cc-1.7 cu in # of Pistons: 5 Relief Valve Setting: 70 Bar - 1000 PSI Maximum Wheel Diameter: 710mm - 28" Weight: 5kg - 11 lbs.

Read more less

T-Fitting Assembly  - ORF HoseTypical Application:Used to replace the boss fitting in new outboard cylinders when trying to connect to 'O' ring face seal hosesSpecifications: ORB, Size #6 to 3/8 COMP FITTING Cylinder Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

90° Adjustable Fitting for Back of UP Series HelmsTypical Application:Fitting for the back of the UP series helmsSpecifications: ORB, Size #6 to 3/8 COMP FITTING Helm Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

UC94 Spacer KitSpacer kit for UC94 Cylinder

Read more less

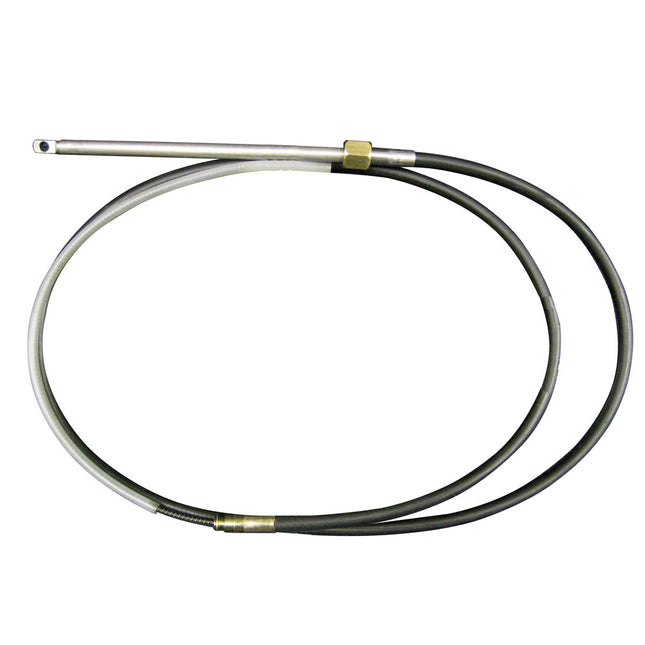

M66 Fast Connect Rotary Steering CableSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe TQC/NFB Morse D290Ultraflex year 2001 and prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR Length: 15 Feet Specifications: Cable Length (Feet): 15' Box Dimensions: 3"H x 18"W x 28"L WT: 7.85 lbs UPC: 702755017134

Read more less

M66 Fast Connect Rotary Steering CableSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe TQC/NFB Morse D290Ultraflex year 2001 and prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR Length: 12 Feet Specifications: Cable Length (Feet): 12' Box Dimensions: 3"H x 18"W x 23"L WT: 6.75 lbs UPC: 702755017103

Read more less

UP28F - Front Mount Helm PumpFeatures: Compact design Ball bearing piston race Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection 3/4" tapered stainless steel shaft Easily accessible lock valve and shaft seal for replacement Cast iron rotor for greater durability and longer life 1/4" NPT fitting for 3/8" tube Complete with elbow fittings 5 pistons

Read more less

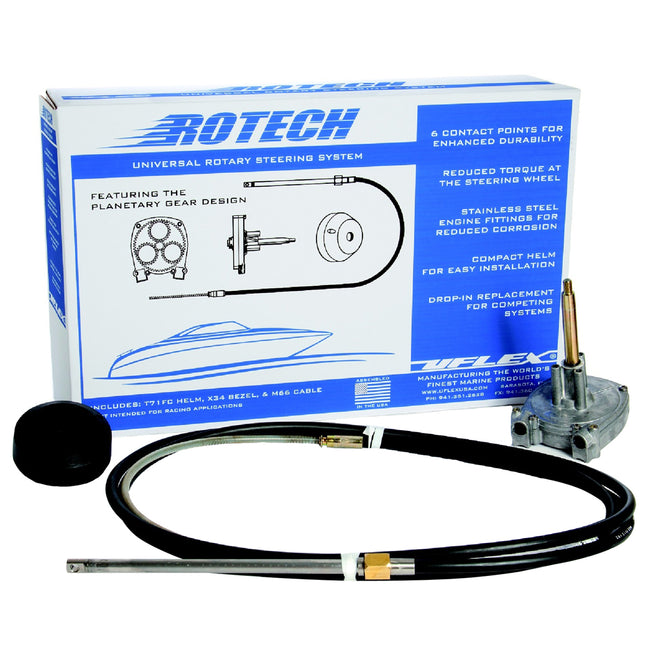

ROTECH™ STEERING SYSTEMROTECH - X18T71FC - helm X34 - 90° bezel M66 - 18' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 18' Box Dimensions: 2"H x 5"W x 5"L WT: 31.4 lbs UPC: 702755019855

Read more less
