Boat Outfitting - Steering Systems

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 14 FeetFittings: 3/8 Compression Fitting Specifications: Cable Length (Feet): 14' Box Dimensions: 5"H x 15"W x 15"L WT: 3.15 lbs UPC: 702755015918

Read more less

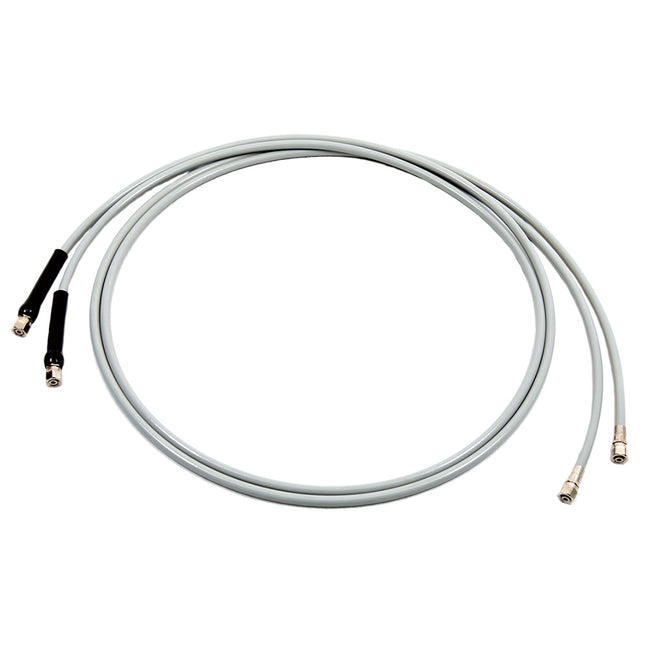

Hydraulic Hose Kit 2' - PairTwo high pressure flexible hoses, with pre-crimped fittings and bend restrictors on both ends.Fittings: ORFS*Not recommended for use with SilverSteer™ Series cylinders.

Read more less

Double Paddle Trim SystemDouble paddle kit including two paddles and the brackets to attach it to a tilt or to a front mount helm.For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel. Available both in single and dual versions (for either two equal or two different outputs) Both single or dual paddle can be positioned at various angles for the most confortable choice Equipped with one water proof “MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version) Max load 5 Amp @ 12VDC For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay Uflex® trim tabs require the use of the KTR - 42860S kit relay Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”) Easy to install on the following Ultraflex® steering systems: - front and tilt mount hydraulic helms- tilt mount mechanical helmsWiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

Read more less

Boss Style T-Fitting - NickelTypical Application:Fitting for back of helm in a dual station installation Specifications: ORB, Size #6 to 3/8 COMP FITTING Cylinder/Helm Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 12 FeetFittings: ORFS Specifications: Cable Length (Feet): 12' Box Dimensions: 5"H x 15"W x 15"L WT: 3 lbs UPC: 702755015901

Read more less

M66 Fast Connect Rotary Steering Cable - UniversalSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe Morse D290 Ultraflex Year 2001 & Prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR *Length: 8 Feet Specifications: Cable Length (Feet): 8' Box Dimensions: 3"H x 18"W x 28"L WT: 5.3 lbs UPC: 702755017066

Read more less

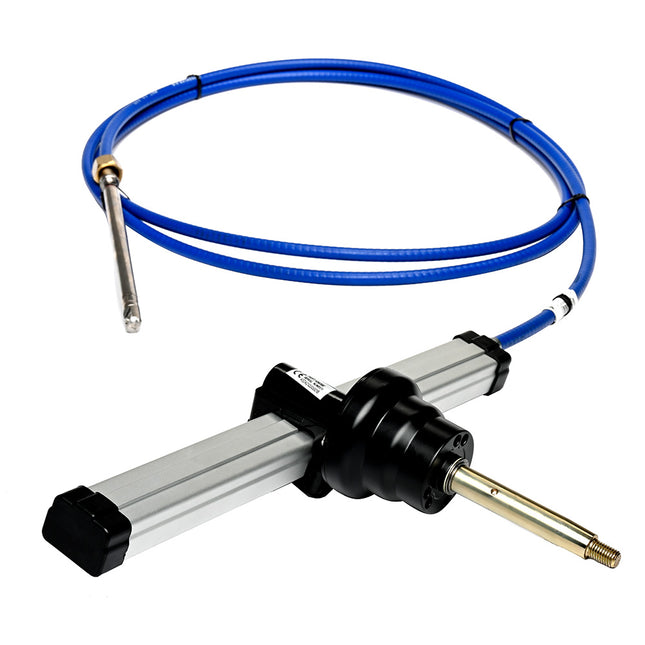

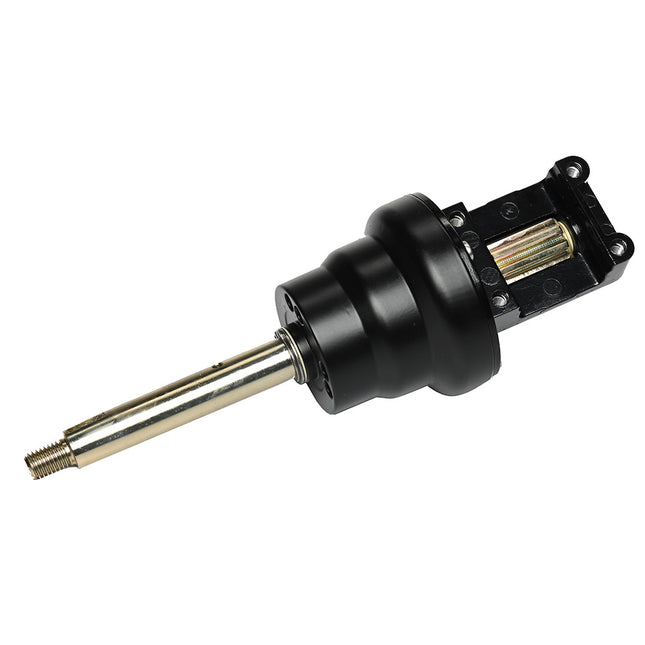

TM87 17' Rack & Pinion Steering SystemFeatures: High-Efficiency Rack & Pinion Steering System Compatible with SSC134, SSC135, and SSC154 competing cables and SH91610p helm Kit Includes: G87 Front Mount Helm TM87XLL High-Efficiency Cable X34 Mounting Bezel Performance Components: All stainless steel cable output ends Made of corrosion-resistant materials Standard 3/4" tapered shaft 3.7" cable stroke 3.3 turns lock-to-lock 7.9" cable bend radius TM87 Steering Systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. Optional Steering Wheel. Exceeds ISO 8848 safety standards. Exceeds ABYC P17 safety standards. Universal replacement steering cable for standard and non-feedback Rack & Pinion Steering Systems. No need to drill holes: X34 bezel fits the same bolt pattern as your existing helm. Use your existing steering wheel: 3/4" tapered shaft fits most steering wheels up to 16" (406mm) diameter Fast, simple, easy cable installation: Universal replacement for standard, ZTF, and no feedback rotary helms

Read more less

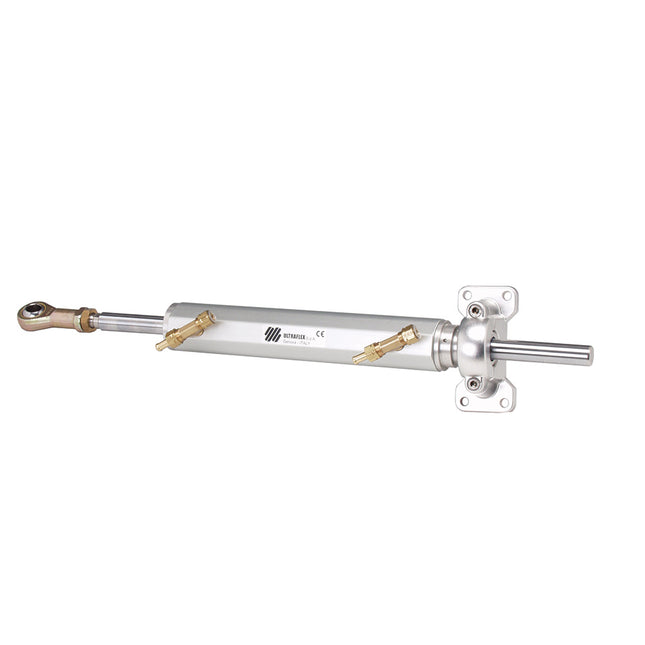

Aluminum Inboard Cylinder - 1.25" Bore & 7" StrokeA hydraulic steering system consists of a steering pump, a cylinder tied to the rudder or the outboard or sterndrive engine, and the connecting hoses. Under normal operating conditions, a steering wheel turn will pump the oil, which flows in through the hoses to the cylinder, according to the turn direction.With the consequent cylinder movement, the oil will flow to the pump through the hoses and, at the same time, move the engine or the helm, which are connected to the cylinder. The pumps, equipped with a valve that prevents outgoing fluid from returning along the same hose, allow the operation of the steering systems with two or more steering stations. The cylinders are double-acting and may be balanced or unbalanced. This particular cylinder is a balanced cylinder with the same number of steering wheel turns to move the helm from the center to the end stroke in two opposite directions. A well-balanced steering system needs the correct choice of pump for the cylinder.This hydraulic cylinder for the inboard engine UC 116-I has been designed and manufactured to be used as a component in the hydraulic steering systems. The cylinder with a mobile rod is installed directly to the arm of the helm through the proper ball joint on the end part of the cylinder. On the opposite side, it is fixed directly to the boat through a support with the plate.Features:Balanced (the number of turns lock-to-lock is equal to port to starboard or vice versa)Specifications: Volume: 116 cc - 7 cu.in Torque: 58 kg (5043 lbs.) Output Force: 464 kg (1023 lbs) Owner's Manual (pdf)

Read more less

ATLAS FingerFlex Blinker Trim Control for Hydraulic Helms - Single Control SwitchUPDATED DESIGN: FingerFlex "Blinker Style" Steering Wheel Trim SwitchT-H Marine offers the answer to convenient trim control for hydraulic helms - FingerFlex. Simple and easy to install, this unit can be added to any boat with only a moderate amount of difficulty.FingerFlex incorporates "Positive Clicking" technology that provides a positive touch and feel so, unlike similar systems, you know when your trim is operating and that's important when you really need it!FingerFlex can be installed on the right or left side of the bezel or both for dual controls. It can also be used to control hydraulic jack plates in addition to tilt and trim systems. Versions are also available to fit most mechanical steering systems.Features: The Ultimate in Trim Control for Hydraulic Helms Positive clicking technology for positive touch Operates engine trim and/or jack plates Fits hydraulic, cable, and tilt steering Easy installation Specifications: "Blinker" style switches allow quick and easy trim control Available in single or dual configurations

Read more less

Hydraulic Steering Fluid - ISO 15 Marine Synthetic Blend - 32 ozDelivers smooth, responsive steering performance under extreme marine conditions. Designed for most outboard and inboard hydraulic steering systems in saltwater and freshwater environments. The synthetic blend with anti-corrosion and anti-wear additives helps protect components and extend system life.Features: Premium Synthetic Blend – Formulated with high-quality synthetic base oils for maximum performance. ISO 15 Viscosity Grade – Optimized for marine hydraulic steering systems requiring ISO 15 fluid. Anti-Corrosion Protection – Shields metal parts from rust and saltwater exposure. Anti-Wear Additives – Reduce friction and wear on seals, pistons, and pumps. Smooth Steering Response – Enhances control and responsiveness in all operating conditions. Compatible with Most Systems – Designed for use in Seastar®, BayStar®, Uflex®, and other hydraulic systems. Saltwater & Freshwater Safe – Resilient formulation performs in all marine environments. 1 Quart (32 oz) Bottle – Convenient size for topping off or full system fluid changes. Leak-Resistant Tip – Easy-pour spout for mess-free application. Trusted Marine Brand – Manufactured by Star brite, a leader in marine performance products. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

UC128 Version 1 Hydraulic CylinderCompatible with competing helms, hoses, and oil, the UC128 cylinder is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies. Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine in the market. Balanced: The number of turns lock-to-lock is equal port to starboard or vice-versa. High resistance stainless steel connection bolt. Volume: 120cc: 7.3 cu. in Output Force: 450 kg - 992 lbs Inside Diameter: 35mm - 1.37" Stroke: 185mm - 7.28" 3/8" (9,5 mm fittings) - For high pressure flex hose Bleed Fittings: DN5 Quick connect

Read more less

Hydraulic Hose Kit 6' - Two Hoses with Bulkhead FittingsTwo high-pressure flexible hoses with pre-crimped nickel-plated fittings, bulkhead fittings (for KIT OB-BHBR only), and bend restrictors on one end. Application:Recommended for use with all Uflex helms with 1500 psi relief valvesSpecification:Hose Length (feet): 6’  Specifications: Cable Length (Feet): 6' Box Dimensions: 5"H x 14"W x 15"L WT: 2.55 lbs UPC: 702755025054
