Boat Outfitting - Steering Systems

ROTECH™ STEERING SYSTEMROTECH - X14T71FC - helm X34 - 90° bezel M66 - 14' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 14' Box Dimensions: 2"H x 5"W x 5"L WT: 23.25 lbs UPC: 702755019619

Read more less

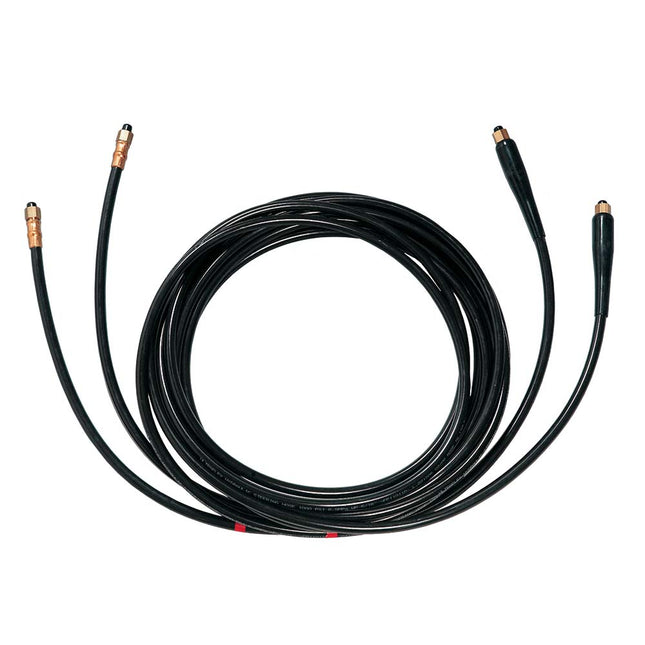

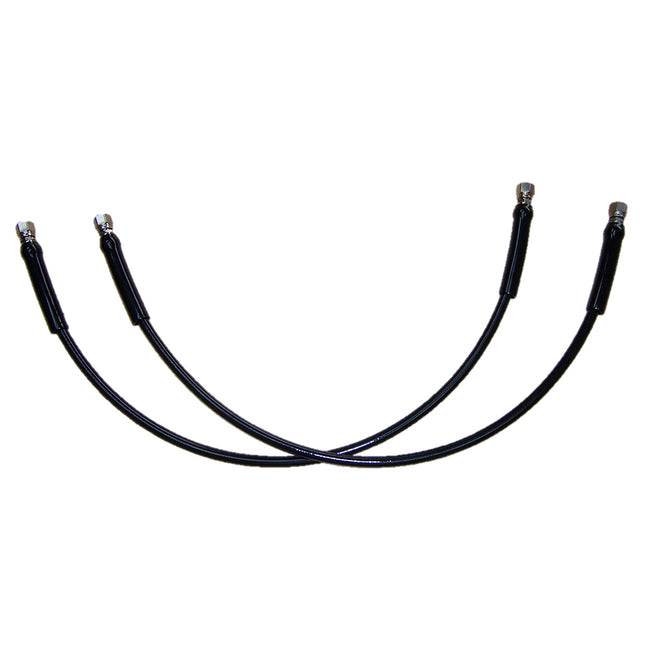

Kit OB - Hose Kit for Single Station InstallationConsists of a pair of high pressure hoses supplied with preassembled fittings on both ends.Length: 10 FeetFittings: ORFS Specifications: Cable Length (Feet): 10' Box Dimensions: 4"H x 14"W x 14"L WT: 2.5 lbs UPC: 702755015888

Read more less

ROTECH™ STEERING SYSTEMROTECH - X12T71FC - helm X34 - 90° bezel M66 - 12' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included Specifications: Cable Length (Feet): 12' Box Dimensions: 2"H x 5"W x 5"L WT: 26.3 lbs UPC: 702755019497

Read more less

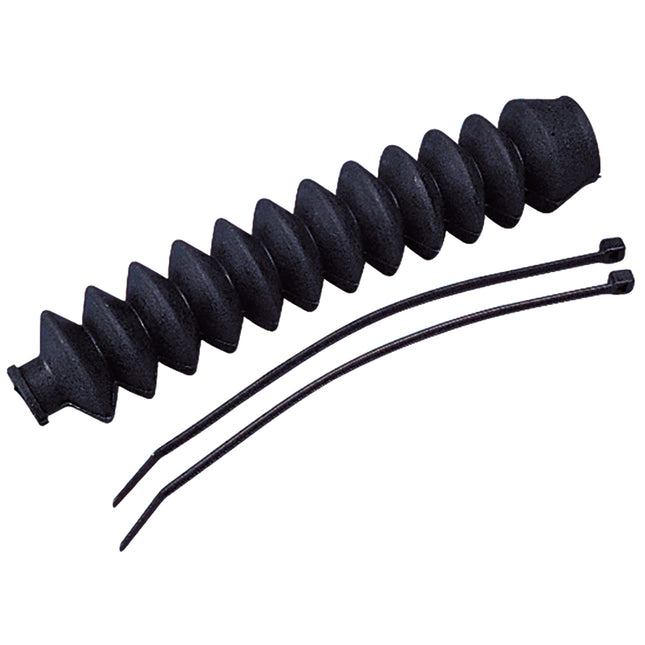

Motor Well Boot - 5-1/2" Black accordion style seal organizes and protects engine control cables, wires or fuel lines. UV stabilized molded rubber. Includes mounting ring. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

UC81-OBF Front Mount Outboard CylinderUC81 OBF – Balanced: the number of turns lock-to-lock is equal port to starboard and vice-versa. Front-mount cylinder for outboard engines up to 115 hp. Replaceable end caps.Specifications: Volume: 81 cc - 4.9 cu. in Output force: 222 kg (489 lbs) Inside diameter: 27,4 mm (1.08") Stroke: 186 mm (7.3") Fittings for high-pressure flex hose: 3/8" Bleed fittings: DN5 quick connect

Read more less

Single Paddle Trim SystemSingle paddle kit including one paddle and the brackets to attach to a tilt or to a front mount helm.For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel. Available both in single and dual versions (for either two equal or two different outputs) Both single or dual paddle can be positioned at various angles for the most confortable choice Equipped with one water proof “MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version) Max load 5 Amp @ 12VDC For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay Uflex® trim tabs require the use of the KTR - 42860S kit relay Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”) Easy to install on the following Ultraflex® steering systems: - front and tilt mount hydraulic helms- tilt mount mechanical helmsWiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

Read more less

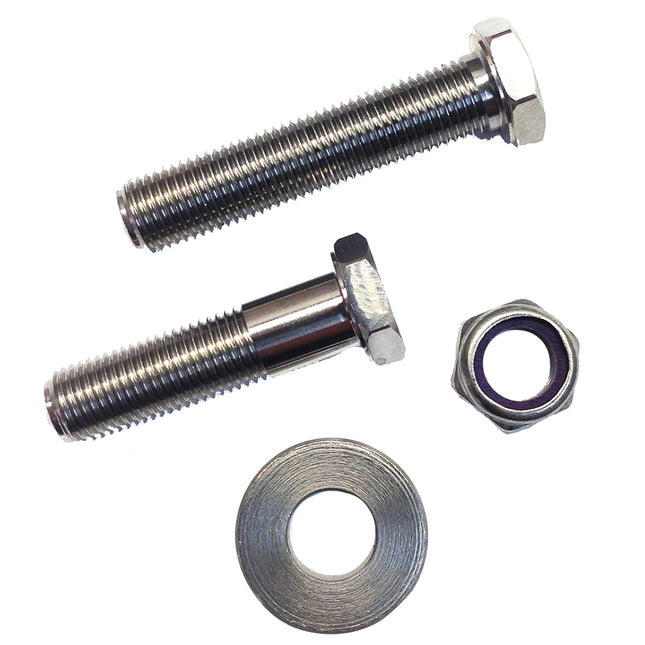

UC128OBF Mounting HardwareMounting hardware for UC128TS Cylinder

Read more less

MasterDrive Steering System - Single Station/Twin Cylinder Kit - UC128TS - SVS 1 & UC128TS - SVS 1P CylindersThe MasterDrive power-assisted outboard steering system delivers effortless steering for the most demanding applications, regardless of speed or torque conditions.Features: Eliminates torque at the steering wheel Three different selectable levels of power give the driver the desired feeling on the wheel (PATENTED) Automatically reverts to manual mode in case of power loss High efficiency, low Amp draw, low noise Kit Includes: UH40-F - MasterDrive 40cc front mount helm UCMD - MasterDrive user interface UPMD - MasterDrive power unit 12V DC UC128TS - SVS 1 front mount cylinder  UC128TS - SVS 1P front mount cylinder  OIL 15 - 4 quarts This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

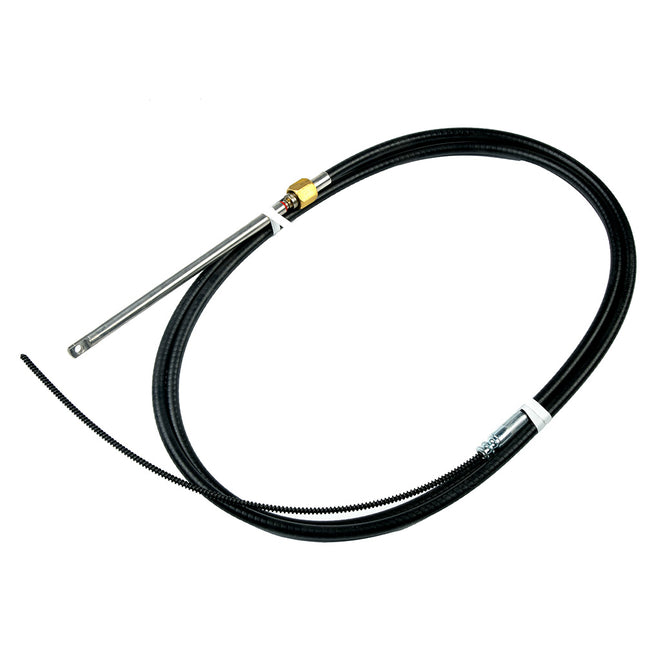

M90 Mach Black Rotary Steering Cable - 10'Uflex M90 Mach Rotary Steering Cable provides boat steering systems with increased flexibility and durability from top-quality materials and construction. M90 Mach cables use a patented design offering high efficiency and performance in mechanical steering systems.Features: Minimal feedback Fast connections for simple installation Ideal for long cable runs and tight bend applications - Minimum steering cable bend radius: 150 mm (5.9") Stainless steel cable output end featuring patented gasket (engine side) Specifications: Cable Length (Feet): 10' Box Dimensions: 3"H x 18"W x 27"L WT: 6.2 lbs UPC: 702755052029

Read more less

Straight Helm Fitting 1/4 NPT for UP Comp Line & Autopilot Return LineFitting for the compensating line in the UP series helms or autopilot return line.Specifications: 1/4 NPT to 3/8 COMP FITTING Helm Side = 1/4 NPT Hose Side = 9/16 - 24 UNEF 2A

Read more less

Brass Compression Nut w/Sleeve #61CA-6Typical Application:3/8" Compression Nut with ferrule for cut to length nylon tubingSpecifications: 3/8 COMP NUT Fitting Side = 9/16 - 24 UNEF 2B Hose Side = 3/8 Compression Ferrule

Read more less

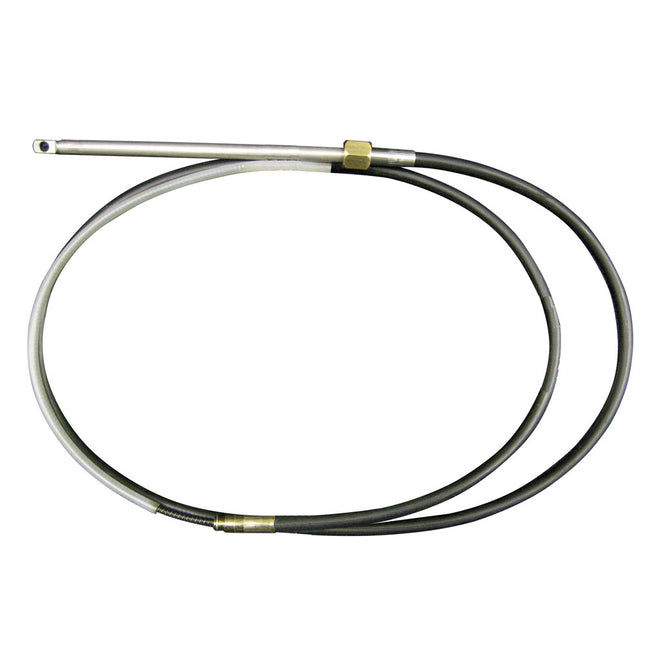

M66 Fast Connect Rotary Steering CableSteering Helm: Ultraflex T71FC T72FC - T73NR FC T81FC - T82FC T83NR FC Teleflex Safe TQC/NFB Morse D290Ultraflex year 2001 and prior: T71 - T72 - T73NR T74NR - T81 - T82 T83NR - T84NR Length: 17 Feet Specifications: Cable Length (Feet): 17' Box Dimensions: 3"H x 18"W x 28"L WT: 8.55 lbs UPC: 702755017158
