Boat Outfitting - Tools

1" Tall Stainless Stud w/#8 x 32 ThreadOur Small Stainless Steel Panel Studs have a wide range of uses. Originally they were used for mounting on the backside of dash panels for mounting to the console. Now they are used for securing a wide range of wire clamps and other small components to composite surfaces. The base plate is 0.62" in diameter with a 1" tall stud. Tensile strength is 300 lbs. and shear strength is 375 lbs. Maximum torque load is 45 inch/lbs.

Read more less

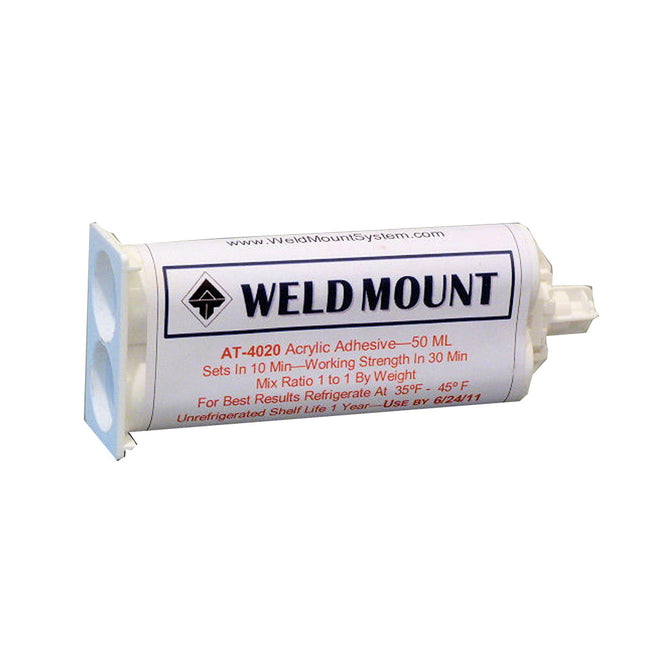

Acrylic Adhesive - 10-PackCAN NOT SHIP AIR,UPS GROUND ONLYAT-4020 is a specially formulated adhesive for holding all our parts with little or no sagging in vertical or overhead applications. Cures in 10 - 12 minutes and has working strength within 40 minutes. AT-4020 is recommended for composite and plastic bonding applications and not for bonding to metal substrates. Unlike other 2 part acrylic adhesives AT-4020 has a one year shelf life when stored at 72 degrees but is best refrigerated when ever possible. It is packaged in a 50ml cartridge and can be mixed by hand or by using our AT-300 gun and mixing tips. The 50ml cartridge will bond 150 - 200 parts. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Black Nylon Wire Tie MountThe AT-3 tie mount is smaller for panel and other small space applications. This part is molded in black nylon and is sized for a #3 wire tie with a maximum width of .20". Average pull strength is about 50 lbs. The square base measures .44" wide. Use this smaller wire tie for runs with only a few wires or where space prevents use of our larger tie mounts. Excellent for mounting compass wires on center console boats and for overhead panel runs.

Read more less

Portable Rope Cutting GunPanther’s portable Rope Cutting Gun is ideal for boat, camper and home use. Lightweight (1.5 lbs), the handle fits in the palm of your hand with easy finger pull operation. It makes quick clean cuts in all types of synthetic ropes, lines and strapping. Comes with a generous 4 ft. cord. Operates on 120V AC power. Replacement blades available.Features: Cord length: 4' Operates on 120V AC power Lightweight, durable Ideal for boat, camper and home use

Read more less

Thru-Hull Installation Tool Thru Hull Installation ToolThe Concept:THT-530 makes the installation of standard GROCO thru-hull fittings possible by a single installer.  Slide the thru-hull fitting, flanged end first, over the tool.  (It will stop at the proper step.)  Tie a length of monofilament to the eye and place it into the already-cut hole in the hull of the boat.  Apply caulking to the flange of the fitting, and pull the fitting through the hole and against the hull from inside the boat.  Thread the mono-filament through the locknut or seacock. With the fitting pulled firmly against the hull the locknut or the seacock may be screwed onto the fitting.THT-530 fits GROCO Thru-hull Fitting Sizes from 1/2" through 3"

Read more less

Aluminum Wire TieUsed with Stainless Steel or Nylon wire ties up to 0.4 inches wide. 250 lbs tensile strength when bonded with AT-6030 adhesive manufactured of 5052 marine grade aluminum for UV and salt water resistance. Ideal alternative to welding or drilling and tapping to mount hoses, conduit, etc.

Read more less

1.5" Tall Stainless Stud w/1/4" x 20 ThreadMounts to virtually any surface using the AT-4010 Acrylic Adhesive. This is a structural part with 500 lbs. of tensile strength and 650 lbs. in shear. All studs have 1/4" x 20 threads. Use for hanging panels, through deck mounts and many other uses.

Read more less

.75" Tall Stainless Stud w/#10 x 24 ThreadUtilize the same base as the 1.4" x 20 studs but with a smaller threaded stud inserted into the base. These studs are ideal for mounting wire clamps and securing items which require a smaller stud diameter. These studs can be bonded from either surface of the base plate.

Read more less

8040 Acrylic Adhesive with Plunger AT-8040 is a good general-purpose adhesive packaged in a manual plunger cartridge. Simply snip off the two end caps dispense the needed amount of adhesive onto a clean surface and mix it by hand. AT-8040 cures in 10-12 minutes, has a 6-minute working time and develops working strength in 40 minutes. AT-8040 has a 12-month shelf life when stored at 72°. Weld Mount recommends that wherever possible this adhesive be refrigerated. Packaged in a 30ml cartridge this adhesive does not require the adhesive gun or mixing tips. The 30ml cartridge will bond 30-50 parts. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

.75" Tall Stainless Stud w/#8 x 32 ThreadOur Small Stainless Steel Panel Studs have a wide range of uses. Originally they were used for mounting on the backside of dash panels for mounting to the console. Now they are used for securing a wide range of wire clamps and other small components to composite surfaces. The base plate is 0.62" in diameter with a .75" tall stud. Tensile strength is 300 lbs. and shear strength is 375 lbs. Maximum torque load is 45 inch/lbs.

Read more less

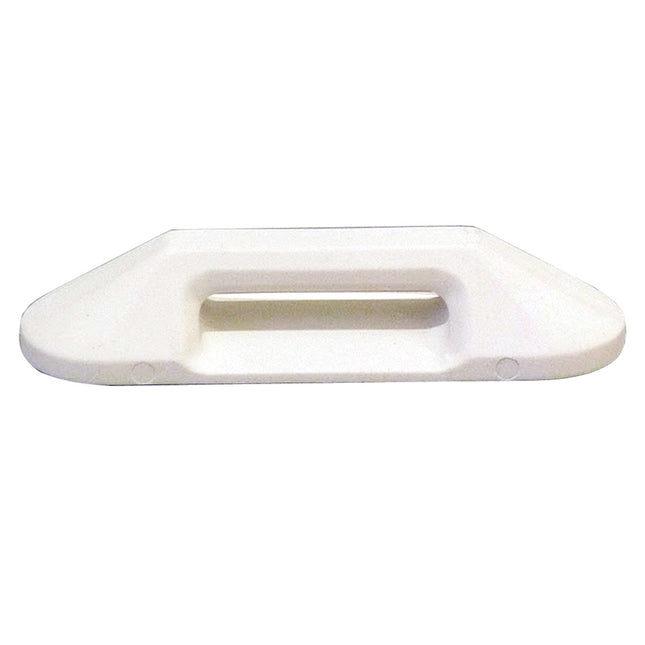

Footman's Strap MountThe Footman's Strap Mount is designed to be bonded with AT-4020 Acrylic Adhesive. This strap mount is 3.25" long and 1" wide and holds up to a 1.3" max strap width. This strap is incredibly strong, paintable, and is rated for over 600 lbs. strength. Use it for battery and tank tie downs and mounting heavy hoses and cables or deck mounted for life raft tie downs.

Read more less

1.25" Tall Stainless Stud w/#8 x 32 ThreadOur Small Stainless Steel Panel Studs have a wide range of uses. Originally they were used for mounting on the backside of dash panels for mounting to the console. Now they are used for securing a wide range of wire clamps and other small components to composite surfaces. The base plate is 0.62" in diameter with a 1.25" tall stud. Tensile strength is 300 lbs. and shear strength is 375 lbs. Maximum torque load is 45 inch/lbs.

Read more less
