Boat Outfitting - Trim Tabs

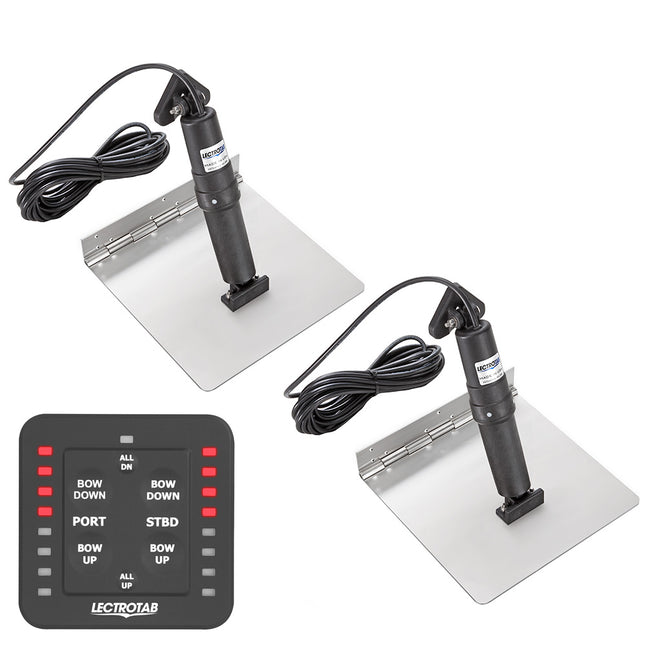

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 18 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.   Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 2"H x 5"W x 6"L WT: 20.15 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

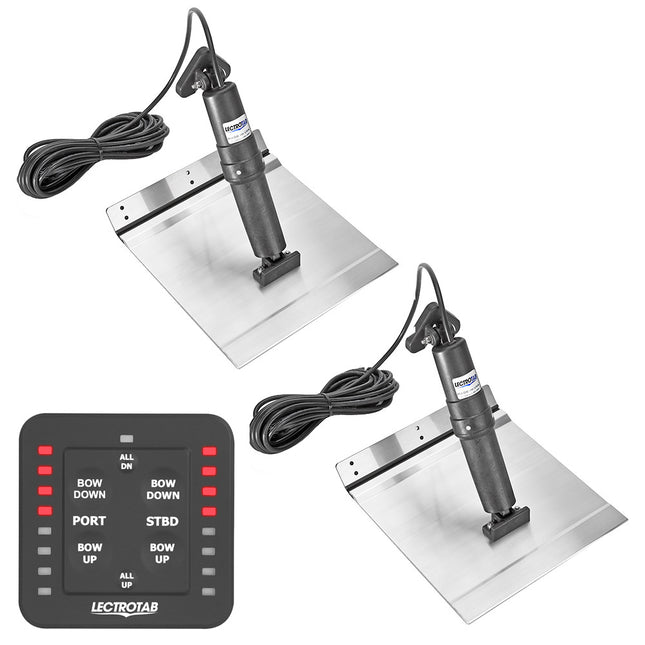

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 24 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm) Boat Length - 28' to 48' (8.5 to 14.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 2"H x 5"W x 6"L WT: 31.45 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

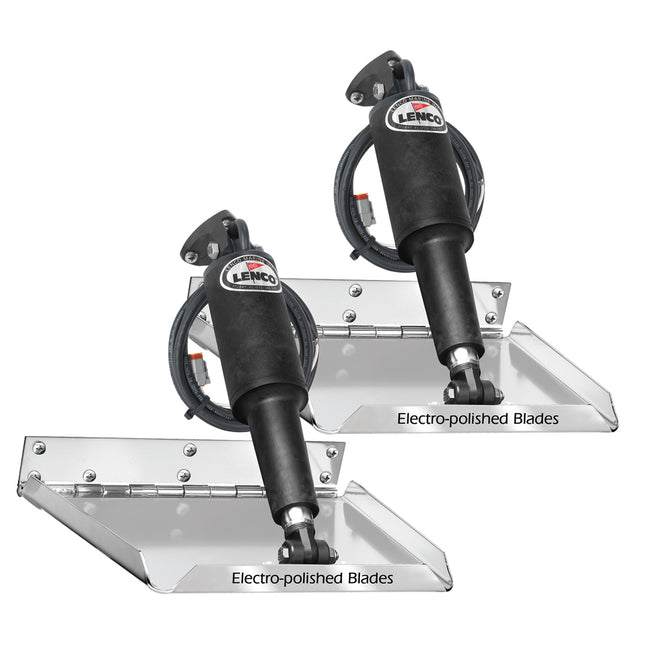

9" x 9" Standard Performance Trim Tab Kit w/o Switch Kit- 12V Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the bladesKit Contents: 2 each of 12-gauge stainless steel Electro-Polished trim tab blades 2 each of #15054-001 actuators with 6' lead and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (#116) upper mounting bracket with gland seal    2 each of #50014-001 (#119) lower mounting bracket  1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 13' to 20' Length of Tab: 9" Width of Tab: 9" Minimum Transom Height: 13.5" Blades: 12 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

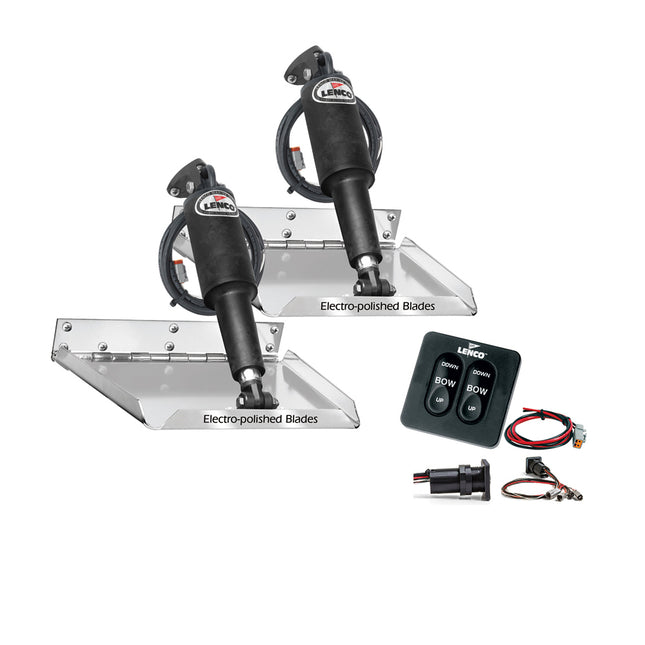

Standard Performance Series TabsStandard actuator with 5/16" stainless steel through bolts. 1" turned up edges with 2" taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished BladesWe make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. DWhy should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case Standard Solid State Tactile Switch Kits with Retractor Feature#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.Features Built-In Retractor Feature Solid State Electronics Plug & Play Low Profile Design Self-Contained, sealed keypad & solid state control box with waterproof connectors Simple, Quick Installation Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75' Each kit contains:Standard Tactile Switch Kit2 actuators with 6' Lead & Deutsch Plugs2 12 Gauge SS Electro Polished trim tab planes 2 20' Actuator Extension Wiring Harness 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All Necessary stainless steel mounting Hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

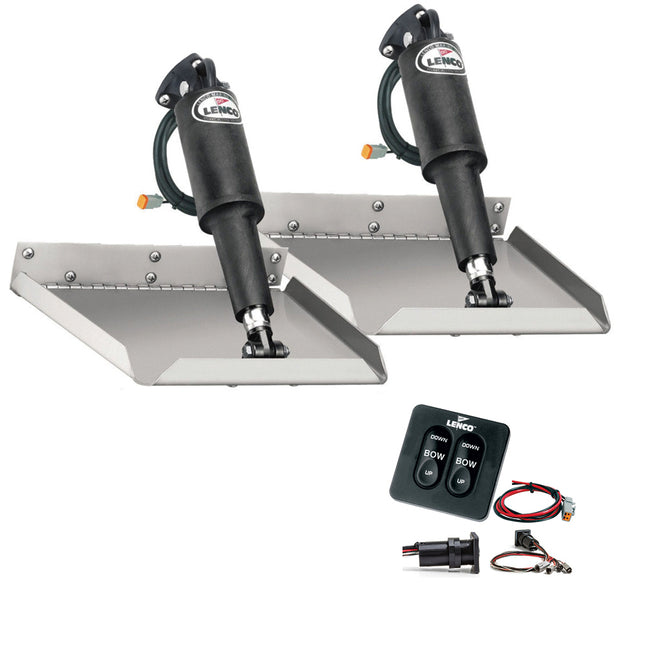

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Standard Solid State Tactile Switch Kits with Retractor Feature#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.Features Built-In Retractor Feature Solid State Electronics Plug & Play Low Profile Design Self-Contained, sealed keypad & solid state control box with waterproof connectors Simple, Quick Installation Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75' Each kit contains: Standard Tactile Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

2412ATP 24 x 12 Hydraulic Trim Tabs with ATPHydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride and get on plane faster. Kits Include:(2) Trim plane assemblies(2-4) Hydraulic actuators(1) Hydraulic Power UnitHydraulic tubing and hardwareOptional helm controlFeatures: Get on plane fast and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/M120) provides 30% more lift Bottom and piano hinge mounts are available for custom order WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 5"H x 16"W x 32"L WT: 31.5 lbs UPC: 666285600450

Read more less

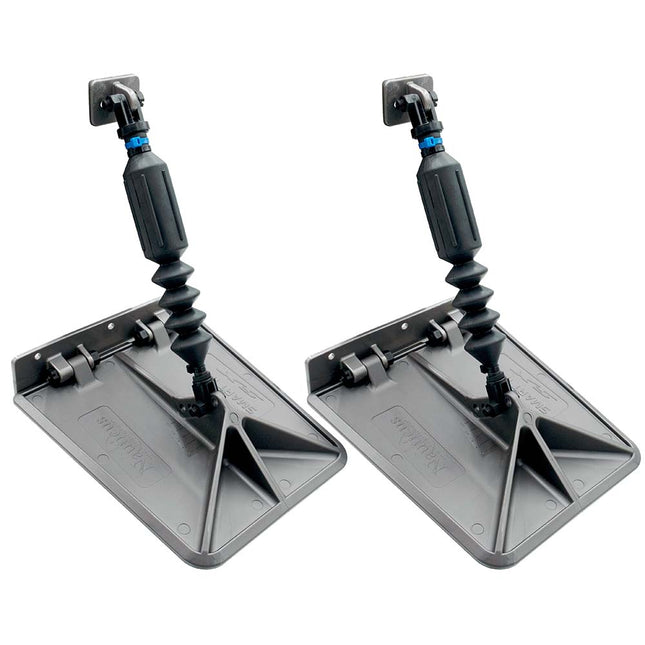

SX 9.5 x 10 Smart Tabs 12-16' Boats with 40lb Actuators - 40-80HP - Gunmetal GreyThe SX series incorporates all of the fully automatic features of the popular Smart Tabs, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds and the installation in a few minutes. The only tools required are a drill with a 3/16" bit and a Phillips screwdriver. Smart Tabs SX provides un-equaled performance and durability with no maintenance in fresh or saltwater. The system can be specifically tuned to maximize the performance of any powerboat, and Tracking Ribs have been added to improve handling at higher speeds.Smart Tabs are a one-of-a-kind trim and stabilizer system that automatically adjusts to the sea conditions, without the need for expensive electric or hydraulic hardware and switches. The system constantly reacts to the water conditions, boat speed, and balance providing a remarkable improvement on any boat.Performance Benefits: Smoother and Faster Acceleration - Great for Skiing 40% less Bow Rise and 35% Lower On Plane Speed - Great for Tubing More Top Speed and No Porpoising or Chine Walking Improves Handling and Smoother Ride In Any Water Improved Fuel Economy (11% +) Assembly & Installation In Minutes: Complete assembly and mounting requires only a drill, a 3/16" bit, and a Phillips screwdriver The Integral design eliminates the need for wrenches All components "lock" together with self-locking clevis pins

Read more less

12"x12" STD Trim Tab Kit with Pro Control™ AutoSpecifications: Length x Width: 12"x12" Boat Length: 17'-30' Hinge Height: 2" (5.1cm) Minimum Transom Height: 14" (35.6cm) Keypad: Auto Kit Includes: (1) Pro Control Auto Keypad Kit (15174-107) (1) Pro Control Auto IMU (15180-001) (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades: Standard blades - with a 5/8" (1.6 cm) flared trailing edge. Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin. (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001) (6) Micro C Tee Connector (30267-001DD) Micro C Power Cable with Fuse and Ground (15197-101) (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 15’ (4.57 m) (30269-001 and (1) 25’ (7.62 m) (30269-004) Micro C Drop cables (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001) (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001) (1) Wake Signal Adapter for Non-Mercury Systems (15207-101) (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101) (2) Corrosion-proof Lower Mounting Brackets (15194-101)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each Kit Includes: Tactile LED Indicator Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

12" x 9" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 18' Length of Tab: 12" Width of Tab: 9" Hinge Height: 2" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

18" x 14" Standard Performance Trim Tab Kit w/o Switch Kit- 12VUpgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the bladesKit Contents: 2 each of 12-gauge stainless steel Electro-Polished trim tab blades 2 each of #15054-001 actuators with 6' lead and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (#116) upper mounting bracket with gland seal    2 each of #50014-001 (#119) lower mounting bracket  1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 22' to 40' Length of Tab: 18" Width of Tab: 14" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

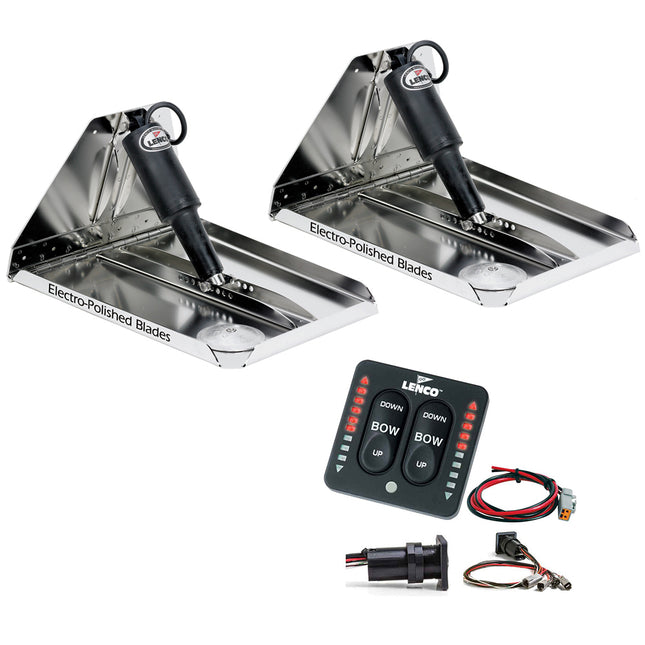

Heavy Duty Performance Trim TabsFast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades are Electro-Polished 12 Gauge - 304 SS with 1" turned up edges, 85 degree inside taper, and 1/4" diameter hinge pin. Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.We make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's HD series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro-Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Models have massive backplates and adjustable mounting channels with thru-bolted actuators for the ultimate in strength and reliability Models use solid stainless steel billet rams that are chemically polished for unsurpassed durability Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 5/16" stainless steel bolts Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each kit contains: Tactile LED Indicator Switch Kit 2 actuators wth 6' Lead and Deutsch Plugs 2 12 Gauge SS Electro-Polished trim tab planes 2 20' Actuator Extension Wiring Harnesses Boat-Mounting Hardware supplied by customer WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less
