Boat Outfitting - Trim Tabs

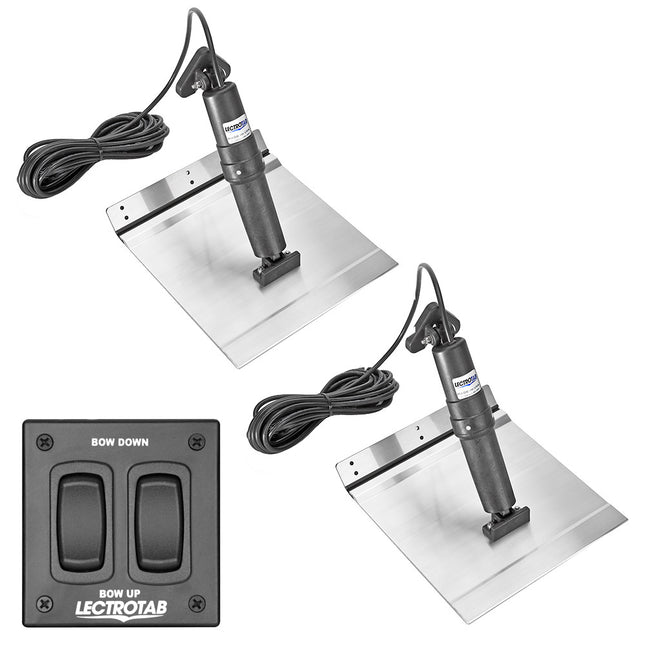

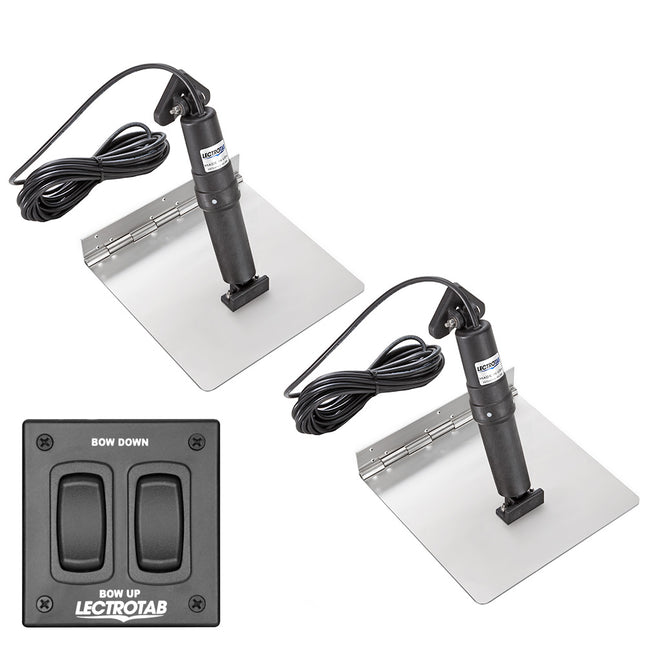

XKA Stainless Steel Trim Tab - 9 x 12The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. *Control switch not included Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm) Boat Length - 16' to 25' (5 to 7.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) In the Box: Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as an Individual  Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 6"H x 15"W x 15"L WT: 17 lbs UPC: 850046155338 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

24x9 Hydraulic Trim Tab System with One Box IndicationHydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster.Features: Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/ M120) provides 30% more lift for limited-space installations Bottom and piano hinge mounts are available for custom order Kit Includes: (2) Trim plane assemblies (2-4) Hydraulic actuators (A1101A) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware One box indicator helm control This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

12x12 Hydraulic Trim Tab System with One Box IndicationHydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster.Features: Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/ M120) provides 30% more lift for limited-space installations Bottom and piano hinge mounts are available for custom order Kit Includes: (2) Trim plane assemblies (2-4) Hydraulic actuators (A1101A) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware One box indicator helm control This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

12x9 Hydraulic Trim Tab System with One Box IndicationHydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster.Features: Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/ M120) provides 30% more lift for limited-space installations Bottom and piano hinge mounts are available for custom order Kit Includes: (2) Trim plane assemblies (2-4) Hydraulic actuators (A1101A) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware One box indicator  helm control This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

12x9 Sport Tab System with One Box IndicationHydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster.Features: Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/ M120) provides 30% more lift for limited-space installations Bottom and piano hinge mounts are available for custom order Kit Includes: (2) Trim plane assemblies (2-4) Hydraulic actuators (A1101A) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware One box indicator helm control This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

BOLT 12x16 Heavy Duty Trim Tab SystemDesigned for rougher conditions and higher speeds, the BOLT1216HD (12” span x 16 chord”) heavy-duty electric trim tab system features an adjustable upper hinge actuator and requires less than 10.25” of vertical transom height. The high-performance laser-cut, tapered trim tabs are manufactured with extremely durable 12-gauge, electro-polished stainless steel, featuring a full-profile backing plate, and up-fins for added strength.Control sold separately This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 6"H x 20"W x 32"L WT: 35.1 lbs UPC: 666285600344

Read more less

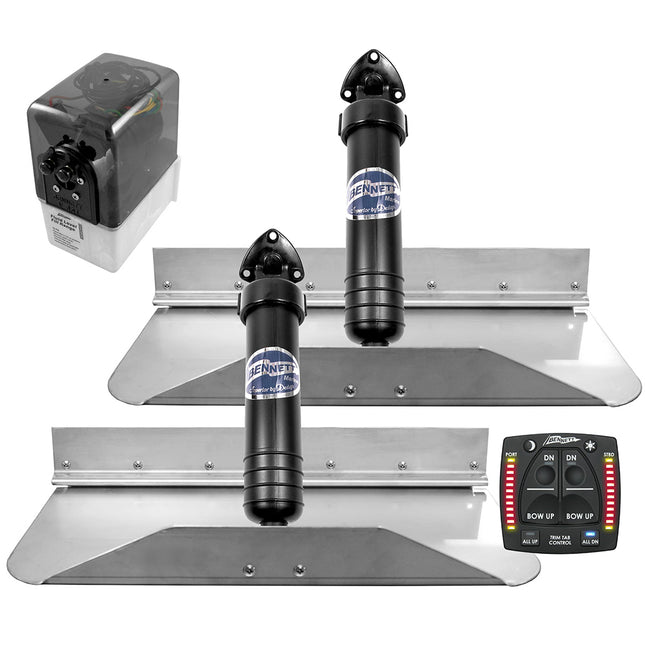

1212ATP Hydraulic Trim Tab Complete Kit with Auto Trim ProHydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride and get on plane faster. Kits Include:(2) Trim plane assemblies(2) Hydraulic actuators(1) Hydraulic Power UnitHydraulic tubing and hardware Helm ControlFeatures: Get on plane fast and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/M120) provides 30% more lift Bottom and piano hinge mounts are available for custom order WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 5"H x 15"W x 26"L WT: 26.6 lbs UPC: 666285600412

Read more less

BOLT 1212ED Electric - Edge Mount Limited Space Trim Tab Kit - 12V - 12" x 12" Designed with an adjustable upper hinge for transoms with limited vertical space. Tabs turn up for added strength and feature piano-hinged backing plates.Kits Include: (2) 12-volt adjustable upper hinge actuators with 6' wire harnesses and waterproof connectors (BEA3000) (2) Stainless steel trim planes (tabs) and mounting plates (2) 20' wire harnesses with waterproof connectors (BAW2020) Features: Requires less than 6.5" of vertical transom space to install Superior seal design inspired by over 50 years of Bennett’s proven success in actuator manufacturing excellence Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 7"H x 14"W x 15"L WT: 22.6 lbs UPC: 666285600283

Read more less

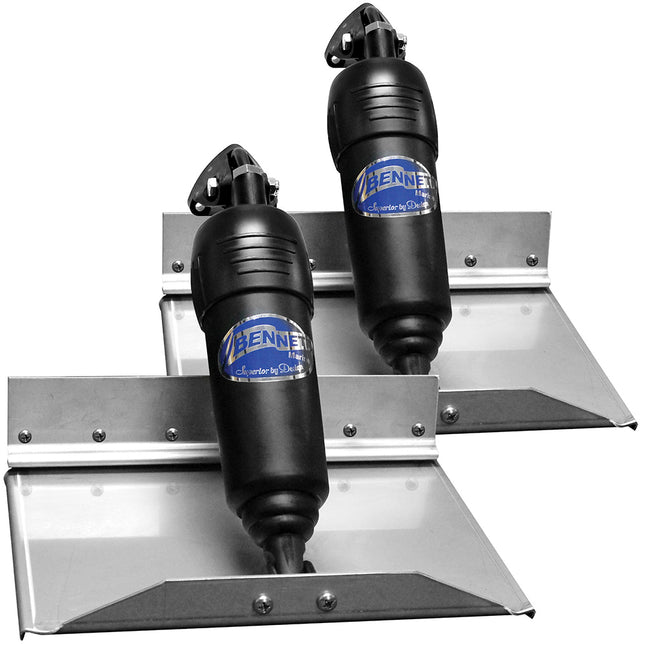

BOLT 18x9 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered BoatsBoaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.While we strongly recommend hydraulic trim tabs for most applications, electric trim tab systems are suitable for: Trailered boats from 17-28 feet Single actuator use, due to the inability to synchronize two electric actuators on the same tab Features: Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment Robust, water-tight black nylon actuator provides trouble-free operation Main seal located high to protect against marine growth and water intrusion failures Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 5"H x 15"W x 25"L WT: 23.4 lbs UPC: 666285600023 Owner's Manual (pdf)

Read more less

BOLT 12x12 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered BoatsBoaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.While we strongly recommend hydraulic trim tabs for most applications, electric trim tab systems are suitable for: Trailered boats from 17-28 feet Single actuator use, due to the inability to synchronize two electric actuators on the same tab Features: Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment Robust, water-tight black nylon actuator provides trouble-free operation Main seal located high to protect against marine growth and water intrusion failures Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 7"H x 14"W x 15"L WT: 21 lbs Owner's Manual (pdf)

Read more less

12" x 16" Sport Tab SystemBennett Trim Tabs are designed and manufactured with pride at the Bennett Marine plant in Deerfield Beach, Florida. Every Bennett system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service.Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. Bennett actuators feature through-hull hydraulics. There are no vulnerable external hoses to decay. Plus, every Hydraulic Power Unit is tested by both person and computer to insure this reliable unit deflects the trim tabs, holds firmly during use, and retracts smoothly.Sport TabsBacked by nearly 40 years of trim tab experience, Bennett Sport Tabs are engineered for the demands of offshore attitude correction. Performance boats that are run at speeds of 60 mph require the rugged construction  of Sport Tabs. Manufactured with heavy gauge reinforced stainless steel and powerful dual hydraulic actuators, Sport Tabs combine strength, durability, and good looks to achieve your boat's maximum potential.ST16 Sport Tab System consists of: (2) Trim Tabs (4) Actuators (1) Hydraulic Pump (1) ES2000 Rocker Switch Wiring harness & Tubing WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Hydraulic Box Dimensions: 5"H x 15"W x 25"L WT: 34 lbs UPC: 666285146002 Quick Guide (pdf)Owner's Manual (pdf)

Read more less
