Boat Outfitting

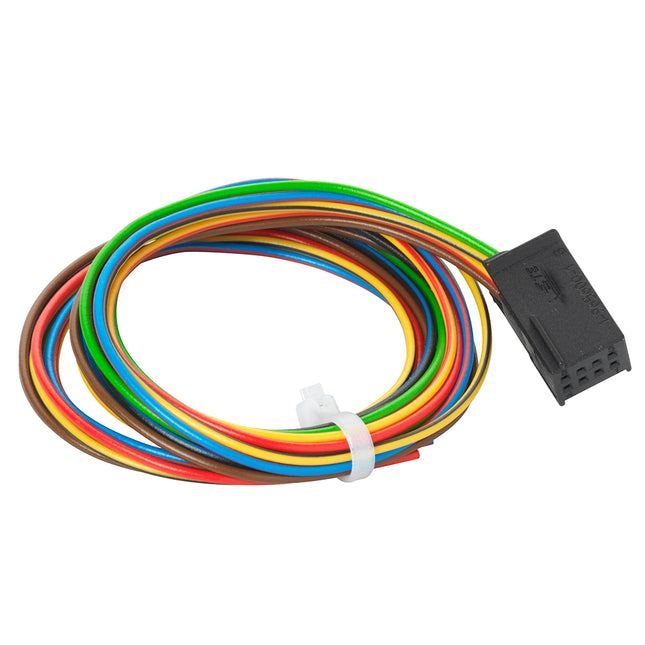

Connection Cable for ViewLine Gauges - 8 PinConnection cable 8-pin for ViewLine temperature, pressure, fuel level, trim, pyrometer, outside temperature, fresh water, blackwater, tachometer and speedometer.  Replacement for cable found in original packaging.  Features: ViewLine Universal Connection Cable Connector - 8-pin MQS Cable length - .5M (1.6') *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Black Box Dimensions: 1"H x 4"W x 7"L WT: 0.1 lbs UPC: 7640178727212

Read more less

Tilt Mechanism for L6 Power SteeringTilt mechanism with a range of 48° and five locking positions, suitable for Masterdrive TM steering systems.

Read more less

Oil Pressure Sensor - 1/8"-27NPT Thread - 10 Bar Veratron’s Pressure Sensors deliver a stable quality reading during a long lifespan. They have excellent anti-vibration performance and a wide operating temperature range. The sensors can be used in a wide range of applications.All sensors come with a sensor output and an insulated ground pin.Features: Function - Engine oil pressure, transmission oil pressure Thread - 1/8"-27NPT Calibration - 10-184 Ohm Measurement Range - 10 bar Output Signals - Resistive Wide Operating Range - -25 to 120°C Insulated ground pin Quick Guide (pdf)

Read more less

85mm (3-3/8") VMH-35D Diesel Multifunction GaugeThe VMH 35-D is the perfect standalone solution for monitoring your diesel engine. With a configurable dial scale of 3000 or 4000 RPM, the VMH 35-D is a compact display that shows a wide amount of data from your engine, battery, tank, and GPS.Specific information about your diesel engine is provided with alarms, either received from the SAE J1939 bus or locally set through the embedded menu. Both 12V and 24V systems are supported, and EasyLink connectivity allows your dashboard to be expanded with additional VMH 14 satellite displays to keep your sensitive data under control. The embedded high-performance GPS receiver further enhances the display capabilities by adding speed, position, and heading data.The Veratron VMH 35 is designed with a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.The embedded NMEA 2000 gateway distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters, saving the need for an additional external converter.Powered by the latest microprocessor, the Veratron VMH 35 is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.Features: High-performance GPS embedded 4x analog input for external sensorsWaterproof to IPX7 NMEA 2000 certified with embedded analog gateway SAE J1939 CAN portEasyLink output for up to 16 VMH 14 satellites In the Box: VMH35-D Gauge Mounting Spinlock Wire harness  Safety Instructions  *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 3-3/8" Gauge Type: Multifunction Series: VMH-35 Voltage - Input Range (Volts): 12-24v Box Dimensions: 4"H x 6"W x 6"L WT: 0.75 lbs UPC: 7640190290466 Owner's Manual (pdf)

Read more less

52mm (2-1/16") VMH-14 Multifunction GaugeThe VMH 14 instrument is a new-generation 52 mm EasyLink satellite instrument.Every VMH Master can control up to 16 VMH 14 satellites, and the installation cannot be more easy with the Veratron well-known daisy chain concept.Launch the App, define your settings, and then simply hold your mobile device in proximity of the VMH 14 device to transfer the configuration. And the configuration can also be done powerless! Features: Stylish black-glass design with brushed stainless-steel ring Digital display with configurable color bar graph Easily configured with a smartphone App One single device to support 8 different data types Technical Specifications: Voltage - 12v Connectivity - EasyLink & NFC  Required mounting depth - 40mm Operating Temperature - -20°C to +60°C  Storage Temperature - -30°C to +80°C  In the Box: VMH 14 Gauge 52mm Mounting Spinlock 52mm Rubber Sealing Gasket Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 2-1/16" Gauge Type: Multifunction Series: VMH Voltage - Input Range (Volts): 12v Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs UPC: 7640178729971 Owner's Manual (pdf)

Read more less

M90 Mach Black Rotary Steering Cable - 10'Uflex M90 Mach Rotary Steering Cable provides boat steering systems with increased flexibility and durability from top-quality materials and construction. M90 Mach cables use a patented design offering high efficiency and performance in mechanical steering systems.Features: Minimal feedback Fast connections for simple installation Ideal for long cable runs and tight bend applications - Minimum steering cable bend radius: 150 mm (5.9") Stainless steel cable output end featuring patented gasket (engine side) Specifications: Cable Length (Feet): 10' Box Dimensions: 3"H x 18"W x 27"L WT: 6.2 lbs UPC: 702755052029

Read more less

Straight Helm Fitting 1/4 NPT for UP Comp Line & Autopilot Return LineFitting for the compensating line in the UP series helms or autopilot return line.Specifications: 1/4 NPT to 3/8 COMP FITTING Helm Side = 1/4 NPT Hose Side = 9/16 - 24 UNEF 2A

Read more less

52mm (2-1/16") ViewLine Flex Gauge The VL Flex device can easily replicate every analog instrument thanks to the sun-readable 1.44” TFT display embedded into a standard 52 mm satellite instrument.  The supported analog inputs allow you to directly read from your engine sensors, and the CAN interface expands this possibility by allowing the device to read from the digital network. The simple but effective graphic design can be set up in a single or dual layout, presenting the data in a clear and intuitive form. The colored bar graph and the alarm display allow you to visually understand your data.The VL Flex configurator is the easiest way to configure your VL Flex device!  Thanks to the contactless configuration you can set up your all-in-one instrument with a simple tap!  Launch VL Flex App and define your settings through the user-friendly interface, then simply hold your mobile device in proximity of the device to transfer the configuration.  Thanks to the embedded passive antenna the configuration can be done powerless!*VL Flex Configurator App has to be downloaded (Android or iOS)Supported Configurations: Engine Speed - Boat Speed  - Ammeter - Voltmeter - Battery SOC  - Battery SOH - Rudder Angle Battery Temperature - Battery Autonomy - Engine Hours - Speed Over Ground - Boost Pressure Depth - Clock - Fuel Level - Fresh Water Level - Waste Water Level - Trim Position      Coolant Temperature - Oil Pressure - Oil Temperature - Gear Oil Pressure - Gear Oil Temperature Features: 1.44” TFT display NMEA2000 interface Integrated warning alarm 52 mm installation diameter In the Box: VL Flex 52 gauge Wire harness Mounting Spinlock Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Series: ViewLine Gauge Type: Multifunction Gauge Size: 2-1/16" Box Set: No Box Dimensions: 4"H x 5"W x 5"L WT: 0.2 lbs UPC: 7640178729612 Owner's Manual (pdf)Brochure (pdf)

Read more less

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270° dial scale and Red illumination which makes it well readable and accurate in the indication.It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30°C to +80°C and IPX7 protection class.Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.Features: Designed for NMEA 0183 Easy programing and installation Technical Specifications: Operating Voltage - 8 to 32 V Protection Class - IP6K7 Illumination - Red LED Dial - Black w/graphics Pointer - Red Illuminated Lens - Plastic Double Lens (anti-reflective) Operating Temp. - -40°C to 115°C Connector - Molex MX150 - 12 pin In the Box: Gauge  Wire Harness Mounting Spinlock Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 8-32v Series: OceanLink Gauge Type: Rudder Angle Gauge Size: 3-3/8" Box Set: No Box Dimensions: 4"H x 6"W x 6"L WT: 0.65 lbs UPC: 7640178729452

Read more less

52MM (2-1/16") ViewLine Water Temperature Gauge - 100-250°F - Black Dial & BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Type: Water Temperature Series: ViewLine Voltage - Input Range (Volts): 12/24 V Gauge Size: 2-1/16" Box Dimensions: 5"H x 6"W x 6"L WT: 0.35 lbs UPC: 7640178723078 Owner's Manual (pdf)

Read more less

52MM (2-1/16") ViewLine Oil Temperature Gauge 120-300°F - Black Dial & BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 2-1/16" Series: ViewLine Voltage - Input Range (Volts): 12/24 V Gauge Type: Oil Temp Box Dimensions: 5"H x 5"W x 5"L WT: 0.35 lbs UPC: 7640178723054 Owner's Manual (pdf)Brochure (pdf)

Read more less

NMEA 2000 Liquid Level Sensor - 200 to 600mmThe NMEA 2000® Liquid Level Sensor overcomes a laundry list of issues that plague traditional fluid level monitoring solutions, including being certified for drinking water—an industry first.  Powered by an NMEA 2000 network, three models are available to accommodate a wide range of tank depths from 200 mm to 1500 mm.The capacitive sensor is easily selectable between fresh and waste water, and is micro-adjustable for tank size. Unlike reed technology that only reports tank level in graduated steps, the Veratron NMEA 2000 Liquid Level Sensor, thanks to capacity measuring technology, offers level linearity on the full range. This provides precise data to make informed decisions on refilling and pumping out or discharging, for up to 4 tanks.Completely plug-and-play, the Veratron sensor simply connects directly into the NMEA backbone with its integrated Micro-C M12 5-pin NMEA 2000 connector. This provides the nominal 12V power and the ability to view tank level from any networked display.UL94, CE, REACH and RoHS compliant, the NMEA 2000 Liquid Level Sensor is IPX9K rated as an exposed device. Features: Includes Flange Installation Kit 300mm NMEA Pigtail Connection Technical Specifications: Connector - NMEA 2000 Micro-C 5 pin M12 Male IP Protection Class - IPX9K In the Box: Sensor Sealing Kit Rubber Gasket Mounting Bracket Mounting Screws and Allen Wrench  *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Silver Box Dimensions: 4"H x 4"W x 30"L WT: 1.45 lbs UPC: 7640178729384

Read more less
