Communication - Antennas

UX241 GPS/GNSS Antenna External GPS/GNSS Antenna Supplied with 16' (5 M) cable and magnetic mount.Compatible With:  IC-M605EURO IC-M605 IC-M510E IC-M510 IC-F5400D/IC-F6400D IC-FR5300/IC-FR6300 IC-F7540 IC-F7510/IC-F720 *Sold as an Individual  Specifications: Color: Black Construction: Plastic Length (Inches): 16.4" Box Dimensions: 1"H x 4"W x 5"L WT: 0.26 lbs UPC: 731797024824

Read more less

PHASE III 6396-AIS-R 4' AIS Antenna 3dB GainSpecially engineered for the extra bandwidth required by AIS transceivers, this Phase IIIT antenna enables reliable communication over marine VHF frequencies. Silver-plated outer conductor, copper inner conductor Stainless steel mounting sleeve SO-239/PL-259 connector Specifications Max. Power Input: 50 watts SWR: Less than 1.5:1 at 162 MHz Bandwidth: 5 MHz within 2.0:1 VSWR Frequency: VHF AIS Marine Band DC Grounding: Yes Pattern: Omnidirectional Polarization: Vertical Specifications: Length (Inches): 48" Construction: Fiberglass Color: White Antenna Band: AIS Box Dimensions: 2"H x 2"W x 58"L WT: 2 lbs UPC: 719441200688

Read more less

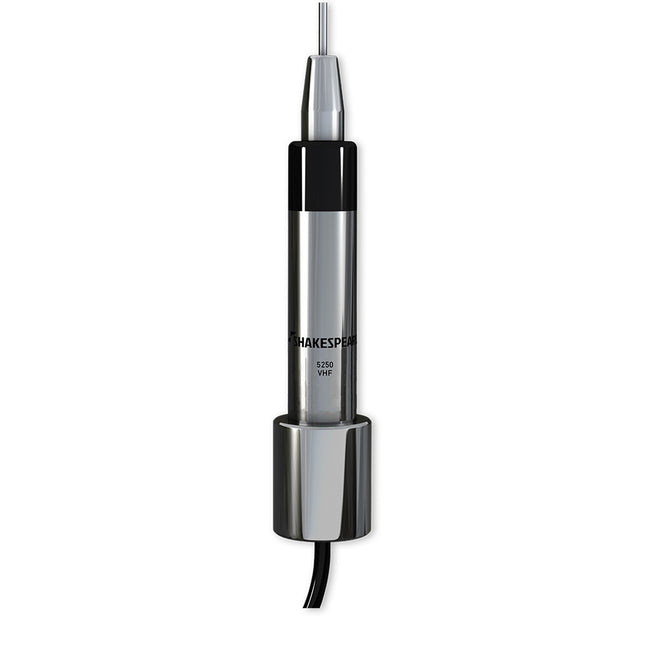

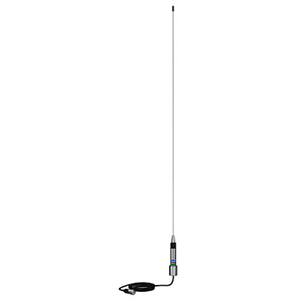

Shakespeare 5250-AIS Skinny Mini3ft. VHF Marine Band 3dBEnd-fed 1/2-wave stainless steel whipDesigned to meet the broader bandwidth requirements of all popular AIS transceivers, this antenna mounts with ease. Its compact size will be welcome aboard any vessel. Chrome plated brass canister minimizes de-tuning. Built for AIS transceivers Sealed, tin-plated copper wire coil Stainless steel whip (36") Requires mount with center hole for passage of the supplied 15' RG-58 cable. One section PL-259 connector included Specifications: Antenna Band: VHF Color: Stainless Construction: Stainless Steel Length (Inches): 36" Box Dimensions: 3"H x 3"W x 40"L WT: 2 lbs UPC: 719441100803 Quick Guide (pdf)

Read more less

Shakespeare Galaxy 5421-XT LITTLE GIANT™4' AM/FM Entertainment BandSame as the 5420-XT, but with an exclusive black Galaxy finish.Bring in those stations! This Little Giant is in charge of the entertainment. Its sturdy construction and outstanding performance make it an excellent choice for T-tops, Hard-tops and other elevated mounting positions. Extra rigid, extra tough. Copper elements Stainless steel ferrule with standard 1"-14 thread Includes 12' RG-62 cable with Motorola type plug installed Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Black Galaxy finish Shakespeare Limited Warranty: 5 years Specifications: Antenna Band: AM/FM Color: Black Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 48" Box Dimensions: 3"H x 3"W x 55"L WT: 2.4 lbs UPC: 719441400149 Quick Guide (pdf)

Read more less

5400-XT Galaxy 4' VHF Antenna - 3dB GainThe compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.Features: Center-fed 1/2 wave coaxial sleeve Brass and copper elements for maximum range Stainless steel ferrule with standard 1"-14 thread Includes 20' RG-8/X cable and a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Shakespeare Limited Warranty: 5 years Includes FME Cables Technical Specifications: Frequency: VHF Marine Band Bandwidth: 5 MHz within 2.0:1 VSWR SWR: Nominally 1.5:1 at 156.8 MHz Gain: 3 dB Max Input (Watts): 50 watts Height (feet): 4 Specifications: Antenna Band: VHF Color: White Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 48" Box Dimensions: 3"H x 3"W x 52"L WT: 2.5 lbs UPC: 719441100605 Quick Guide (pdf)

Read more less

Comm-Light™ VHF Lighted Antenna - 6' 6" Enhance your boat’s style and performance with our cutting-edge Comm-Light™ VHF Lighted Antenna, designed for enthusiasts who demand both functionality and flair. With multiple lighting presets and dynamic pulsating modes, this antenna brings a new level of customization to your boat’s lighting options. Whether you’re cruising at night or having fun to the beat of the music, this versatile antenna lets you choose from a range of vibrant colors and eye-catching light patterns.Features: Light Control Features: Full RGB Color Spectrum, Presets, and MORE! Easy to navigate with the app available on the Apple and Android Store Brass and Copper Elements for Standard Range and Reception Stainless Steel Ferrule with Smooth, Durable, High-Gloss PMMA Tube 6dB Gain w/ 5 MHz bandwidth centered at 156.8 MHz Recommended Mounts: 4187, 4187-HD, or 5187 15’ RG-58 Cable w/ PL-259 connector 25’ 2-piece Power Cable with controller Easy Installation: No complex wiring required Specifications: Height: 6' 6" Sections: 1 DB: 6dB Suggested Mount: 4187, 4187-HD, 5187, or 6187 Max Input Power: 50W DC Ground: NO-Read Open App - Light Control Features: Full RGB Color spectrum, customizable using a color wheel Multiple presets to move to your mood quickly/easily Pulsating options, including different color patterns and speeds Syncs to your phone's music and will change color and rhythm with each song’s tempo (only downloaded music, not streaming)

Read more less

532-VW-S 16' Antenna - White10dB GainA favorite of marine professions, our largest VHF antennas offer the power and durability to achieve maximum range and extended performance, even in the roughest seas. A powerful gain of 10dB and solid construction make Digital Antennas 16 VHF antennas the ideal choice for critical communication onboard large yachts, commercial vessels and base stations.Customers and installers love the 500 GOLD Series easy installation connector system. The gold factory-attached mini-UHF female connector with PL-259 (UHF) adapter makes connecting to the radio easy, eliminating the need to solder connectors.All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability. UPS shippable.Our 16' VHF antennas require a side support 3' to 4' from the base of the antenna.All 16' VHF Antennas Feature: Powerful brass radiators Soldered connections Power directing ferrite choke bead High gloss urethane finish 316 stainless steel ferrule 10dB gain 500 GOLD Series: Mount: Standard 1"14 threaded base Connector: Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter Cable: Includes 20 of our low-loss, tinned braid, foil shielded, UV stable RG-8X marine cable This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Antenna Band: VHF Color: White Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 190" Box Dimensions: 4"H x 4"W x 95"L WT: 13.6 lbs UPC: 839494004689 Brochure (pdf)

Read more less

Galaxy 5226-XT 8' Black VHF Antenna - 6dB GainEXTRA TOUGH!This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.Features: Collinear-phased 5/8 wave elements Brass and copper elements for maximum range and efficiency Stainless steel ferrule with standard 1"-14 thread 20' RG-8/X low-loss cable plus a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Shakespeare Limited Warranty: 5 years Technical Specifications: Frequency: VHF Marine Band Bandwidth: 3 MHz within 2.0:1 VSWR SWR: Mominally 1.5:1 at 156.8 MHz Impedance: 50 ohms Gain: 6 dB Max Input (Watts): 100 watts DC Ground: YES Height (feet): 8 Polarization: Vertical Specifications: Antenna Band: VHF Color: Black Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 96" Box Dimensions: 2"H x 2"W x 95"L WT: 2.4 lbs UPC: 719441200237 Quick Guide (pdf)

Read more less

SVS Series Replacement GPS Antenna w/10M CableReplacement External GPS Antenna for SVS series w/10 Meter cable

Read more less

External GPS Antenna for MDA-1Features: External GPS antenna for MDA-1 Optional for MDA-1 AIS transceiver Specifications: Color: White Antenna Band: AIS Box Dimensions: 4"H x 7"W x 7"L WT: 1.4 lbs UPC: 010407420042

Read more less

GPK-11GPS WAAS ReceiverTrue 16-Channel GPS WAAS ReceiverThe new GPk-11 receiver adds unprecedented positioning accuracy to your existing electronics by utilizing advanced WAAS technology and best of all, it can be mounted virtually next to most other onboard electronics without signal interference. Will put your boat within 3 meters of your waypoint in most situations great for revisiting fishing hotspots. Interfaces seamlessly with charting systems, track plotters, autopilots and other NMEA-0183 systems. Corrections are uplinked to satellites for complete U.S. coverage and out to 200 miles offshore. All components housed in a single compact unit for convenient installation. Rugged, weatherproof construction. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine36" LENGTH, 3dBEND-FED 1/2-WAVE STAINLESS STEEL WHIPSame as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting. Hermetically sealed, tin-plated copper wire coil Stainless steel body and whip SO-239 connector Includes 60' RG-8/X low-loss cable and PL-259 connectors. Mount: Stainless steel "L" bracket supplied, for mast mounting One section Shakespeare Limited Warranty: 2 years Technical Specifications: Frequency: VHF Marine band Bandwidth: 7 MHz SWR: 1.5:1 @ 156.8 MHz Impedance: (Ohms): 50 Gain: 3 dB Max Input (Watts): 50 DC Ground: NO Termination: 60' RG-8X cable Height (feet): 3' Polarization: Vertical Radiation pattern: Omni-directional Specifications: Antenna Band: VHF Color: Stainless Construction: Stainless Steel Length (Inches): 36" Box Dimensions: 4"H x 4"W x 44"L WT: 4.2 lbs UPC: 719441100155 Quick Guide (pdf)

Read more less
