Electrical - Accessories

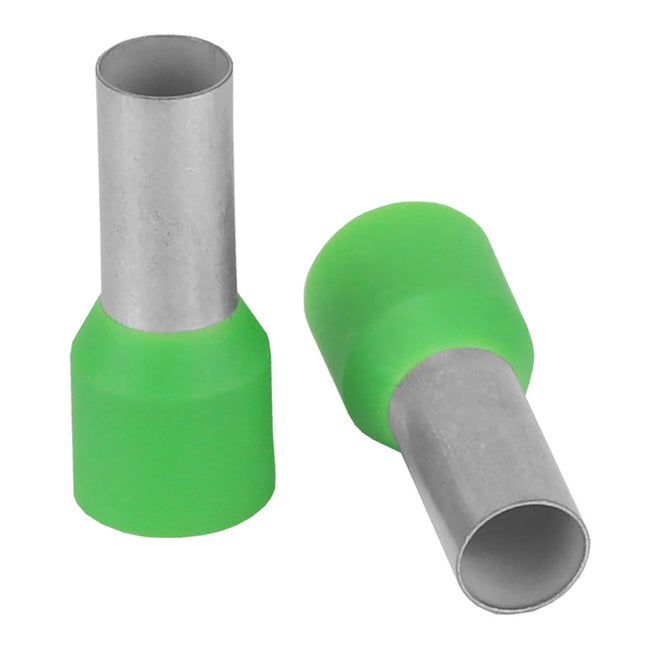

Green 6 AWG Wire Ferrule - 12mm Length - 10 PackWire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How? By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.How are wire ferrules properly used? The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose. Features: Prevent strand separation while minimizing strand breakage Insulated ferrules provide additional electrical insulation Increase connection reliability when terminating stranded wire in terminal blocks Specifications: Package Size: 10 Wire Size (AWG): 6 Insulation Color: Green Ferrule Length: 12mm (0.47 in.) Stripping Length: 14mm (0.59 in.) Quick Guide (pdf)

Read more less

AC Universal Plug Holder - BlackFeatures: Black AC Universal Plug Holder is designed for all standard 120V AC plugs Plug clamp insert included—converts plug holder to an AC inlet for battery chargers No cutting, stripping, or rewiring of AC power cord Watertight and UV resistant cover. Stainless steel mounting screws included Easy to reach safe AC power cord connections

Read more less

APS-70 Automatic Power Selector - 70AThe Automatic Power Selector (APS) is a solid-state device that enables the installation of a seamless, redundant power system for critical electronic loads. It selects the higher voltage of two independent DC power sources and routes power to the load. Should one source falter or fail, the other will automatically supply the load with no transfer delay, and the operation continues uninterrupted.Two independent power sources are wired to the APS and routed as a single output to the vital load. Alarm sense wires can be easily attached to input studs, providing a loss of power source signal. Features: Easy installation Rugged, rust-proof anodized aluminum case Specifications: Max Loads: 70 amps Voltage Rating: 6 – 50 VDC, neg. ground Stud Terminal Size: 6mm Dimensions (inches): 3.25 x 4.5 x 3.1 Weight (lbs): 2 Quick Guide (pdf)

Read more less

7160 Short Stop Circuit Breaker Boot Pre-cut for easy wiring from any angle Meets ABYC insulation requirements WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Dual USB Charger - 24V Contura MountProtective dust cap with tether keeps dust and spray from shortening the life of the charger. Made with corrosion resistant materials which ensure a solid contact and low voltage drop.Features: Compatible with popular mobile devices including Apple products Protective dust cap Conformal coated circuit board for the harsh marine environment Easy to use Easy to install in existing Contura switch aperture providing convenient access for charging mobile devices Specs: Maximum Output Current: 2.1A DC Input Voltage: 12V DC, 24V DC Parasitic Current Draw: 15mA Reverse Polarity Protection: Yes Short Circuit Protection: Yes Thermal Overload Protection: Yes WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

PC-25 Power Conditioner Noise FilterThe interference or electronic “noise” generated by alternators, ignition systems, motors, etc. can render a vehicle or vessel’s radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or “hashes” on video displays.These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source.Features: Heavy-duty aluminum construction Operate on 6-48 VDC systems Integral mounting flanges for secure installation Nickle-plated, brass stud connectors on alternator filters accommodate high-current cables and terminals Color-coded wire leads on PC models make in-line installation easy Specifications: Filtered Frequencies: Audio – 200 MHz Rating: 25 amp Installation Location: At affected equipment in “+” and “-” leads     Dimensions (inches): 2 x 4.25 x 3.25 Weight (lbs): 2

Read more less

Battery Switch 275A 12-48VDC Surface or Panel MountThe Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.The Battery Switch can be either surface or panel mounted, providing flexibility during install.The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

Round Power Socket/Gauge Mounting BracketThis round power socket/meter mounting bracket is designed for the external mounting of round power sockets and gauges 1-1/8" in diameter. Features: Fits all Sea-Dog® round power sockets, gauges, and meters Constructed of injection-molded nylon Installs with two #8 FH fasteners (not included) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Mounting Brackets Box Dimensions: 2"H x 3"W x 5"L WT: 0.05 lbs UPC: 035514428736

Read more less

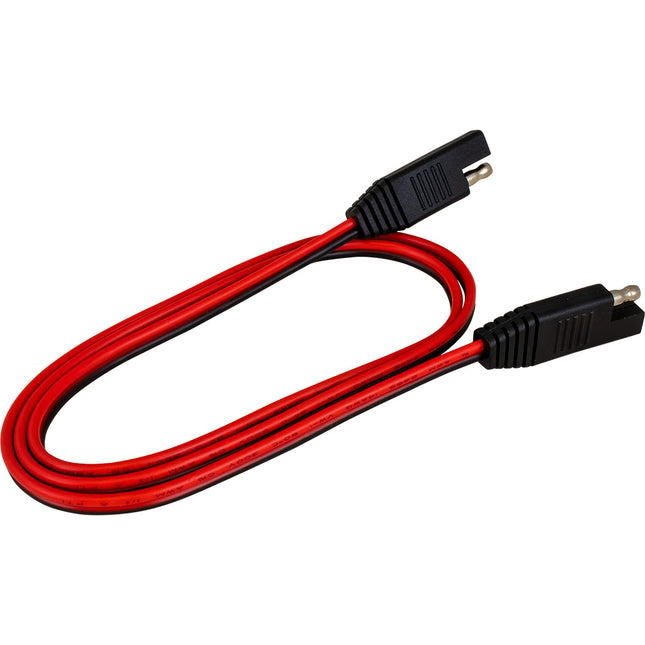

144" SAE Power Cable Polarized Electrical ConnectorThis SAE-type polarized electrical connector is a two-prong plug and socket connector set. Features:14-gauge duplex wireSpecifications: Length: 144 in. Volts: 12-24 Max Amps: 20A @ 12V Wire Gauge: 14 AWM Weight: 0.44 lb. Specifications: Type: Cables Box Dimensions: 2"H x 7"W x 8"L WT: 0.4 lbs UPC: 035514432771 Brochure (pdf)

Read more less

72" SAE Power Cable Polarized Electrical ConnectorThis SAE-type polarized electrical connector is a two-prong plug and socket connector set. Features:14-gauge duplex wireSpecifications: Length: 72 in. Volts: 12-24 Max Amps: 20A @ 12V Wire Gauge: 14 AWM Weight: 0.26 lb. Specifications: Type: Cables Box Dimensions: 2"H x 7"W x 8"L WT: 0.2 lbs UPC: 035514432764 Brochure (pdf)

Read more less

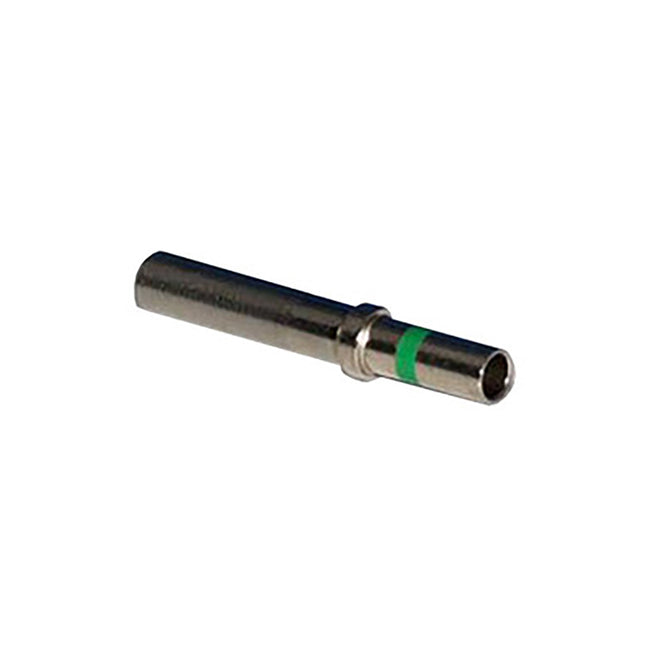

DT Deutsch Socket for 14-18 AWG Plug - Size 16 Contact - 25 PackDeutsch machined contacts are for use with almost the entire line of Deutsch connectors and are ideal for marine conditions. They are known for their reliability and durability, which are just a few of the reasons that professionals turn to these contacts for repeatable and reliable results. Another benefit of these contacts is that they are simple to use and require little time for installation.Features: Easy to install Field serviceable Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K RoHS UL Recognized Characteristics:Hand-insertable contactsSpecifications: Package Size: 25 sockets Contact Size: 16 Wire Size: 14 Operating Temperature: -55°C to 125°C Current Rating: 7.5-25

Read more less

29/31 Battery Tray with StrapsA simple-to-install battery holder that fits into limited spaces. This tray is for batteries up to 10-1/2 inches in height. Provide a simple installation for changing or replacing batteries.Features: The polypropylene hold-down strap has a positive-locking, quick-disconnect buckle Molded base mounts with four #10 Panhead fasteners Specifications:Inside Dimensions: 12-7/8" L x 7" W Quick Guide (pdf)

Read more less
