Electrical - Battery Management

7610120 Amp SI-Series Automatic Charging Relay Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics Automatically combines battery banks during the charging cycle and isolates under discharge 12/24 Volt auto ranging voltage input Waterproof rated IP67 - temporary immersion for 30 minutes Ignition protected - safe for installation aboard gasoline powered boats Remote LED output indicates relay state away from ACR LED light indicates when batteries are combined LED blinks in undervoltage lockout and starting lockout Supports high-output alternators up to 120 Amperes Included with the ADD A BATTERY Dual Circuit System Automatically combines battery banks during the charging cycle and isolates under discharge Ignition protected - safe for installation aboard gasoline-powered boats Activates from any charging source - alternators, battery chargers, or solar panels Hermetically sealed contacts / vaporproof Side and bottom knockouts for power cable connections Clip-on cover protects and insulates terminal connections Tin-plated copper studs for maximum corrosion resistance 7/8" (22.22mm) stud length to accept multiple cable terminals 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

M8 Circular Connector 3-Pole BMS BTV Extension Cables - Pair - 3MFeatures: 3-meter cable Extends the data cables that run from a 12.8 Volt Lithium-Ion battery to the BMS Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Programmable Automatic Charging Relay (ACR) 160A, 12VThis 160A Egis charging relay is automatic and programable. The relay eliminates dead start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications: Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance. Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell. Features: Ultra-Low Power Draw Compared to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime. Simple and robust installation - The integrated sealed plug eliminates corrosion and includes a Deutsch/Amphenol DTM connector harness Start Assist input option to ensure maximum cranking amps are available by allowing the manual connection of batteries via a remote switch. Bullet-proof construction - Sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection. Additional low-amp output can be used to report device status remotely or drive a secondary relay for charging a battery bank without a charge source (see example) Specifications: Continuous Current (Amps): 160 Voltage Range: 8-18 VDC Off-State Current Draw mA: 1.3 Interrupt Current (Amps): 240 ACR Closing Voltage (VDC): 12.9-13.6 ACR Opening Voltage (VDC): 12.1-12.8 Focal Features:Top Side Dip SwitchesAccessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O ConnectorSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.Connection OptionsComes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads).Easy Integration with RT Fuse Blocks (24 HR Circuits)Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series Fuse Blocks.LED DiagnosticsProvides an indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Lockable: Yes Box Dimensions: 3"H x 4"W x 8"L WT: 0.85 lbs UPC: 850035199633 Quick Guide (pdf)

Read more less

SmartSolar MPPT 100/20 - Up to 48 VDCA solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingBy constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Remote Monitoring and ControlRemotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.Load outputThe intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

Pro Installer 400A EZ-Mount Battery Selector Switch (1-2-Both-Off)As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front. Never has installation been so easy and cabling so accessible. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. The outstanding performance and features of this powerful new generation battery switch appeal to both the installer and end user. All ratings, footprints and features of the EZ-Mount switch match the high quality of our standard switches. Tested to UL1107 ignition protection, CE Tinned copper 10mm (3/8") studs Stainless steel washers/nuts Fiber reinforced plastics 400A Continuous / 600A 5 mins Intermittent / 1500A 10 secs Cranking Waterproof to IP66 Same interconnection height as Pro Installer Removable knob allows isolation during servicing 3 removable sideplates for protection Industry standard 3.85" x 3.85" footprint SpecificationsMounting: Surface OnlyVoltage: 48v DC (for 12-48v systems)Rating: 400 Cont / 600 Inter / 1500 CrankDims: 3.85" x 3.85" x 3.62"Operation: 1-2-Both-OffStud: 3x 10 mm (3.8")WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Lockable: No Positions: 1-2-Both-Off Continuous Amperage: 400a Box Dimensions: 4"H x 7"W x 8"L WT: 1.2 lbs UPC: 843687007692 Owner's Manual (pdf)Brochure (pdf)

Read more less

Panel-Mounted Battery Mini Selector SwitchPanel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution. Compact, lightweight Countersunk recesses for surface mount application Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole) Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions Standard interchange label system Molded in high temperature, fiber reinforced plastics WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

ATD Automatic Timer DisconnectAdjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time Disconnect can be triggered based on time, low voltage, or removal of 12V signal Low voltage will disconnect if time hasn_t been reached to preserve battery power Time and voltage options can be turned off to allow 12V signal based disconnect Clip-on cover insulates terminal connections One-piece stainless flange nuts ensure safe and secure connections Integrated LED indicates status Specifications: Nominal Voltage:12V DC Amperage Operating Current: 175mA(Combine / 15mA(Open) Continuous Rating:120A Intermittent Duty: 210 Terminal Stud Size: 3/8"-16 (M10) Time Range: 15min-4hrs WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

1000A/50mV ShuntShunt 1000 Amp 50 mV - 1000A/50mV

Read more less

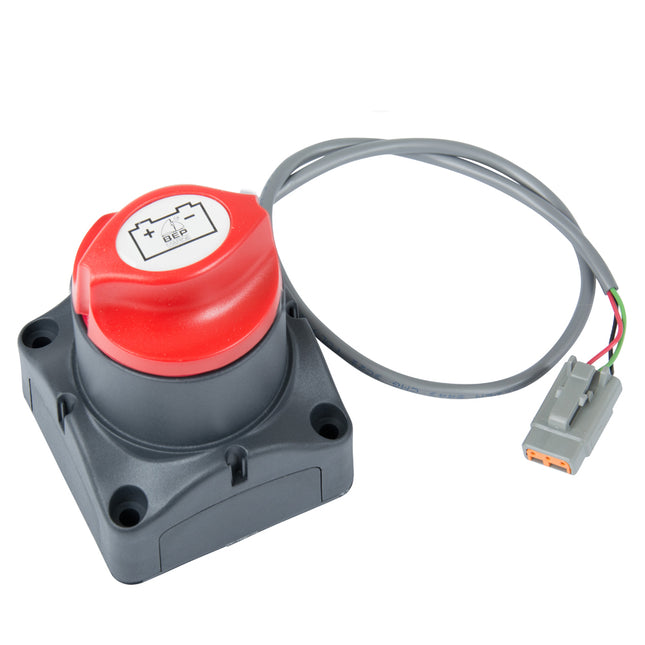

Remote Operated Battery Switch, 275A Cont - Deutsch PlugThe MD range of battery switches allow you to install the battery switch very close to the battery, to remotely manage the increased electrical loads found on today's boats. This reduces cable lengths and sizes, providing significant savings in expense and weight of copper battery cable. They are ideal for remote isolation of bow and stern thrusters. Remote operation Battery switch can be mounted alongside battery, reducing cable lengths and cable sizes. (Large cost and weight saving in copper cables) Reduced installation labor due to shorter battery cable runs Manual override option to meet CE/ABYC requirements Power Draw with switch off: 12mA LED status identification for remote control switch Same capacities/specifications and mounting options as standard BEP battery switches Uses interchangeable labeling system (Item # 713 or 715) SpecificationsLxWxH: 2.7" x 2.7" x 4"Rating (A DC) Cont: 275Rating (A DC) Inter: 455Rating (A DC) Crank: 1250Voltage (V DC): 9.5-32Function: On/OffStud Size: 2x (3.8"/10mm)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

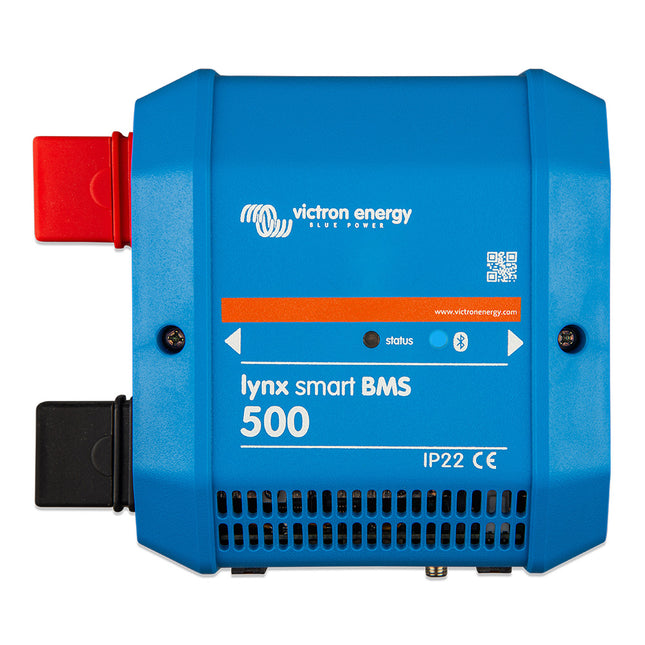

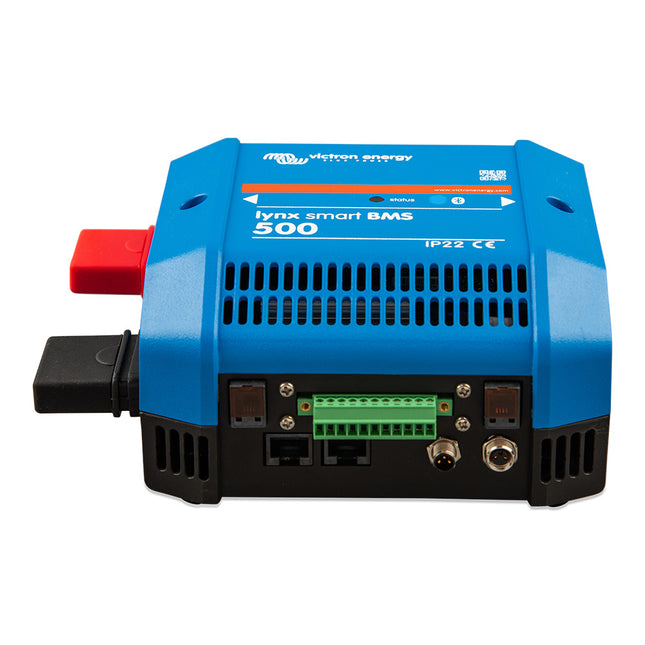

Lynx Smart BMS 500 M10 Battery Management SystemThe Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature-rich and complete option. It is available in two versions: 500A and 1000A (both with M10 busbar connections).Features: Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch. Battery monitor, indicating state of charge percentage and more data. Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell. Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at a glance. Local and remote monitoring using a Victron GX device, for example, the Cerbo GX or Ekrano GX. The Lynx Smart BMS is part of the modular Lynx Distribution system.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid-connected battery systems.In a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable battery charging parameters, and active cooling. The new metal case design and fully covered electrical connections improve safety and modernize the presentation in line with the latest suite of Victron products.MPPT: Ultra Fast Maximum Power Point TrackingThe SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.Setup & monitor with VictronConnectThe SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.Daisy Chain Additional UnitsThe SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).Remote Monitoring and ControlIf the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.SmartSolar DisplayThe SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.I/O ConnectionsThe SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.  VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

BlueSolar PWM Charge Controller (DUO) LCD & USB Charge Control - 12/24VDC - 20AFeatures: Liquid Crystal Display Two 5 Volt USB outputs Lighting control function, fully programmable   Three-stage battery charging (bulk, absorption, float), fully programmable Load output with low voltage and manual disconnect (programmable) Load output protected against overload and short circuit Protected against reverse polarity connection of the solar panels and/or battery Charges two separate batteries Programmable charge current ratio External Temperature sensor Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less
