Electrical - Battery Management

Orion-TR Smart 12/12-30A (360W) Isolated DC-DC Charger or Power SupplyThe Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.Bluetooth Smart Enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product Fully programmable Battery charge algorithm (configurable) or fixed output.  Smart Alternator Compatibility: engine running detection mechanism Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged For lithium batteries, the absorption time is fixed; the default is 2 hours Alternatively, a fixed output voltage can be chosen Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).Remote On/OffA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.High Temperature ProtectedThe output current will reduce at high ambient temperatures.IP43 ProtectionWhen installed with the screw terminals oriented downward.Screw TerminalsNo special tools are needed for installation. Input fuse (not replaceable) *Input fuse (not replaceable) Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 40 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 87 % No Load Input Current (2): < 80 mA  Standby Current: Less than 1A Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth  Galvanic Isolation: 200 VDC between input, output, and case  Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)  Humidity: Max. 95 % non-condensing  DC Connection: Screw terminals  Maximum Cable Cross-Section: 16 mm²  AWG6  Weight: 1,8 kg (3 lb)  Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)  Protection Category IP43 (electronic components), IP22 (connection area)  Safety Standards: EN 60950 Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Output - Amps: 30a Charger Input - Voltage: 12v Portable: No Charging Banks: 1 Charger Output Voltage: 12v Box Dimensions: 4"H x 6"W x 9"L WT: 4.45 lbs UPC: 8719076047698 Quick Guide (pdf)

Read more less

Easy Fit Battery Switch - 275A ContinuousThe Easyfit Battery Switch was created for installations where switches need to be recessed through varying thicknesses of panels. It achieves this through an easily removable threaded ring that allows for panel thicknesses up to 3/4" (19 mm). This switch uses the same features as the 701 with the removable key 45 degree past the off position, labeled handle and a removable back cover covering exposed terminals to meet ABYC specifications. It can also be surface mounted offering a unique style compared to other switches available on the market. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110% of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.Features: Can easily be retro-fitted in place of most European post and lever type switches Molded in high temperature, fiber reinforced plastics Tin-plated copper studs and nuts Ignition-protected WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Battery Distribution Cluster f/Twin Outboard Engine w/Three Battery Banks The 717-140A-DVSR is designed for twin engine installations. It allows the port engine to charge both the port start battery and the house battery when the port VSR is engaged. It also allows the starboard engine to charge both the starboard start battery and the house battery when the starboard VSR is engaged. This gives you a combined charge from two engines into the house battery until the voltage regulators on both engines control the charge. It also allows you to charge the house battery if steaming on one engine.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Pro Installer 400A EZ-Mount On/Off Battery Switch - MC10As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front. Never has installation been so easy and cabling so accessible. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the new benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. The outstanding performance and features of this powerful new generation battery switch appeal to both the installer and end user. All ratings, footprints and features of the EZ-Mount switch match the high quality of our standard switches.Features: Tested to UL1107 ignition protection, CE Tinned copper 10mm (3/8") studs Stainless steel washers/nuts Fiber reinforced plastics 400A Continuous / 600A 5 mins Intermittent / 1500A 10 secs Cranking Waterproof to IP66 Same interconnection height as Pro Installer Removable knob allows isolation during servicing 3 removable sideplates for protection Industry standard 3.85" x 3.85" footprint SpecificationsMounting: Surface OnlyVoltage: 48v DC (for 12-48v systems)Rating: 400 Cont / 600 Inter / 1500 CrankDims: 3.85" x 3.85" x 3.62"Operation: On/OffStud: 2x 10 mm (3.8")WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Heavy-Duty Battery Switch - 600A ContinuousFeatures: The 720 Heavy-duty Battery Switch is well suited to larger vessels, being capable of handling the high electrical loads found on today's boats and RV's plus starting large diesel engines Rated at 600A continuous and 2500A cranking Can be rear panel, or surface mounted Uses the same proven style of self cleaning sliding copper contact used inside the 701 Interchangeable labeling system allowing a full range of applications WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

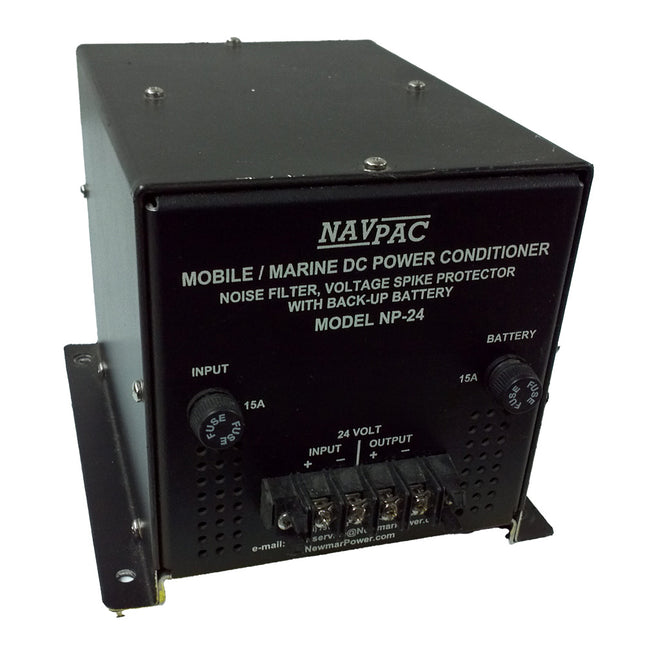

NP-24 Nav-Pac - 24VMarine communication and navigation electronics such as programmable data transceivers, GPS, and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drops from engine starts, noise and line spikes from alternators and motors, and noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.Features: Prevents voltage “drop-out” during engine start and/or other high intermittent loads such as Thrusters Absorbs line “spikes” Filters out electrical interference Provides supplemental voltage and battery backup for up to 15 min. Optional remote panel (773-5037-0) Specifications: Output: 24 Volt @ 15 amps max. Battery: Sealed Rechargeable 5.0 Amp-Hour, 5-7 years of typical life, can be replaced. A low-voltage disconnect circuit protects the battery from total discharge. Certified by DOT and IATA for shipment by air. Noise Filtering: Audio through 200 MHZ Voltage Spike Protection: Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 microseconds) Back-Up Power: 8A for 15 minutes, 12A for 8 minutes, and 18A for 2 minutes Size: 6.0 x 6.75 x 7.5 inches (13.3 X 17.14 X 19 cm) Weight: 8 lbs. (3.6 kg) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

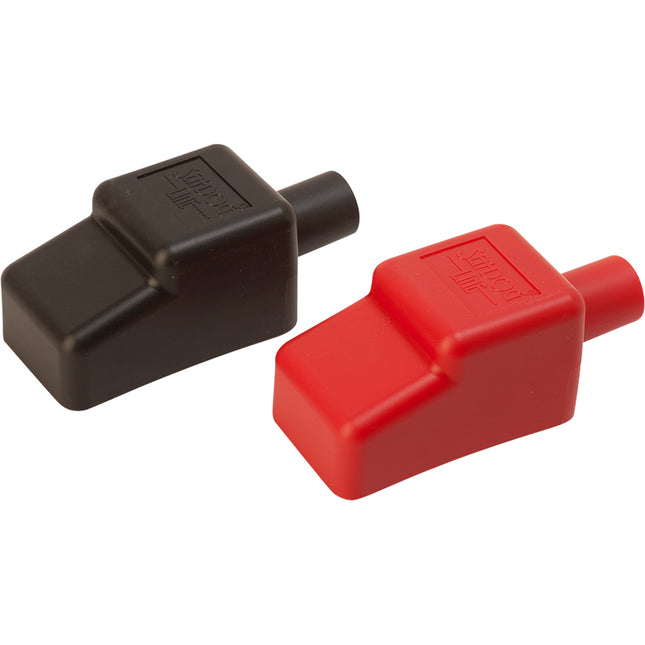

Battery Terminal Covers - Red/Black - 5/8" These Battery Terminal Covers are designed to insulate integral marine wing nut terminals protecting battery cables from corrosion and shorting. Constructed of injection molded PVC. These covers satisfy USCG and ABYC requirements for the prevention of accidental grounding of battery terminals. Color coded to avoid polarity misidentification. Will fit most marine batteries as well as automotive batteries using add on marine terminals. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Medium Duty Battery Selector Switch - 250A ContinuousFeatures: For use with 6 to 32 Volt Marine Electrical Systems Capacity - 250 AMPS Continuous, 360 AMPS Intermittent When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running Specs: Diameter: 5-1/4" Depth: 2-5/8"

Read more less

Dual Operation VSS Switch Cont Motorized - 12V - 275AThis Voltage Sensitive Switch (VSS) automatically senses connected battery bank voltage and provides optimal, efficient charging of the second bank.  The VSS allows for independent battery banks to be combined or isolated based on the presence of a charging source (such as an engine alternator or battery charger), while also offering remotely activated, high current, emergency parallel connection. Designed and constructed for longevity in the marine environment with tinned copper conductors, stainless steel nuts, and high temperature, fibre reinforced plastics.  The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted. The remote emergency parallel function can be operated through a momentary button on the dash which will parallel the batteries for 10 minutes.  Once this 10 minutes has passed, if the voltage is high enough, the voltage sensitive switch will stay engaged.  If not, it will disengage.Features: Dual battery sensing Manual override option Low power consumption (<6mA) Technical Specifications: Volts - 12V Rating - 275A Dimensions (L x W x H) - 2.7" x 2.7" x 4" In the Box: Parallel Switch  Instruction manual *Sold as an Individual WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Lockable: No Positions: 2 Continuous Amperage: 275 Box Dimensions: 3"H x 3"W x 4"L WT: 0.8 lbs UPC: 870216038285 Owner's Manual (pdf)

Read more less

Single Circuit ON-OFF with Locking Key - Black300 Amps continuous rating for outboards and small gasoline or diesel engines Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept 3/8" (M10) ring terminals 7/8" (22 mm) stud length accepts multiple cable terminals Blue Sea Systems one-piece terminal stud design never loosens over time One-piece stainless flange nuts ensure safe and secure connections Isolating cover protects rear contacts Breakout tabs allow wire access in any direction Specifications: Switch Type: Single Circuit ON-OFF Color: Black Maximum Voltage: 48V DC Continuous Rating: 300A Intermittent Rating: 500A Cranking Rating 30 sec: 900A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Panel-Mounted Battery Master SwitchPanel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution. Compact, lightweight Removable key Countersunk recesses for surface mount application Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole) Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions Standard interchange label system Molded in high temperature, fiber reinforced plastics WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

3003 HD-Series Battery Switch Selector with Alternator Field Disconnect Features: 500 Ampere Continuous Rating Accepts 4/0 battery cables Ignition protected - safe for installation aboard gasoline powered boats .870" (22.01mm) stud length to accept 4 or more cable terminals 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance Meets American Boat and Yacht Council (ABYC) requirements for battery switches Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Fits all Perko and Guest low amperage battery switch hole patterns WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 4 AFD: Yes Continuous Amperage: 700a Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs UPC: 632085030032 Owner's Manual (pdf)

Read more less
