Electrical - Battery Management

BlueSolar PWM Charge Controller (DUO) LCD & USB Charge Control - 12/24VDC - 20AFeatures: Liquid Crystal Display Two 5 Volt USB outputs Lighting control function, fully programmable   Three-stage battery charging (bulk, absorption, float), fully programmable Load output with low voltage and manual disconnect (programmable) Load output protected against overload and short circuit Protected against reverse polarity connection of the solar panels and/or battery Charges two separate batteries Programmable charge current ratio External Temperature sensor Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

Pro Installer 400A Selector Battery Switch - MC10Power requirements on boats have increased, and these 2 Selector switches offer high power capacity (400 amps continuous), the ability to easily fit doubled cables, and conform to the industry standard mounting footprint (Guest, Perko, Blue Sea). Please note selector switches will not separate electronics from harmful engine starting spikes.SpecificationsMounting: Surface, Rear or FrontVoltage: 48v DC (for 12-48v systems)Rating: 400 Cont / 600 Inter / 1500 CrankDims: 3.85" x 3.85" x 3.62"Operation: 1-2-Both-OffStud: 3x 10 mm (3.8")WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Lockable: No Positions: 1-2-Both-Off Continuous Amperage: 400a Box Dimensions: 4"H x 7"W x 8"L WT: 1 lbs UPC: 843687007760 Owner's Manual (pdf)Brochure (pdf)

Read more less

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.Features: Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/8" (22 mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Specifications: Control Circuit Connection: Deutsch DTM Nominal Voltage: 12VDC Coil Function: Bi-Stable Mounting: #10 Amperage Operating Current Continous: 0mA Terminal Stud Torque: 140 in-lb (15.82 Nm) Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating 30 Seconds: 1450A DC Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A@12VDC Master Control Switch Capability: No Mechanical Endurance: 100,000 Cycles Terminal Ring Diameter Clearance: 1.18" (29.97 mm) Terminal Stud Length: 0.875" (22.23 mm) Terminal Stud Size: 3/8" - 16 (M10) Weight: 1.75lb (0.79 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

m-Series Mini Dual Circuit Plus Battery Switch - BlackSimultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.Switch Type: Dual Circuit PlusColor: BlackSwitch Positions: 3Battery Combine: YesAlternator Field Disconnect: NoMaximum Voltage: 32V DCContinuous Rating : 300AIntermittent Rating : 450A (5 min)Cranking Rating 10 sec: 1000ACranking Rating 1 min: 650ABattery Inputs: 2Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)Cable Size to Meet Ratings: 4/0 AWG (120mm²)Mounting Holes: Accept #10 ScrewTerminal Stud Size: 3/8"-16 (M10)Terminal Stud Torque: 120 in-lb (13.56 Nm)Weight: 0.80lb (0.36 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AFD: No Positions: 3 Continuous Amperage: 300a Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs UPC: 632085601126 Owner's Manual (pdf)

Read more less

31 Series Battery Holder Tray with Stainless Buckled StrapSecure and protect your boat's battery with the Battery Holder Tray with Stainless Buckle. This innovative tray provides a sturdy and reliable housing for your battery, ensuring it stays in place even during rough rides and turbulent waters. The stainless steel buckle adds an extra layer of security, preventing any unwanted movement and ensuring your battery stays firmly in place.Crafted from high-quality materials, this battery holder tray is built to withstand the harsh marine environment, offering long-lasting durability and corrosion resistance. The user-friendly design allows for easy installation and removal, making battery maintenance a breeze.Features: Dimensions: 13" L (in) x 7" W (in) x 1" H Stainless steel buckle provides maximum strength and prevents movement. Crafted from high-quality materials for long-lasting durability and corrosion resistance. User-friendly design allows for easy installation and maintenance.

Read more less

24 Series Battery Holder Tray with Stainless Buckled StrapSecure and protect your boat's battery with the Battery Holder Tray with Stainless Buckle. This innovative tray provides a sturdy and reliable housing for your battery, ensuring it stays in place even during rough rides and turbulent waters. The stainless steel buckle adds an extra layer of security, preventing any unwanted movement and ensuring your battery stays firmly in place.Crafted from high-quality materials, this battery holder tray is built to withstand the harsh marine environment, offering long-lasting durability and corrosion resistance. The user-friendly design allows for easy installation and removal, making battery maintenance a breeze.Features: Dimensions: 10 5/8" L (in) x 7" W (in) x 1" H Stainless steel buckle provides maximum strength and prevents movement. Crafted from high-quality materials for long-lasting durability and corrosion resistance. User-friendly design allows for easy installation and maintenance.

Read more less

27 Series Battery Holder Tray with Stainless Buckled StrapSecure and protect your boat's battery with the Battery Holder Tray with Stainless Buckle. This innovative tray provides a sturdy and reliable housing for your battery, ensuring it stays in place even during rough rides and turbulent waters. The stainless steel buckle adds an extra layer of security, preventing any unwanted movement and ensuring your battery stays firmly in place.Crafted from high-quality materials, this battery holder tray is built to withstand the harsh marine environment, offering long-lasting durability and corrosion resistance. The user-friendly design allows for easy installation and removal, making battery maintenance a breeze.Features: Dimensions: 12 1/2" L (in) x 7" W (in) x 1" H Stainless steel buckle provides maximum strength and prevents movement. Crafted from high-quality materials for long-lasting durability and corrosion resistance. User-friendly design allows for easy installation and maintenance.

Read more less

2155 - Remote Control Contura Switch  with Lockout Slide Vibration, shock, thermoschock, moisture and salt spray resistant Lockout slide reduces the risk of accidental switching Certifications: Meets UL 1500 and ISO 8846 external ignition protection requirements IP67 - Temporary immersion for 30 minutes Technical Specifications: Amperage Maximum Operating - 20A @ 12V DC and 15A @ 24V DC Amperage Operating Current - 18mA Pole/Throw - SPDT Lighting - LED rated for a 1/2 life of 100,000 hours Mounting Hole (H x W) - 1.45" x .83" (36.83" x 21.08") *Sold as an IndividualWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

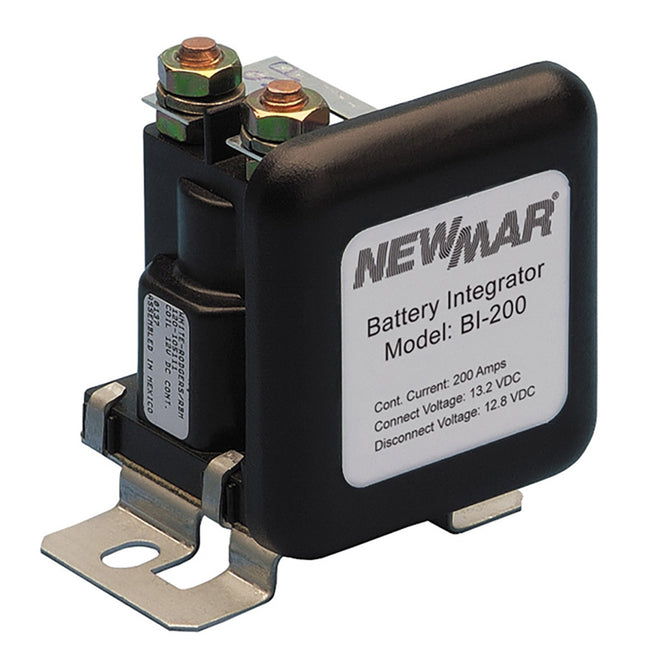

BI-200 Battery IntegratorCharging multiple battery banks without the use of diode isolators dictates that the batteries be connected or “integrated” only whenever a charge voltage is present so that they may be charged simultaneously, then disconnected or “isolated” when the charge voltage is no longer present to allow for selective discharge and avoid having the secondary or standby battery drain into the primary battery.Battery integrators perform this function automatically, acting as a “smart” switch to connect independent battery banks only when a charging voltage is present. Otherwise, they are isolated, and discharge between banks is prevented.The Battery Integrator causes no voltage drop in the charging system, while the multiple batteries are charged as a single bank whenever a charging source of approximately 13.2 VDC or 26.4 VDC or greater is present (depending on the model).When the alternator or charger is off or a large load causes the voltage to drop below the disconnect point, the unit breaks the common tie between the banks. This allows selective battery discharge and prevents the “dumping” of a higher-charged bank into a lower-charged bank. The unit may also be remotely activated to connect other batteries through the key starter or a manual switch to provide an added “boost” from the secondary battery whenever the starter is engaged and the unit senses there is sufficient voltage in that battery to provide an assist.Features: Enables charging of two separate banks without voltage drop yet maintains 100% isolation at all other times. For systems of three banks or more, an additional unit must be installed for each additional bank Heavy-duty silver-plated contactor, continuous duty rated to 100 Amps or 200 Amps depending on model Voltage sense circuits, epoxy-encapsulated, and heavy-duty continuous-rated solenoids are all designed for use in marine environments Has ignition protection rating Easy three-wire hookup for two bank systems (BATT +, BATT +, GROUND) Terminal for optional wiring of a remote light indicating when battery banks are integrated Optional internal connections can be wired through the key starter or manual override switch, tying battery banks together for an extra boost during engine start Specifications: Terminals: Battery Connections: 5/16 in. copper alloy stud Approvals: CE Marked Dimensions (H x W x D): 200 Amp Models: 4 x 3.3 x 4.1 inches Weight: 2 lb. Operating Temperature: Control: -40 to +85 degrees C and Solenoid: -28 to +48 degrees C Voltage: 12 VDC Battery Integration Point: 13.2 VDC     Battery Disconnect Point: 12.8 VDC Max. Continuous Current: 200 Amps     Peak Maximum Current: 600 Amps

Read more less

Off/On Combine Battery Switch without Base - Panel Mount - RedThe Dual Circuit Plus switch builds on the standard dual circuit configuration by adding an emergency parallel function. This allows both circuits to combine instantly in the event of a start battery failure—delivering backup power when you need it most.Smart Power Management Provides secure isolation during normal operation Emergency parallel mode ensures dependable backup starting power Ideal for both marine switch panels and RV electrical systems Durable Marine-Grade Construction Non-corrosive marine-grade metals and reinforced polycarbonate housing Ignition protected for safe use aboard gasoline-powered boats Built to withstand vibration, salt spray, and harsh environments High-Performance Connections 3/8″-16 tin-plated copper studs maximize conductivity and resist corrosion Compatible with both 3/8″ and M10 ring terminals 7/8″ stud length fits multiple cable terminals with ease User-Friendly Design Tactile knob textures make the switch position easy to feel International ON/OFF legends and ICON label set included Versatile mounting options: surface, front panel, or rear panel Why Choose the Dual Circuit Plus Switch?This switch combines isolation, emergency backup, and rugged construction in one unit. Whether upgrading a boat or RV, the Dual Circuit Plus delivers reliable performance and peace of mind on the water or on the road.Specifications: Continuous Rating: 300 Amps DC Intermittent Rating: 450 Amps DC (5 min) Cranking Rating: 675 Amps DC (30 sec) Max Voltage: 32VDC Cable Size: 4/0 AWG Specifications: Continuous Amperage: 300 Positions: 3 Box Dimensions: 3"H x 6"W x 9"L WT: 0.75 lbs UPC: 810196331211 Quick Guide (pdf)Brochure (pdf)

Read more less

Battery Management Contour Connect Panel for Twin Engine with VSR'sThe CC-803N incorporates a version of our very successful dual engine battery switch cluster. The CC-803N is supplied with cables to allow for horizontal or vertical configurations. The components can also be easily removed and reconfigured if the factory layout does not suit your application.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Rainbow Display Digital Voltmeter - Injection Molded Nylon - 5V-15VDCThe Rainbow Display Digital Voltmeter gives the user quick, visual, color-coded voltage information. Red/orange means the voltage is too low. Green means the voltage is normal. The same compact round size as a standard 12VDC receptacle, this voltmeter supports many installation options. Constructed of injection-molded nylon. Rainbow LED display. For use with 12VDC systems. IP65 rating.Specifications:Volts: 5-15

Read more less
