Electrical - Busbars, Connectors & Insulators

Pro Installer Link Joinder 4-WayThis tin-plated bus bar can be used to link 4 adjacent DC products together.  The rating varies from 450-650 Amps, depending on how this busbar is wired.  Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system, but it has universal applications anywhere a high-amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.Features: Tin-plated high-purity copper for maximum conductivity and corrosion resistance 650 AMP continuous rating between two adjacent positions 450 AMP continuous rating across all positions This link bar is intended to be used with 3/8" studs Hole spacing is 2"  Overall dimensions 6.9" x 1" WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

2709 Cover For DualBus for 2701Specifications: Length: 4-3/16" Height: 7/8" Width: 2-1/2" Weight: 0.03lb WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

2710 Cover for DualBus 2702Specifications: Length: 6-3/8" Height: 7/8" Width: 2-3/8" Weight: 0.04lb WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

150 Ampere Common Busbar 20 x 8-32 Screw Terminal with CoverPN:   2312 Stud design provides direct terminal to bus contact for low resistant connection Stainless steel studs and screws allow high torquing for excellent electrical contact Tin-plated copper bus for maximum conductivity and resistance to corrosion UL 94-VO rated (self extinguishing) base material resists high heat Press on insulating cover attaches to studs and allows unobstructed wire access Raised bus provides easy access to multiple wires on a single screw Continuous Amperage 130 Amperes AC150 Amperes DC Maximum Voltage Rating 300 Volts AC48 Volts DC Bus Material Tin-Plated Copper CDA 110/UNS11000 Base Material Glass Reinforced Polycarbonate Cover Material Polycarbonate Studs Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal Screws Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal Weight 0.58Lb WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Terminal Feed Through ConnectorsEliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.Features: Perfect for passing high current cables through hulls, decks and bulkheads Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation Rated IP66 — withstands water from heavy seas WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

Pro Installer Link Joiner 6-WayThis tin-plated bus bar can be used to link 6 adjacent DC products together.  The rating varies from 350-650 Amps depending on how this busbar is wired, see drawing for details.  Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system but it has universal applications anywhere a high amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.Features: Tin-plated high-purity copper for maximum conductivity and corrosion resistance 650 AMP continuous rating between two adjacent positions 350 AMP continuous rating across all positions Bars can be doubled up for additional amperage This link bar is intended to be used with 3/8" studs Hole spacing is 2"  Overall dimensions 10.8" x 1" WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

20 Terminal Busbar - 150 AmpDesigned for larger wiring systems, this 20-terminal busbar handles up to 150 amps. It allows you to centralize multiple connections and simplifies complex circuit layouts in marine or industrial systems.This 20-terminal busbar is ideal for applications where space and organization are crucial, providing a clean and efficient way to manage numerous circuits.Built from corrosion-resistant materials, this busbar provides long-lasting performance even in harsh environments, making it a dependable choice for demanding power distribution needs.Specifications: Current: Rated up to 150 Amp Stud Size: 1/4" Stainless Steel Mounting Holes: 0.21 Mounting Screw Size: #10, 1/4" Distance Between Mounting Holes: 8.25" Quick Guide (pdf)Brochure (pdf)

Read more less

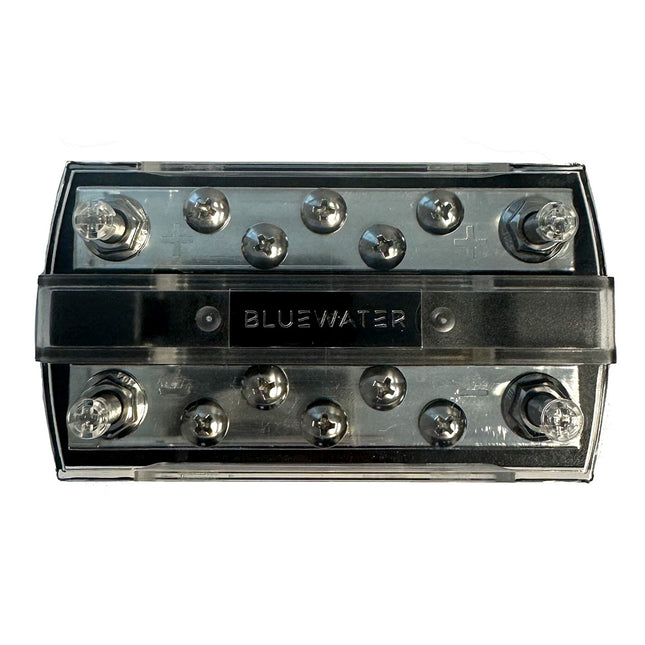

10 Position 150AMP 1/4" Busbar with CoverThis busbar features dual input studs for flexible routing and higher load balancing, supporting up to 150 amps across 10 positions. It’s built for clean, high-efficiency marine power setups.The Dual Bus configuration allows you to isolate or combine circuits as needed, offering greater control and redundancy in your system.Constructed with corrosion-resistant materials, this Dual Bus solution is ideal for demanding environments like boats, off-grid cabins, or industrial panels where durability and performance are critical. Brochure (pdf)

Read more less

10mm Double Instulated StudThe Pro Installer insulated studs are a smart choice for marine installers. An increased stainless steel stud length allows up to three cable lugs to be connected, saving space, while the snap-out side skirts allow for additional cable entry. Saves space and adds design flexibility Insert molded cable lugs and fiber-reinforced base provide strength and durability Power tapping plate converts from a single stud to add up to four connection points for smaller cables while leaving access for larger cables Innovative, clear covers insulate and protect on three sides and offer easy access WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

200A Z Bar 10 Way Bus BarThis patent-pending, space saving bus bar range is a completely new concept for marine cable termination. Offering almost unlimited installation flexibility, the high and low level bars can be bussed together with Z-Link or used as separate positive/negative bars. Pro Installer Z-Bars are available in (10) way and (18) way 200 Amp Z-Bar models for a variety of onboard applications. Easily extend Z-Bars by placing on end or back-to-back Clean installation-all cables can be run from one side of the Z-bar Innovative clear covers insulate and protect on three sides and offer easy acces WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

Square CableCap Insulators Pair Red/BlackSquare CableCap insulators - Cable size 1/0Pair: 1 Red/1 BlackWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

2610 Terminal Block 65AMP - 10 CircuitFeatures: Closed back design completely insulates power from the mounting surface Each screw pair is 1 isolated circuit Jumpers allow creation of common circuits WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
