Electrical - Busbars, Connectors & Insulators

Insulated Stud Single 8mmThe Pro Installer insulated studs are a smart choice for marine installers. An increased stainless steel stud length allows up to three cable lugs to be connected, saving space, while the snap-out side skirts allow for additional cable entry. Saves space and adds design flexibility Insert molded cable lugs and fiber-reinforced base provide strength and durability Power tapping plate converts from a single stud to add up to four connection points for smaller cables while leaving access for larger cables Innovative, clear covers insulate and protect on three sides and offer easy access WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

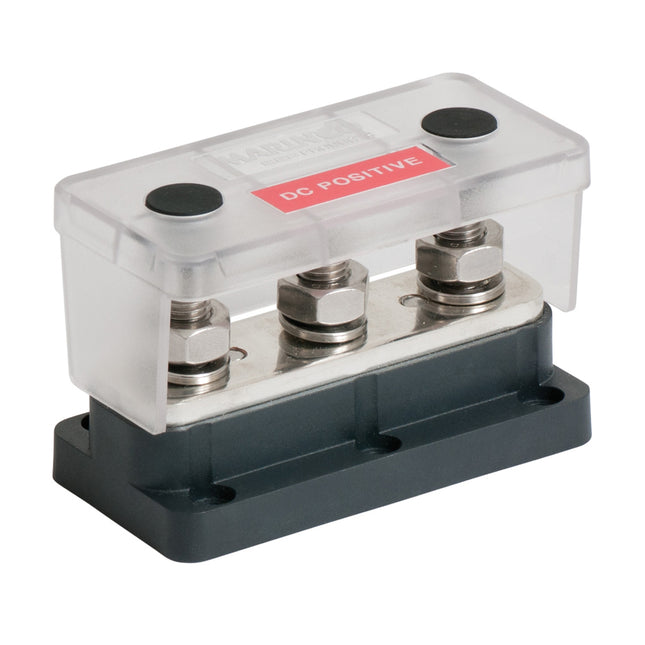

Bus Bar HD 3 Stud 650A MC5Pro Installer buss bars are designed for flexibility and scalability. The snap-out side skirts allow for additional cable entry, and radius ends improve cable routing options. it is easy to link other Pro Installer products to the buss bars because of the common interconnection height in the product line. Compact footprint saves space Clear, polycarbonate covers insulate and protect on three sides Secure cover attachment does not interfere with cabling Snap-out skirts for flexible cable entry Radiused ends improve cable routing Long, threaded studs to connect up to (4) large cable lugs Plated brass nuts and stainless steel studs prevent thread galling during tightening WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

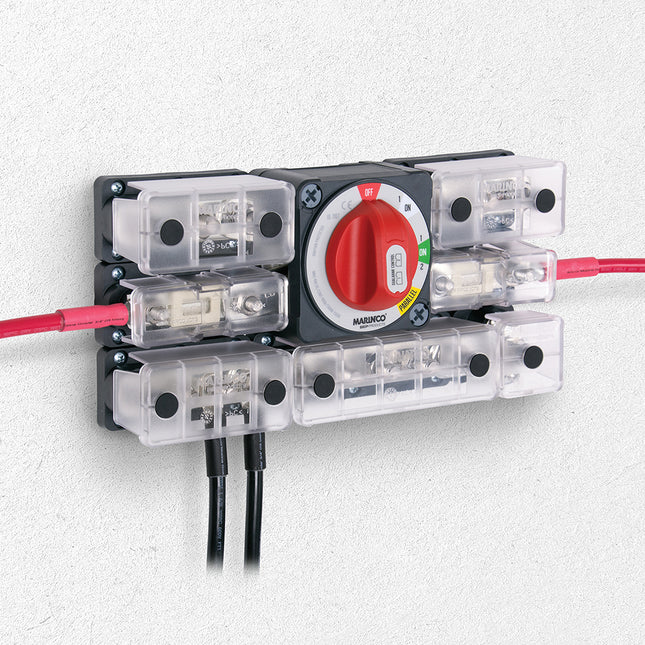

Pro Installer Link Joiner 3-WayPro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Pro Installer link bars are made of high-purity copper and are tin-plated for optimum marine electrical performance. Links can be doubled to accommodate higher loads.Features: Tin-plated high-purity copper for maximum conductivity and corrosion resistance 650 AMP continuous rating between two adjacent positions 525 AMP continuous rating across all positions Bars can be doubled up to increase the rating This link bar is intended to be used with 3/8" studs Hole spacing is 2"  Overall dimensions 4.9" x 1"

Read more less

2502 Terminal Block 30AMP - 2 CircuitFeatures: Closed back design completely insulates power from the mounting surface Each screw pair is 1 isolated circuit Jumpers allow creation of common circuit WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Pro Installer Link Bar 35.5 - 42.5mm *5-PackPro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Pro Installer link bars are made of high purity copper and are tin plated for optimum marine electrical performance. Links can be doubled to accommodate higher loads.

Read more less

Terminal Feed Through ConnectorsEliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.Features: Perfect for passing high current cables through hulls, decks and bulkheads Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation Rated IP66 — withstands water from heavy seas WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

2701 DualBus 100 Ampere Common BusBars 5 x 8-32 Screw TerminalFeatures:Combines negative and positive buses on one blockWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

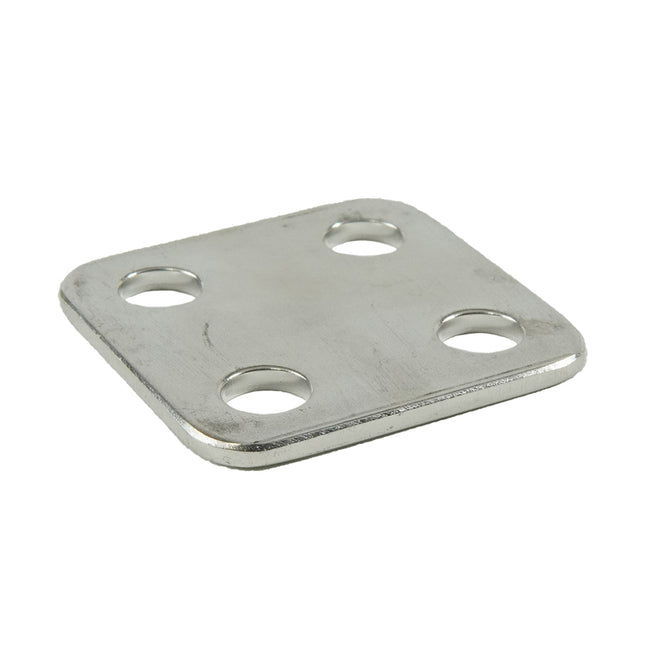

4 Hole Quad Shaped Busbar ConnectorLink Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.Specifications: Continuous Current (Amps): 500 Max Voltage (Vdc): 72 Material: Tin Plated Copper Size: 90mm x 90mm Thickness: 2.8 mm (1/8") Terminal Stud Hole Size: 10.5mm (3/8")

Read more less

Busbar 150A 4P & Cover 4X 1/4" TerminalsBusbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protective cover. Quick Guide (pdf)

Read more less

2 x 5⁄16"- 18 Stud Terminal6 x#10-24 Terminal Screws Part# 2128 SpecificationsContinuous Amperage t250 Amperes AC/DCVoltage Rating t300 Volts AC Maximum / 48 Volts DC MaximumBus Material tTin-Plated Copper CDA 110 / UNS 11000Base Material tReinforced PolycarbonateCover Material tABSCE Certified WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

Single 10mm Insulated Stud with Power Tap PlateThe Pro Installer insulated studs are a smart choice for marine installers. An increased stainless steel stud length allows up to three cable lugs to be connected, saving space, while the snap-out side skirts allow for additional cable entry. Saves space and adds design flexibility Insert molded cable lugs and fiber-reinforced base provide strength and durability Power tapping plate converts from a single stud to add up to four connection points for smaller cables while leaving access for larger cables Innovative, clear covers insulate and protect on three sides and offer easy access WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

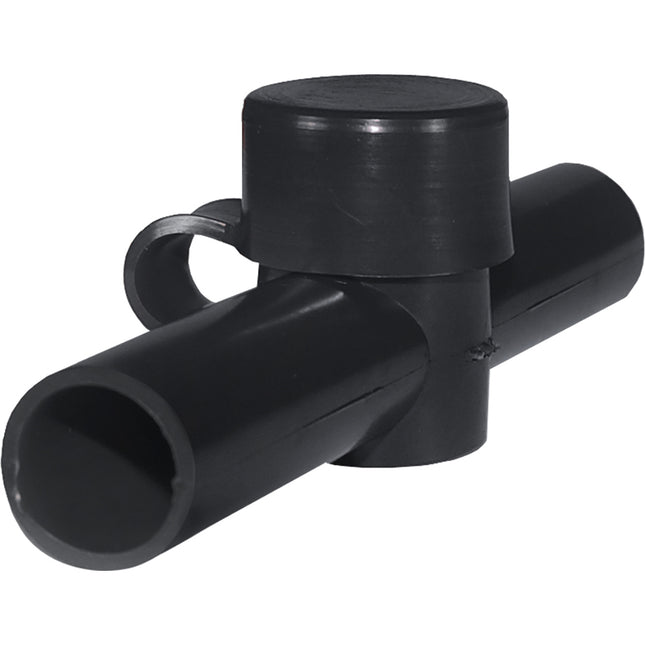

Dual Entry PowerPost Cable Insulator, BlackPart# 4002 Protects against accidental short circuits Top lid allows for easy access to connection point Cable Size: up to 2/0 AWGtttCable Size Metric: up to 70 mm² Cable Entry Size: 0.7" (17.8 mm) t tttColor: BlackWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
