Electrical - DC to DC Converters

Orion-TR Smart 12/12-30 30A (360W) Non-Isolated DC-DC or Power SupplyThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charging Banks: 1 Charger Output Voltage: 12v Charger Output - Amps: 30a Charger Input - Voltage: 12v Box Dimensions: 4"H x 6"W x 8"L WT: 4.25 lbs UPC: 8719076048954 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion-TR Smart 12/12-30A (360W) Isolated DC-DC Charger or Power SupplyThe Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.Bluetooth Smart Enabled Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product Fully programmable Battery charge algorithm (configurable) or fixed output.  Smart Alternator Compatibility: engine running detection mechanism Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged For lithium batteries, the absorption time is fixed; the default is 2 hours Alternatively, a fixed output voltage can be chosen Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).Remote On/OffA remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.High Temperature ProtectedThe output current will reduce at high ambient temperatures.IP43 ProtectionWhen installed with the screw terminals oriented downward.Screw TerminalsNo special tools are needed for installation. Input fuse (not replaceable) *Input fuse (not replaceable) Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 40 A Short Circuit Output Current: 60 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 360 W Efficiency: 87 % No Load Input Current (2): < 80 mA  Standby Current: Less than 1A Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth  Galvanic Isolation: 200 VDC between input, output, and case  Operating Temperature Range -20 to +55 °C (derate 3 % per °C above 40 °C)  Humidity: Max. 95 % non-condensing  DC Connection: Screw terminals  Maximum Cable Cross-Section: 16 mm²  AWG6  Weight: 1,8 kg (3 lb)  Dimensions (H x W x D):130 x 186 x 70 mm  (5.1 x 7.3 x 2.8 inch)  Protection Category IP43 (electronic components), IP22 (connection area)  Safety Standards: EN 60950 Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Output - Amps: 30a Charger Input - Voltage: 12v Portable: No Charging Banks: 1 Charger Output Voltage: 12v Box Dimensions: 4"H x 6"W x 9"L WT: 4.45 lbs UPC: 8719076047698 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

DC Master 24V to 12V Converter - 12 AmpAlways on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.DC Master DC-DC convertersThe required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.Features: Recreational and semi-professional use Easy to install using included mounting bracket, screws and fasteners Smart electronics mean no unnecessary heat generation Continuous output Two minutes of extra power for short power boosts Excellent price/performance ratio General Specifications Nominal output voltage: 13.6 V Max. output power: 245 W Nominal output power: 164 W Max. output current (for 2 min. intervals): 18 A Continuous output current: 12 A Nominal input voltage: 24 V Input voltage range (max.): 20-32 V DC (35 V) Galvanic isolation: no Stabilised: yes Dimensions, hxwxd: 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch Weight: 0.405 kg 0.9 lb Compliance: CE Technical Specifications DC consumption: < 15 mA Connections: fast-on Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30 Cooling: natural cooling Protection degree: IP53 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 12a Charger Output Voltage: 12v Box Dimensions: 2"H x 4"W x 6"L WT: 0.95 lbs UPC: 852968002806 Owner's Manual (pdf)Brochure (pdf)

Read more less

30A Non-Isolated Step-Down 24VDC-12VDC ConverterThis high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.Features: Advanced switchmode design Mount in almost any location Compact and light weight Reverse polarity protection High efficiency Cycle by cycle current limiting circuit Overvoltage protection Short circuit protection Specifications: Input: 20-32 VDC Output: 13.8 VDC Amps: 30 Amps Weight: 1.2 (lbs) Weight: 0.54 (kg) Dimensions: 6 x 3.5 x 1.9 (in) Dimensions: 15.2 x 8.9 x 4.8 (cm) Warranty: 2 Year Limited Applications: Earth moving equipment Heavy trucks Buses Marine vehicles CB radios 12 Volt lighting systems AM/FM sound systems WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion XS 1400 DC-DC Battery ChargerThe Orion XS has been engineered from the ground up to redefine DC-DC, battery-to-battery charging. Ideal for dual-battery setups connected to an intelligent alternator, it ensures top-tier performance and optimal system safety in 12V, 24V, or mixed-voltage systems.Using engine power to charge your house battery or operate as a stable energy supply, the Orion XS can run at full capacity up to 40°C. It allows you to stay in charge with configurable input and output currents, while the 98,5% efficient aluminium circuit board technology keeps things cool without needing fans.As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.Features: Configurable voltage Configurable current Engine running detection Efficient cooling Works with VictronConnect Remote monitoring optional 5-Year warranty Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 9-35VAC Charger Output - Amps: 1-50A Charger Output Voltage: 10-35VDC Box Dimensions: 3"H x 6"W x 7"L WT: 1.7 lbs UPC: 8719076064848 Owner's Manual (pdf)Brochure (pdf)

Read more less

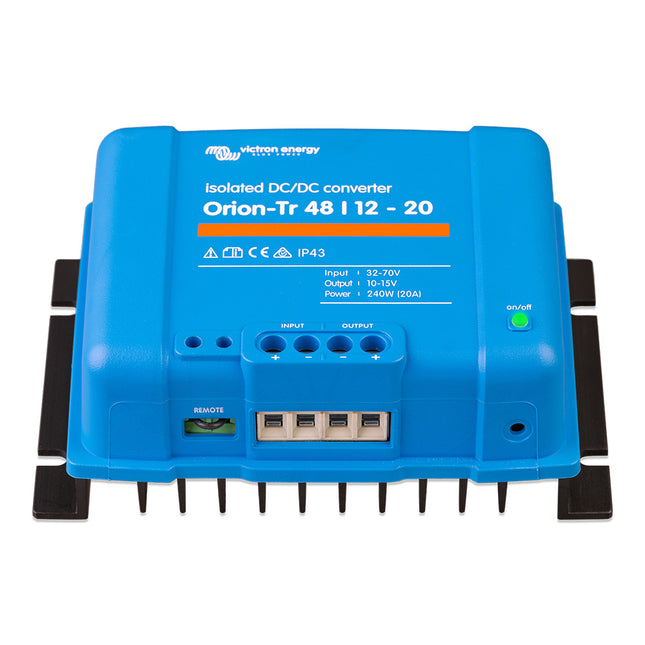

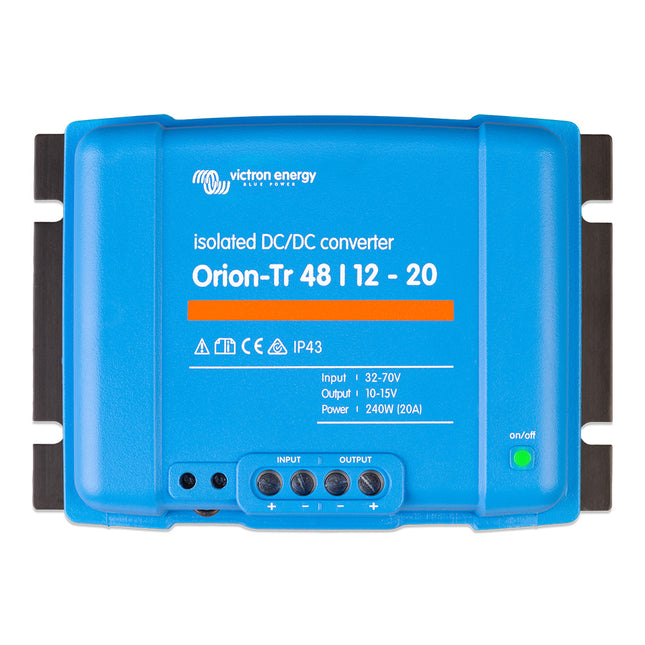

Orion-Tr Smart DC-DC Charger Isolated 48/12 20A (240W)The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual-battery systems, such as in vehicles or on boats, where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" originates from its built-in Bluetooth connection, which allows the charger to be monitored and configured remotely via Bluetooth. It also features a remote on/off switch and an engine running detection mechanism. This isolated model allows the input and output to have separate chassis grounds.The Orion-Tr Smart charger can be used in 12V, 24V, or 48V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W, and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Features: Remote on/off terminal - The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low-power switch, or, for example, the engine run/stop switch. All models are short-circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel. High temperature protected - The output current will reduce at high ambient temperature. IP43 protection - When installed with the screw terminals oriented downwards. Screw terminals - No special tools are needed for installation. Input fuse (not replaceable) - On 12 V and 24 V input models only. Adjustable output voltage - Not intended for battery charging. Please consider using an Orion-Tr Smart for battery charging. Specifications: Charger Input - Voltage: 48v Charger Output - Amps: 20a Charger Output Voltage: 12v Box Dimensions: 4"H x 6"W x 8"L WT: 2.8 lbs UPC: 8719076066149 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Orion 24/12-80 DC-DC Converter IP20Remote on/off connectorThe remote on/off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or by the engine run/stop switch (see manual).All models with adjustable output can also be used as a battery charger. For example, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.All models with adjustable output can be paralleled to increase the output current. Up to five units can be connected in parallel.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 24VDC Charger Output - Amps: 80A Charger Output Voltage: 12VDC Box Dimensions: 3"H x 4"W x 9"L WT: 2.3 lbs UPC: 8719076069614 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

DC-DC Converter - 24/24V - 30AYour boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!Flexibility & VersatilityBOOSTER units are designed to charge a 24V, 36V or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).Efficient Power ConversionSmall is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!Faster Charging TimesBOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).Compatibility with Different VoltagesBOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.Protection FeaturesBOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger.

Read more less

DC-DC Converter - 12/24V - 30AYour boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!Flexibility & VersatilityBOOSTER units are designed to charge a 24V, 36V or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).Efficient Power ConversionSmall is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!Faster Charging TimesBOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).Compatibility with Different VoltagesBOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.Protection FeaturesBOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger. Quick Guide (pdf)

Read more less

DC-DC Converter - 24/48V - 15AYour boat has a 12V alternator, and you need to charge a 24V or 36V battery “on the run”? Dolphin has the solution. Our boosters are true DC/DC chargers with a 3-stage smart charge feature. Compatible with 4 different technologies, including Gel, AGM, or Lithium LIFEPO4. Dolphin booster is the perfect choice to charge your bow thruster or trolling motor batteries!Flexibility & VersatilityBOOSTER units are designed to charge a 24V, 36V, or 48V auxiliary battery from a single 12V or 24V power system, ideal for new installations or for updating older systems. Thanks to recharging during navigation, auxiliary batteries are always available. No need to wait until you’re connected to the shore to recharge. This product range extends from 12/24V (charging at 30A), 12/36V (charging at 20A) up to 24/48V (charging at 15A).Efficient Power ConversionSmall is beautiful: our engineers have made it compact. BOOSTER is only half the size of a conventional charger of equivalent power!Faster Charging TimesBOOSTERS are intelligent marine battery chargers featuring an advanced and unique 4-stage charging program. This reduces charging time by 50% compared with charging from a basic alternator. with different battery chemistry settings (Lead, Gel, AGM, Lithium, LifeFO4).Compatibility with Different VoltagesBOOSTERS are smart battery chargers featuring four different battery profile, Lead, Gel, AGM, and Lithium LifeFO4.Protection FeaturesBOOSTER units include automatic protection against battery source drainage, over-current, over-voltage and reverse polarity and built-in fuses protections.As for all other Dolphin® charger products, the BOOSTER’s assembly process includes conformal coating of the electronic board (PCB) to guarantee an extended lifecycle of your battery charger. Quick Guide (pdf)

Read more less

Mac Plus 12/12-50 + CZoneBoost the Service BatteryToo often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to the service battery. And, by knowing when the engine is running and providing charge, users can be sure that the Mac Plus will never drain a starter battery.Proven Mastervolt QualityUsers get peace of mind knowing that they have the best on board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries.A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and a high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.Total Power FlexibilityWith a wide DC input range, the Mac Plus allows for all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.Parallel configuration of up to ten units will provide over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.Superior Monitoring & ControlCompatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.Features: Fast and safe charging, even during short trips Fanless design for silent operation Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4) Even charges fully depleted batteries Engine run detection protects the starter battery Adjustable current limits to meet Euro 5/6 requirements Voltage stabilization protects sensitive equipment, lights, and loads Parallel operation to obtain charging capacities well over 100 Amps MasterBus, CZone, and NMEA 2000 are compatible for intelligent system monitoring and automation Temperature compensation and voltage sense for an optimal charging result E-Mark/R10 certification for mobile applications Power supply mode offers stable power for sensitive loads Heavy-duty connections for easy installation and quick setup via DIP switches Specifications: Battery Temperature Sensor: Yes, included Battery Voltage Sense: Yes  General Specifications: Status Indicator: Yes, 3-color LED Communication Protocol: MasterBus, CZone & NMEA 2000 Output Voltage: 10-15 V Nominal Output Voltage: 12 V Output Voltage Stabilization: 2 % at extremes of temperatures, load, and input Output Voltage Ripple (peak-peak): Max. 1 % Max. Output Power: 725 W Nominal Output Power: 675 W Max. Output Current: 50 A Output Charge Current (3-step mode): 50 A Nominal Input Voltage: 12 V Input Voltage Range: 10-16 V Max. Input Current: 50 A Galvanic Isolation: No Voltage Limited: Yes Efficiency: > 95 % (at nom. input voltage, full load); peak 97 Parallel Configuration: Yes Alarm Contact: Yes, through MasterBus MasterBus Powering: No Engine Run Signal Input: Yes (active high/active low) DIP Switches: Yes, for basic setup Dimensions, H x W x D: 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch) Weight: 2 kg (4.4 lb) Compliance: CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected  Technical Specifications: No-load Consumption: < 2 mA Charge Characteristic: 3-traps+ Battery Types: Flooded, Gel, AGM, spiral, Lithium Ion, traction, user-defined 3-Step Charge Option: Yes (DIP switch settings) DC Consumption: < 5 mA Connections: 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement Temperature Range (ambient temp.): -25 degrees C to 60 degrees C; derating > 40 Cooling: Natural cooling Protection Degree: IP23 Protections: Overload, over temperature, DC short circuit, reversed polarity (fuse) MasterBus Compatible: Yes Specifications: Charger Input - Voltage: 12v Charger Output - Amps: 50a Charger Output Voltage: 10-15v Box Dimensions: 4"H x 9"W x 15"L WT: 5.6 lbs UPC: 816882023491 Owner's Manual (pdf)

Read more less

Orion IP67 24/12-10A (120W)Completely encapsulated: waterproof, shockproof, and ignition protected. Water, oil, or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminum and the electronics are molded in resin. Owner's Manual (pdf)

Read more less
