Electrical - Fuse Blocks & Fuses

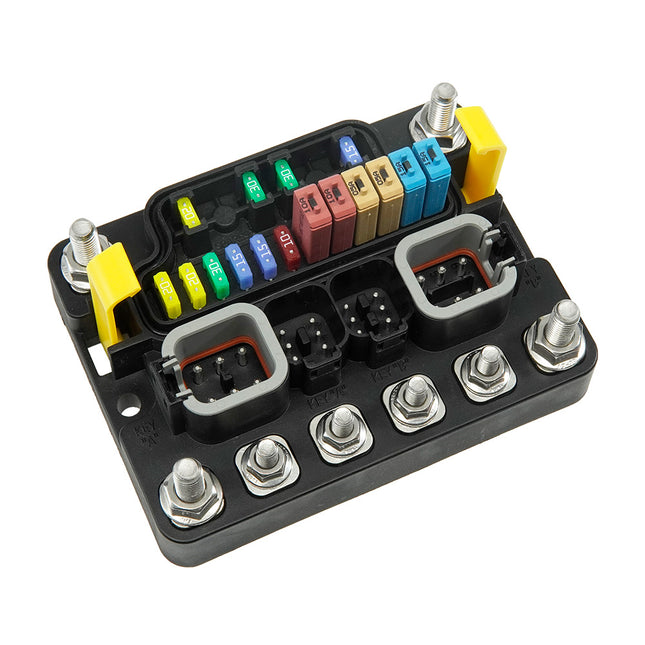

MT Series 12-Position Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors 250A Total Output Current Integral 250A Ground Return Bus Sealed to IP66 & IP6K9K Supports ATM/MINI Fuses and Type 1 or Type 3 Circuit Breakers 5 Year Warranty *Fuses and Circuit Breakers Sold Separately Specifications: Amperage: 250 Type: Electric Box Dimensions: 3"H x 6"W x 8"L WT: 1.43 lbs UPC: 850067590057 Brochure (pdf)

Read more less

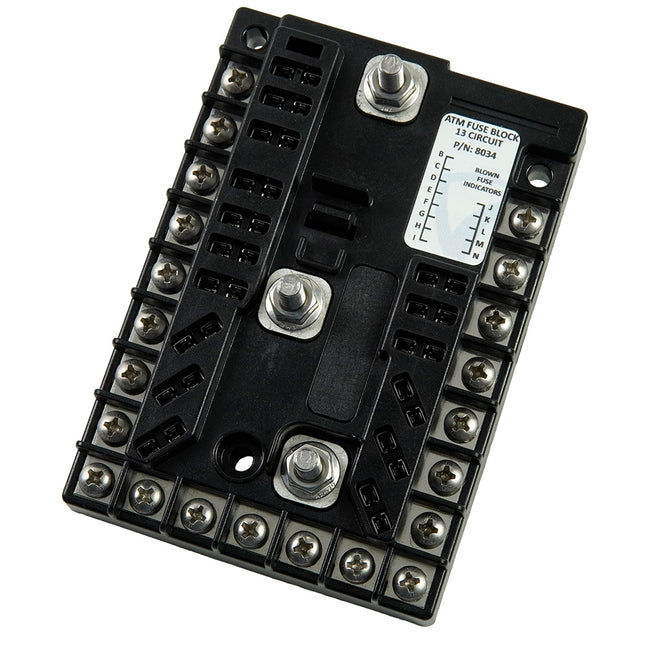

Fuse Block 13 Circuit + Ground 200A PDM-14Features: Compact Solution Combines Circuit Protection And Ground Return Buss Into One Installer-Friendly Device. 200A Maximum Continuous Current Three (3) Fused High-Amp (1-50A) Outputs Allow Protection Of All Circuits with One Solution. Stainless Steel Self-Locking Hardware Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks Integrated LED blown fuse indicators Specifications: Amperage: 200 Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 6"L WT: 0.9 lbs UPC: 850074331780 Brochure (pdf)

Read more less

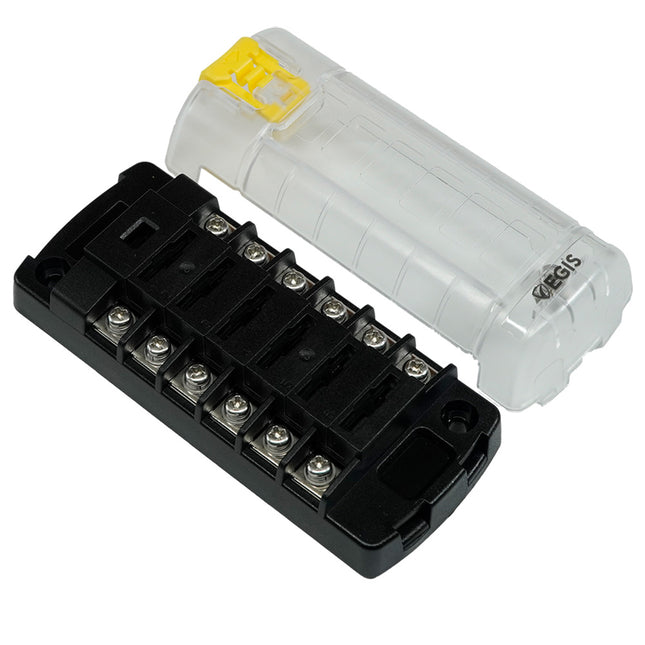

RT Fuse Block with 6 Independent Circuits with CoverFeatures: Ignition Protected when the latching cover is secure for use in engine bay / combustible environments Harsh Environment Design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options Includes Latching Protective Cover with integrated label recesses Specifications: Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 10"L WT: 0.5 lbs UPC: 850067590019

Read more less

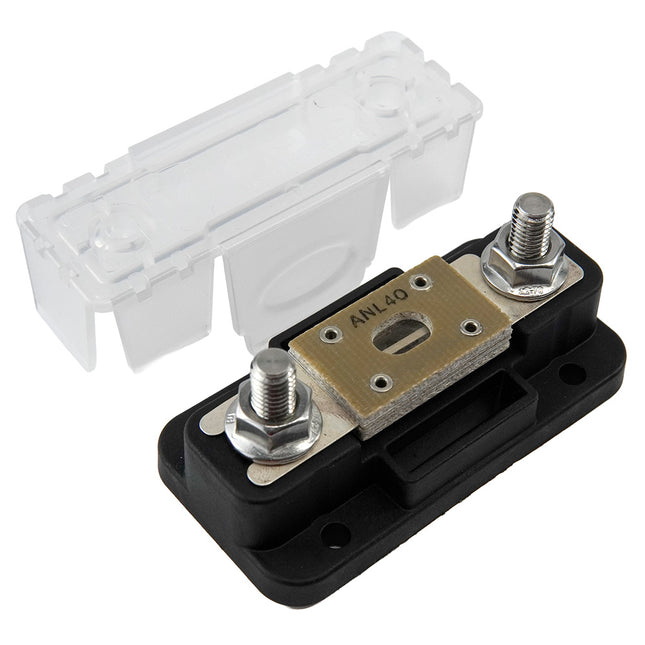

Compact ANL Fuse Block Up To 2/0 Cable 35-300AFeatures: Insulating Cover satisfies ABYC/USCG requirements. Swing Out Design allows replacement of the fuse without removing fasteners. Cover Breakouts allow wire access in any direction. Stainless-Steel Self-Locking Hardware ensures long-term reliability and ease of installation. Tin-Plated Copper Busbars deliver superior electrical performance with minimal voltage drop. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 4"H x 5"W x 7"L WT: 0.4 lbs UPC: 850067590699

Read more less

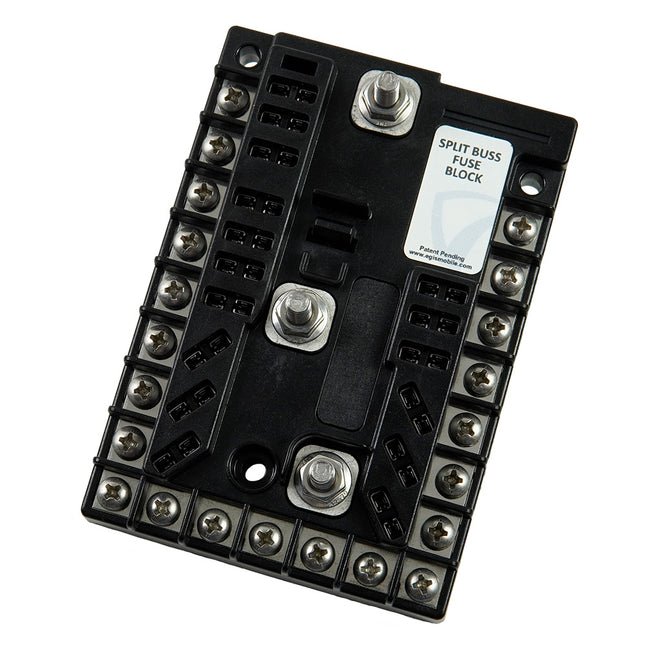

Split Buss Fuse Block 13 Circuit + Ground 200AFeatures: Compact Solution Combines Circuit Protection And Ground Return Buss Into One Installer-Friendly Device. 200A Continuous Current, 100A Maximum Per Input Three (3) Fused High-Amp (1-50A) Outputs Allow Protection Of All Circuits with One Solution. Two (2) Fused Output Groups Stainless Steel Self-Locking Hardware Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks Specifications: Amperage: 200 Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 7"L WT: 0.85 lbs UPC: 850074331773 Brochure (pdf)

Read more less

Compact Med Amp AMI/MIDI Fuse BlockFeatures: Splash Resistant Protects against water splashes (IP54) when mounted properly. Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself. Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats. Stainless-Steel Self-Locking Hardware ensures long-term reliability and ease of installation. Tin-Plated Copper Busbars deliver superior electrical performance with minimal voltage drop. Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 4"L WT: 0.22 lbs UPC: 850067590651 Brochure (pdf)

Read more less

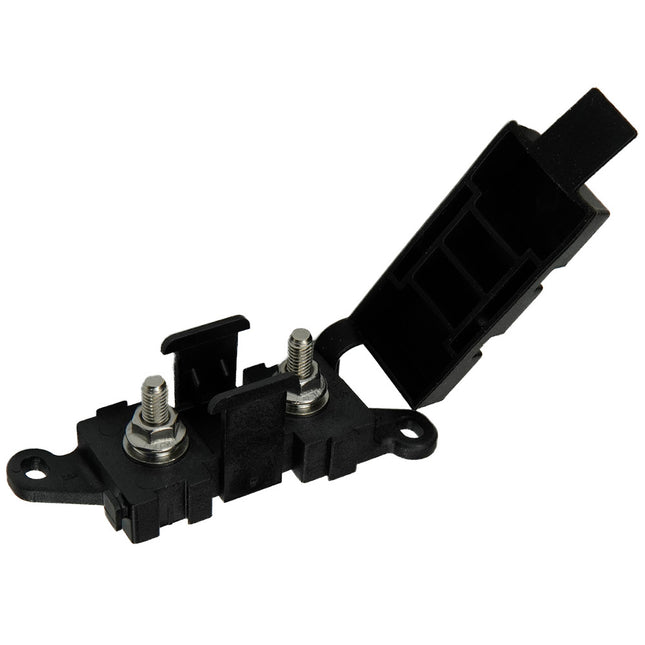

MIDI Fuse Block with Black CoverFeatures: Designed for Harsh Environments with a high-temperature composite base and stainless-steel stud and nut hardware for maximum protection from corrosion. 58 Max Vdc Rating easily supports 12, 24, 36, and 48 nominal Vdc systems. Flexible Protective Cover ensures full 360-degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits. Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments. Stackable Side by Side design via interlocking dovetail features in the composite base. Supports Common Input Busbars when stacked side-by-side due to longer input stud lengths. Wire Tie Slots in Base allow optional secure tie-wrap mounting. Specifications: Type: Fuse Blocks Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850053879951 Brochure (pdf)

Read more less

ANL Fuse Block up to 4/0 Cable 35-750A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height Compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: ANL Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.03 lbs UPC: 850067590682

Read more less

Class T Fuse Block 70-100A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 0.68 lbs UPC: 850067590705

Read more less

AMI/MIDI Fuse Block 30-200A SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 0.67 lbs UPC: 850067590644

Read more less

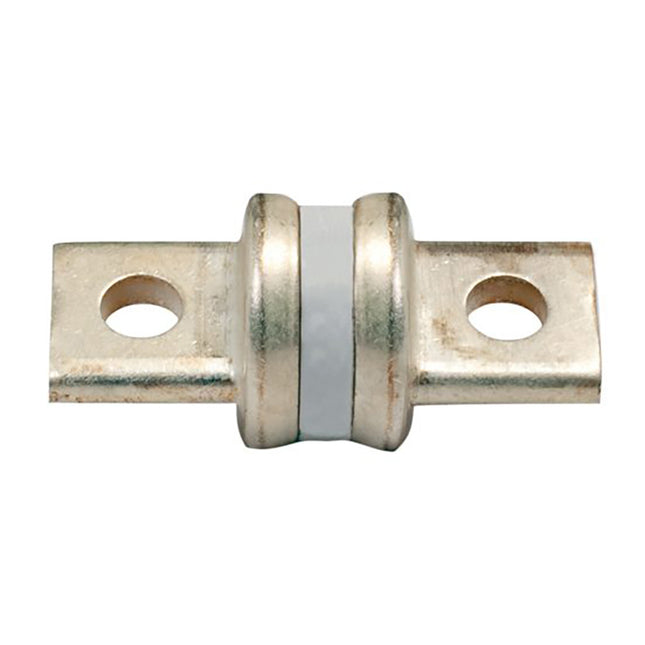

MRBF Terminal Fuse - 75AFeatures: Transparent Easy Visual of Fuse Status Ignition Protected SAE/J1171-ISO8846 High Interrupt Rating Satisfies ABYC Requirements For DC Main Circuit Protection On Large Battery Banks Color Coded For Easy ID Of Amperage Rating Specifications: Amperage: 75 Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.1 lbs UPC: 850053879586 Brochure (pdf)

Read more less

AMG/Mega Fuse Block SealedFeatures: Ignition Protected to support installation in potentially hazardous gasous environments. Height is compatible with other Flex System Components. Includes Protective Transparent Cover with break-away tabs for easy inspection. Specifications: Fuse Type: MEGA/AMG Type: Fuse Blocks Box Dimensions: 3"H x 6"W x 8"L WT: 1.1 lbs UPC: 850067590668

Read more less
