Electrical - Terminals

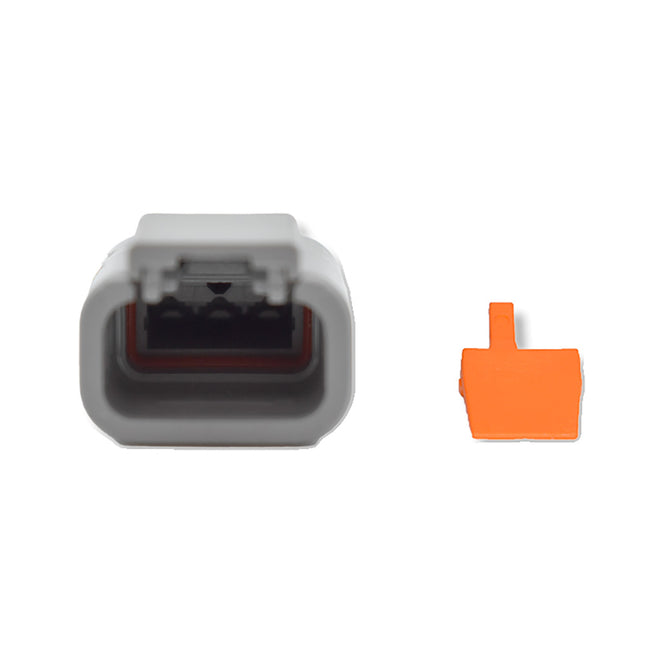

3 Position DTM Male Connector with Wedge LockThe DTMO4-3P and DTMO6-3S connectors are part of the DTM series and form a complete 3-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.Designed for reliability in harsh environments, the DT series can deliver up to 7.5 amps continuously. This 3-pin DTM connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.Each 3-pin DTM connector features corrosion-resistant contacts, a rugged housing, and a reliable locking mechanism, ensuring consistent performance and long-lasting electrical connections even in demanding and harsh conditions.Features: Comes in bags of 100 with a separate bag of wedge locks included. Male uses Solid DTM 16-20AWG Machined Terminal. Female uses DTM 16-18AWG Machined Terminal or DTM 18-20AWG Machined Terminal Specifications: Heat Shrink: No Package Qty: 100 Box Dimensions: 0"H x 4"W x 5"L WT: 0.01 lbs UPC: 810196333307 Brochure (pdf)

Read more less

8 AWG - 3/8" Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 3/8" Package Qty: 25 Heat Shrink: No Gauge: 8 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.21 lbs UPC: 091887212365 Brochure (pdf)

Read more less

440-Piece Nylon Connectors & Terminal KitWire management kit including 440 pieces of nylon connectors and terminals.Includes:Butt Connectors (40) 22-18 AWG, (75) 16-14 AWG (40) 12-10 AWG Ring Terminals (25) 22-18 AWG #8, (25) 16-14 AWG #8 (50) 16-14 AWG #10, (25) 12-10 AWG #8 (25) 12-10 AWG #10 Disconnects (50) 16-14 AWG fully insulated female (30) 16-14 AWG fully insulated male (25) 16-14 AWG female (30) 16-14 AWG male WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 440 Heat Shrink: No Type: Kits Box Dimensions: 2"H x 7"W x 11"L WT: 2.3 lbs UPC: 091887990768

Read more less

Tinned Lug 8 AWG - 1/4" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 8 Stud Size: 1/4” Length: 1.187” Width: 0.438” Clearance: 0.344” Package Size: 10 Specifications: Gauge: 8 AWG Heat Shrink: No Package Qty: 10 Post Size: 1/4" Type: Lugs Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs UPC: 840248205931 Brochure (pdf)

Read more less

Deutsch 6 AWG DTHD Power Plug & Receptacle with Pin & SocketDTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.Features: Environmentally sealed disconnectable power wire splicing 60-100 Amps at 125°C Easy to install Field serviceable Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Redundant Silicone Seals Contacts are hand-insertable Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Specifications: Kit Contents: (1) DTHD Plug, (1) Size 4 Socket, (1) DTHD Receptacle, (1) Size 4 Pin, (2) Reducer Crimp Sleeves for 10 or 8 AWG Deutsch Series: DTHD Wire Range: 6 AWG Connector Types: Plugs & Receptacles Brochure (pdf)

Read more less

DT & DTP Deutsch Cavity Plug - 16 & 12 Contact Size - White (100 Pack)Cavity plugs are used to seal cavity openings in Deutsch connectors (DTM, DT, DTP Series). Using cavity plugs is essential to prevent contaminants from entering connectors. Utilizing cavity plugs will guarantee that the connectors remain environmentally sealed. Properly sealed connectors offer durability, reliability, and longevity. How do you use Cavity Plugs? Simply insert one into an empty cavity on a Deutsch connector creating a watertight seal. They couldn't be easier to handle. These cavity plugs are field-serviceable and easy to install. Not sure which size is right for your project? Contact a Pacer expert today with any questions that you may have.Features: Easy to install Field serviceable Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Hand-insertable cavity plugs Operating temperature ranges from -55°C to 125°C Specifications: Contact Size: 16 & 12 Connector Series: DT, DTP Package Size: 100 Brochure (pdf)

Read more less

Tinned Lug 2 AWG - 5/16" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 2 Stud Size: 5/16” Length: 1.625” Width: 0.609” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 2 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.25 lbs UPC: 840248205634 Brochure (pdf)

Read more less

12-10 AWG Heat Shrink Ring Terminal - 3/8" Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size (inch): 3/8" Terminal Pad Width (inch): 0.60” Package Size: Twenty-five included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 3/8" Type: Ring Terminals Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248206136 Quick Guide (pdf)

Read more less

12-10 AWG - #8 Nylon Flanged Spade Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Post Size: #8 Heat Shrink: No Type: Spade connectors Package Qty: 25 Gauge: 12-10 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.15 lbs UPC: 091887213225 Brochure (pdf)

Read more less

16-14 Gauge Heat Shrink Step-Down Multi-Wire Connectors - 3-PackAncor's assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern.Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp Crimp indicator on barrel for proper placement of installation tool Clear heat shrink tubing ensures crimp accuracy Colored stripes on the barrel indicate which crimp die to use, regardless of application WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Package Qty: 3 Heat Shrink: Yes Type: Butt Connectors Box Dimensions: 1"H x 2"W x 4"L WT: 0.03 lbs UPC: 091887983302 Quick Guide (pdf)

Read more less

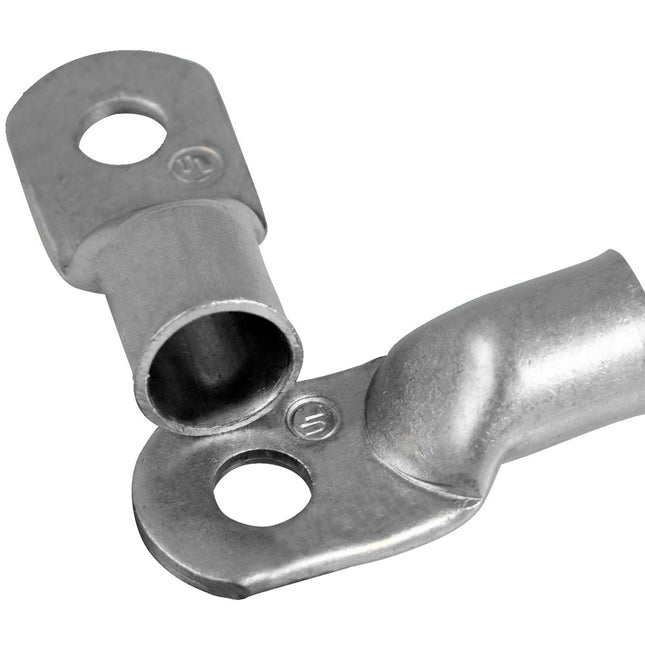

Heavy Duty Lugs - 6 Gauge Wire - 1/4" Post - 2-PackCable Gauge: 6Screw Size: 1/4" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Post Size: 1/4" Package Qty: 2 Heat Shrink: No Gauge: 6 AWG Type: Lugs Box Dimensions: 1"H x 2"W x 4"L WT: 0.04 lbs UPC: 091887252040 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 6 Gauge Wire - 3/8" Post - 2-PackCable Gauge: 6Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 2 Heat Shrink: No Gauge: 6 AWG Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887252088 Quick Guide (pdf)

Read more less
