Electrical

VE. Direct Bluetooth Smart DongleUsing the VE.Direct to Bluetooth Smart dongle you can display your BMV or MPPT information on iOS and Android devices, using the VictronConnect app. View information wirelessly such as battery status and solar panel power, plus other useful data. The dongle is able to read data from all products with a VE.Direct port, such as the BMV-70x series battery monitors, Phoenix Inverters with VE.Direct port, MPPT Solar Charge Controllers.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Orion 24/12-30 DC-DC Converter IP20Remote on/off connectorThe remote on/off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or by the engine run/stop switch (see manual).All models with adjustable output can also be used as a battery charger. For example, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.All models with adjustable output can be paralleled to increase the output current. Up to five units can be connected in parallel.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 24VVDC Charger Output - Amps: 30A Charger Output Voltage: 12VDC Box Dimensions: 4"H x 5"W x 8"L WT: 1.8 lbs UPC: 8719076069591 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Freedom SW Xanbus System Control Panel (SCP)809-0921Specifically designed to operate with the NEW Generation Freedom SW Inverter/Chargers (part# 815-2012 & 815-3012). Product DescriptionUse the System Control Panel for quick and comprehensive control of the Freedom SW Inverter/Charger.The Xanbus System Control Panel (SCP) features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device.The SCP is Xanbus Enabled and easily connects to Freedom SW Inverter/Charger and other devices with off-the-shelf network cables, making installation quick and easy. Built-in flash memory makes the SCP's software upgradeable to take advantage of new features and system enhancements.Product Features Graphical 128x64 pixel LCD display Large, tactile keys Meets UL458 regulatory standards Control and display of multiple networked devices Xanbus Enabled WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

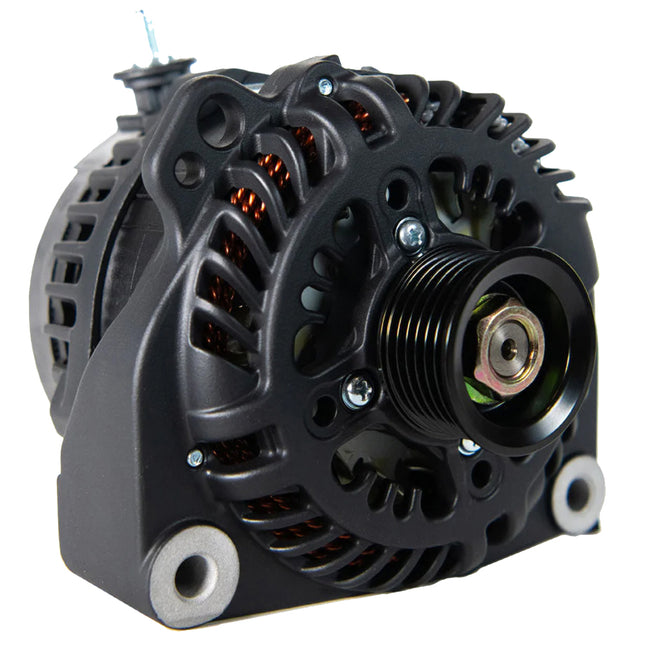

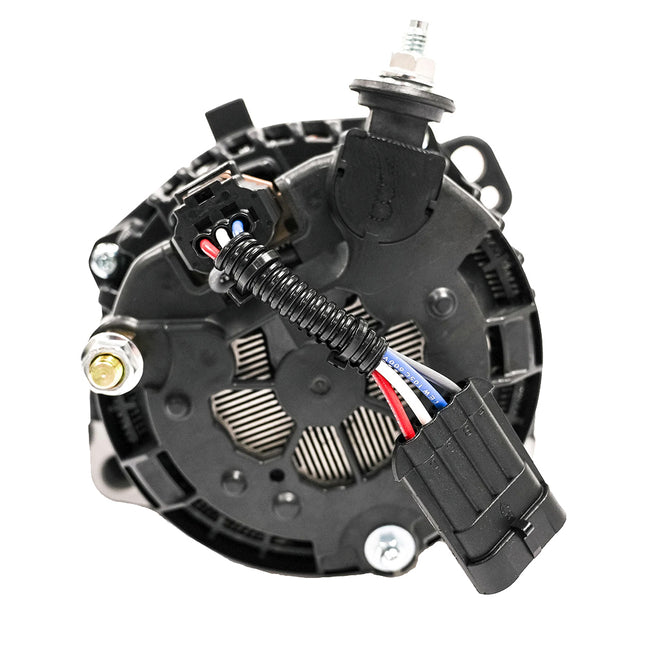

Zeus 24V 4kW Low Turn On (LTO) Vortec Alternator with Isolated GroundThe ARCO Zeus 24v 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 Alternator RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!The ARCO Zeus 24v 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.Competitor’s 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitor’s 24V alternators, having a direct impact on the alternator lifespan.Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance: Heat shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at cruising speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 24v Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 15.89lbs/7.2kg Regulation - External Only Finish - (Black) E-coating Cut-In RPM - 1,072 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 50A Rated, Avalanche Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts – 5.7Kw PTO Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts – 5.1Kw PTO Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts – 4.2kW PTO Max Continuous Operating Temperature - 100°C / 212°F Mounting Application:Replaces Mando-type alternators using Vortec/GM pad mounting feet. (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines). Quick Guide (pdf)Brochure (pdf)

Read more less

24-12-3 DC ConverterConvert 17-32 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)Features: Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments Numerous Converter and Load Protection Circuits: Current limiting Automatic thermal shutdown Short circuit proof Reverse polarity Overvoltage protection Carries CE mark Specifications: Input Voltage: 17-32 Output Voltage: 13.6 Output Amps (Intermittent): 3 Output Amps (Continuous): 3 Case Size (H x W x D): 3.5 x 3.5 x 1.75 inches (8.9 x 8.9 x 4.5 centimeters) Weight: 1 lb. (.45 kg) Output: 13.6 VDC (internally adjustable 12.6 -14.5)  Ripple: 150 mV P-P maximum Regulation: 1% Line/Load Switching Frequency: 40 kHz Efficiency: 85% – Typical. Isolation: Output/Chassis; Input/chassis: 250 VDC Duty Cycle Ratings*: Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating. Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time Idle Current: Less than 100 mA (including power “ON” light) Operating Temp Specifications: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C Mechanical Specifications: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal coated PC board Options:Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

50A Master Battery SwitchFeatures: Master Switch for + or - circuit Seawaterproof Type of protection IPX 4 (DIN 40 050) - 12V Max. 1000A(10s) / 24V Max. 500A (10s) Helps prevent theft and unauthorized use of boat Reduces danger of fire/explosion Makes electrical work easier Specifications: Continuous Amperage: 1a Color: Black Box Dimensions: 1"H x 3"W x 8"L WT: 0.5 lbs UPC: 760687871811

Read more less

16 AWG Gauge Striped Marine Wire 500' Spool - Blue with White StripeStriped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota, FL, USA, from Type III Class K tinned copper. During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of Pacer's primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.How many options of 16 AWG striped marine wire does Pacer offer? The most important thing when selecting the proper striped wire is choice. By offering an enormous section, users are guaranteed to find the perfect choice. Currently, there are over 100 possible combinations of 16 AWG striped marine wires. Have a question about striped marine wire? Contact a Pacer expert today. This particular blue marine wire has a white stripe and comes in a 500 ft. spool.Features: Stranded, tinned copper conductors Highly flexible color-coded insulation Annealed Finely Stranded Tinned Copper ASTM b172 Class K Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Specifications: Spool Length: 500 ft. Insulation: -20 degrees C to 105 degrees C Flexible, Color Coded PVC Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil Voltage Rating: 600-V Applications: Point-to-point wiring Internal wiring of panels and motors Compliances: UL Standard 1426 (BC-5W2) AWM 1015/1230 AWM 1028/1231 MTW, CSA: TEW ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183 Specifications: Color: Blue Gauge: 16 AWG Length (Feet): 500' Box Dimensions: 6"H x 7"W x 7"L WT: 7 lbs Brochure (pdf)

Read more less

Micro Voltmeter Dial marked in 5 Volt increments Simple 2-wire connection to AC hot and neutral Meter senses and powers from same connection Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Lynx Power-In Class-T M10 TerminalsThe Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.The Lynx Distribution SystemThe Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management. The Lynx Distribution System Consists of the Following PartsLynx Power InA positive and negative busbar with four batteries or DC equipment connections.Lynx DistributorA positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.Lynx Shunt VE.CanA positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.Lynx Smart BMSFor use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.SpecificationsPower: Voltage Range: 9 - 60Vdc Current Rating: 1000Adc continuous  Connections: M10 Busbar: 3/8” Physical: Enclosure Material: ABS Enclosure Dimensions (H x W x D): 279 x 169 x 97mm Unit Weight: 2.1 kg Busbar Material: Tinned copper Busbar Dimensions (H x W): 8 x 30mm Environmental: Operating Temperature Range: -40°C to +60° Storage Temperature Range: -40°C to +60° Humidity: Max. 95% (non-condensing) Protection Class: IP20 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Fuse Type: Class T Box Dimensions: 5"H x 7"W x 16"L WT: 6.6 lbs UPC: 8719076062967 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Cerbo GX MK2Victron's Cerbo GX MK2 is the most commonly used GX product. This communications center has hardware revision 2 with two VE.Can ports, 3 USB host ports, and digital input pulse counting.The Cerbo GX MK2 Is Different from the Cerbo Gx since It Has: Two fully functional CAN bus ports- VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port VE.Can 1 is isolated (on previous models, there was no isolated CAN-bus port) RJ-45 sockets have been rotated 180 degrees, so it's easier to take the cables out All three USB ports are fully functional (instead of two functional and one for power (to a GX Touch) only) Digital inputs can do pulse counting This communication center allows users to always have perfect control over the system from wherever they are and maximizes its performance. Connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, an MFD, or Victron's VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX range combines all the best of connectivity, redefining smart power solutions in every way.Perfect Monitoring & ControlInstantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s), or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Cerbo GX MK2 turns any power challenge into an effortless experience.Maximize Your System PerformanceThe Cerbo GX MK2 maximizes the performance of a system's components in real time and keeps them in perfect tune. This enclosure has two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port. VE.Can 1 is isolated. In the previous models, there was no isolated canbus port. This can be useful where a Lynx Smart BMS (VE.Can connection) as well as an RV-C port are required.Expand Your ViewThe (optional) GX MK2 Touch 50 display gives users an instant overview of their system and adjust settings in the blink of an eye. Its super slim 5-inch waterproof design, top-mountable setup, and simple installation bring a lot of flexibility when creating a crisp and clean dashboard.Simple Mounting & ConfigurationThe Cerbo GX MK2 is now optimized to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included), and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX MK2). It is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via the VictronConnect app.Outsmart Any Power ChallengeThe Cerbo GX MK2 serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as marine, or backup & off-grid, it will auto-start/stop the generator, or delay ignition until the end of ‘quiet’ periods. It keeps backup batteries at 100% for energy storage systems, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving users money. For RVs and emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few...Specifications: Remote Console: Yes Buzzer: Yes VE.Direct ports (always isolated): 3 VE.Bus (always isolated): 2 paralleled RJ45 sockets VE.Can: Yes, VE.Can 1 isolated & VE.Can 2 non-isolated USB: 3 USB Host ports Ethernet: 10/100 RJ45 socket - isolated except for shield WiFi: Built-in Bluetooth Smart: Yes Micro SDcard slot: SDHC cards up to max. of 32GB (5) Second CAN-bus port (BMS-Can): Yes - see VE.Can BMS-Can port: No Built-in RS485: No Programmable Relay: 2 x NO/NC (8), DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A, 125VAC Resistive Tank Level Inputs: 4 Temperature Sense Inputs: 4 Same as part# BPP900450110 other than Country of Origin Digital Inputs: 4 Performance Specifications: CPU: Dual-core RAM: 1GB Max. VE.Direct Devices: 15 Other Specifications:  Supply Voltage: 8 - 70 VDC Power Draw: 2,5 to 5 W Mounting: Wall or DIN rail (35mm) Outer Dimensions  (H x W x D): 478 x 154 x 48 mm Operating Temperature: -20 to +50 degrees C Battery Backup Clock: Yes 5V Output: No Standards: Safety: IEC 62368-1 EMC: EN 301489-1, EN301489-17 Automotive: ECE R10-6 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Chargers Box Dimensions: 2"H x 5"W x 8"L WT: 0.9 lbs UPC: 8719076062257 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Mounting Plate for SG200 Display - Fits Smartguage™ CutoutBalmar’s Award Winning, 2nd Generation Battery MonitorOptional Adapter Plate for Fitting the SG200 Color Display into a Smartgauge™ CutoutThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Solar Splitter Pair MC4-Y (1x M-2F / 1x F-2M)This Victron solar splitter pair was designed to split one solar connector (MC4) into two separate MC4 connectors. This enables the parallel connection of two solar panels.Features:Constructed to last even after exposure to various types of weather conditionsPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)
