Electrical

BMV-712 Black Smart Battery MonitorWith Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. Features: Battery voltage, current, power, ampere-hours consumed and state of charge Remaining time at the current rate of discharge  Programmable visual and audible alarm  Programmable relay, to turn off non critical loads or to run a generator when needed  500 Amp quick connect shunt and connection kit  Shunt selection capability up to 10.000 Amps  VE.Direct communication port  Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health  Wide input voltage range: 6,5 – 70V  High current measurement resolution: 10 mA (0,01A)  Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

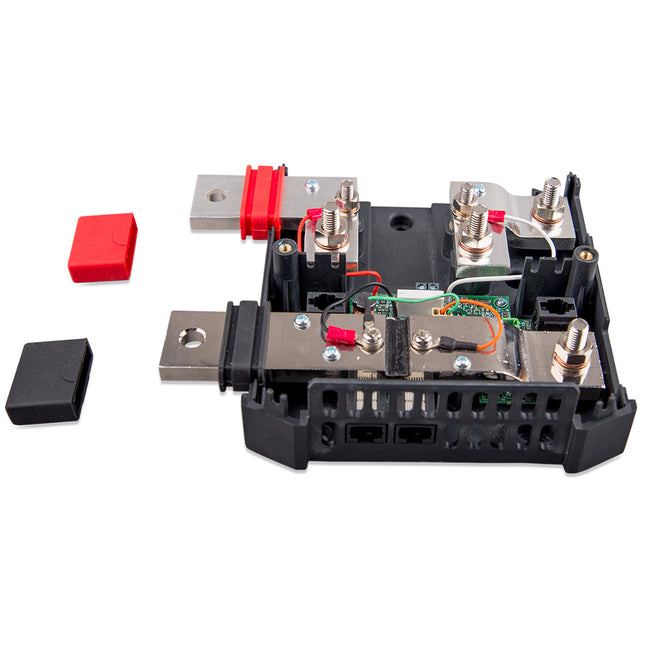

Lynx Shunt VE.Can (M10)Busbar Integrated Battery Monitoring The Lynx Shunt VE.Can contain a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device. The Lynx Shunt VE.Can ship with two RJ45 VE.Can terminators, be used when connecting to a GX device.  The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately. The Lynx Distribution System The Lynx Distribution System is a modular busbar system incorporating DC connections, distribution, fusing, battery monitoring, and Lithium battery management. The Lynx Distribution System Consists of the Following Parts:  Lynx Power In - A positive and negative busbar with 4 batteries or DC equipment connections. Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal Specifications:Power: Supply Voltage Range: 9 - 70 Vdc Supported System Voltages: 12, 24 or 48V  Reverse Polarity Protection: No  Current Rating: 1000Adc continuous  Power Consumption: 60mA @ 12V, 33mA @ 24V, 20mA @ 48V  Potential Free Alarm Contact 3A, 30Vdc, 250Vac Connections: Busbar: M8 Fuse: M8  VE.Can: RJ45 and RJ45 terminator  Power Supply Connection to Lynx Distributor: RJ10 (an RJ10 cable ships with each Lynx Distributor) Temperature Sensor: Screw terminal  Relay: Screw terminal  Physical: Enclosure Material: ABS Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm  Unit Weight: 1.4 kg  Busbar Material: Tinned copper  Busbar Dimensions (H x W): 8 x 30 mm Environmental Operating Temperature Range: -40°C to +60°  Storage Temperature Range: -40°C to +60°  Humidity: Max. 95% (non-condensing)  Protection Class: IP22 Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

DS-H10-BLK Horizontal Cable Seal- Black *3-PackThis horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antennas, and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting. Features: Watertight installation - 100% waterproof with an IPX68 rating Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.  No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation. The low-profile construction is impact resistant and provides extra protection from water. Technical Specifications: Fits cable size (diameter) - .24" to .39" (6 - 10 mm)   Height - 1.06" (27 mm) Width - 1.75" (44.5 mm) Color - Black Orientation - Horizontal Material - Stainless Steel In the Box: Cable seal Mounting hardware Installation manual  *Sold as an Three (3) Pack Specifications: Type: Deck Seal Box Dimensions: 2"H x 4"W x 9"L WT: 1.05 lbs Quick Guide (pdf)Brochure (pdf)

Read more less

DS-H10-BLK Horizontal Cable Seal- Black *5-PackThis horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting. Features: Watertight installation - 100% waterproof with an IPX68 rating Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.  No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation. The low-profile construction is impact resistant and provides extra protection from water. Technical Specifications: Fits cable size (diameter) - .24" to .39" (6 - 10 mm)   Height - 1.06" (27 mm) Width - 1.75" (44.5 mm) Color - Black Orientation - Horizontal Material - Stainless Steel In the Box: Cable seal Mounting hardware Installation manual  *Sold as an Five (5) Pack Specifications: Type: Deck Seal Box Dimensions: 2"H x 4"W x 9"L WT: 1.75 lbs Quick Guide (pdf)Brochure (pdf)

Read more less

DS-H10-BLK Horizontal Cable Seal - BlackThis horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting. Features: Watertight installation - 100% waterproof with an IPX68 rating Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.  No Need to Remove Cable Connectors - split-seal option does not require connector removal during install. The low-profile construction is impact resistant and provides extra protection from water. Technical Specifications: Fits cable size (diameter) - .24" to .39" (6 - 10 mm)   Height - 1.06" (27 mm) Width - 1.75" (44.5 mm) Color - Black Orientation - Horizontal Material - Stainless Steel In the Box: Cable seal Mounting hardware Installation manual  *Sold as an Individual Specifications: Type: Deck Seal Box Dimensions: 2"H x 4"W x 9"L WT: 0.35 lbs UPC: 5060114797406 Quick Guide (pdf)Brochure (pdf)

Read more less

Red 10 AWG Tinned Copper Wire - 500'Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.Wire Gauge: 10 AWGWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Length (Feet): 500' Gauge: 10 AWG Color: Red Box Dimensions: 6"H x 11"W x 11"L WT: 21.8 lbs UPC: 091887108682

Read more less

DS21A-P Vertical Cable SealScanstrut premium IP68 waterproof cable seal provides easy fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables. Features: Watertight installation - 100% waterproof with an IP68 rating Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.  No Need to Remove Cable Connectors - split-seal option does not require connector removal during install.  Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield. Technical Specifications: Fits cable size (diameter) - .17" to .31" (4 - 9 mm)   Fits connector size up to .83" (21 mm) in diameter  Height - .81" (20.5 mm) Color - Grey Orientation - Vertical Material - ASA Plastic In the Box: Cable seal Mounting hardware Installation manual  *Sold as an Individual Specifications: Type: Deck Seal Box Dimensions: 1"H x 4"W x 6"L WT: 0.3 lbs UPC: 5060114792784 Quick Guide (pdf)Brochure (pdf)

Read more less

MEGA Fuse 80A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 80 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 80 AMP Max Voltage Rating: 80V

Read more less

ChargeMaster Plus 24V, 60A, 3-Bank, NMEA2000 - CZoneChargeMaster Plus 24/60-3 CZoneAll-in-one solution for faster and safer chargingChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of two or three batteries in a fast and safe way and works anywhere in the world.With the new Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are: Revival mode: automatically revives even fully depleted batteries. Multi voltage: charge 12 V starter battery in a 24 V system, without additional components. Priority Charge: redirect available power to the lowest battery, for faster charging. Smart Input: charge all three batteries from one single alternator for continuous charging on the go. Global ChargingThe ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC/DOE and RCM/C-Tick compliant.System SimplicityNowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.Powerful Communications thanks to CZone integrationIn modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts and power systems including communication standards like CZone®, NMEA 2000 and CANopen (through additional interfaces).Models with the addition CZone do not only support MasterBus, but also support CZone and NMEA 2000 communication, without the need of additional interfaces. This ChargeMasters Plus series can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.This wide range of communication interfaces makes the ChargeMaster Plus ideally suited for system integration. In addition, the ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.Features: Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR. Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger. Charges multiple batteries while being underway. Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C. Safe Charge: quickly recognize the State of Charge for extended battery life. Very wide operating range of 80-275 V AC, 35-70 Hz. Compact, easy to connect and quick to install WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Portable: No Charging Banks: 3 Charger Output Voltage: 24v Charger Output - Amps: 60a Charger Input - Voltage: 120/240v Box Dimensions: 7"H x 13"W x 18"L WT: 16.75 lbs UPC: 816882022524 Owner's Manual (pdf)

Read more less

30A 125V CordsetEEL ShorePower CordsetsOne Hand. A simple twist. Full Power.The EEL (Easily Engaged Lock) ShorePower Cordset has an industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.Features: Designed for use with standard inlets (NEMA)30A, 125V capacities; 50' length Cord sets meet global industry standards including ABYC and UL New wing-clamp technology provides a true, watertight connection every time Single-handed operation Eliminates the need for a sealing ring Secondary locking feature for added security Built-in LED cord light guides you to a secure connection every time, even in the dark WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage: 125v Type: Cordset Length: 50' Amperage: 30a Box Dimensions: 6"H x 12"W x 12"L WT: 14.9 lbs UPC: 093344051661 Owner's Manual (pdf)

Read more less

Micro Voltmeter Dial marked in 5 Volt increments Simple 2-wire connection to AC hot and neutral Meter senses and powers from same connection Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

5124ANL Fuse80A Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Fuse Type: ANL Type: Fuses Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085051242

Read more less
