Electrical

8082 DC 10 Position Toggle Branch Circuit Breaker Panel Features: All positive, negative and grounding buses installed, fully pre-wired Includes set of 30 common DC labels Label backlighting pre-installed All LEDs installed Detailed installation instructions and cutout template 8028, 8-16 Volt DC Micro Voltmeter 8041, 0-50 Amp DC Micro Ammeter Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter 7 15A Single Pole circuit Breakers Specifications: Positions: 10 Nominal Voltage: 12v DC Maximum Amperage: 50A Height: 11.25" Width: 5.25" Depth: 2.5" Weight: 3.35 lbs Included: (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (1) 8030 Basic DC Panel Label Set - 30 Labels (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter) (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Max Breaker Quantity: 10 AC/DC: DC Voltage: 12v Box Dimensions: 5"H x 10"W x 13"L WT: 3.3 lbs UPC: 632085080822 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Pro Installer Link Joiner 5-WayThis tin-plated bus bar can be used to link 5 adjacent DC products together.  The rating varies from 400-650 Amps, depending on how this busbar is wired. Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system, but it has universal applications anywhere a high amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.Features: Tin-plated high-purity copper for maximum conductivity and corrosion resistance 650 AMP continuous rating between two adjacent positions 400 AMP continuous rating across all positions Bars can be doubled up for additional amperage This link bar is intended to be used with 3/8" studs Hole spacing is 2"  Overall dimensions 8.8" x 1" WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

16/2 AWG Duplex Cable - Flat Cable - Red/Black - 100'Duplex Boat Cable is used in low voltage AC applications as well as DC circuits.  Pacer manufactures 16 AWG Duplex boat cable in house in the USA for the best quality.  First, the cable is built from finely stranded, Type III tinned copper conductors.  These conductors allow for flexibility and help to prevent corrosion. The PVC jacket helps 16 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating.  How does it do that?  During the extrusion process, the spaces between wires are filled.  This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed.  Just another reason 16 AWG Duplex boat cable is perfect for marine use. Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.Features: Extruded exterior cable insulation with no gaps Highly flexible color coded wire insulation Stranded, tinned copper conductors Annealed Finely Stranded Tinned Copper ASTM B172 Class K Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 2 Type of Cable - Duplex  *Sold as an Individual Specifications: Color: Red/Black Gauge: 16/2 AWG Length (Feet): 100' Box Dimensions: 5"H x 7"W x 7"L WT: 5.2 lbs UPC: 840248200080 Brochure (pdf)

Read more less

12/3 AWG Triplex Cable - Black/Green/White - 250'12 AWG Triplex boat cable is commonly used for AC circuits in boats and recreational vehicles.  It is an ideal choice when looking at multiconductor boat cables.  Pacer Group manufactures 16 AWG triplex cable in the USA for longevity and easy installation.  How is that accomplished?  It starts with finely stranded tinned copper conductors.  These conductors prevent corrosion and also allow the cable to be flexible.  Another important aspect of triplex boat cable is the insulation.   The PVC insulation is designed specifically for protection from moisture and fatigue.  These conductors also allow the cable to be flexible.  Flexibility is essential when working in enclosed marine spaces.  The PVC insulation is designed for protection from moisture and fatigue.  It is created during the extrusion process.  The extrusion process for this cable fills the voids between the conductors.  This process eliminates any possibility of moisture or air build up in the wires.  To make it even better, talcum powder is coated on the wires.  This is done to allow for the easy removal of the jacket during installation. Features: Stranded, tinned copper Color coded conductors Tough PVC Jacket Highly flexible Easy to strip and route Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.16 Technical Specifications: Conductor - Annealed Fine Stranded Tinned Copper, ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 3 Type of Cable - Triplex  Shape of Jacket - Flat *Sold as an Individual Specifications: Color: Black/Green/White Gauge: 12/3 AWG Length (Feet): 250' Box Dimensions: 9"H x 10"W x 10"L WT: 31.8 lbs UPC: 840248200738 Brochure (pdf)

Read more less

Red 18 AWG Primary Wire - 500' Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 18 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 18 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Red Gauge: 18 AWG Length (Feet): 500' Box Dimensions: 4"H x 7"W x 7"L WT: 5.55 lbs UPC: 840248201155 Brochure (pdf)

Read more less

Green 8 AWG Primary Wire - 250'Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 8 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 8 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Green Gauge: 8 AWG Length (Feet): 250' Box Dimensions: 6"H x 10"W x 10"L WT: 19.5 lbs UPC: 840248203333 Brochure (pdf)

Read more less

Yellow 2/0 AWG Battery Cable - 50' Pacer's 2/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 2/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold as an Individual Specifications: Color: Yellow Gauge: 2/0 AWG Length (Feet): 50' Box Dimensions: 7"H x 10"W x 10"L WT: 26.55 lbs UPC: 840248204354 Brochure (pdf)

Read more less

8015 DC Analog Voltmeter with PanelFeatures: 8003 DC Analog Voltmeter 8-16 V DC 3 Position switch for multiple battery banks Voltmeter mounted in 0.125" Aluminum 5052 Alloy WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

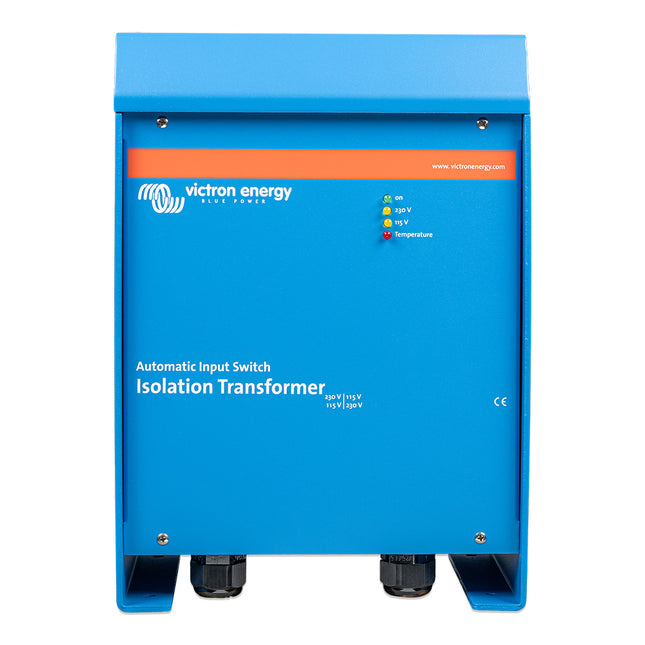

Isolation Transformer 4500W Auto 115/230VSafety and prevention of galvanic corrosion - The Isolation Transformer eliminates any electrical continuity between AC shore power and the boat. It is essential for safety and eliminates the need for galvanic isolators and polarity alarms.Safety is taken for granted in the case of a normal onshore installation. A circuit breaker or a GFCI (Ground-Fault Circuit Interrupter) will trip in the event of a short circuit or current leakage to ground. Connecting the ground wire of the shore-side supply to the metal parts of the boat will result in galvanic corrosion (see below). Bringing only the live and neutral wire on board results in an unsafe situation because GFCIs will not work, nor will a fuse blow in case of a short circuit to a metal part on the boat.Galvanic corrosion occurs when two dissimilar metals in electrical contact are simultaneously exposed to an electrically conducting fluid. Seawater and, to a lesser extent, fresh water are such fluids. In general, the more active alloy of the couple corrodes preferentially while the less active (more noble) material is cathodically protected. The rate of galvanic corrosion is a function of several variables including area ratios, conductivity of the fluid, temperature, nature of the materials, etc.It is a misunderstanding that galvanic corrosion occurs only in metal and aluminium hulls. In fact it can occur on any boat as soon as a metallic part (the shaft and propeller) is in contact with water. Galvanic corrosion will quickly dissolve your sacrificial anodes, and attack the shaft, propeller and other metal parts in contact with water as soon as the boat is connected to the shore -side supply.It might therefore be tempting not to connect the ground conductor: this is however e xtremely dangerous because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.The best solution to avoid galvanic corrosion and at the same time prevent any uns afe situation is to install an Isolation Transformer to connect to the shore-side supply.The Isolation Transformer eliminates any electrical continuity between shore power and the boat. The shore power is fed to the primary side of the transformer and the ship is connected to the secondary.The Isolation Transformer completely isolates the boat from the shore ground. By connecting all metal parts to the neutral output on the secondary side of the transformer, a GFCI will trip or a fuse will blow in case of a short circuit.Soft start is a standard feature of a Victron Energy isolation transformer. It will prevent the shore power fuse from blowing due to the inrush current of the transformer, which would otherwise occur.It is also recommended, for optimal safety, to connect the secondary neutral of the transformer to ground when the boat is out of the water.4500 Watt Auto 115/230 V - This model will automatically switch to 115 V or 230 V supply, depending on input voltage.Supply 88 V – 130 V: switches to 115 V supplySupply 185 – 250 V: switches to 230 V supply range.Note: The AC input voltage is raised by 1:1.05 ratio at the AC output.Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

T-H FLEX™ 1/2" Expandable Braided Sleeving - 100' RollT-H FLEX™ is a lightweight, braided jacketing for bundling and protecting wires, cables and hoses. Braided from high temperature yarns, T-H FLEX™ offers total protection for wire and cable assemblies. The unique expansion characteristics makes T-H FLEX™ easy to slip on. Only a few sizes are needed to cover a large diameter range, since each size of T-H FLEX™ expands up to four times its normal diameter.  The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.Features: Lightweight Protective Sleeving Protects Wire, Cables and Hoses Braided from High Temperature Yarns Chemical Resistant Simplifies and beautifies any rigging application Specifications: Type: Misc Box Dimensions: 6"H x 9"W x 10"L WT: 1.5 lbs UPC: 733572036657

Read more less

BM100 Battery Monitoring SolutionThe BM100 is a complete system comprising SmartShunt and the veKonvert NMEA 2000 interface. It is part of Digital Yacht’s iSeaSense range of NMEA 2000 boat instruments. With this solution, your multi-function display becomes a sophisticated battery and energy management system.FeaturesDigital Yacht’s BM100 battery monitoring system allows highly accurate DC voltage, current, and capacity measurements, enabling reliable monitoring of your boat’s battery and electrical system.Core to the system is the SmartShunt. It measures battery voltage and current. Based on these measurements, it intelligently calculates the battery’s state of charge and the time to depletion for the remaining charge. It also keeps track of historical data, such as the deepest discharge and average discharge current, as well as the number of charge and discharge cycles. The smart shunt can also monitor the voltage of a 2nd battery, typically dedicated to engine starting.The product is a collaboration between Victron Energy and Digital Yacht. The system utilizes Victron’s proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.The BM100 is part of a wider group of products now introduced by Digital Yacht that bring NMEA 2000 connectivity to Victron systems using the VE.Direct interface.Victron solar panel controllers (MPPTs) and battery monitors can now also interconnect to NMEA 2000 via the veKonvert interface.Monitoring the battery with the BM100 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. There’s also an optional battery temperature sensor available.The BM100 can also integrate with Digital Yacht’s other NMEA 2000 and wireless instruments, which offer hybrid NMEA 2000 and wireless display options.NMEA 2000 InterfaceThe system features an NMEA 2000 interface, so your navigation multi-function display or plotter can display all key parameters. Modern MFDs from leading manufacturers such as Garmin, Raymarine, Furuno, and Navico allow electrical battery data to be displayed via their NMEA 2000 interface. Alarms and alerts for low capacity and voltage can also be enabled.Bluetooth InterfaceThe BM100 also has a standalone wireless Bluetooth interface, so your mobile phone or iPad can connect and display current, voltage, capacity, additional historical data, state of charge information, and time to go based on remaining battery capacity.Specifications: BM100 solution comes as a complete package with SmartShunt and the veKonvert NMEA 2000 interface Bluetooth interface for setup and detailed analysis, including charge/discharge cycles, state of charge, remaining capacity, and historical data Use your phone/tablet and your NMEA 2000 devices for battery monitoring and management 500A SmartShunt included for the main battery system Monitor the voltage of a separate (eg starter) battery Universal NMEA 2000 gateway for Victron’s popular range of smart battery monitors/SmartShunt using the VE.Direct interface (see compatibility list in the FAQ tab) Enables electrical and battery monitoring and management on compatible multi-function displays (Raymarine, Garmin, Navico, Furuno, etc) Provides battery voltage, charge/discharge current, state of charge, and time to depletion based on a sophisticated algorithm Easy installation, plug ‘n play connectivity, and self-powering from the NMEA 2000 bus Supports alerts generated by the SmartShunt Supports multiple SmartShunts for multi-battery systems Also compatible with other VE.Direct products such as solar MPPT controllers Vekonvert Is Compatible with the Following Victron Products:BMV -700, BMV -702, BMV -700H, BMV-712 Smart, BMV-710H Smart, BMV-712 Smart Rev2, SmartShunt 500A/50mV, SmartShunt 1000A/50mV, SmartShunt 2000A/50mV, and All MPPT Charge ControllersNOTE: veKonvert is not compatible with Victron Chargers and Inverters. It should also not be plugged into the VE.Direct interfaces of any Victron "Consumers" such as Multiplus, Quattro, Cerbo, etc.

Read more less

Tinned Copper Battery Cable, 3/0 AWG (81mm²) - Black - Sold By The FootAncor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC, and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C), and resists salt water, battery acid, oil, gasoline, heat, abrasion, and ultra-violet radiation. The highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.Features: Manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing Stays flexible even in extreme cold (-40 deg C) and resists salt water, battery acid, oil, gasoline, and ultra-violet radiation Specifications: Length (Feet): Sold By The Foot Gauge: 3/0 AWG Color: Black Box Dimensions: 1"H x 1"W x 12"L WT: 0.1 lbs Brochure (pdf)

Read more less
