Electrical

Universal Adjustment Arm - OffsetUniversal Adjustment Arm for the Belt Buddy with a 1/2″ offset for certain mounting applications which require an offset. This part number is for the “Arm Only”, It does not come with the Belt Buddy Adjustment Mechanism.The Belt Buddy Mechanism which goes with the UAA2 is part number BB, grouped together the set is part number UBB2. The Belt Buddy Mechanism which goes with most any adjustment arm is part number BBU.The UAA2 is 10.3″ long and the adjustment slot provides up to 4.5″ of travel.  The adjustment slot is 0.53″ wide.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

easyID Fuse 25 AmpeasyID™ illuminated ATC® blade fuses use Light Emitting Diode (LED) technology to show that a fuse has blown, making them easy to spot in fuse panels tucked up under dark dashboards. Replaces non illuminating ATO® or ATC® fuses Fast acting Two per retail package SpecificationsAmperage;t25AInterrupt Capacity: 1000A @ 32V DCBlade Material: tin-platedWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 25a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs UPC: 632085052973 Brochure (pdf)

Read more less

9630AC Analog Ammeter - 2-3/4" Face, 0-50 Amperes AC Simple 2-wire connection Meter senses and powers from coil slipped over wire to be measured Includes AC current transformer Backlit meter face WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White SwitchesFeatures: Includes set of 30 common AC and 30 common DC labels All AC and DC buses installed, fully pre-wired Label backlighting pre-installed All LEDs installed Maximum panel Amperage 100 Amperes DC 50 Amperes AC AC Features: Two separate AC load groups with transfer switch to combine into one load group Switch allows Ammeter and Voltmeter to read either AC load group Reverse polarity indicators on both AC load groups Ready for installation of optional 4031 AC Isolation Cover 9353, 0-150 Volt AC Voltmeter 9630, 0-50 Amp AC Ammeter DC Features: 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits 8003, 8-16 Volt DC Voltmeter 8017, 0-100 Amp DC Ammeter Specifications: AC Positions: Source Selectors +12 DC Positions: Main +19 120 Volts AC 12 Volts DC (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers (1) 100A - (13) 15A DC Circuit Breakers *Combined AC/DC panels require a AC Insulating Cover to meet ABYC StandardsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Max Breaker Quantity: 12 AC / 19 DC AC/DC: Both Voltage: 120v/12v Box Dimensions: 6"H x 15"W x 23"L WT: 12.5 lbs UPC: 632085080860 Owner's Manual (pdf)

Read more less

Zeus A225S J-180 3.15" Alternator with Terminal BlockThe highest power output alternator in its size/class. Features: Engineered for High Energy Production. Suitable for Marine, RV, Military, and Commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to: Heat shedding coatings Rectifier located on housing exterior Dual cooling fans OEM Components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods. For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 12v Field Type - P Rotor Poles - 16 Stator Size - 130mm Frame Size - Small Weight - 12lbs/6.7kg Regulation - External Only Output Voltage - 14.1v (default) Finish - (Black) Cerakote or E-coating Cut-In RPM - 1,061 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 50A Rated, Avalanche Max Output (Cold, 9,000 RPM) - 254 Amps Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps Mounting Application:Replaces most small case styles using a 3.15” J180 saddle style mount (e.g., Hitachi, Lucas, Mitsubishi) Most Yanmars.

Read more less

Yellow 4 AWG Battery Cable - Sold By The Foot Pacer's 4 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Oftentimes, marine applications are in enclosed areas with sharp turns. Installation can become difficult. Pacer simplified this process by developing flexible yet tough marine cables. This 4 AWG marine battery cable is built to handle the harshest conditions. All our marine cable is made from Type III tinned copper. The copper resists corrosion and ensures the longevity of the cable.  It is then insulated with a durable and pliable PVC jacket. These things together make it the highest quality marine battery cable available. Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold by the Foot Specifications: Color: Yellow Gauge: 4 AWG Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 1 lbs Brochure (pdf)

Read more less

Cable Tie Mount - Natural - #10 Screw - 25-PieceCable tie screw mounts are designed to easily adhere to any drillable surface. 4 Way bases provide a low-profile mount where height may be limited; while 2 way bases provide a narrow cable mount for crowded surface areas. Adhesive bases can be attached to metal, plastic, glass, and other clean surfaces. Identify your application needs and apply mounting bases for an easy solution to secure cables. Specifications: Type: Cable Ties Box Dimensions: 2"H x 3"W x 4"L WT: 0.05 lbs UPC: 093344050725

Read more less

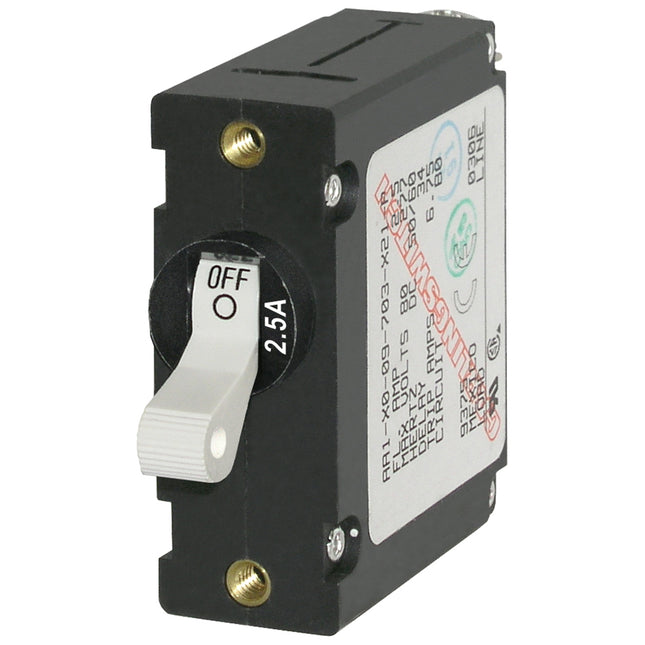

A-Series White Toggle Circuit Breaker - Single Pole 2.5A Meets American Boat and Yacht Council (ABYC) standards The industry standard circuit breaker for Blue Sea Systems" electrical panels Combines swtiching and circuit protection into a single device "Trip Free" design cannot be held "ON" during fault current condition Specifications: Amperage: 2.5A AC / 2.5A DC Color: White Actuator Style: Toggle Poles: 1 Maximum Voltage: 250V AC / 65V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.17lb (0.08 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 2.5a Box Dimensions: 1"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085071974

Read more less

Contura II Switch DPDT Black - ON-OFF-ONVibration, shock, thermoshock, moisture and salt spray resistantMounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting PanelsSpecifications: Action: ON-OFF-ON Pole/Throw: DPDT - Double Pole/ Double Throw Actuator Color: Black - Contura II Common Applications: Combining Nav lights or anchor light with shared bulb Maximum Amperage: 20A @ 12V / 15A @ 24V Amperage Operating Current: 18mA (LED) Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Actuator Position to Light LED: ON Embedded LEDs: 2 Lighting: LED rated 100,000 hours 1/2 half Seals: Internal and external gasket panel seal Weight: 0.09lb (0.04 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Action: On/Off/On Color: Black Throw/Pole: DPDT Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085079369

Read more less

Adhesive Lined Heat Shrink Tubing (ALT) - 3/8" x 12" - 5-Pack - BlackPackage of 5 Black 12"(30.5cm) long sections with a 3/8"(9.5mm) diameter that shrinks to 1/8"(3.2mm)Wire Range: 12-8 AWGFeatures: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257°F / 125°C Operating temperature range of -40°C to 110°C UL 224 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Heat Shrink Box Dimensions: 1"H x 3"W x 15"L WT: 0.1 lbs UPC: 091887303407

Read more less

Safety Duplex Cable - 8/2 AWG - Red/Yellow - Flat - 100'Ancor safety duplex cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water,battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Red/Yellow Length (Feet): 100' Gauge: 8/2 AWG Box Dimensions: 11"H x 11"W x 11"L WT: 23.05 lbs UPC: 091887805826

Read more less

easyID Fuse 40 AmpeasyID™ illuminated ATC® blade fuses use Light Emitting Diode (LED) technology to show that a fuse has blown, making them easy to spot in fuse panels tucked up under dark dashboards. Replaces non illuminating ATO® or ATC® fuses Fast acting Two per retail package SpecificationsAmperage;t40AInterrupt Capacity: 1000A @ 32V DCBlade Material: tin-platedWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Fuse Type: ATO/ATC Type: Fuses Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs UPC: 632085052997 Brochure (pdf)

Read more less
