Electrical

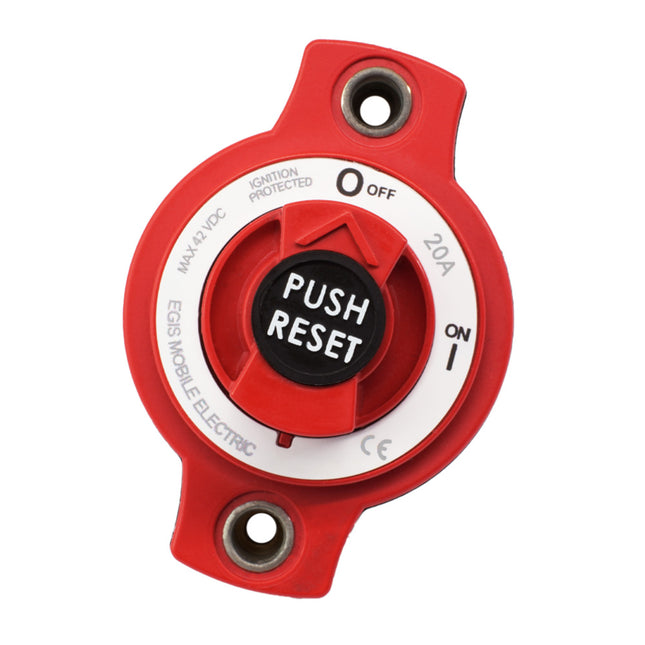

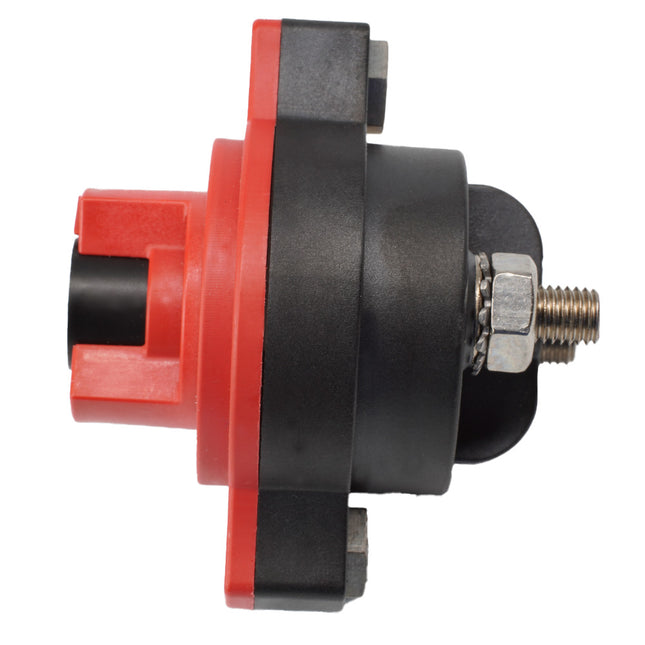

20A Panel Mount Mini Circuit BreakerThis 20A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 20 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 5,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 3"H x 3"W x 5"L WT: 0.4 lbs UPC: 850053879340 Quick Guide (pdf)

Read more less

XD Relay Link BusbarThis tin-plated copper is to ensure reliable circuit connectivity and an anti-corrosive feature that will keep it long-lasting.ApplicationsLink Together XD Single, Dual, and Triple XD relays to each other in multiple configurations and even to Egis's 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.Features: Great electrical conductivity with anti-corrosion tin plating keeps connections reliable This bus bar is tough and built to withstand high amperage loads and resist deformation from nut-tightening Save install space by linking XD Relays together for even more capability and maintain a professional-looking install Specifications: Continuous Current (Amps): 500 Max Voltage (VDC): 72 Material: Tin-plated copper Size (L x W): 47.8mm x 22.8mm  Thickness: 2.8mm (1/8”) Terminal Stud Hole Size: 10.5mm (3/8”) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Automatic Charging Relay Plus - 160A - 24VThis 160A Egis automatic charging relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance Protects Electrical System Cascading Faults with an optional lock-out from closing if one terminal is connected to a battery with a shorted cell Features: Ultra-low power draw compared to typical ACRs (7-10 mA) vs. the 7610 ACR @ 1.3 mA will not deplete batteries even after extended electrical system downtime. Simple and robust installation - integrated sealed plug eliminates corrosion; includes Deutsch/Amphenol DTM connector harness Start to assist input option to ensure maximum cranking amps are available by allowing manually connecting batteries via a remote switch Bullet-proof construction - sealed unit, stainless steel hardware, and high-temperature materials allow mounting anywhere; Integrated thermal overload shutdown protection Additional low-amp output can be used to report device status remotely or drive a secondary relay for charge to a battery bank without a charge source (see examples) Specifications: Continuous Current Amps: 160 Voltage Range (VDC): 16 – 36 Off-State Current Draw (mA): 1.3 Interrupt Current (Amps): 240 AC Closing Voltage Range (VDC): 25.8-27.2 AC Opening Voltage Range (VDC): 24.2-25.6 Focal Features:Top Side Dip SwitchesAccessible after mounting for programming voltage settings and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware100% non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O ConnectorSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.Connection OptionsComes standard with a Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, and wire leads). Easy Integration with RT Fuse Blocks (24 HR Circuits)Optional EasyLink bus bars reduce the space and cost of connecting TH Series relays with RT Series fuse blocks. LED DiagnosticsIndicates pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and output on/off status.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

30A Surface Mount Circuit Breaker - 285 SeriesThis 30A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 30 Max Voltage: 48 Cycling Endurance: 100 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 3"H x 3"W x 5"L WT: 0.4 lbs UPC: 850035199114 Quick Guide (pdf)

Read more less

4151WeatherDeck Toggle Switch Pole/Throw SPST Action OFF-(ON) Momentary Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck™ Panels When mounted with a WeatherDeck Toggle Switch Boot Rated IP67-temporay immersion for 30 minutes Nickel-plated brass and phenolic non-corrosive construction WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Throw/Pole: SPST Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085041519

Read more less

Black 4/0 AWG Battery Cable - Sold by the FootFeatures: Ancor Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing Ancor's proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation Exclusive insulation is rated at 600V, 105°C dry and 75°C wet and is resistant to heat and abrasion Exceeds all UL 1426, US Coast Guard Charter Boat (CFR Title 46) and ABYC standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Length (Feet): Sold By The Foot Gauge: 4/0 AWG Box Dimensions: 1"H x 1"W x 12"L WT: 0.9 lbs Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Black 4 AWG Battery Cable - Sold By The FootFeatures: ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion. Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Length (Feet): Sold By The Foot Gauge: 4 AWG Box Dimensions: 1"H x 1"W x 12"L WT: 0.1 lbs Owner's Manual (pdf)

Read more less

Red 2/0 AWG Battery Cable - Sold By The FootFeatures: ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion. Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Red Length (Feet): Sold By The Foot Gauge: 2/0 AWG Box Dimensions: 1"H x 1"W x 12"L WT: 0.6 lbs Quick Guide (pdf)Owner's Manual (pdf)

Read more less

DT & DTP Deutsch Cavity Plug - 16 & 12 Contact Size - White (100 Pack)Cavity plugs are used to seal cavity openings in Deutsch connectors (DTM, DT, DTP Series). Using cavity plugs is essential to prevent contaminants from entering connectors. Utilizing cavity plugs will guarantee that the connectors remain environmentally sealed. Properly sealed connectors offer durability, reliability, and longevity. How do you use Cavity Plugs? Simply insert one into an empty cavity on a Deutsch connector creating a watertight seal. They couldn't be easier to handle. These cavity plugs are field-serviceable and easy to install. Not sure which size is right for your project? Contact a Pacer expert today with any questions that you may have.Features: Easy to install Field serviceable Applications: Cable-to-cable applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Hand-insertable cavity plugs Operating temperature ranges from -55°C to 125°C Specifications: Contact Size: 16 & 12 Connector Series: DT, DTP Package Size: 100 Brochure (pdf)

Read more less

18/2 AWG Duplex Cable - Flat Cable - Red/Black - 100'Duplex Boat Cable is used in low voltage AC applications as well as DC circuits.  Pacer manufactures 18 AWG Duplex boat cable in house in the USA for the best quality.  First, the cable is built from finely stranded, Type III tinned copper conductors.  These conductors allow for flexibility and help to prevent corrosion. The PVC jacket helps 18 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating.  How does it do that?  During the extrusion process, the spaces between wires are filled.  This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed.  Just another reason 18 AWG Duplex boat cable is perfect for marine use. Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.Features: Extruded exterior cable insulation with no gaps Highly flexible color coded wire insulation Stranded, tinned copper conductors Annealed Finely Stranded Tinned Copper ASTM B172 Class K Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 2 Type of Cable - Duplex  *Sold as an Individual Specifications: Color: Red/Black Gauge: 18/2 AWG Length (Feet): 100' Box Dimensions: 5"H x 7"W x 7"L WT: 4.15 lbs UPC: 840248200011 Brochure (pdf)

Read more less

18/2 AWG Safety Duplex Cable - Flat Cable - Red/Yellow - 250'Duplex Boat Cable is used in low voltage AC applications as well as DC circuits.  Pacer manufactures 18 AWG Duplex boat cable in house in the USA for the best quality.  First, the cable is built from finely stranded, Type III tinned copper conductors.  These conductors allow for flexibility and help to prevent corrosion. The PVC jacket helps 18 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating.  How does it do that?  During the extrusion process, the spaces between wires are filled.  This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed.  Just another reason 18 AWG Duplex boat cable is perfect for marine use. Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.Features: Extruded exterior cable insulation with no gaps Highly flexible color coded wire insulation Stranded, tinned copper conductors Annealed Finely Stranded Tinned Copper ASTM B172 Class K Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 2 Type of Cable - Duplex  *Sold as an Individual Specifications: Color: Red/Yellow Gauge: 18/2 AWG Length (Feet): 250' Box Dimensions: 6"H x 6"W x 9"L WT: 9.75 lbs UPC: 840248200066 Brochure (pdf)

Read more less

BlueSmart IP67 Charger - 12 VDC - 7AMPFeatures: Bluetooth Smart enabled The Blue Smart IP67 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available. With Bluetooth, the functionality of the IP67 charger is enhanced and is similar to that of our IP22 and IP65 chargers.  Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Blue Smart IP67 Charger. The casing is made of cast aluminium and the electronics are moulded in resin.  The highest efficiency ever! Setting a new industry standard: with 92% efficiency or better, these chargers waste three to four times less heat. And once the battery is fully charged, power consumption reduces to less than a Watt, some five to ten times better than the industry standard.  Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The ‘adaptive’ feature will automatically optimize the charging process relative to the way the battery is being used.  Storage Mode: Less maintenance and aging when the battery is not in use The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.  Also charges Li-ion batteries and LiFePO4 batteries are charged with a simple bulk – absorption – float algorithm.  Protected against overheating Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases up to 60°C, but the charger will not fail.  Two LEDs for status indication Yellow LED: bulk charge (blinking fast), absorption (blinking slow), float (solid), storage (off) Green LED: power on Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: Yes Charging Banks: 1 Charger Output Voltage: 12v Charger Output - Amps: 7a Charger Input - Voltage: 120v Box Dimensions: 4"H x 8"W x 10"L WT: 4.2 lbs UPC: 8719076044703 Quick Guide (pdf)Brochure (pdf)

Read more less
