285-Series Thermal Circuit Breaker Panel Mount - 70APart#7085 Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition Ignition protected - Safe for installation aboard gasoline powered boats Meets SAE J1171 external ignition protection requirements Weather Resistant Combines switching and circuit breaker function into one unit "Trip Free" - cannot be held closed after trip * Do not use for direct control of high inrush loads such as motor starting.SpecificationsInterrupt Rating 3,000A @ 48V DC*Maximum Voltage Rating 48 Volts DCOperating Temperature Range -40°C to 85°CCircuit Breaker Type Thermally Responsive Bi-metal bladeCircuit Breaker Class Type III - Switchable / Manual Reset - Trip FreeTerminal Stud Size M6 (accepts 1/4" Ring Terminal)Terminal Stud Torque 50 in-lbMounting Holes Accept 1/4" (M6) screwWeight Lb (Kg) 0.33 lb (0.15 kg)* AIC ratings achieved using SAE J1625 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 70a Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs UPC: 632085070854 Brochure (pdf)

Read more less

Water Resistant Circuit Breaker PanelColor: WhiteMount: HorizontalPosition 8 CE Marked Designed for flybridge and open cockpit applications ON-OFF Contura Switches "ON" indicating LEDs embedded in switch Watertight Mounting gasket Push Button circuit breaker with waterproof boot Rated IP66 - withstands water from heavy seas Ignition protected - safe for installation aboard gasoline powered boats WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: AC/DC: DC Max Breaker Quantity: 8 Voltage: 12/24v Waterproof: Resistant Box Dimensions: 5"H x 10"W x 13"L WT: 1 lbs UPC: 632085082710 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

5133 ANL Fuse - 300AMPFeatures: Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats Silver-plated connector blades for corrosion resistance Visible indication of blown condition 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks For use with Blue Sea Systems' ANL Fuse Blocks WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 300a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085051334

Read more less

Blue Smart IP22 24VDC 16A 3 Bank 120V Charger - Dry MountThe Blue Smart IP22 Charger is the professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. Bluetooth SmartThe Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.High efficiencyWith up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storageThe Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.Storage Mode: less maintenance and aging when the battery is not in useThe storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.Also charges Li-ion batteriesLi-ion batteries are charged with a simple bulk – absorption – float algorithm.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with internal disconnect function.NIGHT and LOW settingWhen in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.Protected against overheatingOutput current will reduce as the temperature increases up to 50°C, but the Blue Smart Charger will not fail.Eleven LEDs for status indicationCharge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.Specifications: Input Voltage Range: 100 - 130 VAC Charge Current, Normal Mode: 8/12/16 A Charge Current, NIGHT or LOW: 4 / 6 / 8 A Efficiency: 94% No Load Power Consumption: 0.5 W Frequency: 45 – 65 Hz Number of Outputs: 1 Charge Voltage 'Absorption': Normal: 28,8V High: 29,4V Li-ion: 28,4V Charge Voltage 'Float': Normal: 27,6V High: 27,6V Li-ion: 27,0V Charge Voltage 'Storage': Normal: 26,4V High: 26,4V Li-ion: 27,0V Charge Algorithm: 6-stage adaptive Can Be Used as Power Supply: Yes Protection: Battery reverse polarity (fuse). Output short circuit, Over temperature Operating Temp. Range: -20 to +50°C Humidity (non-condensing): Max 98% Bluetooth: Frequency: - 2402-2480MHz / Power: -4dBm Enclosure Specifications: Material & Color: Aluminium (blue RAL 5012) Battery Connection: Screw terminals 13 mm^2 / AWG6 230 V AC Connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ) Protection Category: IP22 Weight: 1,3 kg Dimensions (h x w x d): 235 x 108 x 65 mm Standards: Safety: EN 60335-1, EN 60335-2-29 Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000 Automotive E4-10R Please contact your dealer for any returns, repairs or support issues related to this product.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 16a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 3"H x 7"W x 11"L WT: 3.35 lbs UPC: 8719076052548 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

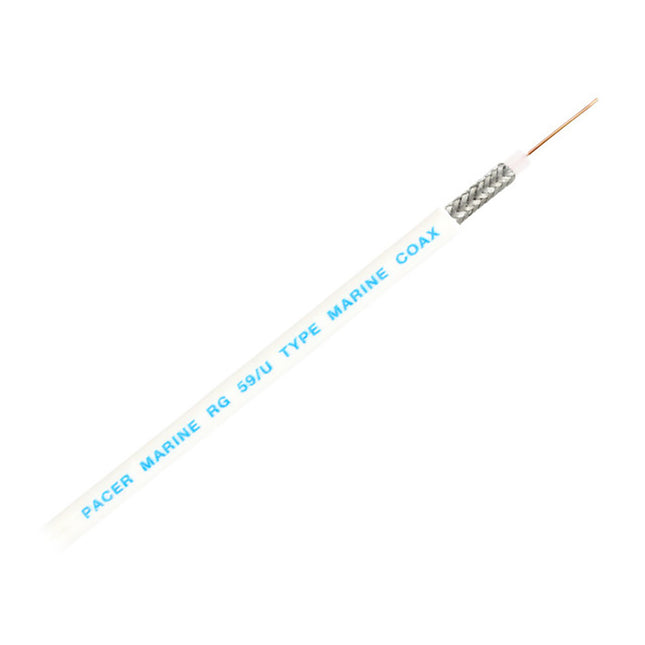

RG59UW Coax Cable - White - 200'Many industries and individuals use RG59U coaxial cable to transmit communication signals. Most notably, audio, video, or network signals. You'll recognize this cable style if you've looked at the back of your cable box or modem. Many people don't even realize that the name of these cables is actually coaxial. Many people call them coax. So, what does coax, or coaxial, mean?The term coaxial indicates the cable possesses two concentric conductors. These conductors are separated by an insulating material. Put simply, the inner conductor is encased in a cylindrical material that insulates it. This insulating material is surrounded by a tubular conducting shield. There may even be another insulating layer after the shield in certain cases. Most frequently, the inner conductor carries the signal-carrying voltage while the shield is kept at ground potential. Why create a wire like this? Well, this type of design offers several benefits. Most important is that this design restricts magnetic and electric fields. The fields are restricted to the internal insulating material. This helps to reduce leakage outside the shield.Why use Coaxial Cable RG59U? This type of coaxial cable has a wide range of uses. Most commonly, it is used for low-power video or RF signal connections. One notable characteristic of coaxial cable RG59 is its impedance of 75 ohms. It is also slightly smaller than RG6 making it ideal where limited space is an issue. Specifications: Conductor AWG: 22 Solid Copper Clad Steel  Insulation Material: Solid Polyethylene  Shield Coverage: 95% Tinned Copper Braid 2.6Ω/M  Jacket Material/Nom. O.D.: White PVC 0.260 Nom. Cap pF/ft: 20.5 Velocity of Prop. (% pF/m): 66  Nominal Impedance (Ohms): 73

Read more less

Battery Cable Heat Shrink Tubing - 3/4" x 12" - Yellow (4-Pieces)BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.Features: Highly abrasion and impact-resistant Easy installation, shrinks when heated over 120 °C The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection. Any connection in harsh conditions Adhesive lining provides a barrier against contaminants Excellent resistance to acids and alkalis Good resistance to fuel, oil, and solvents Applications: Splice sealing Primary insulation Cable/jacket repair Direct burial/submersible Strain relief Compliances:MIL-I-23053/15 Class 2 Specifications: Type: Heat Shrink Box Dimensions: 2"H x 5"W x 13"L WT: 0.25 lbs UPC: 840248214711 Brochure (pdf)

Read more less

Stainless Steel C-Clamp with Neoprene Cushion - 1-1/4" - 10 PackStainless steel cable clamps are useful in a wide range of applications where a high degree of protection is required. Each stainless steel cable clamp is composed of 321 stainless steel for the protection of wires or hoses. The cushions it carries also serve to dampen vibrations, adding another layer of protection. The strength and corrosion resistance of stainless steel combined with the protection of the cushion provide a long-term, reliable mounting solution. Have a question about this or any other Pacer product? Contact a Pacer expert today and let them help.Features: 1/4" mounting hole 1/2" width for strength Applications:Stainless steel clamps are used for mounting wire, cable, or hoses where weight and vibration are a factorCompliances: 304/321 Stainless Steel meets MIL-S-5059 AMS5510 General purpose EPDM per SAE J200BC715 Specifications: Diameter When Closed: 1-1/4” Package Size: 10 Cable Clamp Color: Stainless steel with black neoprene cushion Specifications: Type: Cusion Clamps Box Dimensions: 2"H x 4"W x 8"L WT: 0.4 lbs UPC: 840248216302 Brochure (pdf)

Read more less

3/4" Spiral Wrap - Black - 100' RollPacer's spiral wrap provides abrasion protection for wire and cable insulation as well as hydraulic and pneumatic tubing. Spiral wrap is also handy for kink-proofing all types of tubing. The spiral cut allows for expandability, easy wire breakouts at any point, and excellent flexibility. For maximum abrasion resistance, butt the edges together while installing; for flexibility leave a gap between the edges. Each box contains 100' of spiral wrap. Features: Flexible, neat, and fast Easy wire breakouts Applications:Spiral wrap offers abrasion protection for wire, cables, hoses, and tubingCharacteristics: Operating Temp: -40 °C to 50 °C (-40 °F to 122 °F)  Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil Specifications: Type: Misc Box Dimensions: 8"H x 13"W x 13"L WT: 6.3 lbs UPC: 840248216487 Quick Guide (pdf)

Read more less

Battery Cable Heat Shrink Tubing - 3/8" x 12" - Black (5-Pieces)BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.Features: Highly abrasion and impact-resistant Easy installation, shrinks when heated over 120 °C The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection. Any connection in harsh conditions Adhesive lining provides a barrier against contaminants Excellent resistance to acids and alkalis Good resistance to fuel, oil, and solvents Applications: Splice sealing Primary insulation Cable/jacket repair Direct burial/submersible Strain relief Compliances:MIL-I-23053/15 Class 2 Specifications: Type: Heat Shrink Box Dimensions: 2"H x 4"W x 13"L WT: 0.3 lbs UPC: 840248214766 Brochure (pdf)

Read more less

Battery Cable Heat Shrink Tubing - 3/4" x 3" - Black/Red (2-Pieces Combo Pack)BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.Features: Highly abrasion and impact-resistant Easy installation, shrinks when heated over 120 °C The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection. Any connection in harsh conditions Adhesive lining provides a barrier against contaminants Excellent resistance to acids and alkalis Good resistance to fuel, oil, and solvents Applications: Splice sealing Primary insulation Cable/jacket repair Direct burial/submersible Strain relief Compliances:MIL-I-23053/15 Class 2 Specifications: Type: Heat Shrink Box Dimensions: 1"H x 2"W x 3"L WT: 0.01 lbs UPC: 840248214735 Brochure (pdf)

Read more less

11" Cable Tie - Black - 50lb Tensile Strength - 3" Bundle Diameter - 100 Piece BagCable ties are used in a variety of industries to secure wire bundles, cables, or other surfaces. They can be installed quickly and easily and are built to last in tough environments. Made from Nylon 6.6, white cable ties are built for indoor use while the black cable ties are meant for both indoor and outdoor usage. Cable ties are one of the most widely used and versatile bundling and harness materials available. Features: Natural: For indoor use Black: For indoor or outdoor use (UV resistant) The curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed up installation Applications: Cable ties are the most widely used and versatile bundling and harnessing material available Used to secure a cable bundle to another surface such as a control panel, communication rack, wall, or ceiling Compliances: UL Listed, CSA Flammability UL 94V-2 RoHS & CE compliant Characteristics: 6.6 Nylon (Nat. & UV res. Black) Max. Cont. Temp. 185 °F (85 °C) Min. Cont. Temp. -76 °F (-60 °C) Specifications: Type: Cable Ties Box Dimensions: 1"H x 6"W x 12"L WT: 0.45 lbs UPC: 840248216555 Brochure (pdf)

Read more less

4" Cable Tie - Black - 18lb Tensile Strength - 1" Bundle Diameter - 100 Piece BagCable ties are used in a variety of industries to secure wire bundles, cables, or other surfaces. They can be installed quickly and easily and are built to last in tough environments. Made from Nylon 6.6, white cable ties are built for indoor use while the black cable ties are meant for both indoor and outdoor usage. Cable ties are one of the most widely used and versatile bundling and harness materials available. Features: Natural: For indoor use Black: For indoor or outdoor use (UV resistant) The curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed up installation Applications: Cable ties are the most widely used and versatile bundling and harnessing material available Used to secure a cable bundle to another surface such as a control panel, communication rack, wall, or ceiling Compliances: UL Listed, CSA Flammability UL 94V-2 RoHS & CE compliant Characteristics: 6.6 Nylon (Nat. & UV res. Black) Max. Cont. Temp. 185 °F (85 °C) Min. Cont. Temp. -76 °F (-60 °C) Specifications: Type: Cable Ties Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs UPC: 840248216517 Brochure (pdf)
