Electrical

115-24-10 Power SupplyThis super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.Features: Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions) Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing Thermally activated cooling fan on “CD” units Specifications: Nominal Input/VAC: 115/230     Maximum Input Current @115: 5.5 Maximum Input Current @230: 2.5 Output Amperage (Intermittent): 10 Output Amperage (Continuous): 4 Weight: 20 lbs. / 9.1 kg Case Size:H x W x D (inch): 5.7” x 4.8” x 16.3”Input Range105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VACOperating TemperatureStandard Units - 0-50 degrees C, Derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C thermal shutdown @ 85 degrees C case temperatureDuty Cycle: Intermittent: 20 minutes max on time, 20% duty Continuous: 24 hours/day 100% Duty Options: Modify for use as a battery charger The output voltage is adjusted (see Output Voltage for range) Transfer relay for back-up battery in event of power failure (ERC option) Output Voltage: 24.5 VDC (Internally adjustable 21-27.5 VDC) Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input) 1% Line and Load (@ 110-125 / 220-250 VAC input) Mechanical: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal-coated PC board This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

PT-25W Battery ChargerNewmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features: 12-volt model “Smart” circuitry provides three-stage charging – bulk, absorption, and float Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current. (Except PT-7) The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7) Current limitations prevent damage from overloading Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 90-132 or 180-264 Input Amps @ Full Load: @ 115 VAC: 6.5, @ 230 VAC: 4 Power Factor: .7 Max Output Amps: 25 Output Banks: 3 Battery Capacity (Amp-Hours): 50-250 Operating Temp. Rating Reference: T-4 Case Size Reference: A-2 Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (31.8A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1” (2.8 cm) to height and .92” (2.3 cm) to depth Weight Lbs./Kg: 8.2/4 Optional Temp. Sensor Model: TCS-12/24                 Remote Panel Model: RP Equalize Option: Yes Output Indicator Reference: M-3 Compliance Reference: CG Temperature Rating References: Temperature: -20 degrees C to +60 degrees C Derate Linearly From 100% @ 50 degrees C to 60% @ 60 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load Compliance References: CG: USCG CFR 183.410 (Ignition protected) CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. Options: Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W) Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 115/230v Charger Output - Amps: 25a Charger Output Voltage: 12v Charging Banks: 3 Inverter Input Voltage: 115/230v Inverter Output Voltage: 12v Outlet Qty: Hardwire Portable: No Box Dimensions: 10"H x 10"W x 16"L WT: 9.5 lbs Owner's Manual (pdf)

Read more less

1-2-120 Battery IsolatorThis heavy-duty isolator allows multiple batteries to charge automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt, negative ground DC systems. This model is a 120-amp alternator.Features: Conservatively rated diodes and a rustproof anodized aluminum heat sink case Heavy duty construction Rated for systems up to 48 volts DC, negative ground Rust-proof anodized aluminum case Stainless steel mounting hardware provided Protective covers provided for terminals Specifications: Operating Temperature: -40 to +80° Duty Cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. Rise: 5° C at full rated current (mount vertically for optimum cooling) Voltage Drop: 0.7V @ 50% load, 0.9V @ full load Alternator Sources: 1 Battery Bank: 2 Max. Amperage Input Capacity: 120 Stud Terminal Size: 6mm Dimensions (L x W x H): 6.5" x 4.5" x 3.1" Weight: 3 lbs. Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration

Read more less

50Amp 125V/250V InletsStainless Steel Power Inlet w/o Rear Safety EnclosureMarinco® Power InletsEasy Lock™ - Marinco's exclusive Easy Lock™ System has been designed to make hook-up quick and easy. Just connect the cordset (with an Easy Lock™ locking ring installed) to the inlet and turn the locking ring less than a quarter turn. The tabs on the locking ring lock into the inlet for a positive watertight hook-up while eliminating any chance of cross threading. The locking ring features lock locators positioned at 180° to improve finger grip during attachment. Easy Lock™ inlets have a threaded boss that will accept threaded cordsets as well. The Easy Lock™ system is a standard feature on some Marinco® 30 amp and 50 amp inlets and cordsets. The covers on all Marinco® inlets are designed to stay hinged open when the cover is lifted up. This allows the boater to connect their shore power cord while the cover remains open and out of the way. A soft touch unlocks it for closing.Blades are nickel plated brass for maximum corrosion resistance. Interior hardware is marine-grade stainless steel. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Inlets Voltage: 125/250v Amperage: 50a Box Dimensions: 5"H x 6"W x 9"L WT: 1.3 lbs UPC: 093344007736 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Round 3 Conductor Cable - 100' - 12/3 AWG - Black, Green & WhiteRound boat cable is the perfect choice for installation in tight spaces like boat hulls or other similarly confined areas. One reason is the fact that it can bend in any direction. With other cables, your range of motion is limited. Pacer's manufactured 12 AWG round boat cable is UL approved. All Pacer round boat cable is manufactured in Sarasota FL, USA. Its tinned copper conductors are resistant to corrosion. This round boat cable is the perfect choice for multiconductor boat cable and is easy to install for multiple reasons. First, it's built from Type III Class K finely-stranded tinned copper conductors. It also has high-quality flexible PVC insulation and a jacket. Finally, the round shape of this multi-conductor boat cable makes it flexible in any direction. These things work together to make this cable the easiest to install in confined spaces. It also handles the frequent flex and vibration associated with marine environments.  Features: 12 AWG round boat cable 100 ft. of cable No. of Conductors: 3 Pacer's boat cable is the perfect choice for many marine jobs  It's ideal for running through sailing spars, poling platforms, and t-tops  Also, it is the perfect choice for small hulls or other tight areas Type III, stranded, tinned copper conductors Highly flexible Easy to install and organize  Easily sealed through bulkheads Specifications: Conductor Colors: Black, green and white Conductor Stranding: 65/.0100 Jacket Color: Grey Jacket Thickness (inch): 3 conductors @ 0.045" Nom. Cable O.D. (inch): 3 conductors @ 0.470" Characteristics: Conductor: Annealed Fine Stranded Tinned Copper  ASTM B172 Class K Insulation: -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating: 600 V Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture Applications:Pacer's round boat cable is excellent for AC and DC internal wiring of boats and recreational vehiclesCompliances: UL Standard 1426 (BC-5W2) ABYC: E-11.16 Coast Guard: 33 CFR part 183 RoHS Compliant Specifications: Color: Black/Green/White Gauge: 12/3 AWG Length (Feet): 100' Box Dimensions: 7"H x 10"W x 10"L WT: 15.1 lbs UPC: 840248207249 Quick Guide (pdf)

Read more less

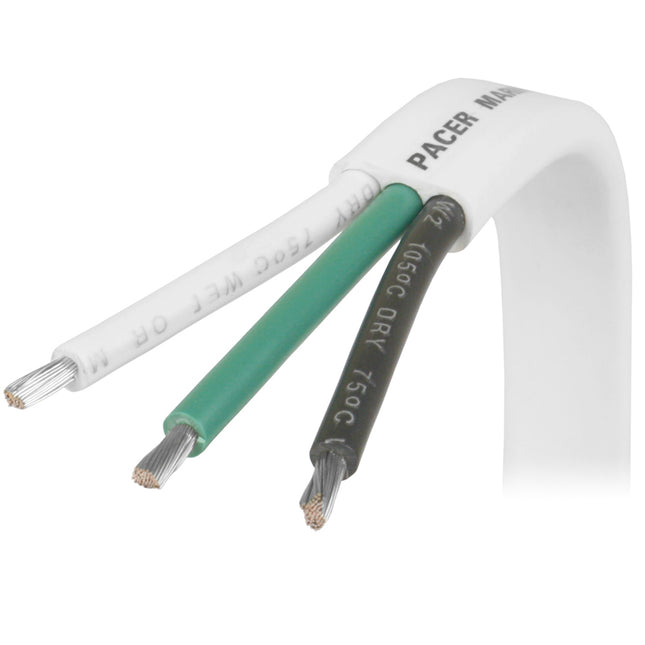

16/3 AWG Triplex Cable - Black/Green/White - 100' 16 AWG Triplex boat cable is commonly used for AC circuits in boats and recreational vehicles.  It is an ideal choice when looking at multiconductor boat cables.  Pacer Group manufactures 16 AWG triplex cable in the USA for longevity and easy installation.  How is that accomplished?  It starts with finely stranded tinned copper conductors.  These conductors prevent corrosion and also allow the cable to be flexible.  Another important aspect of triplex boat cable is the insulation.   The PVC insulation is designed specifically for protection from moisture and fatigue.  These conductors also allow the cable to be flexible.  Flexibility is essential when working in enclosed marine spaces.  The PVC insulation is designed for protection from moisture and fatigue.  It is created during the extrusion process.  The extrusion process for this cable fills the voids between the conductors.  This process eliminates any possibility of moisture or air build up in the wires.  To make it even better, talcum powder is coated on the wires.  This is done to allow for the easy removal of the jacket during installation. Features: Stranded, tinned copper Color coded conductors Tough PVC Jacket Highly flexible Easy to strip and route Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.16 Technical Specifications: Conductor - Annealed Fine Stranded Tinned Copper, ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 3 Type of Cable - Triplex  Shape of Jacket - Flat *Sold as an Individual Specifications: Color: Black/Green/White Gauge: 16/3 AWG Length (Feet): 100' Box Dimensions: 6"H x 7"W x 7"L WT: 7.9 lbs UPC: 840248200578 Brochure (pdf)

Read more less

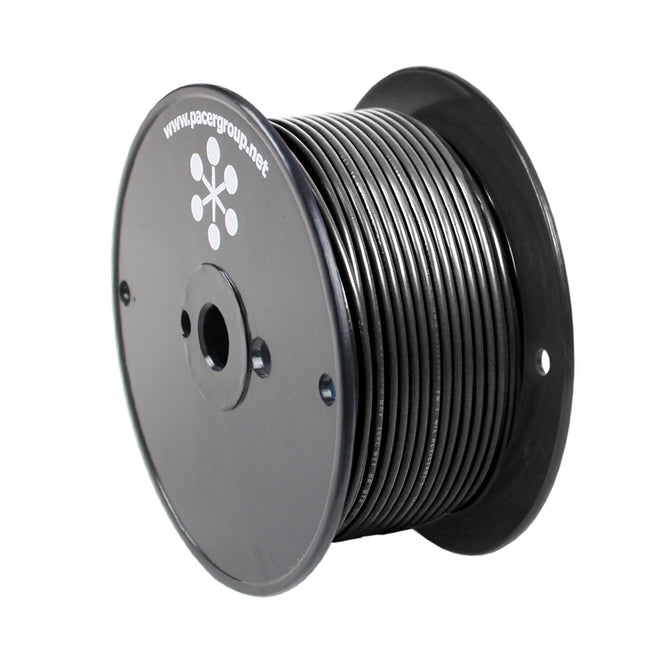

Black 18 AWG Primary Wire - 250' Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 18 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 18 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Black Gauge: 18 AWG Length (Feet): 250' Box Dimensions: 2"H x 7"W x 7"L WT: 3 lbs UPC: 840248200868 Brochure (pdf)

Read more less

Black 16 AWG Primary Wire - 250' Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 16 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 16 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Black Gauge: 16 AWG Length (Feet): 250' Box Dimensions: 3"H x 7"W x 7"L WT: 3.85 lbs UPC: 840248201315 Brochure (pdf)

Read more less

Red 18 AWG Primary Wire - 250' Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 18 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 18 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Red Gauge: 18 AWG Length (Feet): 250' Box Dimensions: 2"H x 7"W x 7"L WT: 2.9 lbs UPC: 840248201148 Brochure (pdf)

Read more less

12/3 AWG Triplex Cable - Black/Green/White - 100'12 AWG Triplex boat cable is commonly used for AC circuits in boats and recreational vehicles.  It is an ideal choice when looking at multiconductor boat cables.  Pacer Group manufactures 16 AWG triplex cable in the USA for longevity and easy installation.  How is that accomplished?  It starts with finely stranded tinned copper conductors.  These conductors prevent corrosion and also allow the cable to be flexible.  Another important aspect of triplex boat cable is the insulation.   The PVC insulation is designed specifically for protection from moisture and fatigue.  These conductors also allow the cable to be flexible.  Flexibility is essential when working in enclosed marine spaces.  The PVC insulation is designed for protection from moisture and fatigue.  It is created during the extrusion process.  The extrusion process for this cable fills the voids between the conductors.  This process eliminates any possibility of moisture or air build up in the wires.  To make it even better, talcum powder is coated on the wires.  This is done to allow for the easy removal of the jacket during installation. Features: Stranded, tinned copper Color coded conductors Tough PVC Jacket Highly flexible Easy to strip and route Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.16 Technical Specifications: Conductor - Annealed Fine Stranded Tinned Copper, ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 3 Type of Cable - Triplex  Shape of Jacket - Flat *Sold as an Individual Specifications: Color: Black/Green/White Gauge: 12/3 AWG Length (Feet): 100' Box Dimensions: 7"H x 7"W x 8"L WT: 12.5 lbs UPC: 840248200714 Brochure (pdf)

Read more less

Red 2 AWG Battery Cable - 250'Pacer's 2 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Oftentimes, marine applications are in enclosed areas with sharp turns. Installation can become difficult. Pacer simplified this process by developing flexible yet tough marine cables. This 2 AWG marine battery cable is built to handle the harshest conditions. All our marine cable is made from Type III tinned copper. The copper resists corrosion and ensures the longevity of the cable.  It is then insulated with a durable and pliable PVC jacket. These things together make it the highest quality marine battery cable available. Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold as an Individual Specifications: Color: Red Gauge: 2 AWG Length (Feet): 250' Box Dimensions: 12"H x 14"W x 14"L WT: 71.7 lbs UPC: 840248204002 Brochure (pdf)

Read more less

3-Position On/Off/Momentary Marine LED Lighting SwitchOn / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.Features: Power On/Off Color change Multiple fade mode changes Specifications: Off/On/Momentary LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation) LED Color: Blue x 2 Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect Sealing IP66/68, for above-panel components of actual switch only Operating Temp. -40°C to +85°C Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC Switch and actuator color: Black Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.

Read more less
