Orion-TR 12/12-9A (110W) Isolated DC-DC ConverterRemote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 8-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 12.2 V Output Voltage Adjust Range: 10-15 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 9 A Maximum Output Current (10 S) at Nominal Output Voltage: 12.5 A Short Circuit Output Current: 32 A Cont. Output Power at 25 Degrees C: 110 W Cont. Output Power at 40 Degrees C: 85 W Efficiency: 87 % No Load Input Current (2): < 50 mA  Current Consumption: < 200uA when disabled via its remote port Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 6 mm² AWG10 Weight: .42 kg (1 lb) Dimensions (H x W x D): 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 12v Charger Output - Amps: 9a Charger Output Voltage: 12v Box Dimensions: 3"H x 6"W x 9"L WT: 1.05 lbs UPC: 8719076016878 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Super Flex Audio Cable - 16/2 AWG - Clear - 250'Super flex audio cable is made of premium tinned copper. It is super flexible and easy to run.Features: Clear jacket to blend into the environment Drawn copper, unidirectional lay for ultimate in sound quality Tinned copper for corrosion resistance in the marine environment WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Clear Gauge: 16/2 AWG Length (Feet): 250' Box Dimensions: 5"H x 6"W x 7"L WT: 5.5 lbs UPC: 091887807189

Read more less

EasyView 5Waterproof system monitor with daylight display and intuitive touch control.Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.Features Water proof, daylight readable color display Intuitive touch control Customizable favorite pages Log book for warnings and alarms Buzzer and Home button Easy mounting: Front mount, wall mount or retrofit MasterBus powered or MasterBus powering by 12 V DC input Easy updating through integrated USB ApplicationsThe EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational & professional), infra-structure, offshore, off-grid and industrial markets.Specifications Display: 4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits Languages: English, Dutch, German, Spanish, Italian, French, Finnish, Swedish, Norwegian, Danish IP degree: IP65 waterproof front Power supply: MasterBus powered or MasterBus powering through 12/24 V input Power Consumption: < 160 mW (idle mode) Alarm: Buzzer integrated Connections: 2 x MasterBus, USB, 12/24 V auto ranging input for optional external power Mounting: Front mount, wall mount and MasterView Easy retrofit Dimensions, HxWxD: 113 x 127 x 43 mm WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)Brochure (pdf)

Read more less

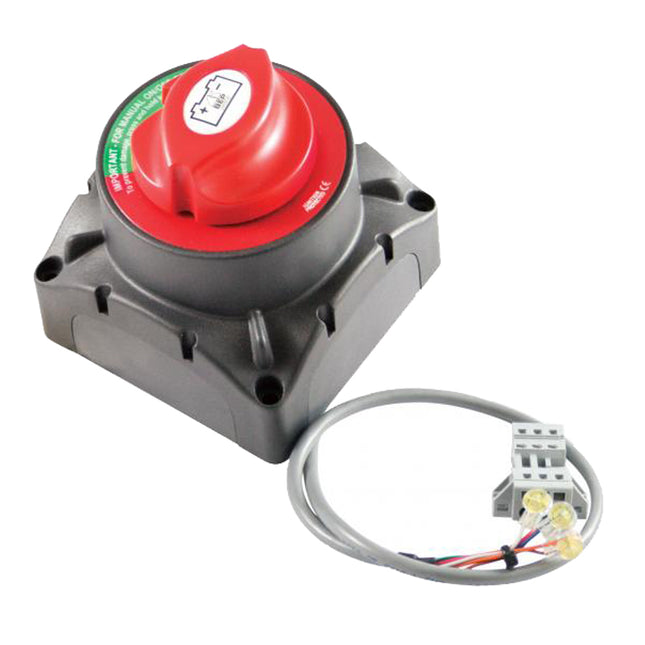

Remote Operated Battery Switch w/Optical Sensor 500A 12/24VThe MD range of battery switches allow you to install the battery switch very close to the battery, to remotely manage the increased electrical loads found on today's boats. This reduces cable lengths and sizes, providing significant savings in expense and weight of copper battery cable. They are ideal for remote isolation of bow and stern thrusters. The 720-MDO has been enhanced to offer easy standard installation, or advanced options capable of switching different voltage circuits from the main supply (for example: a 48 volt bow thruster with a 24 volt house supply). The optical sensor uses the same easy connection for standard installation and gives you the ability to control different voltage circuits such as 36 or 48 volts. It can be used to switch positive or negative lines and the main contacts can be isolated from the control circuit allowing operation via another battery source. This optical sensor also has low stand-by current draw (<5mA). Remote operation Battery switch can be mounted alongside battery, reducing cable lengths and cable sizes. (Large cost and weight saving in copper cables) Reduced installation labor due to shorter battery cable runs Manual override option to meet CE/ABYC requirements LED status identification for remote control switch Same capacities/specifications and mounting options as standard BEP battery switches Uses interchangeable labeling system (Item # 713 or 715) Specifications:LxWxH: 4" x 4" x 4.33"Rating (A DC) Cont: 500Rating (A DC) Inter: 700Rating (A DC) Crank: 2500Voltage (V DC): 9.5-32Function: On/OffStud Size: 2x (1/2"/12mm)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

30A 125V Male Plug & CoverThe 305CRPN.VPK 30A 125V locking blade male shore power plug features corrosion resistant contacts and terminals. A weather resistant cover is included for added protection in harsh environments. The plug body is made of yellow nylon with a ribbed design for secure grip.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Plugs Box Dimensions: 3"H x 5"W x 8"L WT: 0.6 lbs UPC: 093344305092

Read more less

M2 DC VoltmeterMonitors DC Voltage on large, bright display. Accurately measures and monitors the voltage of up to three batteries.Features: Auto-dimming, bright OLED display is easy to read Easy to adjust 92dB alarm on all models Isolated MOSFET relay Specifications: Meter: Voltage Function: 8 to 70V Resolution: 0.01V DC Alarms: High/Low Voltage Display Size: 55mm x 28mm Input Voltage: 7-70V DC Maximum Power Consumption: 1.00Watt Minimum Power Consumption: 0.3 Watt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

C-Series Toggle Single PolePN: 7352Poles: 1Color: WhiteAmperage: 15AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 1"H x 2"W x 3"L WT: 0.5 lbs UPC: 632085073527

Read more less

Diesel Power Battery Heavy-Duty SwitchFeatures: For 6, 12, 24 or 36 Volt systems Polycarbonate case One year warranty Specifications: Continuous Amps: 450 Momentary Amps: 800 Cable Lug Size: 1/2" Color: Gray Dimensions: 5-1/2" sq x 3-1/2"H WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

Grey 18 AWG Primary Wire - 250' Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 18 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 18 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Grey Gauge: 18 AWG Length (Feet): 250' Box Dimensions: 3"H x 7"W x 7"L WT: 3 lbs UPC: 840248201025 Brochure (pdf)

Read more less

16/2 AWG Duplex Cable - Flat Cable - Red/Black - Sold By The FootDuplex Boat Cable is used in low voltage AC applications as well as DC circuits.  Pacer manufactures 16 AWG Duplex boat cable in house in the USA for the best quality.  First, the cable is built from finely stranded, Type III tinned copper conductors.  These conductors allow for flexibility and help to prevent corrosion. The PVC jacket helps 16 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating.  How does it do that?  During the extrusion process, the spaces between wires are filled.  This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed.  Just another reason 16 AWG Duplex boat cable is perfect for marine use. Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.Features: Extruded exterior cable insulation with no gaps Highly flexible color coded wire insulation Stranded, tinned copper conductors Annealed Finely Stranded Tinned Copper ASTM B172 Class K Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 2 Type of Cable - Duplex  *Sold by the Foot Specifications: Color: Red/Black Gauge: 16/2 AWG Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 12"L WT: 0.05 lbs Brochure (pdf)

Read more less

Red 1/0 AWG Battery Cable - Sold By The Foot Pacer's 1/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 1/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold by the Foot Specifications: Color: Red Gauge: 1/0 AWG Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 12"L WT: 0.1 lbs Brochure (pdf)

Read more less

Flip Pro Plus Fast Charge USB-A & USB-C SocketThe revolutionary ultra-fast combination USB A & USB C charger.Flip Pro Plus is designed for use with either a 12V or 24V input and features 1x 60W USB-C and 1x36W USB-A charging ports for maximum choice and performance. Juggling different devices with different cables? Then this is the option.Features: 12/24V fast charge, dual USB socket Redesign to match other Flip Pro aesthetics Low profile Type A/C dual USB charger The Flip Pro Plus is a combination of Scanstrut's most sought-after chargers, designed to be used with either a 12V or 24V input, and features 1x USB-A and 1x USB-C to create a rapid, universal, ultra-fast charging solution. The Flip Pro Plus is a redesign of Scanstrut’s classic Flip Pro to ensure the boat's aesthetics stay aligned with Scanstrut's other designs in the Flip Pro range.  When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.Featuring a super-compact footprint that matches the rest of Scanstrut’s Flip Pro range, it is constructed from premium, marine-grade materials. Flip Pro Plus has been rigorously tested and is IPX4 waterproof, making it completely washdown-ready.Flip Pro Plus is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V. With a PD chip, this charger is truly universal, making it perfect for charging modern laptops via the USB-C port. It is also designed for charging large tablets, offering an effortless charge for both an iPad Pro & iPhone at the same time.USB – C output: 60W max on 24V system 36W max on 12V system USB-A – A output:36W maxThe install cut-out matches Scanstrut's Flip Pro Max, Duo, and Multi USB sockets (32mm (1 1/8”) for a seamless look across the range. Now users can keep up with the heavier power draws of modern electronic devices while keeping premium, universal USB chargers all around the boat.Universal Universal fit for any USB-A or USB-C connectors Fast charge up to 2 devices at a time Easy Install, using a standard USB mounting hole - 32mm (1 1/8”) Is supplied with an optional front mount bezel Washdown Proof IPX4 waterproof with the cover closed Marine Ready PCB /or electronic with a protective coating UV resistant Plastics 316 stainless hinge and spring Electrical Information Input voltage: 10-30V DC (12/24V System) Input current Max: 6A (10A fuse recommended) Standby power draw: 0.01W Important informationThe charge cable supplied with the device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed, whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast-charging laptops. Specifications: Type: Chargers Box Dimensions: 3"H x 4"W x 4"L WT: 0.2 lbs UPC: 5060114798878
