Electrical

50A 125V CordsetEEL ShorePower CordsetsOne Hand. A simple twist. Full Power.The EEL (Easily Engaged Lock) ShorePower Cordset has an industry first, jaw-clamp design providing one-handed operation and a secure waterproof seal which completely eliminates the need for a locking ring. The EEL connection is built for the harshest environments and is UL approved. This easy-to-use cordset features a built-in cord light which serves as an alert to boaters when the cord is left plugged in. And, best of all, it works with your current inlet. In addition to cordsets with the EEL System, Marinco also has a full set of Pigtail and Y adapters all using the new EEL technology.Features: Designed for use with standard inlets (NEMA)50A, 125V capacities; 50' length Cord sets meet global industry standards including ABYC and UL New wing-clamp technology provides a true, watertight connection every time Single-handed operation Eliminates the need for a sealing ring Secondary locking feature for added security Built-in LED cord light guides you to a secure connection every time, even in the dark WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage: 125v Type: Cordset Length: 50' Amperage: 50a Box Dimensions: 9"H x 17"W x 19"L WT: 35.4 lbs UPC: 093344051722 Owner's Manual (pdf)

Read more less

7050Push Button Thermal with Quick Connect Terminals3A Ideal for 24-hour circuit protection Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels Push to reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasonline powered boats With male quick connect terminals WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 3a Box Dimensions: 1"H x 2"W x 3"L WT: 0.2 lbs UPC: 632085070502

Read more less

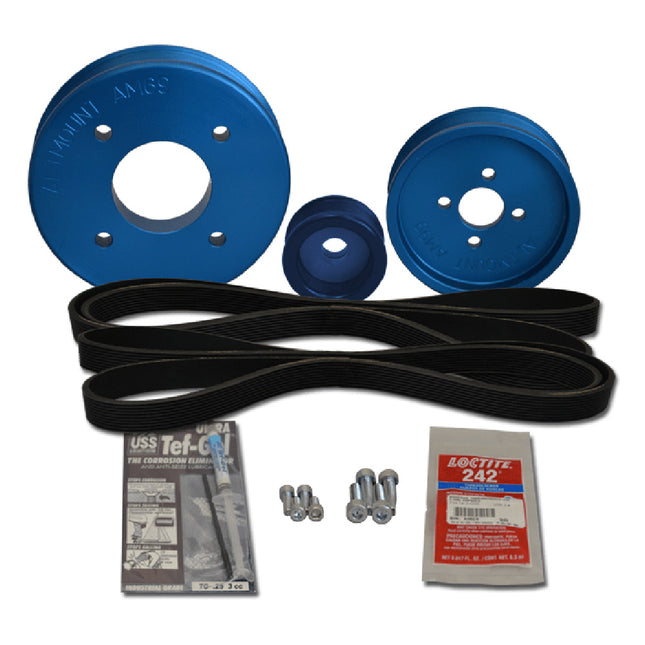

Pulley Kit Yanmar for 3YM30AltMount®Serpentine Pulley Conversion Kit for Yanmar Diesel EnginesYanmar Engines Covered: 3YM30Kit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 39″ Circumference Serpentine Belts (one spare) & Mounting HardwareNote: If you specify an AT-200A Alternator, a longer belt length may be required.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

AC-IX PanelEssential control and protection whenever AC from shore power or generators is on board. A double-pole master breaker with a power-on indicator light protects both the hot and neutral legs of the AC circuit. A reverse polarity light provides a clear warning when wiring is reversed and poses a shock hazard.AC-IX is a 30 amp master breaker (15A or 50 A* optional), 5 branch circuit capacity, 4 installed standard 1-10A, 2-15A, 1-20A, or specify. LS-I label set is included. Specifications: Cut-Out Dimensions: 4 x 6 inches (10.2 x 15.2 centimeters) Weight: 2 lbs. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

32-12-15 DC ConverterConvert 20-50 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)Features: Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments Numerous Converter and Load Protection Circuits: Current limiting Automatic thermal shutdown Short circuit proof Reverse polarity Overvoltage protection Carries CE mark Specifications: Input Voltage: 20-50 Output Voltage: 13.6 Output Amps (Intermittent): 15 Output Amps (Continuous): 15 Case Size (H x W x D): 4.5 x 5.9 x 11.0 inches (11.4 x 15.0 x 27.9 centimeters) Weight: 5 lb. (2.3 kg) Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify) Ripple: 150 mV P-P maximum Regulation: 1% Line/Load Switching Frequency: 40 kHz Efficiency: 85% – Typical. Isolation: Output/Chassis; Input/chassis: 250 VDC Duty Cycle Ratings*: Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating. Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time Idle Current: Less than 100 mA (including power “ON” light) Operating Temp Specifications: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C Mechanical Specifications: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal coated PC board Options: Operation as a battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory) Extreme vibration mounting kit. (Information below) Option: Extreme Vibration Mounting KitThe Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles. The kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KIT L for units that weigh 2–15 lbs. and Kit H for units that weigh 16–7 lbs.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

PT-24-8W Battery Charger“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features: 24-volt model “Smart” circuitry provides three-stage charging – bulk, absorption, float Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current The optional sensor adjusts output voltage based on battery temperature Current limiting prevents damage from overloading Use as a power supply; can power loads without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield Install in conjunction with PT-MCU for additional control and monitoring ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 85 – 264 Input Amps @ Full Load: @ 115 VAC: 2.8, @ 230 VAC: 1.4 Power Factor: .98@115V and .93@230V Max Output Amps: 8 Output Banks: 3 Battery Capacity (Amp-Hours): 16 – 80 Operating Temp. Rating Reference: T-1 Case Size Reference: A-1 Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (28.4A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1” (2.8 cm) to height and .92” (2.3 cm) to depth Weight Lbs./Kg: 8/4 Optional Temp. Sensor Model: TCS-12/24         Remote Panel Model: RP Compliance Reference: CG, CE, ABS Temperature Rating References: Temperature: -10 degrees C to +60 degrees C Derate Linearly From 100% @ 40 degrees C to 60% @ 60 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load Compliance References: UL: UL 1950 (per DNB report) CG: USCG CFR 183.410 (Ignition protected) EN: EN 60335-1 CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. Options:Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 115/230v Charger Output - Amps: 8a Charger Output Voltage: 24v Charging Banks: 3 Inverter Input Voltage: 115/230v Inverter Output Voltage: 24v Outlet Qty: Hardwire Portable: No Box Dimensions: 10"H x 10"W x 16"L WT: 8.3 lbs Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Power-Pac 14AH Power Supply  The 12V DC power supply features built-in backup batteries, which are charged during normal operation and then continue to power radios and critical navigation equipment when AC power is lost. The Power-Pac is ideal for commercial vessels, work boats, and yachts.The Power-Pac’s highly regulated, low-rising 10-amp output powers radios and other sensitive communications equipment without causing RF or audio interference. At the same time, it floats and charges one or two (depending on the model) built-in 7-amp/hour backup batteries. These are kept at peak charge during the normal functioning of the unit when AC is being supplied. In the event of a loss of AC power, the internal batteries automatically take over to power communication equipment, providing a true uninterruptible DC source.Features: Highly regulated, low ripple, noise-free 12-volt output Built-in, “on-line” stand-by battery provides immediate backup power in case of AC power loss Internal mounting space and terminals for conversion of the 7 A/H model into the 14 A/H model Output “Normal” indicator L.E.D. “Back-up power only” warning light Audible and visual low battery (10.7 VDC) voltage indicators Low battery warning buzzer mute switch Automatic low battery (10.3 VDC) voltage disconnect Low voltage disconnect override button Over-voltage protection Current limit protection Input/output fused Separate output terminals are provided for charging external batteries 115/230 50-60 Hz input, selected by a slide switch on the rear panel Specifications: Battery Capacity: 14 amp/hour   Case Size (H x W x D): 5.3 x 9.0 x 10.5 inches (13.3 x 22.9 x 26.7 centimeters)   Weight: 24 lbs. (10.9 kg) Input: 115/230 VAC, 50-60 Hz. Output: 13.6 VDC @ 5A cont., 10A Int. Regulation: 1% line and load Ripple: 1% P-P Operating Temp: 0-40 degrees C With a 14 Amp/Hour Battery Installed, the Unit Provides Approximately the Following Power: 7 amps for 100 min. 10 amps for 60 min. 15 amps for 30 min. 20 amps for 15 min *Assuming battery at full charge when a.c. power failed.The Power-Pac 7 A/H (single battery model) can power a 25-watt transceiver for up to 3 hours, based on a 20% transmit/receive duty cycle. Power-Pac 14 A/H can provide the same service for up to 6 hours. Provision is made for expanding backup power up to twelve hours (in this example, longer under lesser loads) with the installation of additional externally wired batteries (total 28 amps/hours max.). Batteries are automatically recharged when the AC is restored.The operator is kept informed of all important functions, such as AC input, DC output, and battery status, with front panel indicator lights and a low battery warning buzzer.Protection: AC Input fuse Internal and external Battery fuses Over Voltage Current Limit Automatic Thermal Shutdown Low Battery Disconnect Mechanical Details: Vinyl Laminated aluminum case 6’ standard AC power cord Ac input selector switch Battery Details: Sealed Lead Acid, Deep-cycle. Certified by DOT and IATA for shipment by Air Weight per 7 AH Battery: 6 lbs. Size (inch): 6” x 3.75” x 2.5” Options: Form C AC Failure Contacts (Contact factory for details) Extra batteries, sold separately 7 A/H increments; each Power Pac will accommodate 28 A/H max. (14 internal, 14 external) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

DS-MULTI Cable Seal Plastic - BlackDesigned to provide a quick and easy installation for multiple cables. Supplied with an undrilled seal allowing you to custom-drill holes to match your cable requirements. Designed for multiple cables up to Ø15mm (0.59"), DS-MULTI-P-BLK is perfect for solar panels, lights, and other rooftop electronics. Constructed from high-impact plastic, DS-MULTI-P-BLK is UV- stable and hard-wearing providing a 100% watertight seal no matter the weather. Features: IP68 Waterproof Designed to fit multiple cables up to 15mm (0.59") in diameter UV resistant Supplied with undrilled bungs and made from marine-grade black high-impact plastic No messy sealant on the bung Easy-fit cable routing that cuts down your installation time A guaranteed 100% watertight seal Designed for a range of cable diameters making it ideal for almost every installation Perfect for solar panels, light bars, lights, and other rooftop electronics Specifications: Type: Deck Seal Box Dimensions: 1"H x 4"W x 9"L WT: 0.3 lbs UPC: 5060114798380 Brochure (pdf)

Read more less

170 AMP Alternator Kit - 12V 4" Dual Foot Saddle Mount with K6 Pulley, Regulator & Temp SensorBalmar offers a wide range of alternator power upgrades designed specifically for marine industry applications. They install high-reliability bearings, robust rectifier diodes, and improved heat-sinking capabilities on all their alternators to ensure improved system reliability combined with increased charging power.Kit Includes: XT-DF4-170-K6 Alternator, MC-618-H Regulator, Temperature Sensors & Mounting HardwareFeatures: 4" Dual-Foot K6 Serpentine Pulley 170A 12V Case Ground J-180 Mount; Typical for John Deere, Cummins, & Caterpillar Engines This product may not be returned to the original point of purchase.  Please contact the manufacturer directly with any issues or concerns.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Alternator Protection Module - 48VThe Balmar APM provides best-in-class surge protection using the latest technology developed for the automotive industry. Protect Alternators From Damaging Effects: Battery switch disconnects Lithium battery BMS disconnects Surges from solenoids, combiners, starters, and other motors. The Balmar APM excels in both short-duration and longer-duration spikes, where other products fail.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Alternator 250 AMP Kit 12V 3.15" Dual Foot Saddle J10 Pulley Regulator & Temp SensorKit Includes: XT-DF-250-J10 Alternator, MC-618 Regulator, Temperature Sensors & Mounting HardwareXT Series Alternator: 250A, 12V, Saddle Mount (Dual Foot), 3.15in, J10 AltMount Serpentine Pulley, Case GroundHitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre EnginesReplaces: AT-DF-MC-200-KIT, AT-DF-200-J10-KITThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Alternator 250 AMP Kit 12V 4" Dual Foot Saddle Dual Vee Pulley Regulator & Temp SensorKit Includes: XT-DF4-250-DV Alternator, MC-618 Regulator, Temperature Sensors & Mounting HardwareXT Series Alternator: 250A, 12V, Saddle Mount (Dual Foot), 4in, Deep Dual Vee Pulley, Case Ground4" J-180-Style Mounting;  Typical for Caterpillar, Cummins, Detroit Diesel & John Deere EnginesReplaces: AT-DF4-MC-200-KIT, AT-DF4-200-DV-KITThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less
