8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 8” / (mm) 203 Outer Diamter: (inch) 8.74" / (mm) 222.0 A: (inch) 2.25” / (mm) 57.2 B: (inch) 2.25” / (mm) 57.2 C: (inch) 8.25” / (mm) 209.5 W: (inch) 0.37” / (mm) 9.4 Elbow Degree: 45 degrees Weight: (Lb/Ea) 4.3 / (Kg/Ea) 1.95 Specifications: ID Diameter (inches): 8" Box Dimensions: 9"H x 10"W x 15"L WT: 6 lbs UPC: 704917001524 Quick Guide (pdf)

Read more less

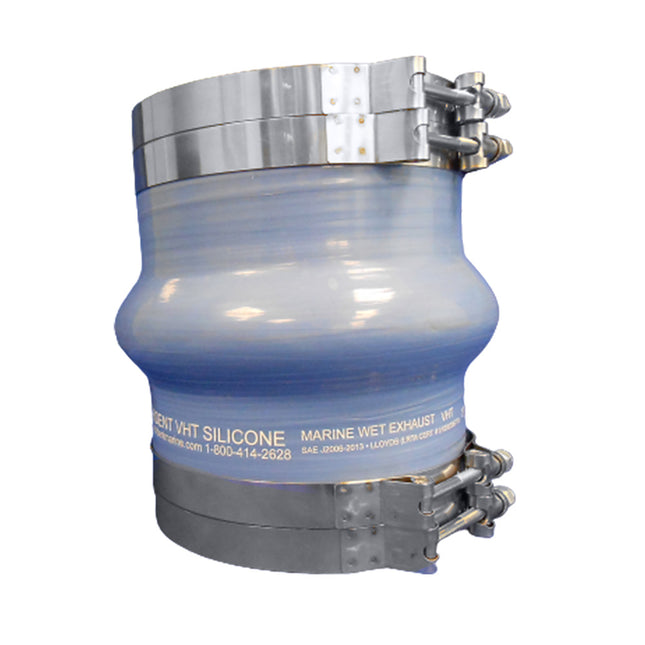

8" ID Blue Silicone Molded Wet Exhaust Hump with 4 T-Bolt ClampThis silicone and rubber hump hose provides the ultimate flexible connector for marine wet exhaust systems. The hump hose offers much greater tolerance to heat, misalignment, engine movement, and vibration, with significant savings in cost, parts, labor, and space.Construction: Tube & Cover: VHT blue silicone Color: Blue Reinforcement: EPDM Silicone Rubber Temperature Range: 350°F (177°C) Specifications: Inner Diameter: (inch) 8" / (mm) 203 Outer Diameter: (inch) 8.5" / (mm) 215.9 Working Pressure: (Psi) 15 / (Bar) 1 *Burst Pressure is 4 x Working Pressure Specifications: ID Diameter (inches): 8" Box Dimensions: 9"H x 10"W x 15"L WT: 3.1 lbs UPC: 704917002569 Quick Guide (pdf)

Read more less

6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 6” / (mm) 152.4 A: (inch) 7" / (mm) 178 B: (inch) 7” / (mm) 178 C: (inch) 2.25” / (mm) 57 D: (inch) 2.25” / (mm) 57 R: (inch) 1.75” / (mm) 44.4 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Specifications: ID Diameter (inches): 6" Box Dimensions: 8"H x 10"W x 15"L WT: 4.4 lbs UPC: 704917000435 Quick Guide (pdf)

Read more less

4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 4” / (mm) 101.6 A: (inch) 5.75" / (mm) 146 B: (inch) 5.75” / (mm) 146 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.75” / (mm) 44.4 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Specifications: ID Diameter (inches): 4" Box Dimensions: 7"H x 7"W x 8"L WT: 2.6 lbs UPC: 704917000411 Quick Guide (pdf)

Read more less

6" ID Blue Silicone Molded Wet Exhaust Hump with 4 T-Bolt ClampThis silicone and rubber hump hose provides the ultimate flexible connector for marine wet exhaust systems. The hump hose offers much greater tolerance to heat, misalignment, engine movement, and vibration, with significant savings in cost, parts, labor, and space.Construction: Tube & Cover: VHT blue silicone Color: Blue Reinforcement: EPDM Silicone Rubber Temperature Range: 350°F (177°C) Specifications: Inner Diameter: (inch) 6" / (mm) 152.4 Outer Diameter: (inch) 6.5" / (mm) 165.1 Working Pressure: (Psi) 15 / (Bar) 1 *Burst Pressure is 4 x Working Pressure Specifications: ID Diameter (inches): 6" Box Dimensions: 8"H x 8"W x 8"L WT: 3 lbs UPC: 704917002545 Quick Guide (pdf)

Read more less

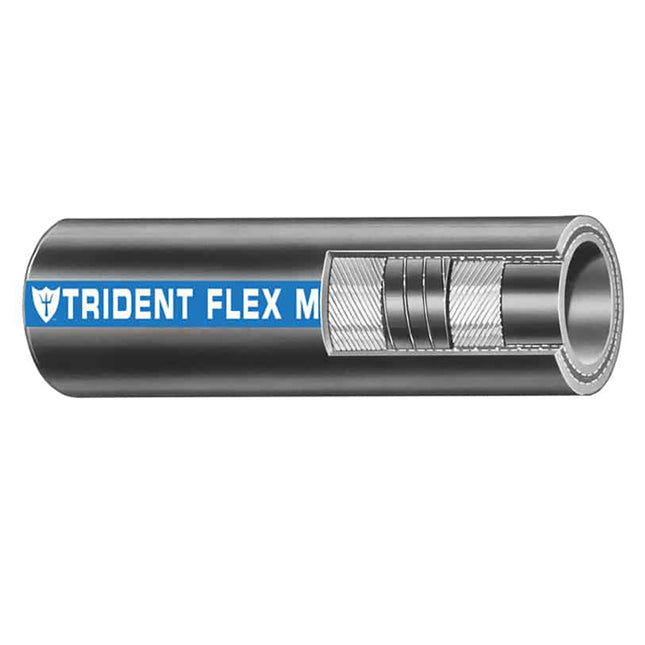

3/4" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting, and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 3/4" / (mm) 20 Outer Diameter: (inch) 1.15" / (mm) 29 Working Pressure: (Psi) 100 / (bar) 6.9 Bend Radius: (inch) 1" / (mm) 25 Weight: (Lb./50ft.) 23 / (Kg/m) 10.3 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 3/4" Length (Feet): Sold By The Foot Box Dimensions: 2"H x 2"W x 12"L WT: 0.44 lbs Quick Guide (pdf)

Read more less

1-1/4" x 50' Coil Flex Marine Wet Exhaust & Water Hose - BlackTrident Flex wet exhaust hose for longer bent connections. In smaller I.D.'s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Extra heavy tube and cover with wire helix between 2 ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 1-1/4" / (mm) 31.8 Outer Diameter: (inch) 1.40" / (mm) 32 Working Pressure: (Psi) 70 / (bar) 4.8 Bend Radius: (inch) 1.5" / (mm) 38 Weight: (Lb./50ft.) 35 / (Kg/m) 15.7 *Burst Pressure is 4 x Working Pressure Specifications: ID Diameter (inches): 1-1/4" Length (Feet): 50' Box Dimensions: 5"H x 26"W x 26"L WT: 31.8 lbs UPC: 704917004525 Quick Guide (pdf)

Read more less

4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover. Features: Four stainless steel t-bolt clamps Very high temp silicone/EDPM blend rubber - molded This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards  Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous Construction: Color: Blue Temperature Range: up to 350°F (177°C) Specifications: Inner Diameter: (inch) 4” / (mm) 101.6 A: (inch) 5.75” / (mm) 146 B: (inch) 5.75” / (mm) 146 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.50" / (mm) 38.1 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25" / (mm) 6.4 Elbow Degree: 90 degrees Specifications: ID Diameter (inches): 4" Box Dimensions: 8"H x 8"W x 8"L WT: 2.6 lbs UPC: 704917002071 Quick Guide (pdf)

Read more less

3/4" x 50' Coil Flex Marine Wet Exhaust & Water Hose - BlackTrident Flex wet exhaust hose for longer bent connections. In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Extra heavy tube and cover with wire helix between 2 ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 3/4" / (mm) 20 Outer Diameter: (inch) 1.15" / (mm) 29 Working Pressure: (Psi) 100 / (bar) 6.9 Bend Radius: (inch) 1" / (mm) 25 Weight: (Lb./50ft.) 23 / (Kg/m) 10.3 *Burst Pressure is 4 x Working Pressure Specifications: ID Diameter (inches): 3/4" Length (Feet): 50' Box Dimensions: 4"H x 22"W x 22"L WT: 22.2 lbs UPC: 704917004327 Quick Guide (pdf)

Read more less

4" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 4” / (mm) 101.6 Outer Diamter: (inch) 4.5" / (mm) 114.3 A: (inch) 1.5” / (mm) 38.1 B: (inch) 1.5” / (mm) 38.1  C: (inch) 5.5” / (mm) 139.7 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 0.95 / (Kg/Ea) 0.43 Specifications: ID Diameter (inches): 4" Box Dimensions: 8"H x 8"W x 9"L WT: 2.1 lbs UPC: 704917000459 Quick Guide (pdf)

Read more less

1-1/4" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller i.d.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting, and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 1-1/4" / (mm) 31.8 Outer Diameter: (inch) 1.40" / (mm) 32 Working Pressure: (Psi) 70 / (bar) 4.8 Bend Radius: (inch) 1.5" / (mm) 38 Weight: (Lb./50 ft.) 35 / (Kg/m) 15.7 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/4" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 1"L WT: 0.64 lbs Quick Guide (pdf)

Read more less

6" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside. Features: Four stainless steel t-bolt clamps Very high temp silicone/EDPM blend rubber - molded This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards  Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous Construction: Color: Blue Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 350°F (177°C) Specifications: Inner Diameter: (inch) 6” / 152.4 mm A: (inch) 2” / (mm) 5.1  B: (inch) 2” / (mm) 5.1  C: (inch) 6.5” / (mm) 16.5  R: (inch) 1.75” / (mm) 4.5  W: (inch) 0.25" / (mm) 6.4  Elbow Degree: 45 degrees Specifications: ID Diameter (inches): 6" Box Dimensions: 8"H x 8"W x 8"L WT: 3.3 lbs UPC: 704917002347 Quick Guide (pdf)
