Engine Parts & Service - Exhaust Hose

4" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 4” / (mm) 101.6 Outer Diamter: (inch) 4.5" / (mm) 114.3 A: (inch) 1.5” / (mm) 38.1 B: (inch) 1.5” / (mm) 38.1  C: (inch) 5.5” / (mm) 139.7 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 0.95 / (Kg/Ea) 0.43 Quick Guide (pdf)

Read more less

6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 6” / (mm) 152.4 A: (inch) 7" / (mm) 178 B: (inch) 7” / (mm) 178 C: (inch) 2.25” / (mm) 57 D: (inch) 2.25” / (mm) 57 R: (inch) 1.75” / (mm) 44.4 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Quick Guide (pdf)

Read more less

4" Fiberglass Exhaust Tubing ConnectorThe fiberglass connectors are corrosion-resistant high-temperature exhaust tubes designed specifically to minimize exhaust gas and cooling water flow restrictions on wet exhaust systems. Precise outside diameters facilitate perfect connections between sections of tubing and flexible elbows, bellows, or hoses. Meets UL94V-0 for flame retardancy.Specifications: Construction: Natural Fiberglass Resin: Class 1 Fire Retardant Epoxy Vinyl Ester Thermoset Glass: Corrosion Resistant E Glass Color: Amber Reinforcement: Filament Winding Temperature Range: Up to 350°F (177°C) Specifications: Type: Fittings & Hoses Box Dimensions: 9"H x 9"W x 9"L WT: 1.05 lbs UPC: 704917000336 Quick Guide (pdf)

Read more less

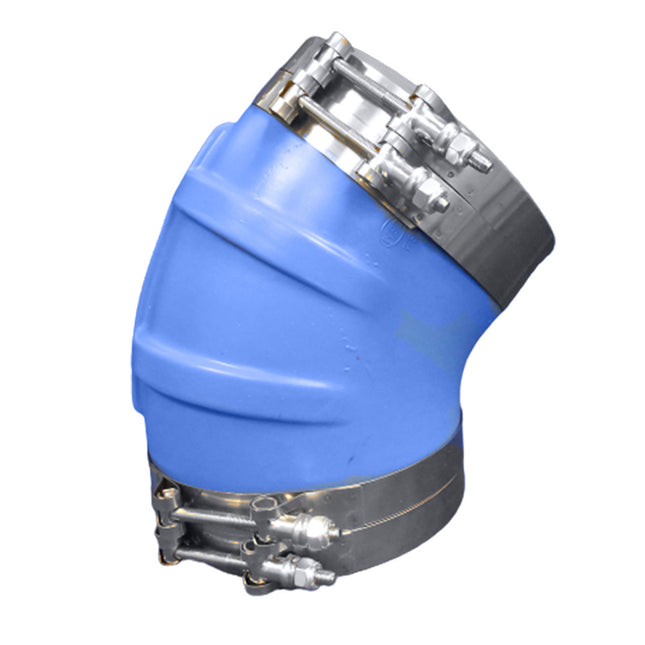

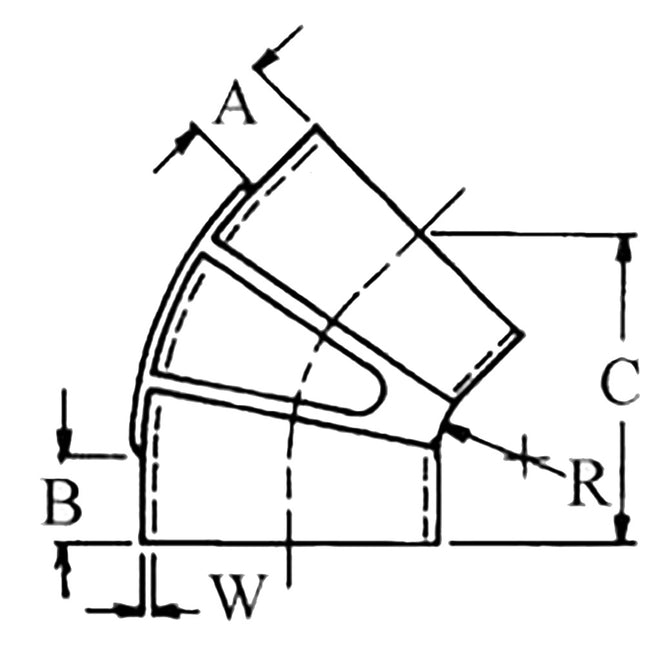

6" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside. Features: Four stainless steel t-bolt clamps Very high temp silicone/EDPM blend rubber - molded This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards  Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous Construction: Color: Blue Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 350°F (177°C) Specifications: Inner Diameter: (inch) 6” / 152.4 mm A: (inch) 2” / (mm) 5.1  B: (inch) 2” / (mm) 5.1  C: (inch) 6.5” / (mm) 16.5  R: (inch) 1.75” / (mm) 4.5  W: (inch) 0.25" / (mm) 6.4  Elbow Degree: 45 degrees Quick Guide (pdf)

Read more less

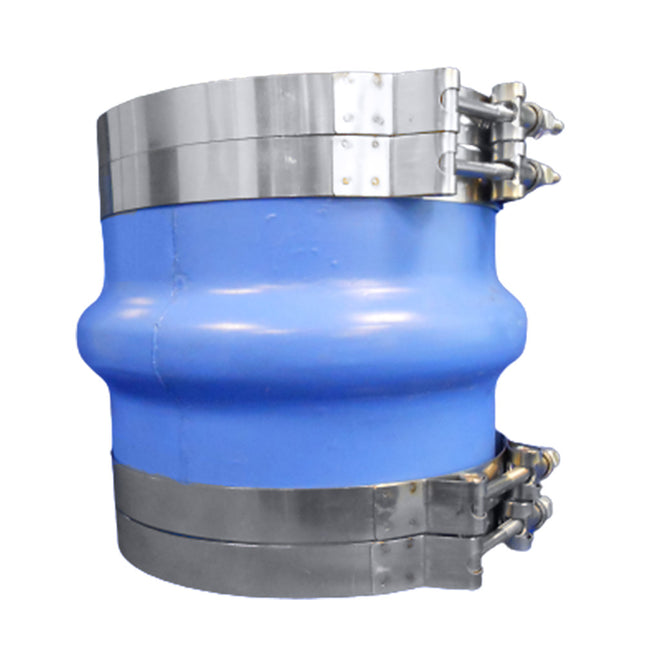

8" ID Blue Silicone Molded Wet Exhaust Hump with 4 T-Bolt ClampThis silicone and rubber hump hose provides the ultimate flexible connector for marine wet exhaust systems. The hump hose offers much greater tolerance to heat, misalignment, engine movement, and vibration, with significant savings in cost, parts, labor, and space.Construction: Tube & Cover: VHT blue silicone Color: Blue Reinforcement: EPDM Silicone Rubber Temperature Range: 350°F (177°C) Specifications: Inner Diameter: (inch) 8" / (mm) 203 Outer Diameter: (inch) 8.5" / (mm) 215.9 Working Pressure: (Psi) 15 / (Bar) 1 *Burst Pressure is 4 x Working Pressure Quick Guide (pdf)

Read more less

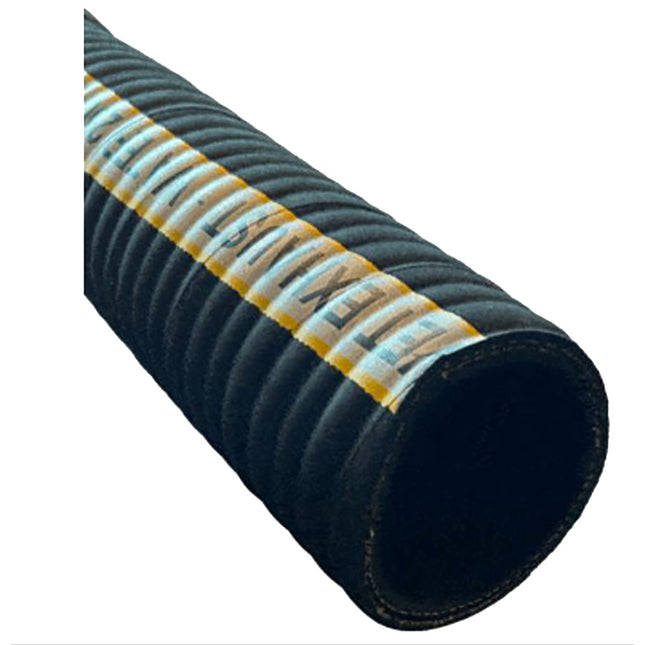

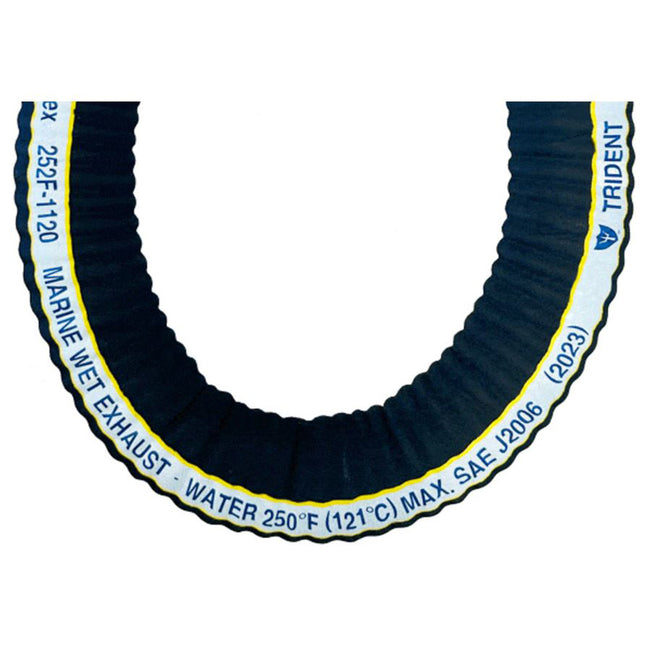

1-1/2" Extra-Flex Corrugated Marine Wet Exhaust Hose - Sold by the FootTrident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.Features: Black High Temp EDPM Rubber 250°F (121°C) Max. Sizes: 1 1/2" to 8", 38mm to 203.2 mm Colors: Black with White stripe with yellow edges Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/2" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 2"W x 2"L WT: 1 lbs Quick Guide (pdf)

Read more less

3" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 3” / (mm) 76.2  Outer Diamter: (inch) 3.5" / (mm) 88.9  A: (inch) 1.5” / (mm) 38.1 B: (inch) 1.5” / (mm) 38.1  C: (inch) 5.5” / (mm) 139.7 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 0.6 / (Kg/Ea) 0.27 Quick Guide (pdf)

Read more less

ID 45 Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt ClampsSilicone and Rubber Elbows and Hump Hose Bellows provide the ultimate flexible connectors for Marine Wet Exhaust Systems. They offer much greater tolerance to heat, misalignment, engine movement, and vibration, with significant savings in cost, parts, labor, and space. Highest max. continuous operating temps.Specifications: Sizes: 2" to 18", 50.8 to 457mm Colors: Black, Blue & Red Packaging: Bulk or Boxed with 4 Stainless Steel, T-bolt Clamps

Read more less

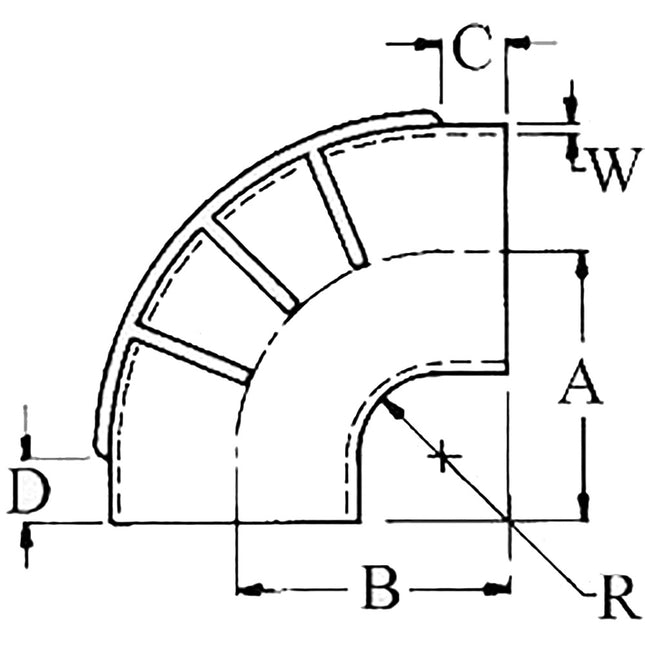

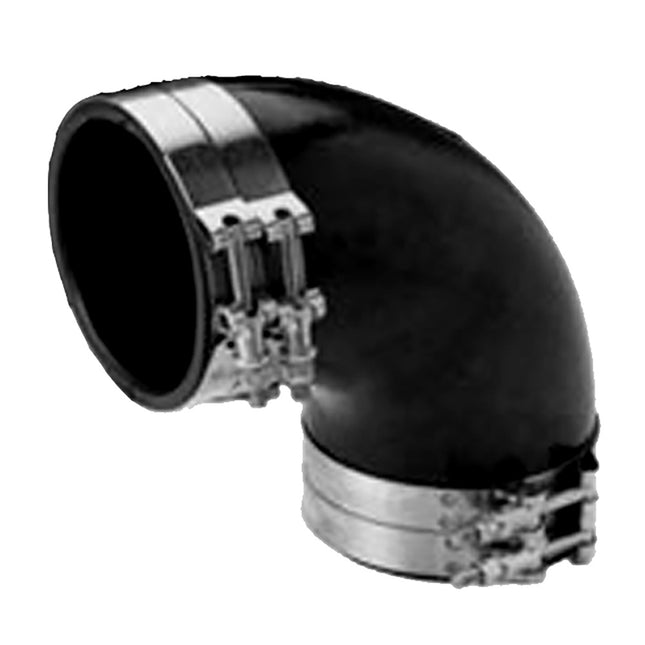

4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 4” / (mm) 101.6 A: (inch) 5.75" / (mm) 146 B: (inch) 5.75” / (mm) 146 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.75” / (mm) 44.4 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Quick Guide (pdf)

Read more less

3" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 3” / (mm) 76.2 A: (inch) 5.25" / (mm) 133 B: (inch) 5.25” / (mm) 133 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.75” / (mm) 44.4 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Quick Guide (pdf)

Read more less

8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 8” / (mm) 203 Outer Diamter: (inch) 8.74" / (mm) 222.0 A: (inch) 2.25” / (mm) 57.2 B: (inch) 2.25” / (mm) 57.2 C: (inch) 8.25” / (mm) 209.5 W: (inch) 0.37” / (mm) 9.4 Elbow Degree: 45 degrees Weight: (Lb/Ea) 4.3 / (Kg/Ea) 1.95 Quick Guide (pdf)

Read more less

5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 5” / (mm) 127 Outer Diamter: (inch) 5.5" / (mm) 139.7 A: (inch) 1.62” / (mm) 48.1 B: (inch) 1.62” / (mm) 48.1 C: (inch) 5.75” / (mm) 146 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 1.05 / (Kg/Ea) 0.478 Quick Guide (pdf)

Read more less
