Engine Parts & Service - Fuel Hose & Fittings

Primer Bulb - 3/8" Inner Diameter HoseThis Atwood Primer Bulb is engineered and constructed to deliver the most reliable priming and long-term leak-free performance. The exclusive three-layer construction prevents collapse under vacuum and prevents ballooning or bursting under pressure. The low-permeation material prevents fuel evaporation, and this bulb delivers 60 percent more output per pump than leading competitors.Features: It is intended for use with a 3/8-inch interior diameter hose Exclusive high-efficiency check-valves deliver faster priming and low fuel restriction (less than 1kPa restriction at 50 liters/hour) Engineered hose barbs and stainless steel stepless clamps ensure leak-free performance This bulb is compatible with Ethanol blended fuels, and it is EPA and CARB certified Specifications: ID Diameter (inches): 3/8" Box Dimensions: 3"H x 5"W x 7"L WT: 1.3 lbs UPC: 022697930385 Quick Guide (pdf)

Read more less

In-Line Fuel Overflow ProtectorThe fuel vent line surge protector helps avoid refueling spills because the surge-free line causes automatic fuel nozzles to shut off as the tank fills.With non-automatic nozzles, the surge protector causes a gurgling sound to indicate that the tank is full.Incorporates a ball-style check valve with internal baffling.Features: Meets ABYC Standard H-24 Install in-line with traditional tank vent systems that use standard 5/8" ID vent hose Compact size and operates in any orientation within 45° of vertical Withstands oil, gas, alcohol-blended fuels Includes 2 hose clamps for installation in the vent hose WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Universal Sprayless Connector - Male & FemaleSafely eliminate dangerous spraying of fuel when connecting or disconnecting pressurized hoses during fueling or maintenance. Comes complete with a thread-sealer for fast, easy installation; no additional supplies are required.Features: 8838HF6 Female Hose Fitting and 8838TM6 Male Threaded Tank Fitting Pre-applied fuel-grade thread sealant prevents fuel leaks Include check valves that automatically close upon disconnecting High fuel flow fitting (less than .25kPa restriction at 50 liters/hour) Compatible with Ethanol blended fuels High-strength body engineered to withstand tough marine environments Pre-applied fuel-grade thread sealant prevents leaks and saves you time Compatible with 3/8 inch fuel lines, Ethanol blended fuels, and all original equipment manufacturer (OEM) brand engines Can be used with portable generators and other portable fuel tanks *Meets all EPA and CARB (California Air Resources Board) requirements

Read more less

Outboard Fuel Filter for 3/8 inch LinesProtect your carbureted engine by trapping pollutants before they even reach the engine itself. High-flow, in-line fuel filters will work with most outboard motors.Features:  Use with 3/8 inch fuel lines Works with most outboard motors A clear body allows visual inspection, making it easier to stay on top of maintenance High-strength, impact-resistant, and shatter-resistant construction is ideal for  tough conditions Disposable for ultimate convenience *Best to replace during winterize or spring start-up for optimum results Quick Guide (pdf)

Read more less

3/8" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - GrayThis hose is built with the best fuel and age-resistant formulations and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. That is particularly important considering the prospect of higher ethanol blends (E-15) available at gas stations next year. Features:  Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone   Also, provides excellent rope-like bend-ability and fitting retention For both gasoline (including ethanol blends up to E85) and diesel (including bio diesel blends up to 100%) EPA Certified and CARB Executive Order for low permeation Type B1-15 NMMA Type Accepted & CE certified Application: Marine Fuel Hose for distribution, return, vent and transfer For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel Construction: Tube: Fluoroplastic Internal Barrier Cover: Gray CPE Rubber Reinforcement: 2-Spiral Polyester Plies  Temperature Range: -20°F to 212°F (-28ºC to 100ºC) Length: 50’ (15m) Boxed Specifications: Inner Diameter: (inch) 3/8" / (mm) 9.50 Outer Diameter: (inch) 0.588 / (mm) 14.9 Burst Pressure: (psi) 175 / (mpa) 1.21 Working Pressure: (psi) 35 / (mpa) 0.24 Bend Radius: (inch) 4" / (mm) 101.6 Weight: (lb/100 ft.) 10.5 / (kg/m) 0.156 Permeation Rate (Standard is (15g/m^2/24hrs (CE10)): 5.0 *The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15 Specifications: ID Diameter (inches): 3/8" Length (Feet): 50' Box Dimensions: 3"H x 18"W x 18"L WT: 6.4 lbs UPC: 704917018065 Quick Guide (pdf)

Read more less

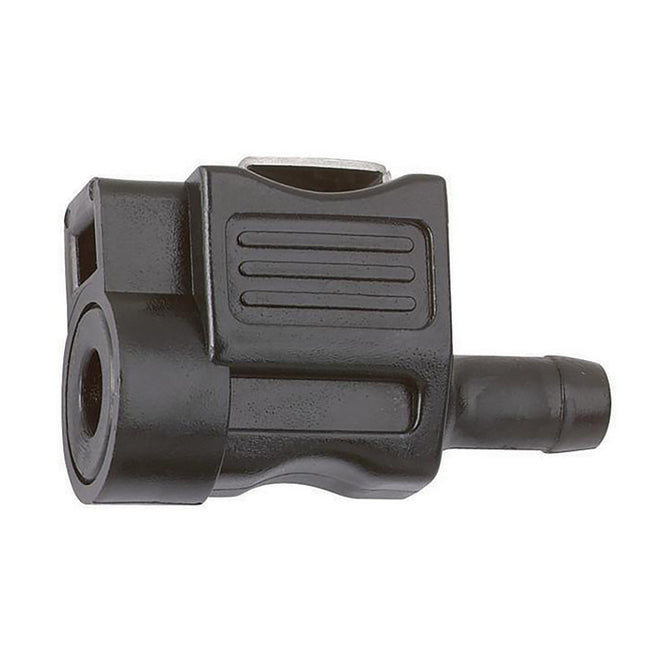

Honda 3/8" Barb Female Hose Fitting - Engine EndThis Attwood Engine-End Hose Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. The barb fitting fits 3/8" I.D. (Inner Diameter) hose. Clamps are not included and use thread sealant on all threads.Features: Honda fitting  Engine-End fitting Material Construction: Acetal  Rectangle locking post Quick Guide (pdf)

Read more less

Yamaha Fuel Line Kit 6' x 3/8"Attwood's low-permeation fuel line kits set the standard in performance, safety, and value. Along with featuring Attwood's award-winning Universal Sprayless Connector, these kits meet strict United States EPA regulations. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years. We deliver safe and reliable lighting, fuel systems, water systems, seating & pedestals, swim ladders, custom upholstery, and general marine accessories that are easy to install and meet regulatory compliance.Features: Includes Attwood's award-winning Universal Sprayless Connector; no more dangerous fuel sprays when connecting and disconnecting pressurized lines Multi-layer low-permeation primer bulb with 60% more fuel output compared to competitors Includes 3/8-inch low-permeation fuel hose that resists kinking and hardening; rated up to 100 degrees Centigrade Versatile: compatible with Ethanol blended fuels, Yamaha Brand engines and tanks Attwood products are both compatible and reliable, engineered and built with a never-fail attitude WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: ID Diameter (inches): 3/8" Length (Feet): 6' Box Dimensions: 3"H x 9"W x 14"L WT: 1.25 lbs UPC: 022697938640

Read more less

Mercury/Yamaha Female Hose Engine Fitting - 3/8" BarbConnect your tank and fuel lines with confidence; the solid machined-brass construction holds up to leaded, unleaded, and alcohol-based fuels for.Features: Solid machined brass for dependable performance, peace of mind Hose female  Tank or Engine End Replaces Yamaha 6Y1-24305-03 *Specifically mates to Attwood part number: 8897-6 Quick Guide (pdf)

Read more less

Universal Brass Fuel Hose Fitting - 1/4" NPT x 5/16" Barb This Attwood Fuel Tank Fitting is a dependable replacement for original equipment and provides a sure connection in a fuel line.Features: Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels Material Construction: Brass Male thread, hose barb (inch) Male 1/4" NPT x 5/16" Barb  *Use thread sealant on all threads Quick Guide (pdf)

Read more less

Honda Tank Fitting - 1/4" NPT Thread - 90HP+This Attwood hose fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. This threaded fitting has a 1/4" male NPT thread. Also, use thread sealant on all threads, and clamps are not included.Features: Honda male fitting Designed for 90HP+ (Large Bore)  Material Construction: Chrome-plated Brass *Specifically mates to Attwood part number: 8902-6 Quick Guide (pdf)

Read more less

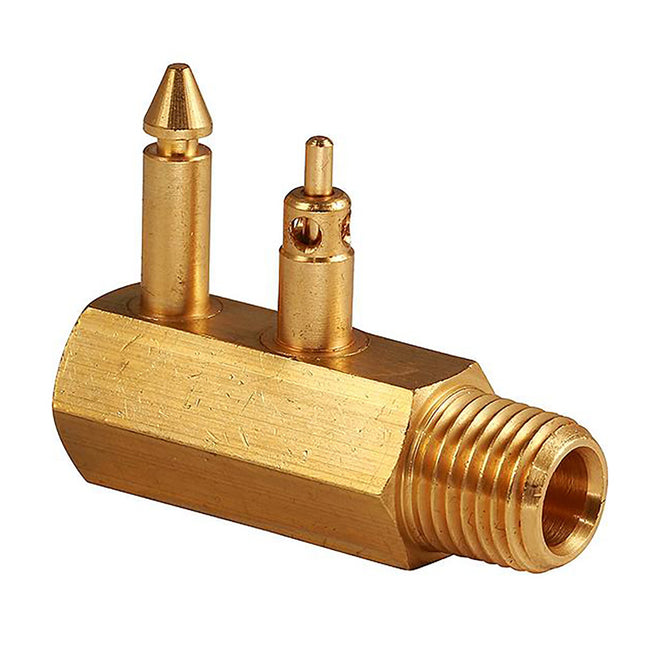

Johnson/Evinrude/OMC (Outboard Marine Corporation) Male Tank Fitting - 1/4" NPTThis Attwood male tank fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. The threaded fitting has a 1/4" male NPT thread and uses thread sealant on all threads. Clamps are not included.Features: Johnson, Evinrude, and OMC fitting Quick-connect ¼-inch male thread makes installation easy Solid machined brass for dependable performance, peace of mind *Specifically mates to Attwood part numbers: 8889LP6 & 88FHE516-6 Quick Guide (pdf)

Read more less

5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose - BlackTrident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.Features: Provides extraordinary resistance to aging, fire, heat, cold, and the ozone  Also provides excellent bend-ability NMMA Type Accepted & CE certified Application: Fuel Hose for vent and diesel distribution  For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel Construction: Tube: Nylon Internal Barrier, NBR  Cover: NBR/PVC Blend  Reinforcement: Polyester 2 spiral  Temperature Range: -20°F to 212°F (-28ºC to 100ºC)  Length: 50 ft. (15 m) Boxed Specifications: Inner Diameter: (inch) 5/8" / (mm) 15.9 Outer Diameter: (inch) 0.960 / (mm) 24.4 Burst Pressure: (psi) 200 / (mpa) 1.38 Working Pressure: (psi) 50 / (mpa) 0.34 Bend Radius: (inch) 3" / (mm) 76.2 Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72 *The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2 Specifications: ID Diameter (inches): 5/8" Length (Feet): 50' Box Dimensions: 5"H x 18"W x 18"L WT: 13.5 lbs UPC: 704917009001 Quick Guide (pdf)

Read more less
