Engine Parts & Service - Fuel Hose & Fittings

Universal Fuel Line Kit - 3/8" Diameter x 6' Length with Sprayless Connectors & Fuel Demand ValveThis EPA-certified Attwood Universal Fuel Line Kit reliably delivers fuel to your engine and provides the ultimate in performance, safety, and value. The kit includes a 6-foot-long, 3/8-inch diameter low-permeation fuel line that is designed to prevent kinking and hardening, and is rated up to 100 degrees C. Award-winning Universal Sprayless Connector (hose and tank fittings with pre-applied thread sealant) are included as well. Features:  These Attwood Fittings Are Included: Tank fitting 8838TM6 & tank end hose fitting 8838HF6 Also, includes a Fuel Demand Value that eliminates engine flooding and spillage by preventing pressurized fuel from reaching the engineTank Side: Universal Sprayless Quick-Connect Universal for any Engines and Tanks This Fuel Line Kit is compatible with Ethanol blended fuels and with all OEM-brand engines There’s also a multi-layer, low-permeation primer bulb with connections engineered for strength, durability, and leak resistance *It does not include an engine fitting Specifications: ID Diameter (inches): 3/8" Length (Feet): 6' Box Dimensions: 3"H x 9"W x 13"L WT: 1.3 lbs UPC: 022697938275 Quick Guide (pdf)

Read more less

1-1/2" x 50' Coil Type A2 Fuel Fill HoseTrident 1-1/2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends). Features:  This hose is built with the best fuel, fire, and age-resistant formulation  Provides extraordinary resistance to aging, fire, heat, cold, and the ozone  Also, provides excellent bend-ability Application: Marine Fuel Hose for fill and vent plus diesel distribution Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel Construction: Tube & Cover: NBR / Neoprene  Reinforcement: High tenacity polyester 2 spiral, spring steel helix Temperature Range: -20°F to 212°F (-20ºC to 100ºC)  Length: 50 ft. (15.24 m) Coil Specifications: Inner Diameter: (inch) 1/2" / (mm) 38 Outer Diameter: (inch) 2 / (mm) 51 Wall: (inch) 0.25 / (mm) 6.4 Working Pressure: (psi) 60 / (mpa) 0.41 Bend Radius: (inch) 5.5" / (mm) 140 *The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved Specifications: ID Diameter (inches): 1-1/2" Length (Feet): 50' Box Dimensions: 6"H x 26"W x 27"L WT: 50 lbs UPC: 704917009056 Quick Guide (pdf)

Read more less

2-1/2" x 25' Ocean-Flex Multipurpose HoseThis unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.Specifications: Construction: Tube Black Nitrile, Cover Black Nitrile Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix Temperature Range: -20°F to 212°F (-29ºC to 100ºC) Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.) Specifications: ID Diameter (inches): 2-1/2" Length (Feet): 25' Box Dimensions: 3"H x 38"W x 38"L WT: 38 lbs UPC: 704917018799 Quick Guide (pdf)

Read more less

2" x 50' Ocean-Flex Multipurpose HoseThis unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.Specifications: Construction: Tube Black Nitrile, Cover Black Nitrile Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix Temperature Range: -20°F to 212°F (-29ºC to 100ºC) Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.) Quick Guide (pdf)

Read more less

1-1/2" x 50' Ocean-Flex Multipurpose HoseThis unique marine hose can be used for a multitude of applications for both Commercial and Recreational Vessels including Fuel Fill, Feed, and Vent (Diesel & Gasoline – Type A1), Lube Oil, Wet Exhaust, Water (Vital and Non-Vital), Bilge, Coolant, Drains, and Sanitation applications. OCEAN-FLEX boasts compliance with the following standards: USCG Inspected Vessels (Title 46 CFR Sub-Chap. T), SAE J1942 (Code F, VW, NVW), USCG Type A1, SAE J1527 A1 R2, SAE J2006 R2, SAE J20R2 B, SAE J20R4 B, SAE J20R5 B, SAE J30R5, ABYC H-22, H-24, H-33 P-1, P-4, ISO 7840 A1, ISO 8469 B1, ISO 13363 2B, and CE.Provides excellent resistance to fuel, fire, heat, cold, ozone, and aging. Also provides excellent bend-ability and adheres to more standards than any other marine hose.Specifications: Construction: Tube Black Nitrile, Cover Black Nitrile Reinforcement: Multiple Textile Spirals, Dual Steel Wire Helix Temperature Range: -20°F to 212°F (-29ºC to 100ºC) Lengths: 12.5’ (3.81 m) Length, 25’ (7.62 m) Coil (4”–6”), 50’ (15.24 m) Coil (up to 3-1/2” ID.) Quick Guide (pdf)

Read more less

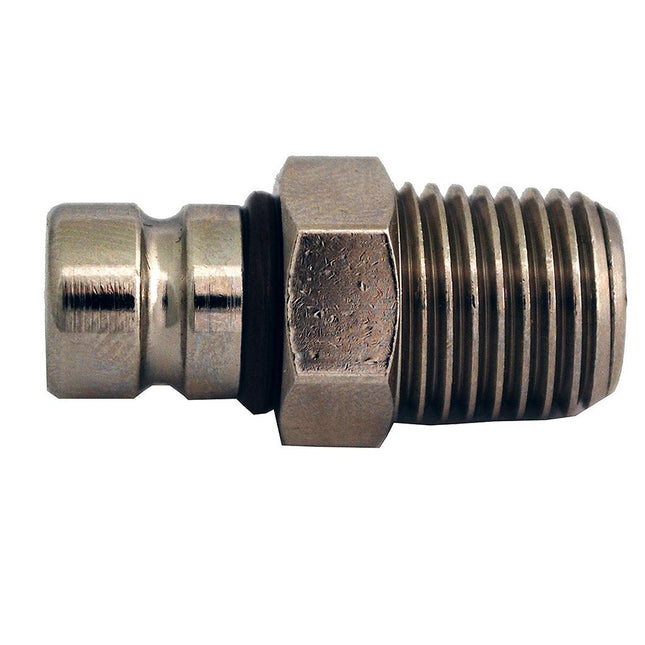

Chrysler/Suzuki Tank Fitting - 1/4" NPT ThreadThis Attwood Fuel Tank Male Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. This threaded fitting has a 1/4" male NPT thread. Also, use thread sealant on all threads, and clamps are not included.Features: Male tank fitting designed for Chrysler & Suzuki engines and fuel tanks Designed for Under 75HP (Small Bore) Material Construction: Chrome-plated Brass *Specifically mates to Attwood part numbers: 8884-6 & 88FTS014-6 Quick Guide (pdf)

Read more less

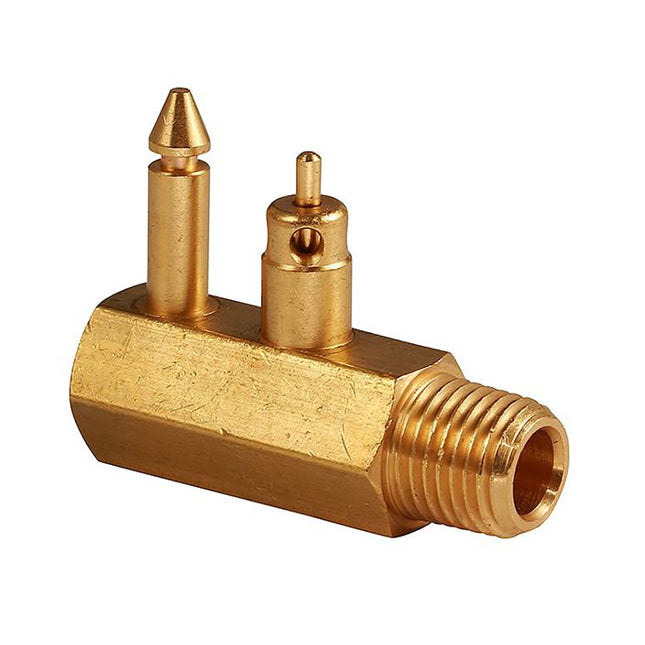

Yamaha Tank Fitting - 1/4" NPT ThreadConnect your tank and fuel lines with confidence. Solid machined brass construction holds up to lead, unleaded, and alcohol-based fuels. Designed for Yamaha Brand engines and tanks and fits select Mercury/Mariner Brand engines.Features: Quick-connect 1/4-inch male thread makes installation easy Solid machined brass for dependable performance and peace of mind Designed for Yamaha and select Mercury/Mariner brand engines that use leaded, unleaded, and alcohol-blended fuel *Specifically mates to Attwood part numbers: 8896LP6 & 88FHY516-6 Quick Guide (pdf)

Read more less

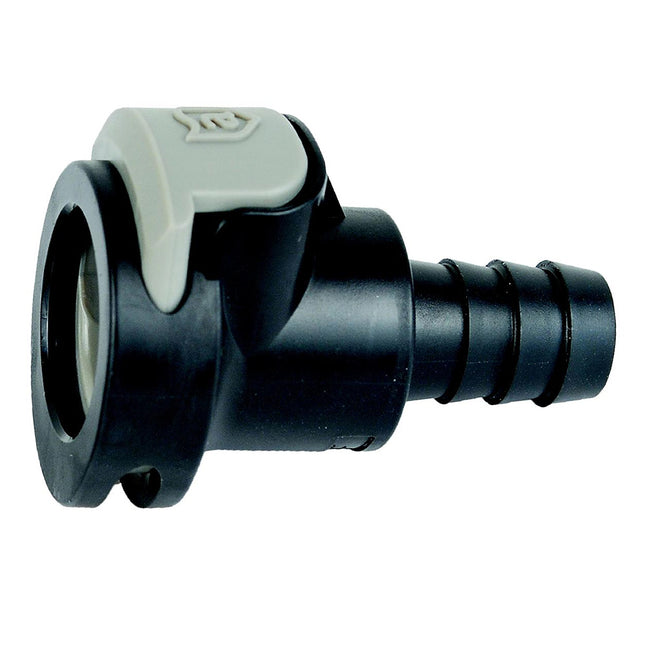

Universal Sprayless Connector - Hose Female (5/16"-3/8")This Attwood Universal Sprayless Connector reliably eliminates fuel spraying when you are connecting and disconnecting fuel hoses during fueling or maintenance. This connector replaces a traditional fitting and its high-strength body is engineered to withstand the rigors of a marine environment. Features: Female hose fitting compatible with 3/8" and 5/16" fuel lines Includes check valves that automatically close upon disconnecting High fuel flow fitting (less than .25kPa restriction at 50 liters/hour) Reliably eliminates fuel spraying when connecting and disconnecting the fuel hose *Compatible with Ethanol blended fuels and all OEM-brand engines Quick Guide (pdf)

Read more less

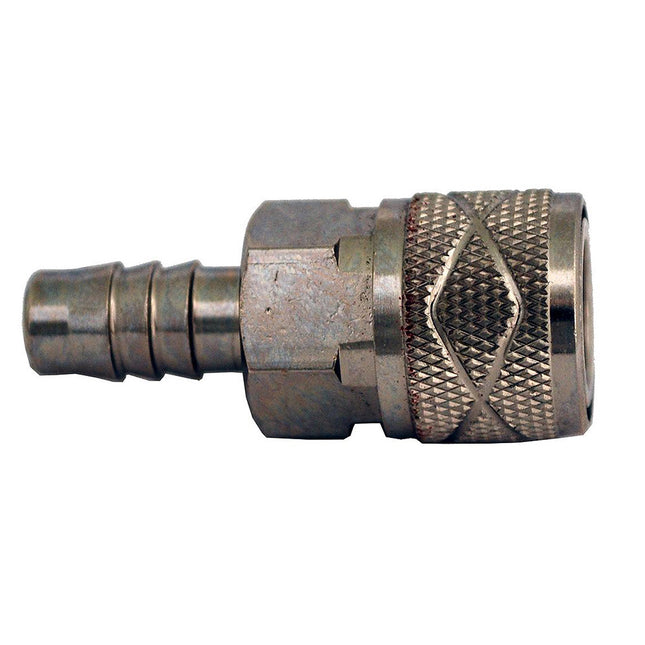

Suzuki 3/8" Barb Female Hose Fitting - Under 75HPQuick-connect female fitting for use on both ends of fuel lines to connect to tank fitting and engine. Fuel tank fittings and hose fittings are suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. The barb fitting fits a 3/8" I.D. hose. Also, clamps are not included, and use thread sealant on all threads.Features: Suzuki-brand engines and tanks Fitted for models under 75HP (Small Bore) Material Construction: Chrome-plated Brass *Specifically mates to Attwood part number: 14509-6 Quick Guide (pdf)

Read more less

Universal Sprayless Connector - Male & FemaleSafely eliminate dangerous spraying of fuel when connecting or disconnecting pressurized hoses during fueling or maintenance. Comes complete with a thread-sealer for fast, easy installation; no additional supplies are required.Features: 8838HF6 Female Hose Fitting and 8838TM6 Male Threaded Tank Fitting Pre-applied fuel-grade thread sealant prevents fuel leaks Include check valves that automatically close upon disconnecting High fuel flow fitting (less than .25kPa restriction at 50 liters/hour) Compatible with Ethanol blended fuels High-strength body engineered to withstand tough marine environments Pre-applied fuel-grade thread sealant prevents leaks and saves you time Compatible with 3/8 inch fuel lines, Ethanol blended fuels, and all original equipment manufacturer (OEM) brand engines Can be used with portable generators and other portable fuel tanks *Meets all EPA and CARB (California Air Resources Board) requirements

Read more less

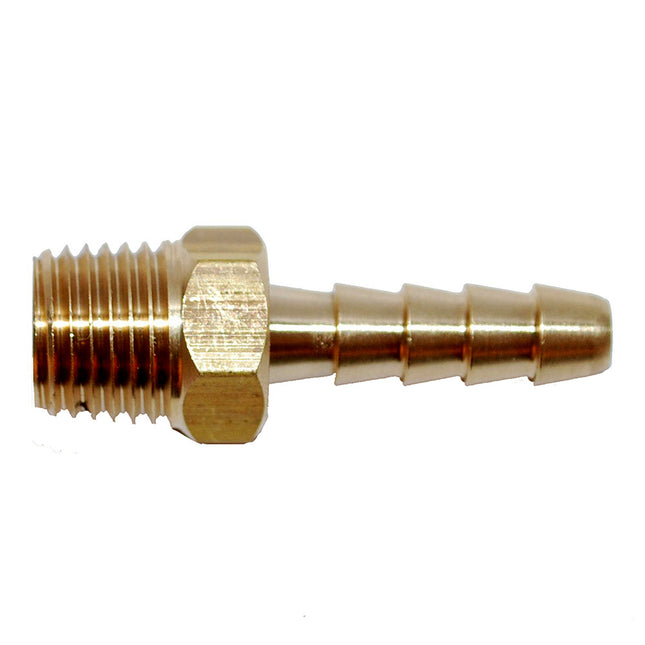

Universal Brass Fuel Hose Fitting - 1/4" NPT x 3/8" Barb This Attwood Fuel Tank Fitting is a dependable replacement for original equipment and provides a sure connection in a fuel line.Features: Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels Material Construction: Brass Male thread, hose barb (inch) Male 1/4" NPT x 3/8" Barb  *Use thread sealant on all threads Quick Guide (pdf)

Read more less

Universal Brass Fuel Hose Fitting - 1/4" NPT x 5/16" Barb This Attwood Fuel Tank Fitting is a dependable replacement for original equipment and provides a sure connection in a fuel line.Features: Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels Material Construction: Brass Male thread, hose barb (inch) Male 1/4" NPT x 5/16" Barb  *Use thread sealant on all threads Quick Guide (pdf)

Read more less
