Marine Hardware

TR3 Spring Loaded Safety Pin - 1/4" ShackleFeatures: Hitch pin lock for device locking safety Computer generated parts precision-cut from aerospace grade stainless steel plate Low friction, low effort lanyard-style release for maximum user safety All parts 100% stainless steel WARNING: This product can expose you to chemicals including Titanium dioxide which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

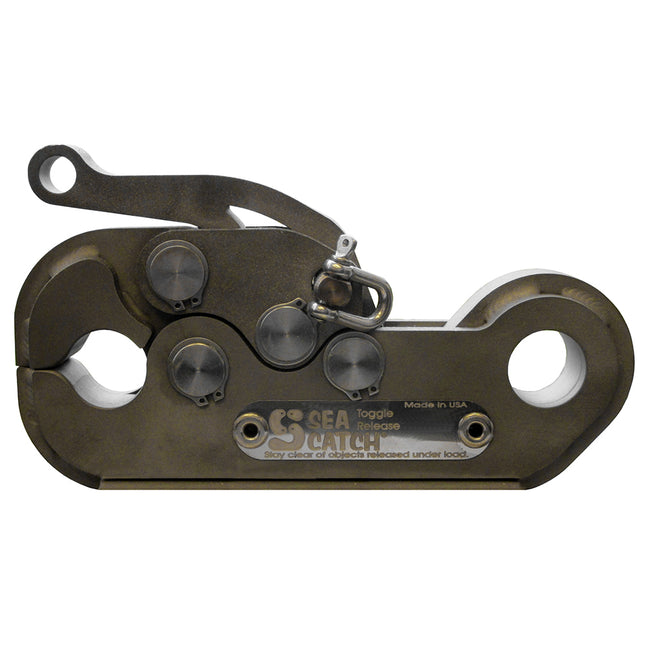

TR7 with D-Shackle Safety Pin - 5/8" ShackleFeatures: Perpendicular or parallel release directions Hitch pin lock for device locking safety Computer generated parts precision-cut from aerospace grade stainless steel plate Low friction, low effort lanyard-style release for maximum user safety On load/off load releasing All parts 100% stainless steel No springs Break Load - 35,210 pounds and SWL 7,042 pounds WARNING: This product can expose you to chemicals including Titanium dioxide which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)Brochure (pdf)

Read more less

90° P-Trap Fuel Tank Vent -  Black with Black Vent HeadThis Attwood 90-Degree P-Trap Fuel Tank Vent reliably helps prevent water from entering the fuel tank while still allowing air to vent freely during normal sea conditions and washdowns. This vent’s effectiveness eliminates the need for an anti-siphon loop in the vent hose. It requires a ¾-inch installation hole and can be used with a maximum hull thickness of 9/16 inches.  Features: Standard Mount - (inch) 5/8" I.D Hose Reliably helps prevent water from entering the fuel tank Still allows air to vent freely during normal sea conditions and washdowns This black vent with a black vent head meets ABYC standards *Compatible with Ethanol blended fuels. Quick Guide (pdf)

Read more less

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 44N (10lbf)Features: Spring-loaded over-center latching One assembly includes catch and keeper Material and Finish: PC/ABS, black Performance Details: Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF) Flammability rating: UL94-HB Installation Notes: Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching. Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)

Read more less

Mechanical Hatchlifter 12" STK FastThe AV hatch lifters are electromechanical products, especially designed for marine use on pleasure boats. They allow full or partial opening and closing of heavy engine hatches, peak tanks, hatch beams etc. By activating a switch, it is possible to lift the hatch to any desired position from closed to full open; an internal self-locking mechanism will maintain the position preventing any accidental hatch closing. In case of a power failure, an emergency device allows for manual opening.The Uflex AV hatch lifters do not require any maintenance, are easy to install, and are made of materials resistant.Features: According to the load required, the AV hatch lifter can be mounted individually, or in twin-cylinder installations for heavier loads. It is also possible to install more than two AV actuators in multiple applications.  Maximum load for single installations: 1200N (120 kg - 265 lbs)  Maximum load for dual installations: 2400N (240 kg - 529 lbs)  Maximum load is recommended not to be exceeded.  Supplied with all mounting hardware.  Stainless steel telescopic ram for manual operation in case of emergency.  Available on request without a manual emergency opening device for high-performance boats.  Circuit breaker to stop accidental overloading of the system and electronic stop at the closed or fully open position.  IP 65 protection rated  Speed: 25mm/sec no load applied, 17 mm/sec maximum load  Current absorption in single installations: 10A at 12V, 5A at 24V  Current absorption in dual installations: 20A at 12V, 10A at 24V  AV 12VDC models are Ignition Protected. UL1500 - ISO8846 approved. Specifications: Volt: 12V DC Stroke: 300mm (12") Length A (full closed actuator): 677 mm (26.6") Ø External: 48 mm (1.9")

Read more less

Cowl Ventilator(1312) Chrome Plated Zinc Alloy Cowl w/ Black Plastic Base 3" Duct Threads Into Neck, Hose Clamps Not Required Length: 5-3/4"Width: 4-3/8"Height: 2-5/8" Quick Guide (pdf)

Read more less

Door Catch Constructed of sturdy injection molded nylon. These Door Catches provide secure closure for cabinet doors. Installs with four #6 RH fasteners (not included). WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

0591 Vented Fill f/1-1/2" Hose - Straight Neck - ChromeChrome Plated Bronze Cap Black Polymer Body Straight Neck & Heavy Duty Stainless Steel Bead Chain Integral Tank Vent with Flame Arrestor and Anti Surge Valve (on diesel only) Deck Plate Key Not Required *Note: Consider using the Mounting Ring (Fig. 0540DPRBLK) for all installations. DP package includes mounting ring. Technical Information For Hose Size: 1-1/2" For Vent Hose: 5/8" Mounting Hole Dia.: 2-1/8" O.D. Flange: 3-3/8" Neck Length: 2-7/16" Screw Size: #8

Read more less

0541 Vented Fill f/1-1/2" Hose - Straight Neck - Gas Straight Neck Chrome Plated Bronze Cap Black Polymer Body Stainless Steel Bead Chain Integral Tank Vent with Flame Arrestor and Anti Surge Valve Deck Plate Key and O-Ring Included Technical Information For Hose Size: 1-1/2" For Vent Hose: 5/8" O.D. Flange: 3-3/8" Mounting Hole Dia.: 2-1/8" Neck Length: 2-7/16" Screw Size: #8

Read more less

Hatch Handle Latch - 3-1/8" x 2-11/16"Constructed of sand cast brass with a chrome plated finish. These Hatch Handle Latches are ideal for use on doors, hatches, lazarettes, and dock boxes. Handle pivots out to open hatches and lays flush when not in use for a clean appearance. Adjustable locking arm adds additional security. Installs with four #8 FH fasteners (not included). Once installed, the locking arm can be trimmed to length.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Screw-Out Deck PlateThe Beckson Screw-Out Plate was designed to provide access without the use of tools, with a single start non-jamming (no cross-thread), extra strong, self-cleaning buttress thread. They incorporate a self-aligning center and an innovative gasket to assure a watertight seal. A back-up sealing wall leaves the plate watertight, even if the gasket is removed. Deck plates are used for access to shut-off valves or back-fastenings, inspection, and clean out for tanks and compartments. A screw-out plate should be used in compartments where a change in air pressure due to temperature or oil canning can occur. Center: Non-Skid Color: White

Read more less

Bow Eye - Machined 304 Stainless Steel - 7/16" x 3-1/2"These Bow Eyes are for use as a tie-down point on your boat’s bow. The 3/8" shafts have rolled threads. Constructed of corrosion-resistant machined 304 stainless steel. Includes adjustable finish nuts, which provide superior performance over crimp ring-style stern eyes. Can be used in conjunction with Lift Eyes (048330 or 048350) for a more robust lifting assembly.Specifications:Threads: 1/2" NC

Read more less
