Marine Navigation & Instruments - Accessories

veKonvert NMEA 2000 GatewayveKonvert brings NMEA 2000 connectivity to Victron’s popular SmartShunt battery monitoring system. Now a navigation multi-function display becomes a sophisticated battery and energy management system.FeaturesveKonvert is a stand-alone NMEA 2000 interface designed in conjunction with Victron Energy to integrate VE.Direct compatible devices such as their SmartShunt, BMV Battery Monitors, and MPPT Solar Charge Controller range into NMEA 2000 systems.This functionality already existed but required the use of a sophisticated Cerbo module. veKonvert is a lower-cost, simpler solution for smaller installations that just need the electrical data displayed on a multi-function display.Boaters and boat builders like a clear and uncluttered dash or nav area, so integrating electrical data into the main navigation display is a popular and cost-saving option.The product is a collaboration between Victron Energy and Digital Yacht. The system utilizes Victron’s proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.Victron solar charge controllers (MPPTs) and battery monitors can now also interconnect to your NMEA 2000 MFD via the veKonvert interface.InstallationInstallation is simple – just "T" into the NMEA 2000 backbone and plug into the VE.Direct custom connector on the SmartShunt, and you've got battery and electrical data on your NMEA 2000 network!  Note that one veKonvert is required for each battery bank.Specifications: Universal NMEA 2000 gateway for Victron products with a VE.Direct interface Enables battery management or solar charge monitoring on compatible multi-function displays (Raymarine, Garmin, Navico, Furuno, etc) Provides battery voltage, charge/discharge current, state of charge, and time to depletion based on a sophisticated algorithm Easy installation, plug ‘n’ play connectivity, and self-powering from the NMEA 2000 bus Generates NMEA 2000 alerts from any BMV or SmartShunt Alarms Supports multiple SmartShunts for a larger multi-battery system VeKonvert Is Compatible with the Following Victron Products:BMV-700, BMV-702, BMV-700H, BMV-712 Smart, BMV-710H Smart, BMV-712 Smart, SmartShunt 500A/50mV, SmartShunt 1000A/50mV, SmartShunt 2000A/50mV, and All MPPT Charge ControllersThe veKonvert will automatically detect what Victron device it is connected to and adjust the NMEA 2000 data that it outputs accordingly. Below is a list of the PGNs that the veKonvert outputs for the different Victron Devices and different modes that they can operate in:  All MPPTs PGN 127506 DC Detailed Status (DC Type set to MPPT) PGN 127508 Battery Status (MPPT Output Voltage and Current) PGN 130900 Proprietary Solar Controller (All solar panel data) All SmartShunts and BMVs PGN 127506 DC Detailed Status (DC Type set to Battery, SOC and A/h consumed) PGN 127508 Battery Status (Output Voltage and Current) NOTE: veKonvert is not compatible with Victron Chargers and Inverters. It should also not be plugged into the VE.Direct interfaces of any Victron "Consumers" such as Multiplus, Quattro, Cerbo, etc.

Read more less

GPS160 TriNav Sensor with USB OutputThe GPS160, a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies.TriNav technology allows all three systems to be simultaneously utilized for navigation. The device can also be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etcThe GPS160 is available with a NMEA 0183 output (4800, 38400 and 115200 baud programmable) and a USB variant for PC, MAC and Linux. For NMEA 2000 systems, a bundle is available with iKonvert allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables.The GPS160 also support an external MOB switch or device. When activated, it creates a “synthesized” AIS SART MOB message on the NMEA output which can be interfaced with a local plotter for MOB identification.The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to compute the best possible fix accuracy and reliability.Galileo is the global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.Features: 72 channel GPS, Glonassand Galileo GNSS positioning receiver Typically sub 1m accuracy thanks to TriNav technology –combines all satellite data for optimum accuracy Can be configured as dedicated GPS, Glonass or Galileo only device Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection Available in NMEA 0183, NMEA 2000 (with iKonvert interface)and wireless (with WLN10SM) variants GPS160USB also available with USB connection for PC/MAC User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches Multiple formats of NMEA data output including datum information –user configurable through internal DIP switches Up to 18Hz update rate (user selectable) Ultra low (<20mA) power consumption at 12V DC Input for MOB switch/system –when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST) Puck installation or fits 3rd party industry standard 1” x 14 TPI threaded mount Specifications: Type: Antennas Box Dimensions: 4"H x 7"W x 10"L WT: 1 lbs UPC: 703791696048 Brochure (pdf)

Read more less

IDMK X12 XPLORE 12 In-Dash Mounting BracketIn-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware.Features: Allows for quick and easy in-dash installation Rugged, high-strength aluminum design Contains all necessary mounting hardware 1-Year Limited Warranty

Read more less

10" Protective Cover - PlasticKeep your compatible GPSMAP device safe from the harsh marine environment, when not in use, with this plastic protective cover.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Covers Box Dimensions: 2"H x 10"W x 11"L WT: 0.4 lbs UPC: 753759219116

Read more less

GM H7R2 Gimbal Mount for HELIX 7 G4N ModelsThe GM H7 is a gimbal mount for HELIX 7 G4N products. This includes the gimbal mount, knobs, and mounting hardware. Features: Compatible with: HELIX 7 G4N models Includes gimbal mount, knobs, and mounting hardware 1-Year Limited Warranty Specifications: Type: Mounting Brackets Box Dimensions: 3"H x 7"W x 12"L WT: 0.8 lbs UPC: 082324056451

Read more less

ICE PTC CHIRP H5 FB - Portable Ice Kit with CHIRP Ice Transducer for HELIX 5The ICE PTC CHIRP H5 FB is a portable ice fishing kit for Humminbird HELIX 5 models with CHIRP sonar technology. Convert your HELIX 5 model for ice fishing with the included accessories: portable shuttle with carrying handle, premium Humminbird bag, Dual Spectrum CHIRP ice transducer with float, gimbal mounting brackets, HELIX power cable, and installation hardware. This kit will require a battery and charger to operate the HELIX fish finder (sold separately).Features: Compatible with: HELIX 5 G2/G3 Kit includes: Portable shuttle with carrying handle, bag, Dual Spectrum CHIRP ice transducer with float, HELIX power cable, and installation hardware. 1-Year Limited Warranty Quick Guide (pdf)

Read more less

Adapter Cable SeaTalk (1) to SeaTalkNG - 1MAn adapter spur cable to connect a SeaTalk device to a SeaTalkng network. The connection must be made via a 'bridging' device such as an ST70.SeaTalkNGRaymarine’s proprietary cable system for use in NMEA 2000 networks. The design provides two advantages. First, the connector collars are retained on the product which allows for a smaller cable diameter making installations easier. More importantly, the cable can include a sixth wire which allows for backward compatibility with SeaTalk1 equipment. Products with SeaTalkNG connectors can be used on NMEA 2000 networks that use Devicenet cabling through simple connector adapters and conversely equipment with Devicenet connectors can be used on NMEA 2000 networks that use SeaTalkng cabling through simple connector adapters.

Read more less

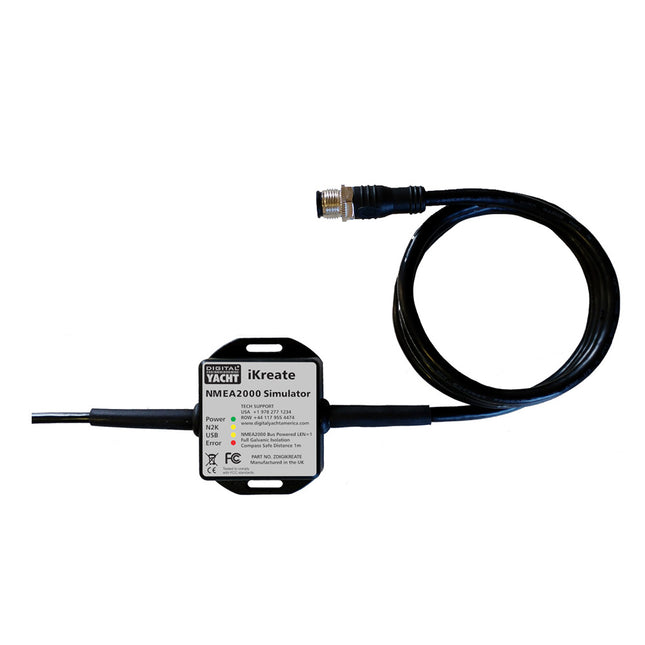

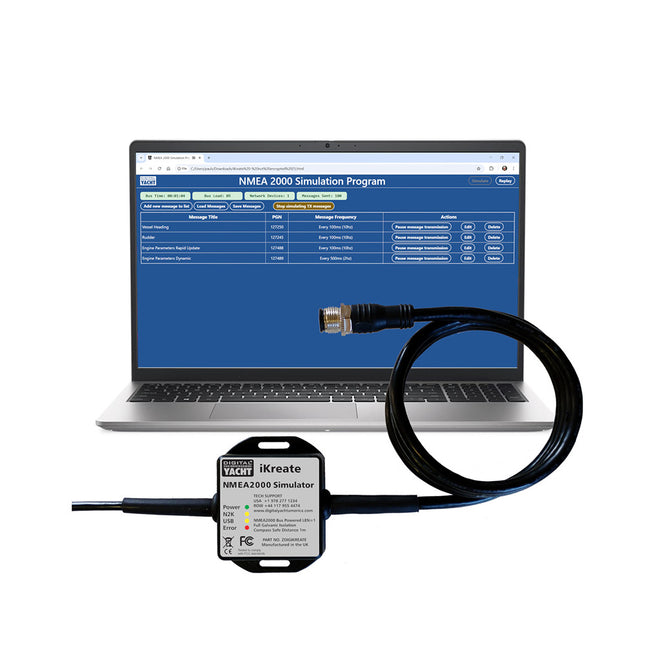

iKreate NMEA 2000 Simulator with USBFor anyone involved in designing, manufacturing, or installing marine electronics, the ability to simulate or replay NMEA2000 data is a real advantage and can accelerate software development, demonstrate NMEA2000 devices, or help diagnose network issues.With more and more modern boats having an NMEA2000 network at the heart of their navigation system, it is really important that you have the tools to investigate the devices and data on the network should things not work as planned.Consisting of an iKreate USB interface and an HTML5-based web app, the iKreate simulator can generate any number of NMEA2000 PGNs or replay saved log files of real-life network data from any NMEA2000 system, regardless of brand.This package includes iKreate to connect to the NMEA 2000 network and the simulator software to generate any number of NMEA2000 PGNs.Just like our NMEA2000 Display App, the iKreate Simulator takes a new approach and is the World’s first multi-platform, browser-based NMEA2000 Simulator App that will run on Windows, LINUX, Mac OS X, and Raspbian. There is no installation, and if you can save a file and find it again, then that is as complex as it gets with just a single HTML5 file to worry about (less than 0.5MB in size).You need to use the app with a browser that supports the Web Serial API, which currently includes Chrome, Chromium, MS Edge, and Opera. We also plan to support Firefox going forward (with its WebSerial Extension), but this was not possible for the first release of the app.Features: Create individual NMEA 2000 PGNs from a drop-down list populated with the data you enter, or play back a NMEA 2000 log file captured by a Digital Yacht NMEA 2000 product, etc, from an on-board system Multiple PGN groups can be created and even saved for future use The data variance function can synthesise changing values No complicated software to install – just a simple file for Chrome, Edge, Opera or Chromium Functions on PC, MAC, and Linux platforms – simple USB connection Set SRC address and instance Integrated 0.8m NMEA 2000 and 0.8m USB cable Available with USB-C connector (USB-A option) What's In The Box? iKreate USB Interface Software to download via link Owner's Manual (pdf)

Read more less

LANLink NMEA 0183 To Ethernet GatewayMore and more boats now have a wireless router fitted or utilize services like Digital Yacht 4G Connect for internet connectivity. LANLink is an NMEA to ethernet gateway that enables the boat’s NMEA data to integrate into the router network -allowing connected devices and apps to take advantage of the data.LANLinkis available in two versions suitable for NMEA 0183 and NMEA 2000 respectively. It features an easy-to-use web interface allowing any device with a browser to configure NMEA baud rates and IP/Port information.It can support multiple TCP/IP connections and is bi-directional. Once connected to the onboard network via a simple CAT 5/6 patch cable, users can set apps like TZ iBoat, iNavX, NavLink, iSailor, Imray, Weather 4D, etc., by simply entering the IP address and port for streaming NMEA data.Features: NMEA 0183 to ethernet gateway version 12/24v DC low power operation Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection The web user interface for easy setup from the connected device via the browser TCP/IP or UDP connection modes –support for up to 5 connected devices with TCP/IP Bi-Directional The NMEA 2000 variant can offer raw mode with encapsulated PGNs or conversion mode (for apps) supporting AIS, instruments, and GPS RS232 port for PC apps too Status indicators for power, data in-out, network link, and server status Set-Up: Easy menu-driven web UI accessible via web browser on a client device with no complicated software to install for setup Configure NMEA data for 4800 or 38400 baud and set mode (TCP/IP or UDP) and port Set up with fixed or dynamic IP address Status page for system diagnostics Specifications: Power: 10-35V DC (Consumption approx. 50mA at 12V DC) Network Port: Ethernet RJ45 10/100MB IP Mode: Static or DHCP Operating Mode *TCP/IP or UDP; Support for up to 5 connected devices in TCP/IP mode; *Recommended mode of operation NMEA Input: Configurable 4800 or 38400 baud (NMEA 0183) NMEA 2000 option via iKonvertgateway Operating temp: -25 to +70 degrees C LED Indicators: Power -Status -Link -Data In -Data Out Options: RS232 connectivity (non-concurrent with NMEA) Dimensions (W x H): 95mm x 86mm

Read more less

9-M360-2-DDI-Y - MEGA 360 & 2D/MDI 7-Pin Y-CableThis Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.  Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder. For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer. This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need. Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors 30" (76 cm) cable on Dual Sprectrum CHIRP side of cable 10' (3 m) cable on the MEGA 360 side 1-Year Limited Warranty Specifications: Type: Adapters Box Dimensions: 3"H x 7"W x 9"L WT: 0.8 lbs UPC: 082324054853

Read more less

AS ECX 30E Ethernet Cable Extender - 8-Pin - 30'The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

AS QD NMEA 2000 - Helix NMEA Adapter This NMEA 2000 adapter cable will allow you to connect a HELIX G4N fish finder to drop cable from an existing NMEA 2000 backbone (sold separately).  Compatible with: All HELIX 8/9/10/12/15 G4N Models 1-Year Limited Warranty

Read more less
