Marine Navigation & Instruments - Gauges

LinkUp Analog to NMEA 2000 GatewayThe resistive-type LinkUp gateway provides an easy method to convert vessel and engine information to NMEA 2000.Easily installed, the LinkUp Gateway replaces the original wiring, delivering power to both the LinkUp device and sensor from the NMEA 2000 backbone while still being complaint with the NMEA 2000 certification requirements. Configuring the LinkUp Gateway is simple using a mobile device and the companion LinkUp Configuration App for Android or IOS.Each device has a built-in passive NFC antenna, so the parameters of the sensors are wirelessly configured to type, instance and warning threshold on the mobile device which is then "tapped" against the LinkUp device for instant data download. Features: User-friendly configuration through wireless interface and companion smartphone App Sensor Cable length - 25cm NMEA 2000 Cable length - 25 cm Tap to download parameters Mobile App for Android or IOS No power required to program No certification required Bi-directional communication, programming interface or data recovery Supported Sensors: Fuel Level Oil/Boost Pressure Fresh/Waste Water Level Oil/Gear Oil/Coolant Temperature Trim Tabs Rudder Angle Technical Specifications: Standard M12 NMEA 2000 plug LED Notification  Operating Voltage - 6 - 16.5V Nominal Voltage - 12 V (from NMEA 2000 network) IPX7 Rated Sensor Plug - Superseal Female 2 Pin Counterpart Sensor Plug - - Superseal Male 2 Pin *Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

SingleViu 100mm (4") Tachometer - 4000 RPMSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.Features: 0-400kHz Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 and 12 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Box Set: No Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Tachometer Gauge Size: 100mm Box Dimensions: 5"H x 8"W x 8"L WT: 0.95 lbs UPC: 4103590683397 Owner's Manual (pdf)

Read more less

Chesapeake Black 2" Depth Sounder with Thru-Hull Transducer Perimeter-lighted black dial with stylish blue and white graphics, polished stainless steel bezel, and domed glass lens.The Depth Sounders from Faria offer a 3-199 foot (1-61meters) depth capability, with an automatic gain control, backlighting for maximum night vision, keel offset, and deep and shallow water alarms. Depth can be read in meters, and feet. With its oversized back-lit display depth can be easily read in any condition. Audible and Visual alarms let the boater know when a shallow or deep water condition exists.  Depth Sounder includes a Faria SN2060 thru-hull mount transducer w/26' cable.2" - Hole Size: 2.0625" (53mm)Specifications: Imperial and Metric Values Domed Glass Anti-fog, Scratch Resistant Lens Programmable Keel Offest  Stainless Steel Bezel 199 Foot (61m) Depth Capability Audible and Visual alarm for Shallow/Deep Water Conditions Factory P/N DS0111*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Depth Sounder Box Set: No Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Series: Chesapeake Black Box Dimensions: 8"H x 8"W x 9"L WT: 2.05 lbs UPC: 759266137950 Quick Guide (pdf)

Read more less

52mm (2-1/16") ViewLine Engine Oil Pressure Gauge - 150 PSI -  White Dial & BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in the identical color. Interchangeable bezel option.Features: 8 pole Tyco / Hirschmann MQS plug +/- 3.6° angle degree accuracy over the entire display range Operating voltage 8–32 V Integrated warning alarm Input signal: standard Ω values An optional make-point switch can be connected Reverse polarity protection Anti-fog double lens Front side protection rating IP67 52 mm installation diameter 50 mm installation depth This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 2-1/16" Gauge Type: Oil Pressure Series: ViewLine Voltage - Input Range (Volts): 8-32v Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs UPC: 7640178723177

Read more less

52MM (2-1/16") ViewLine Battery Status Gauge -150/+150AMP - Black Dial & BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Series: ViewLine Gauge Type: Battery Condition Gauge Size: 2-1/16" Box Set: No Box Dimensions: 4"H x 7"W x 8"L WT: 0.75 lbs UPC: 7640178722606 Owner's Manual (pdf)

Read more less

Euro White 2" Fuel Level Gauge (E-1/2-F)Perimeter-lighted White dial with bold Black graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.2" - Hole Size: 2.0625" (53mm)Specifications: Anti-scratch glass lens 12 VDC negative ground Perimeter-lighted White dial Can be adapted for 24 VDC systems Factory P/N GP9358*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Fuel Level Series: Euro White Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266129016 Quick Guide (pdf)

Read more less

Dress White 4" Tachometer - 6000 RPM (Gas)  (Inboard & I/O)Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender.  The tach is hooked up to +12VDC, Ground and one of the signal sources listed.By selecting the right tachometer and setting the switch on the back to the correct position, you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: Anti-scratch glass lens 12 VDC negative ground Can be adapted for 24 VDC systems Factory P/N TC9691*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer Series: Dress White Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266331037 Quick Guide (pdf)

Read more less

Chesapeake White SS 2" Oil Pressure Gauge (80 PSI)Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.2" - Hole size: 2.0625" (53mm)Specifications: Anti-scratch glass lens Perimeter lighted back light 12 VDC negative ground Can be adapted for 24 VDC systems Dual Scale - Imperial and Metric Factory P/N GP9647*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Oil Pressure Series: Chesapeake White Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266138025 Quick Guide (pdf)

Read more less

SingleViu 80mm (3-1/8") Tachometer - 8000 RPMSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.Features: 0-400kHz Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 and 12 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Series: SingleViu Gauge Type: Tachometer Gauge Size: 80mm Box Set: No Voltage - Input Range (Volts): 12-24V Box Dimensions: 5"H x 7"W x 8"L WT: 0.95 lbs UPC: 4103590683472 Brochure (pdf)

Read more less

85mm (3-3/8") VMH-35 Multifunction Gauge with Battery SensorThe Veratron VMH 35 is engineered for single inboard or outboard engine applications. The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters.  This saves the need for an additional external converter.  Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines.An integrated GPS makes the VMH 35 the perfect standalone navigation solution.  It integrates speed, compass, and position into the engine data information.  A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.The Veratron VMH 35 has a mineral glass front that's optically bonded to the sun-readable hybrid display.  A sleek, brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.  Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back.  It fits a standard 3-3/8" panel cutout size.Features: Integrated high-performance GNSS receiver Integrated Analog to NMEA 2000 Gateway Waterproof to IPX7 Stylish black-glass design with brushed stainless-steel ring New generation sun-readable color hybrid display Intelligent Battery Sensor (IBS) port NMEA 2000® certified In the Box: VMH35 Gauge Wire harness  Mounting Spinlock Outboard Engine Kit w/IBS (B00062402) Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 3-3/8" Gauge Type: Multifunction Series: VMH-35 Box Dimensions: 4"H x 8"W x 12"L WT: 1 lbs UPC: 7640178729940 Owner's Manual (pdf)Brochure (pdf)

Read more less

52MM (2-1/16") ViewLine Fuel Level Gauge 0-1/1 -  3 to 180 OHM - Black Dial & Round BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Series: ViewLine Gauge Type: Fuel Level Gauge Size: 2-1/16" Box Set: No Box Dimensions: 4"H x 6"W x 6"L WT: 0.4 lbs UPC: 7640178722903 Owner's Manual (pdf)

Read more less

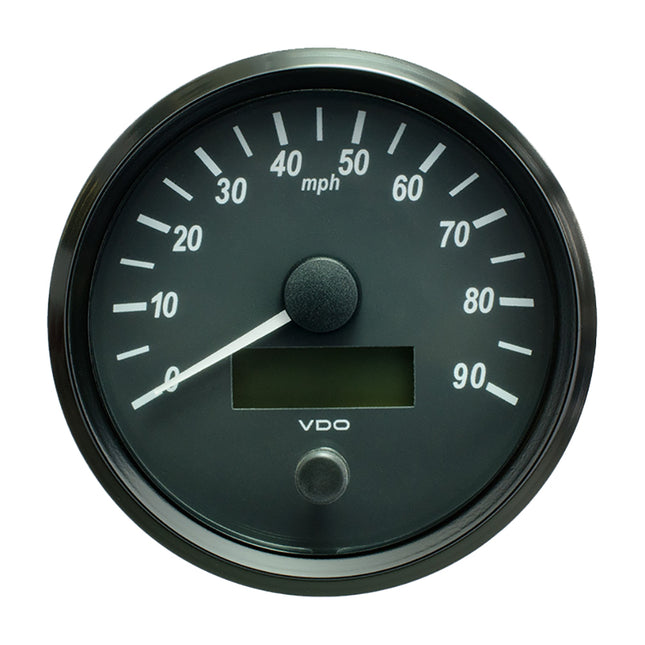

SingleViu 100mm (4") Speedometer - 90 MPHSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.Features: 0-400kHz Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 and 12 pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Series: SingleViu Voltage - Input Range (Volts): 12-24V Gauge Type: Speedometer Gauge Size: 100mm Box Set: No Box Dimensions: 4"H x 8"W x 8"L WT: 1.1 lbs UPC: 4103590683281 Owner's Manual (pdf)

Read more less
