Marine Navigation & Instruments - Gauges

SingleViu 52mm (2-1/16") Oil Pressure Gauge - 80 PSI - 240-33 OhmSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.*240-33 Ohm Sender RequiredFeatures:  240-33 Ω Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge Type: Oil Pressure Gauge Size: 52mm Box Set: No Voltage - Input Range (Volts): 12-24V Series: SingleViu Box Dimensions: 4"H x 4"W x 6"L WT: 0.45 lbs UPC: 4103590683182 Owner's Manual (pdf)

Read more less

52mm (2-1/16") VMH Flex Multifunction Gauge - J1939Small but powerful, the VMH Flex is the perfect com­­­pro­mise to display a large amount of boat data in a compact device. No matter if you are wearing gloves or if it is raining on your deck, the innovative laser touch button allows you to scroll up to 5 different screens. Every screen can be freely customized with your most important information, and the setup – including alarms – is easily done with your smartphone just with a tap.Features: Up to 5 scrollable screens in single or dual layout Functions - Rudder, Trim, Speed, Engine revolution, Engine hours, Fuel level, Fresh water level, Wastewater level, Coolant temperature, Oil temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Depth, Clock, Compass, Battery Innovative laser touch-button reliable in every practical condition SAE J1939 connectivity 2x analog resistive inputs for direct sensor connections LIN port for Intelligent Battery Sensor Technical Specifications: Nominal Voltage - 12/24V Operating Voltage - 9-32V Protection Class - IPX7 Dimensions - 60mm (outer), 52mm (mounting hole) Display - 1.44" sun-readable color TFT display Resolution - 125 x 125 pixels Analog Inputs - 1x resistive, 1x frequency Connectors - Tyco / Hirschmann MQS connector 8-pin Digital Ports - J1939, LIN bus Wireless Interface - NFC In the Box: 1x VMH Flex – J1939 1x 52 mm Spinlock Nut 1x Rubber Sealing Gasket  1x Wiring Harness – J1939 1x Safety Instructions and Veratron Card  Owner's Manual (pdf)

Read more less

EngineBox - Double EngineThe EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors. The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.The Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software tool are needed to configure this Engine Box. Features: Analog to NMEA 2000® gateway  J1939 to NMEA 2000® gateway  2 Models for single engine and dual engine configurations  Compact design  Status LED  Operating temperature range -40°C/+85°C Technical Specifications:  1x J1939 (2x J1939 Dual Engine)  1x M12 5 pins NMEA 2000®  1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)  4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)  2x Inputs 4–20 mA  1x Input 0–5 V (2 inputs with Dual Engine Model) In the Box: Engine Cable Cable Harness Safety Instructions *Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Size: N/A Box Set: No Voltage - Input Range (Volts): 8-16v Gauge Type: Multifunction Box Dimensions: 4"H x 6"W x 6"L WT: 1.45 lbs UPC: 7640178724433 Brochure (pdf)

Read more less

SingleViu 180mm (3-1/8") Tachometer - 3000 RPMSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.Features: 0-400kHz Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 and 12 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Box Set: No Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Tachometer Gauge Size: 80mm Box Dimensions: 5"H x 8"W x 8"L WT: 0.95 lbs UPC: 4103590683434 Owner's Manual (pdf)

Read more less

SingleViu 52mm (2-1/16") Oil Pressure Gauge - 150 PSISingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.*Requires 0-180 Ohm senderFeatures: 10-184Ω Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Molex MX 150 8 and 12 Pin Connector Voltage 12-24V Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Oil Pressure Gauge Size: 52mm Box Set: No Box Dimensions: 4"H x 6"W x 6"L WT: 1.5 lbs UPC: 4103590683144 Owner's Manual (pdf)

Read more less

SingleViu 80mm (3-1/8") Tachometer - 4,000 RPMSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.Features: 0-400 kHz Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 and 12 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Tachometer Gauge Size: 80mm Box Set: No Box Dimensions: 5"H x 8"W x 8"L WT: 0.95 lbs UPC: 4103590683441 Owner's Manual (pdf)

Read more less

SingleViu 52mm (2-1/16") Water Temp. Gauge - 250° F - 291-22 OHMSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software. Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.*291 - 22 Ohm Sender RequiredFeatures: 320-22 Ω Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Water Temperature Gauge Size: 52mm Box Set: No Box Dimensions: 4"H x 4"W x 6"L WT: 0.45 lbs UPC: 4103590683588 Owner's Manual (pdf)

Read more less

Platinum 2" Voltmeter (10-16 VDC)Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.  All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.  A voltmeter indicates the battery voltage and the general condition of the battery charging system. The meter requires no warm-up and indicates voltage changes instantly.2" - Hole Size: 2.0625" (53mm)Specifications: Domed Glass Anti-fog, Scratch Resistant Lens Stainless Steel Bezel Blue LED Illuminating around the Perimeter of the Dial Illuminated Backlit Fire-Orange Tip Pointer Factory P/N VP7179*Sold as an Individual*Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Box Set: No Series: Platinum Gauge Type: Voltmeter/Ammeter Gauge Size: 2" Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266220225 Brochure (pdf)

Read more less

Chesapeake WHite SS Boxed Set - Outboard MotorsPerimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens. Packaged and ready for the display counter. This 4 Gauge Boxed Sets offer a complete set of gauges ready to install.Outboard Motors Boxed Set Includes: Speedometer (60 MPH) (Mechanical) Tachometer (7000 RPM) Fuel Level Voltmeter (10-16 VDC) Specifications: Anti-scratch glass lens 12 VDC negative ground Dual Scale - Imperial and Metric Factory P/N KTF002*Sold as a Box Set**Gauge Covers not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Box Set Series: Chesapeake White Voltage - Input Range (Volts): 12/24 V Box Set: Yes Box Dimensions: 6"H x 10"W x 21"L WT: 4.3 lbs UPC: 759266000025

Read more less

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270° dial scale and Red illumination which makes it well readable and accurate in the indication.It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30°C to +80°C and IPX7 protection class.Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.Features: Designed for NMEA 0183 Easy programing and installation Technical Specifications: Operating Voltage - 8 to 32 V Protection Class - IP6K7 Illumination - Red LED Dial - Black w/graphics Pointer - Red Illuminated Lens - Plastic Double Lens (anti-reflective) Operating Temp. - -40°C to 115°C Connector - Molex MX150 - 12 pin In the Box: Gauge  Wire Harness Mounting Spinlock Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 8-32v Series: OceanLink Gauge Type: Rudder Angle Gauge Size: 3-3/8" Box Set: No Box Dimensions: 4"H x 6"W x 6"L WT: 0.65 lbs UPC: 7640178729452

Read more less

52MM (2-1/16") ViewLine Oil Pressure Indicator 0 to 150 PSI - Black Dial & Round BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 12 - 24 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 2-1/16" Gauge Type: Oil Pressure Series: ViewLine Voltage - Input Range (Volts): 12/24 V Box Dimensions: 4"H x 5"W x 5"L WT: 0.45 lbs UPC: 7640178727472 Owner's Manual (pdf)

Read more less

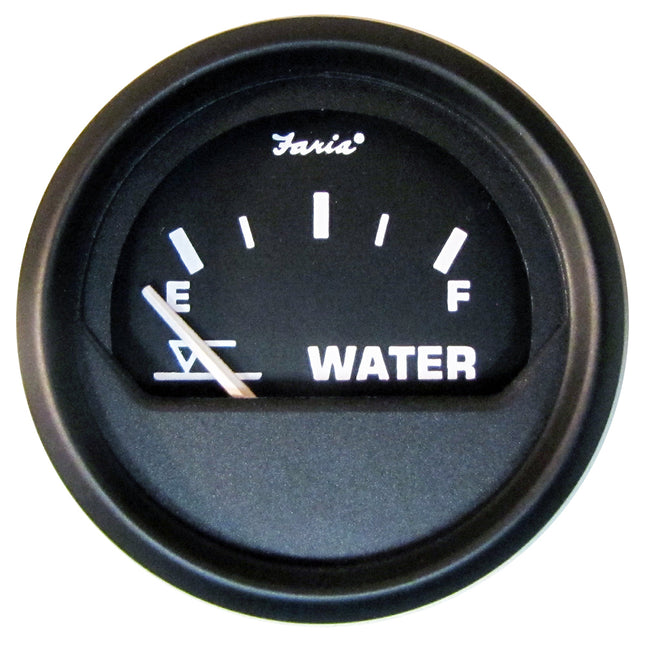

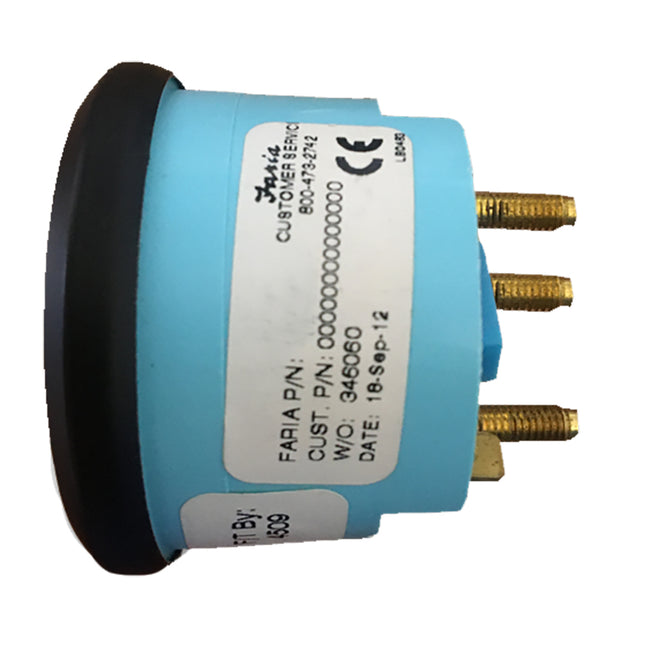

Euro Black 2" Tank Level Gauge - Potable WaterPerimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level.2" - Hole size: 2.0625" (53mm) Specifications: Anti-scratch glass lens 12 VDC negative ground Perimeter-lighted Black dial Can be adapted for 24 VDC systems Factory P/N GP9324*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Gauge Type: Water Level Gauge Size: 2" Series: Euro Black Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 3.3 lbs UPC: 759266128309

Read more less
