Marine Navigation & Instruments - Radars

HB2124 CHIRP RadarCompatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton. Features: Antenna Dimension - 21" Enclosed Dome Antenna Type - Patch Array Peak Power Output - 20W Transmit Frequency - 9354 to 9446 MHz Beam width (nominal) - 4.9° Horizontal and 20° Vertical Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts) Networking - Ethernet Maximum Range Scale - from 1/16 to 24 nautical miles Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W Duplexer - Circulator Pulse Widths @ 3 dB - 40 ns to 14.7µs CHIRP Lengths - 400 ns to 20µs CHIRP Bandwidth - Up to 32 MHz IF Bandwidth - 26 MHz Noise - Less than 4 dB Polarization - Horizontal Waterproofing - IPX6 Weight - 12.3 lbs (5.6 kg) Compatibility Networking HELIX models and all ONIX models Specifications: Array Size (Inches): 21" Box Dimensions: 12"H x 24"W x 24"L WT: 21.2 lbs UPC: 082324050169 Owner's Manual (pdf)

Read more less

Voltage Converter UnitGarmin Radar Voltage Converter Module Box for GMR™ 404, 406, 604 and 606 Open Array radars.Compatible Devices: GMR™ 404 GMR™ 406 GMR™ 604 GMR™ 606 In the Box: Voltage Converter 18" Input cable WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Cyclone Pro Radar 110W with 6' Open Array & 15M CablesSOLID-STATE OPEN ARRAY RADARThe ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence. Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology.  Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.CUTTING EDGE DESIGN Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation THE ULTIMATE SITUATIONAL AWARENESS Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. FISHING INTELLIGENCE Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology 6' OPEN ARRAY SIZE6' option delivers superior target separation and range detectionsIn the Pedestal Box E70621: Pro Pedestal M10 Stud x4 M10 Nut x8 M10 Spring Washer x4 M10 Plain washer x4 Mounting gasket Mounting template Radar data cable 15m Power cable 15m VCM100 Cable clamp VCM100 mounting screw x2 Cable clamp mounting screw x36' Antenna Box E70630: Antenna Threaded alignment guide Washer Spring washer Nut All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility.  LightHouse Hvar 3.16 will be available in early November 2021. Specifications: Array Size (Inches): 72" Power - Output: 110w Range - Max (Miles): 96nm Box Dimensions: 2"H x 12"W x 12"L WT: 97 lbs Brochure (pdf)

Read more less

Raymarine's new HD Digital radome scanners combine the power and clarity ofHD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with C-Series Widescreen, E-Series Widescreen and G-Series Multifunction displays these radomes offer a 256-color radar display and the clearest, most lifelike radar presentation available from any radome scanner. The RD418HD and RD424HD feature the same adaptive digital receiver technology found in our open array antennas. By adjusting automatically to changing environmental and sea conditions, the HD Digital radomes provide crisp, accurate contact echoes at short ranges, as well as outstanding long range performance up to 48 nautical miles. Rain, fog and high seas are no match for the HD Digital radome. Using it's powerfulprocessor the HD Digtal radome intelligently seperates true contacts from noise and clutter. The RD418HD and RD424HD offer small boat captains all of the same capabilities usually reserved for larger capacity boats.FEATURESAdaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture New high speed (48rpm) target tracking Fast digital receiver processor 256 color multi-level display with selectable color palettes New Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish Automatic harbor, coastal, offshore and buoy operating modes Dual-range mode allows you to monitor both long and short ranges simultaneously with a single scanner and display Specifications: Array Size (Inches): 18" Power - Output: 4kW Range - Max (Miles): 48nm Box Dimensions: 13"H x 24"W x 25"L WT: 25 lbs UPC: 091975005121 Owner's Manual (pdf)

Read more less

FR-12 Color LCD Marine Radar Display - 12"The FR-12 12.1" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™, and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.Compatible with Furuno’s powerful antenna line-upThe FR-12 is compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size, and antenna type and size based on what you want to accomplish, you can build the Radar that best meets your needs. Compatible DRS antennas:Radome type: Model DRS2D-NXT Model DRS4D-NXT Model DRS4DL+Open Array type: Model DRS6A-NXT Model DRS12A-NXT Model DRS25A-NXT Model DRS6A X-Class Model DRS12A X-Class Model DRS25A X-Class Risk Visualizer™ Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.Fast Target Tracking™Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector. Target Analyzer™Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.Echo AverageEcho Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.Radar overlay on charts/Share points and linesThe FR-12 can show Radar echoes overlaid on MapMedia MM3D charts. Additionally, when connected to the GP-3700/F* via Ethernet, marks, and lines can be displayed.Specifications: Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas) Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT) Display Unit:  12.1-inch color LCD Display Mode: Head-up, Course-up, North-up, True motion, Stern-up Other Mode/Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts Power Supply/Consumption Current: FR-12: 12-24 VDC: 1.7-0.9 A This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

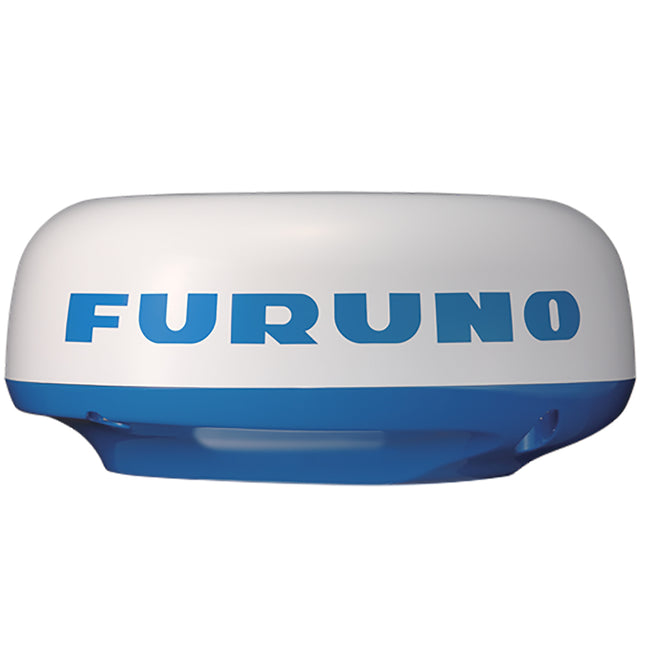

DRS4DL+ Radar Dome, 4kw, 19" 36NMThe DRS4DL+ is a , 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.The DRS4DL+ spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.Fast Target Tracking (TT) / ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple. *heading sensor requiredFeatures: Compact 19" 4kW / 24 RPM / 36NM UHD Radome 5.2° horizontal / 25° vertical beamwidth Ultra-High Definition (UHD) Digital Radar delivers crystal-clear targets "Fast Target Tracking" TT / ARPA provides heading and speed for up to 10 targets (*heading sensor required) Advanced auto-adjust settings for Gain/Sea Clutter/Rain Clutter Requires signal cable optional ( see accessories) 12-24 VDC supplied by ship's mains (no PSU required) Lightweight 5.7kg/12.5lbs design Low power consumption: 23 Watt TX / 10 Watt STBY IPX6 waterproofing & -25°C to 55°C environmental rating Compatible with NavNet TZtouch (v5.01 or higher) & TZtouch2 (v5.02 or higher) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Array Size (Inches): 19" Power - Output: 4kW Range - Max (Miles): 36nm Box Dimensions: 11"H x 21"W x 21"L WT: 17.8 lbs UPC: 611679372024

Read more less

RD418HD w/10M CabletIncludes 10M Cable - A80228 18" HD Digital Radar Dome RD418HD - E92142 Raymarine's HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with a, c & e Series Multifunction displays these radomes offer a 256-color radar display and the clearest, most lifelike radar presentation available from any radome scanner. The RD418HD and RD424HD feature the same adaptive digital receiver technology found in our open array antennas. By adjusting automatically to changing environmental and sea conditions, the HD Digital radomes provide crisp, accurate contact echoes at short ranges, as well as outstanding long range performance up to 48 nautical miles. Rain, fog and high seas are no match for the HD Digital radome. Using it's powerfulprocessor the HD Digtal radome intelligently seperates true contacts from noise and clutter. The RD418HD and RD424HD offer small boat captains all of the same capabilities usually reserved for larger capacity boats.FEATURES Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture New high speed (48rpm) target tracking Fast digital receiver processor 256 color multi-level display with selectable color palettes New Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish Automatic harbor, coastal, offshore and buoy operating modes Dual-range mode allows you to monitor both long and short ranges simultaneously with a single scanner and display Specifications: Array Size (Inches): 18" Power - Output: 4kW Range - Max (Miles): 48nm Box Dimensions: 14"H x 24"W x 24"L WT: 30 lbs UPC: 723193854105

Read more less

Black Q24D Quantum 2 Doppler Radar with 10M Power & Data CablesKeep inexperienced boaters and hidden dangers at bay, even in the most congested waterways.Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes to indicate whether they are inbound or outbound.  Features: Black radome enclosure  WiFi and Ethernet  10M power and data cables are included Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats Available as a standalone scanner with power and data cable  Provides excellent short-range detection and enhanced target detail with an 18’ (6m) minimum range Simplified, fast installation, and the ability to utilize existing Raymarine scanner fixing points Once installed, Quantum 2 starts right up and immediately provides awareness Quantum 2 Black: Stay Aware With StyleOffering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel. Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in premium black housing.    Superior Collision AvoidanceRaymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision. Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.What’s In The Box: 18 in. black radome Power cable 10M (32.8 ft.) Data cable 10M (32.8 ft.) Fixing bolts with spring washers and flat washers (M8) x 4 Documentation General Specifications: Dimensions (Diameter|Height): 541.0 mm|209.5 mm Weight: 5.6 kg Supply Voltage: Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc | Maximum: 31.2 V dc Operating Voltage Range: Minimum: 10.8 V dc | Maximum: 31.2 V dc Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W Waterproofing: IPX6 Operating Temperature Range: -10°C to +55°C Storage Temperature Range: -25°C to +70°C Additional Storage Conditions: Store upright; do not block vents on the underside Humidity: Up to 95% at 35°C Maximum wind speed: 100 kts Transmitter Specifications: Type: X-band solid-state transmitter with pulse compression technology Transmit Frequency: 9354 MHz to 9446 MHz Peak Power Output: 20W Duplexer: Circulator Pulse Widths (3 dB): 40 ns to 14.7 us Chirp Lengths: 400 ns to 22 us Pulse Repetition Frequency: 920 Hz to 5900 Hz Chirp Bandwidth: Up to 32 MHz Standby Mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link – ON Antenna Specifications: Type: Patch Array Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20° Polarization: Horizontal Rotation Speed: 24 rpm nominal Receiver Specifications: IF Frequency: 26 MHz Noise Figure: Less than 4 dB Doppler Specifications: Target Tracking: Tracking of 25 simultaneous MARPA and/or ARPA targets Target Filtering: True Motion Mode identifies only those objects that are moving relative to the vessel Compatibility Specifications: Radar Type: Quantum 2 with Doppler MFD Compatibility: Axiom and Axiom Pro Perfect for: Sailboats, RIBs, and smaller powerboats Type: Solid State CHIRP Pulse Compression with Doppler target tracking Range Performance: 24NM Performance: Lightweight and easy to install. Excellent short and long-range performance. Detect targets as close as 18ft Automatic Bird Mode: No MARPA Target Tracking: Yes Radar Specifications: Transmitter Type: X-band solid-state transmitter with pulse compression technology Target Tracking: Track up to 25 simultaneous Radar targets Standby Mode: Rotation: OFF, Transmission: OFF, Wi-Fi: ON Antenna Type: Patch Array Noise: Less than 4 dB Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20° Polarization: Horizontal Duplexer: Circulator Transmit Frequency: 9354 MHz to 9446 MHz Pulse Repetition Frequency: 920 Hz to 5900 Hz CHIRP Lengths: 400 ns to 22 µs Pulse widths (3 dB)     40 ns to 14.7µs IF Frequency: 26 MHz Rotation Speed: 24 RPM Peak Power Output: 20 W Conformance:Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3Environmental Specifications: Relative Humidity: Up to 95% @ 35°C (95°F) Additional Storage Conditions: Store upright; do not block vents on the underside Waterproof Rating: IPx6 Storage Temperature: -25°C to +70°C (-13°F to 158°F) Maximum Wind Speed: 100 knots Operating Temperature: -10°C to +55°C (14°F to 131°F) Physical Specifications: Dimensions: Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in) Weight: 5.6 kg (12.35 lbs) Specifications: Array Size (Inches): 18" Power - Output: 20w Box Dimensions: 12"H x 24"W x 24"L WT: 21.85 lbs UPC: 723193852279

Read more less

Axiom+ 12 RV Chartplotter/Fishfinder with Raymarine Quantum™ Q24C Radar BundleAxiom+ 12 RV Chartplotter/Fishfinder  The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving users the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.The higher-resolution IPS displays deliver 25 percent more brightness, and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Performance Tuned: Designed for speed, responsiveness, and future expansion. Powerful quad-core processor, plus increased onboard storage for personal data and apps Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP  ClearCruise™ Augmented Reality-capable for smarter navigation decisions Smart and intuitive LightHouse 3 OS makes navigating easy Maximum Visibility: Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)  HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls  Improved viewing with LightHouse 3 color themes, including light, dark, and night mode The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, installation instructions, and the Lighthouse North America Chart. Features: IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for any style of navigating RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world. Optional transducer required.  Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High-Frequency CHIRP, and 600 Watt (50/200 kHz) sonar Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish-targeting Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short-range Marine Audio Control - Turn up the volume and control NMEA2000-compatible marine audio systems like Rockford Fosgate Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more Built-in Wi-Fi lets users stream and control Axiom from a smartphone or tablet. Users can also sync Axiom's waypoints, routes, and charts with Navionics mobile app Quantum™ Q24C Radome with Wi-Fi & Ethernet - 10M Power & 10M Data Cable IncludedRaymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.Setting a standard for compact solid-state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.Superior Radar ImagingFLIR's exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.CHIRP Pulse CompressionExcellent short-range detection and enhanced target detail with an 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.Small Target DetectionQuantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.Simplified InstallationSimple Wi-Fi connection between Quantum and any Raymarine LightHouse II-powered MFD. Quantum's small-diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminates the need to run radar cables.Energy Efficient & Lightweight DesignWeighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low-power solid-state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). They extended vessel battery life when under sail. Specifications: Array Size (Inches): 18" Cartography Brand: Navionics/C-Map Range - Max (Miles): 24nm Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 1"H x 4"W x 5"L WT: 33.9 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

Quantum™ Q24C Radome w/Wi-Fi & Ethernet - 10M Power & 10M Data Cable IncludedRaymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.Setting a standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption. Superior Radar ImagingFLIR's exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.CHIRP Pulse CompressionExcellent short-range detection and enhanced target detail with 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.Small Target DetectionQuantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.Simplified InstallationSimple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum's small diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.Energy Efficient & Lightweight DesignWeighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail. Specifications: Array Size (Inches): 18" Range - Max (Miles): 24nm Box Dimensions: 12"H x 23"W x 24"L WT: 22 lbs UPC: 723193853924

Read more less

Raymarine's new HD Digital radome scanners combine the power and clarity ofHD Digital signal processing with an ultra-compact scanner suitable for alltypes of vessels. Compatible with C-Series Widescreen, E-Series Widescreenand G-Series Multifunction displays these radomes offer a 256-color radardisplay and the clearest, most lifelike radar presentation available from any radome scanner. The RD418HD and RD424HD feature the same adaptivedigital receiver technology found in our open array antennas. By adjustingautomatically to changing environmental and sea conditions, the HD Digitalradomes provide crisp, accurate contact echoes at short ranges, as well asoutstanding long range performance up to 48 nautical miles. Rain, fog andhigh seas are no match for the HD Digital radome. Using it's powerfulprocessor the HD Digtal radome intelligently seperates true contacts fromnoise and clutter. The RD418HD and RD424HD offer small boat captains all ofthe same capabilities usually reserved for larger capacity boats.FEATURESAdaptive digital receiver automatically adjusts to changingenvironmental and sea conditions for a dramatically clearer picture New high speed (48rpm) target tracking Fast digital receiver processor 256 color multi-level display with selectable color palettes New Bird Mode automatically optimizes the receiver for detecting seabirds above schools of fish Automatic harbor, coastal, offshore and buoy operating modes Dual-range mode allows you to monitor both long and short rangessimultaneously with a single scanner and display Specifications: Array Size (Inches): 24" Power - Output: 4kW Range - Max (Miles): 48nm Box Dimensions: 13"H x 29"W x 29"L WT: 29.5 lbs UPC: 091975005138 Owner's Manual (pdf)

Read more less

Cyclone Radar 55W with 6' Open Array & 15M CablesSOLID-STATE OPEN ARRAY RADARThe ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence. Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology.  Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.CUTTING EDGE DESIGN Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options. Innovative pedestal design conceals cable connections for a cleaner installation THE ULTIMATE SITUATIONAL AWARENESS Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard. RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously. FISHING INTELLIGENCE Performance tuned for locating sea birds Enhanced Cyclone Bird Mode using CHIRP pulse compression technology 6' OPEN ARRAY SIZE6' options deliver superior target separation and range detectionsIn the Pedestal Box E70620: Pedestal M10 Stud x4 M10 Nut x8 M10 Spring Washer x4 M10 Plain washer x4 Mounting gasket Mounting template Radar data cable 15m Power cable 15m VCM100 Cable clamp VCM100 mounting screw x2 Cable clamp mounting screw x3 6' Antenna Box E70630: Antenna Threaded alignment guide Washer Spring washer Nut All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility.  LightHouse Hvar 3.16 will be available in early November 2021. Specifications: Array Size (Inches): 72" Box Dimensions: 2"H x 12"W x 12"L WT: 97 lbs

Read more less
